Description

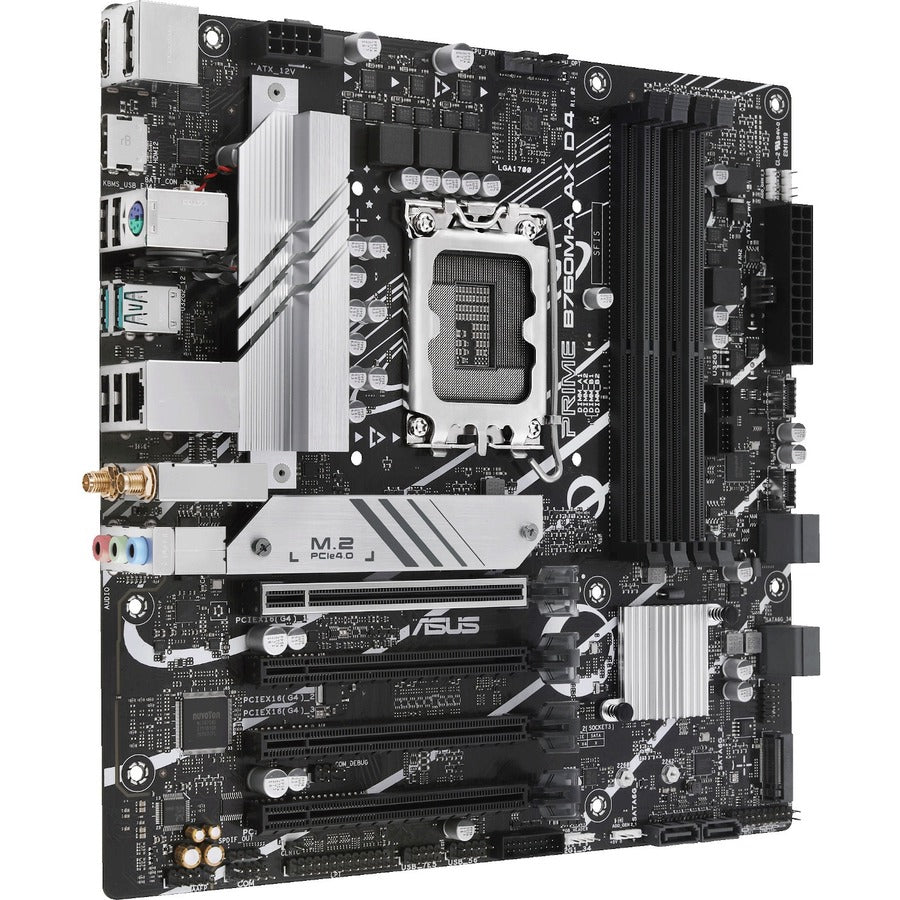

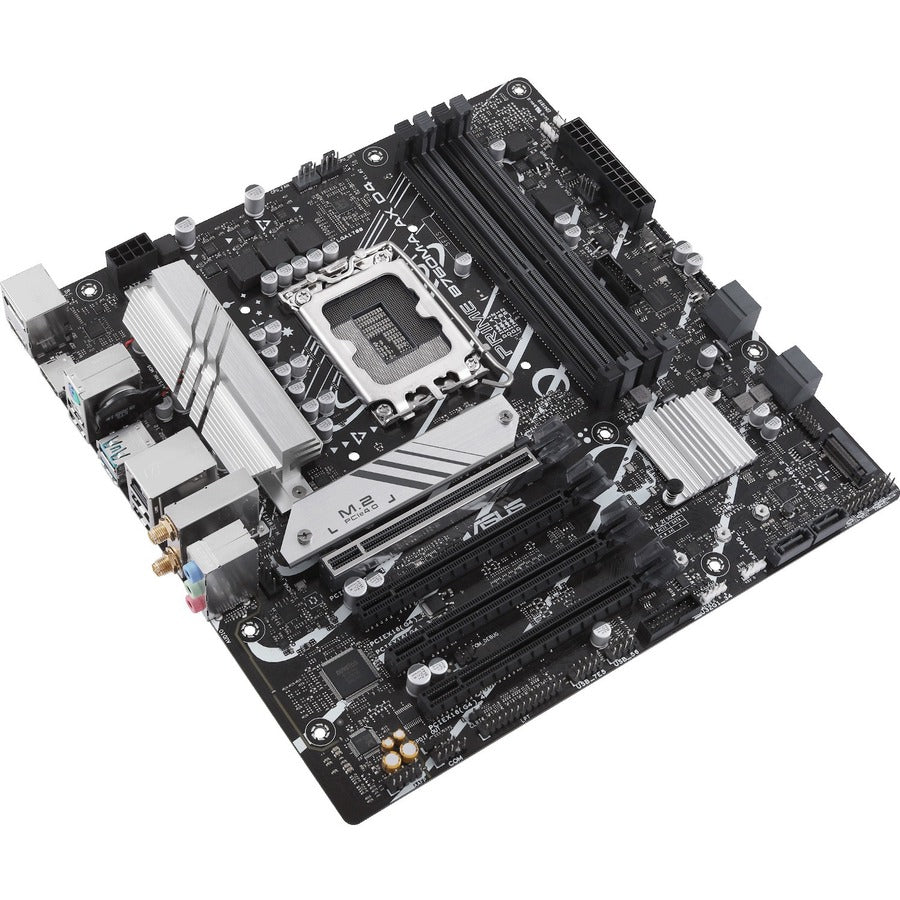

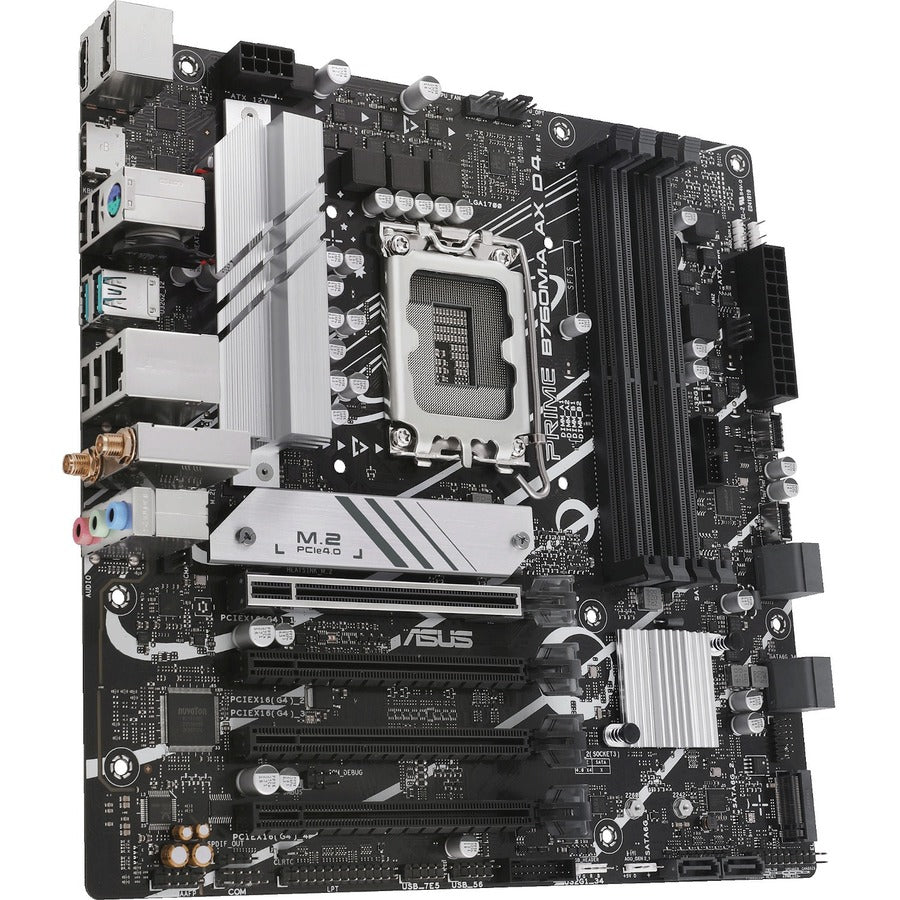

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A AX D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
- Experience responsive performance, power and adaptability with the compatible Intel Celeron processor
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- RAID supported levels provide data reliability and fault tolerance
- IEEE 802.11 a/b/g/n/ac/ax wireless standard support lets you connect to the internet and have instant access to social media, music, movies, and online games
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Micro ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
- Chipset Manufacturer : Intel
- Wireless LAN : Yes
- Number of SATA Interfaces : 6
- Bluetooth : Yes
- Processor Supported : Pentium Gold,Celeron,Core
- Memory Speed Supported : 5333 MHz,5066 MHz,5000 MHz,4800 MHz,4600 MHz,4400 MHz,4266 MHz,4000 MHz,3733 MHz,3600 MHz,3466 MHz,3400 MHz,3333 MHz,3200 MHz,3000 MHz,2933 MHz,2800 MHz,2666 MHz,2400 MHz,2133 MHz
- Number of M.2 Interfaces : 2
- Controller Type : Serial ATA/600
- Chipset Model : B760
- Maximum Memory Supported : 128 GB
- Total Number of USB Ports : 6
- S/PDIF : Yes
- RAID Supported : Yes
- Form Factor : Micro ATX
- Memory Technology : DDR4 SDRAM
- Onboard Video : CPU Dependent Video

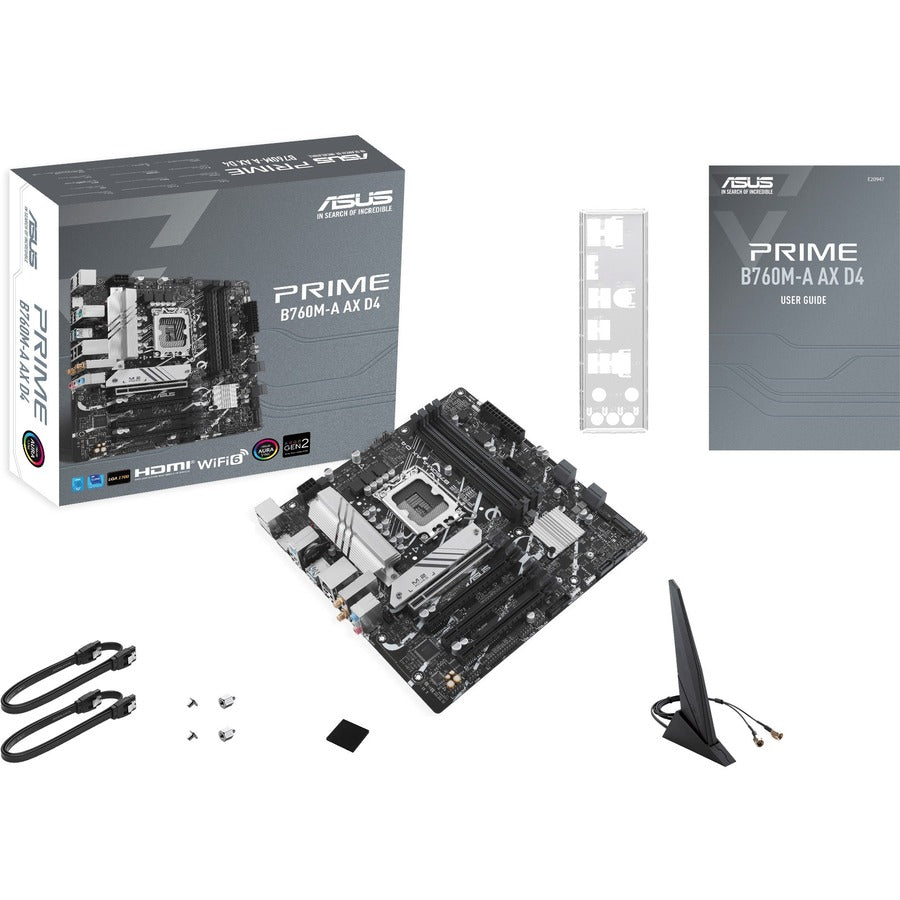

- Package Contents :

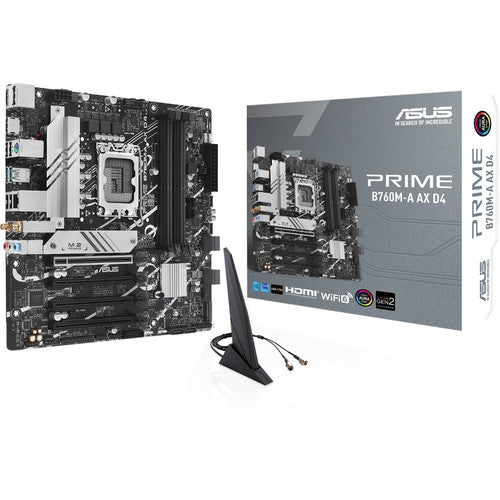

- PRIME B760M-A AX D4 Desktop Motherboard
- 2 x SATA 6Gb/s cables
- 1 x ASUS Wi-Fi moving antennas
- 1 x I/O Shield
- 1 x M.2 Rubber Package
- 1 x Screw package for M.2 SSD
- 1 x User guide
- Manufacturer Website Address : http://www.asus.com
- Audio Channels : 7.1
- Total Number of Onboard USB Ports : 10
- HDMI Version : 2.1
- DisplayPort : Yes
- Processor Socket : Socket LGA-1700
- PCI Express Standard : PCI Express 4.0
- Manufacturer : ASUS Computer International
- Product Model : B760M-A AX D4
- Bluetooth Standard : Bluetooth 5.2
- RAID Levels : 0,1,5,10
- 2.5Gigabit Ethernet : Yes
- Wireless LAN Standard : IEEE 802.11 a/b/g/n/ac/ax
- Number of Memory Slots : 4
- Processor Generation Supported : 12th Gen,13th Gen
- Number of PCI Express x16 Slots : 4
- Memory Form Factor : DIMM,UDIMM
- Total Number of PCI Express Slots : 4
- Number of USB 3.2 Gen 2 Type-A Ports : 2
- Product Type : Desktop Motherboard
- Total Processor Supported : 1
- Number of Total Expansion Slots : 4
- HDMI : Yes
- Number of Network (RJ-45) Ports : 1
- Product Line : Prime
- Gigabit Ethernet : Yes
- Number of Onboard USB 2.0 Ports : 4
