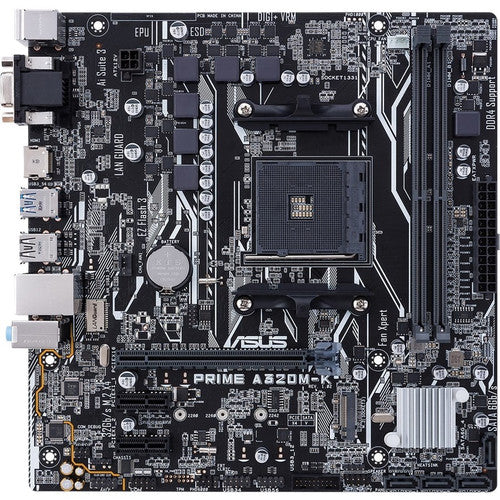

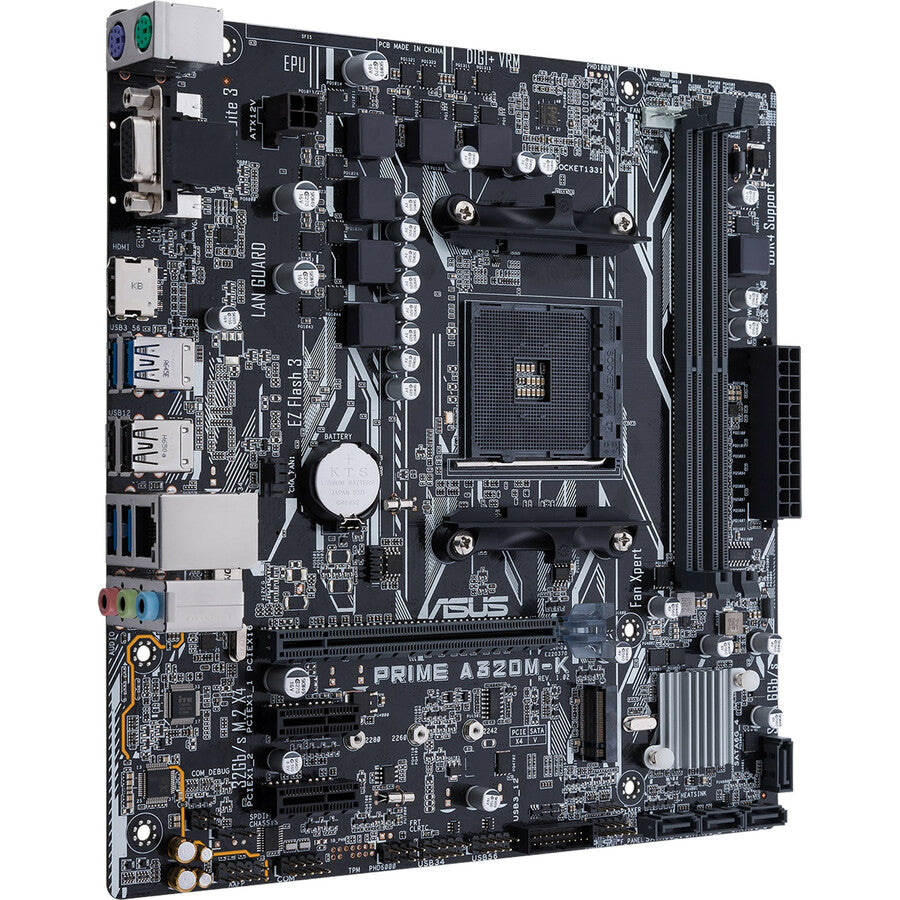

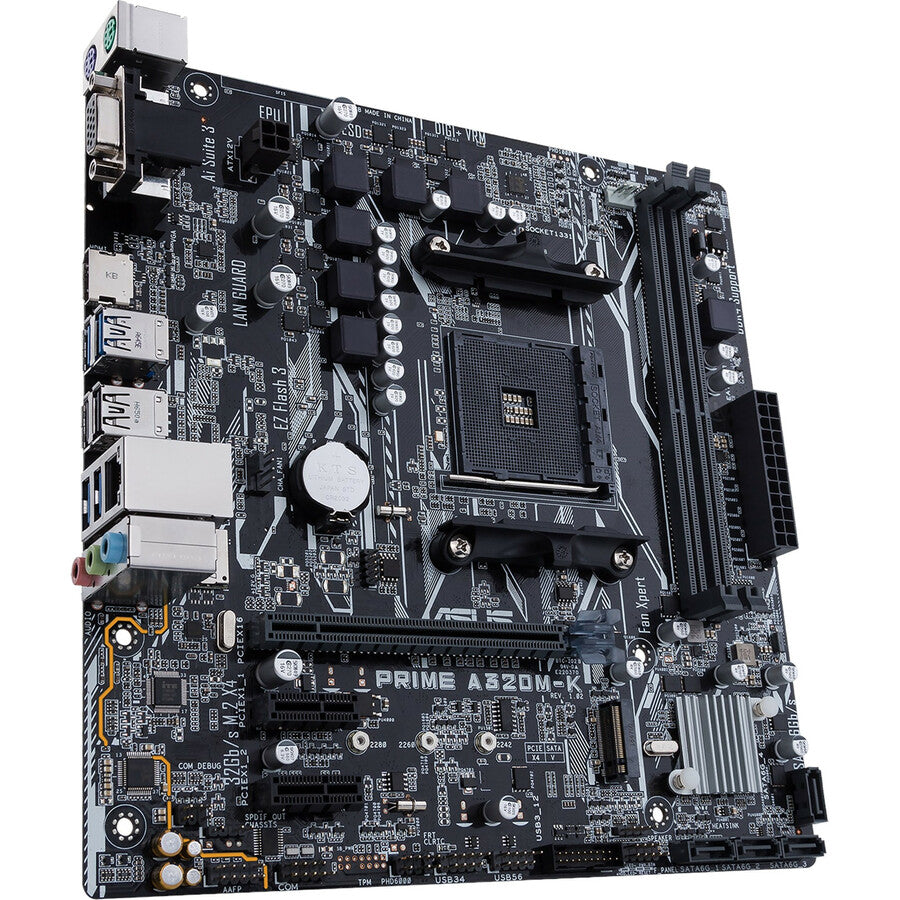

Asus Prime PRIME A320M-K Desktop Motherboard - AMD Chipset - Socket AM4 - Mini ITX PRIME A320M-K

Speed Up with Onboard M.2 Up to 32Gb/s

With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gb/s data-transfer speeds. It is the perfect choice for an operating system or application drive, making your whole PC or professional apps work as fast as possible.

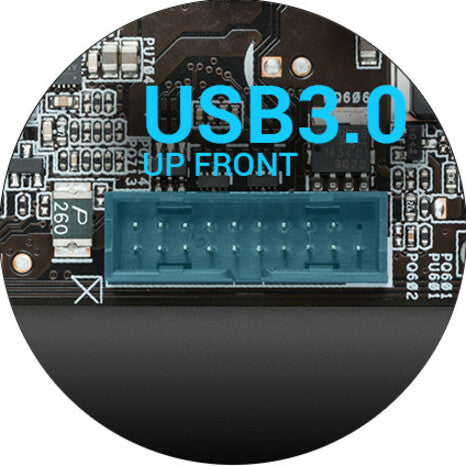

Instant front-panel USB 3.0 Experience

We've put USB 3.0 right where you need it - four super-speed ports on the front panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with instant plug-and-play connectivity, so no more back-breaking contortions in the hunt for hard-to-reach rear ports!

Aura Sync

Outshine the competition A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura Sync offers full lighting connected via the motherboard's RGB header, with a variety of functional presets for external LED strips.* And it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.

Fan Xpert 2+

Dedicated CPU and case fan controls Prime A320 Series motherboards offer comprehensive control over chassis fan, via the included Fan Xpert 2 software, Auto-tuning mode intelligently configures all parameters with a single clicks.

• Compatible AMD Athlon processor delivers excellent multi-threaded performance
• DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
• Supported 10 RAID levels provide data reliability and fault tolerance
• HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
• Have a perfect symmetry of hardware components needed in the media server or NAS box with Mini ITX form factor
• With 4 USB 2.0 ports, transfer several documents without error

• Memory Technology : DDR4 SDRAM
• DisplayPort : Yes
• Onboard S/PDIF Header : Yes
• Manufacturer Website Address : http://www.asus.com
• Number of Onboard USB 2.0 Ports : 4
• Country of Origin : China
• Chipset Manufacturer : AMD
• Maximum Memory Supported : 32 GB
• Controller Type : Serial ATA/600
• RAID Supported : Yes
• Memory Speed Supported : 3600 MHz
• Processor Supported : Ryzen
• Number of SATA Interfaces : 4
• Package Contents :
  • PRIME A320M-K Desktop Motherboard
  • 1 x IO Shield
  • 1 x M.2 Screw Package
  • 1 x User's Manual
  • 1 x Bracket for M.2 2242
  • 1 x Support DVD
  • Drivers
  • ASUS Utilities
  • ASUS EZ Update
  • Anti-virus software (OEM version)
• Product Line : Prime
• RAID Levels : 0
• Environmentally Friendly : Yes
• Number of USB 3.2 Gen 1 Ports : 2
• Number of Total Expansion Slots : 1
• Environmental Certification : RoHS
• Number of Onboard USB 3.2 Ports : 2
• Form Factor : Mini ITX
• Manufacturer : ASUS Computer International
• Total Processor Supported : 1
• Product Type : Desktop Motherboard
• Gigabit Ethernet : Yes
• Limited Warranty : 3 Year
• Product Model : PRIME A320M-K
• Number of Network (RJ-45) Ports : 1
• Number of Memory Slots : 2
• Memory Form Factor : UDIMM
• HDMI : Yes
• Total Number of PCI Express Slots : 1
• Processor Socket : Socket AM4
• Number of M.2 Interfaces : 1
• Onboard Video : CPU Dependent Video
• Number of USB 2.0 Ports : 4
• Number of PCI Express x16 Slots : 1
• Audio Channels : 7.1
• Total Number of USB Ports : 6
• Total Number of Onboard USB Ports : 6
