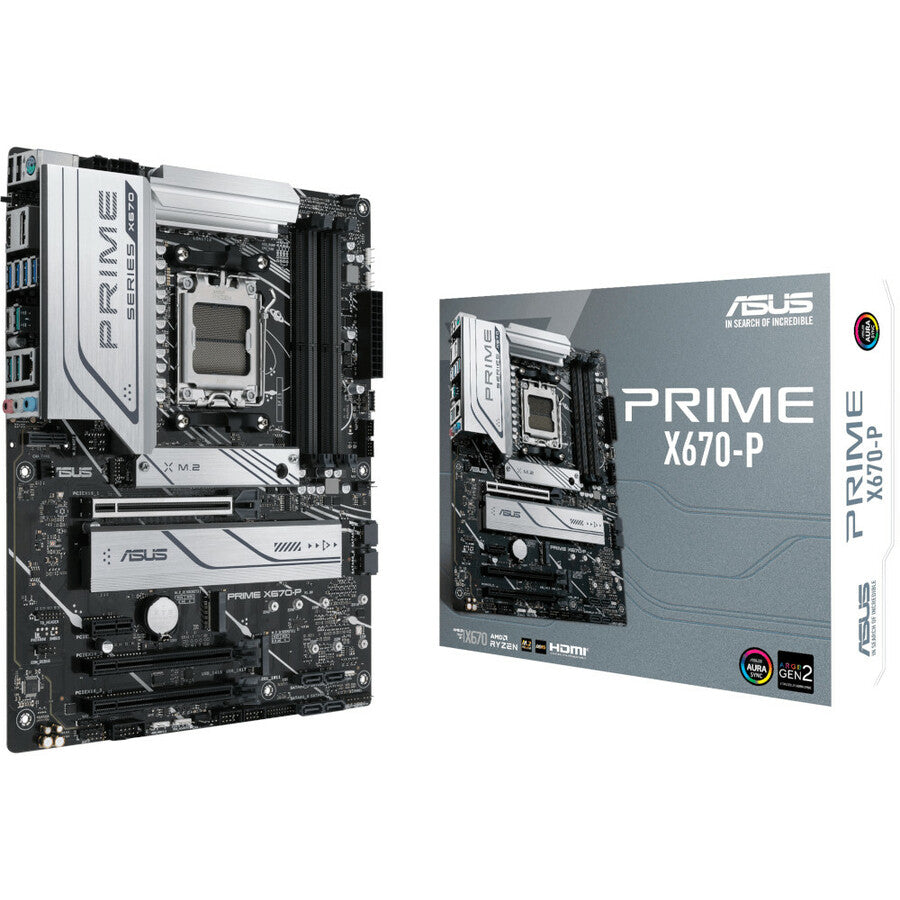

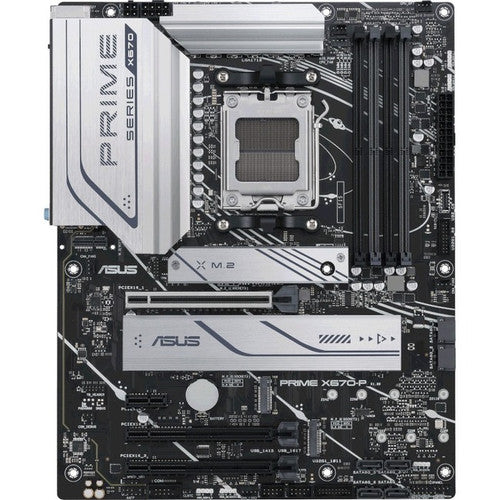

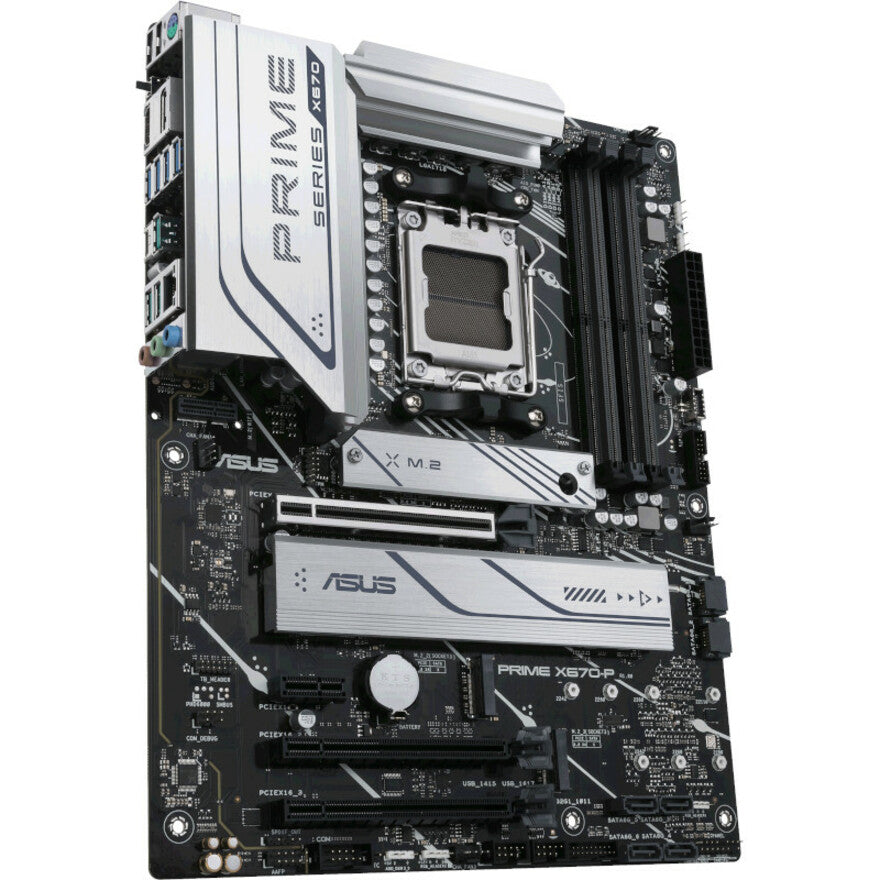

Asus Prime X670-P Desktop Motherboard - AMD X670 Chipset - Socket AM5 - ATX PRIMEX670-P

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME X670-P provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME X670 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

CPU Performance Boost

AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.

COOLING

PRIME X670 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

Heatsinks | M.2 Heatsink

An M.2 heatsink takes care of the M.2 slot, warding off throttling that can occur with M.2 storage during sustained transfers.

• Compatible Ryzen 5 processor lets you perform all your computational tasks at a swift pace
• DDR5 SDRAM slot for convenient installation of memory
• Supported 0 RAID levels provide data reliability and fault tolerance
• HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
• DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
• Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX desktop motherboard
• With 2 USB 2.0 ports, connect devices for a quick data movement

• Chipset Manufacturer : AMD
• Number of SATA Interfaces : 6
• Processor Supported : Ryzen 5,Ryzen 7,Ryzen 9
• Memory Speed Supported : 6400 MHz,6200 MHz,6000 MHz,5800 MHz,5600 MHz,5400 MHz,5200 MHz,5000 MHz,4800 MHz
• Number of M.2 Interfaces : 3
• Controller Type : Serial ATA/600
• Chipset Model : X670
• Number of USB 2.0 Ports : 2
• Maximum Memory Supported : 128 GB
• Total Number of USB Ports : 10
• RAID Supported : Yes
• Form Factor : ATX
• Memory Technology : DDR5 SDRAM
• Onboard Video : CPU Dependent Video
• Package Contents :
  • Prime X670-P Desktop Motherboard
  • 2 x SATA 6Gb/s Cables
  • 1 x I/O Shield
  • 1 x Rubber Package for M.2
  • 2 x Screw Packages for M.2 SSD
  • 1 x User Guide
• Manufacturer Website Address : http://www.asus.com
• Audio Channels : 7.1
• Total Number of Onboard USB Ports : 9
• HDMI Version : 2.1
• Number of Onboard USB 3.2 Ports : 5
• DisplayPort : Yes
• Processor Socket : Socket AM5
• PCI Express Standard : PCI Express 3.0,PCI Express 4.0
• Manufacturer : ASUS Computer International
• Product Model : X670-P
• RAID Levels : 0,1,10
• 2.5Gigabit Ethernet : Yes
• Environmental Certification : RoHS
• Environmentally Friendly : Yes
• Number of Memory Slots : 4
• Number of PCI Express x16 Slots : 3
• Memory Form Factor : DIMM,UDIMM
• Limited Warranty : 3 Year
• Total Number of PCI Express Slots : 4
• Number of PCI Express x1 Slots : 1
• Number of USB 3.2 Gen 2 Type-A Ports : 3
• Product Type : Desktop Motherboard
• Total Processor Supported : 1
• Number of Total Expansion Slots : 4
• Number of USB 3.2 Ports : 1
• HDMI : Yes
• Number of Network (RJ-45) Ports : 1
• Number of USB 3.2 Gen 1 Type-A Ports : 4
• Product Line : PRIME
• Number of Onboard USB 2.0 Ports : 4
