Description

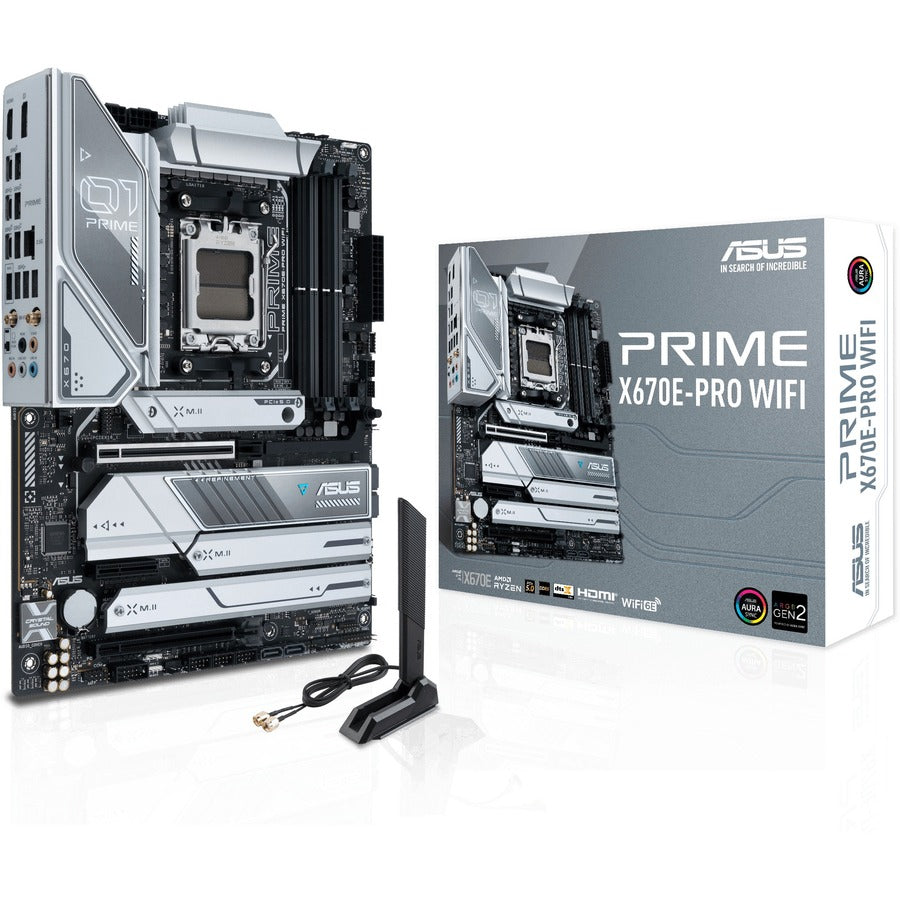

ASUS Prime series motherboards are expertly engineered to unleash the full potential of the latest AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME X670E-PRO WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
The ASUS PRIME X670E-PRO WIFI offers this all in a sleek, futuristic-looking package centered around a spaceship design aesthetic, with a silver-toned nameplate and chipset cover.
- Compatible Ryzen 7 processor lets you perform all your computational tasks at a swift pace
- DDR5 SDRAM slot for convenient installation of memory
- RAID supported levels provide data reliability and fault tolerance
- IEEE 802.11 a/b/g/n/ac/ax wireless standard support enables a hassle-free peripheral connection
- HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Features Thunderbolt I/O that lets you move data between your devices and computers with unprecedented speed
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX desktop motherboard
- Number of PCI Express x4 Slots : 1
- Chipset Manufacturer : AMD
- Wireless LAN : Yes
- Bluetooth : Yes
- Processor Supported : Ryzen 7
- Memory Speed Supported : 6400 MHz,6200 MHz,6000 MHz,5800 MHz,5600 MHz,5400 MHz,5200 MHz,5000 MHz,4800 MHz
- Controller Type : Serial ATA/600
- Chipset Model : X670
- Maximum Memory Supported : 128 GB
- Total Number of USB Ports : 10
- Number of USB 3.2 Gen 1 Ports : 4
- RAID Supported : Yes
- Form Factor : ATX
- Memory Technology : DDR5 SDRAM
- Onboard Video : CPU Dependent Video
- Package Contents :
- Prime X670E-PRO WIFI Desktop Motherboard
- 2 x SATA 6Gb/s cables
- 1 x ASUS Wi-Fi moving antenna
- 2 x Rubber packages for M.2
- 2 x Screw packages for M.2 SSD
- 1 x Q-connector
- 1 x User guide
- Manufacturer Website Address : http://www.asus.com
- Audio Channels : 7.1
- Total Number of Onboard USB Ports : 9
- Number of Onboard USB 3.2 Ports : 3
- DisplayPort : Yes
- Processor Socket : Socket AM5
- Manufacturer : ASUS Computer International
- Product Model : X670E-PRO WIFI
- RAID Levels : 0,1,10
- 2.5Gigabit Ethernet : Yes
- Wireless LAN Standard : IEEE 802.11 a/b/g/n/ac/ax
- Number of Memory Slots : 4
- Number of PCI Express x16 Slots : 2
- Memory Form Factor : DIMM,UDIMM
- Total Number of PCI Express Slots : 3
- Number of USB 3.2 Gen 2 Type-A Ports : 3
- VGA : Yes
- Product Type : Desktop Motherboard
- Total Processor Supported : 1
- Number of Total Expansion Slots : 3
- Number of USB 3.2 Ports : 10
- HDMI : Yes
- Thunderbolt : Yes
- Product Line : PRIME
- Gigabit Ethernet : Yes
- Number of Onboard USB 2.0 Ports : 6
