Description

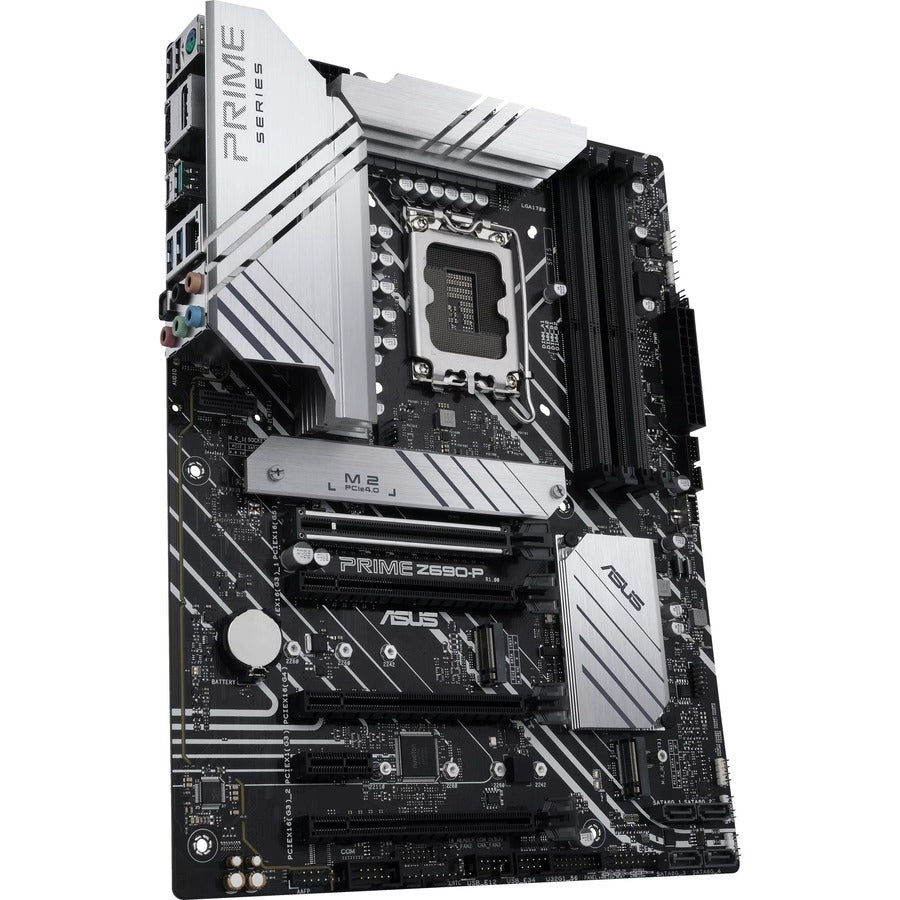

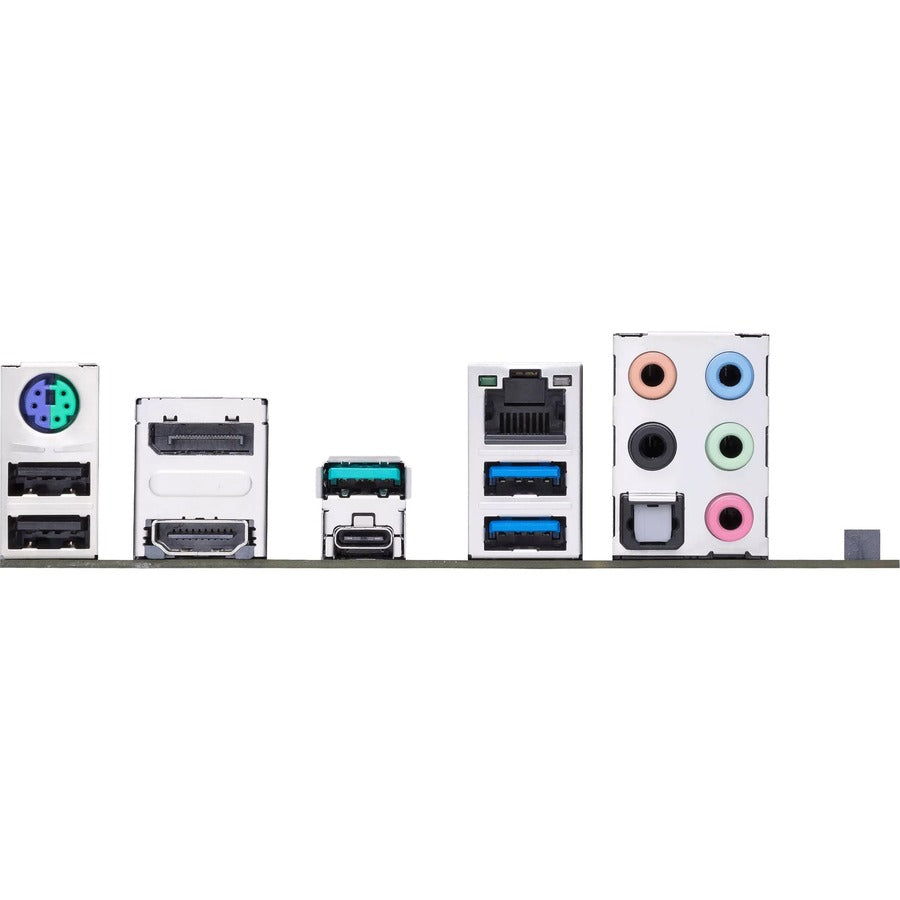

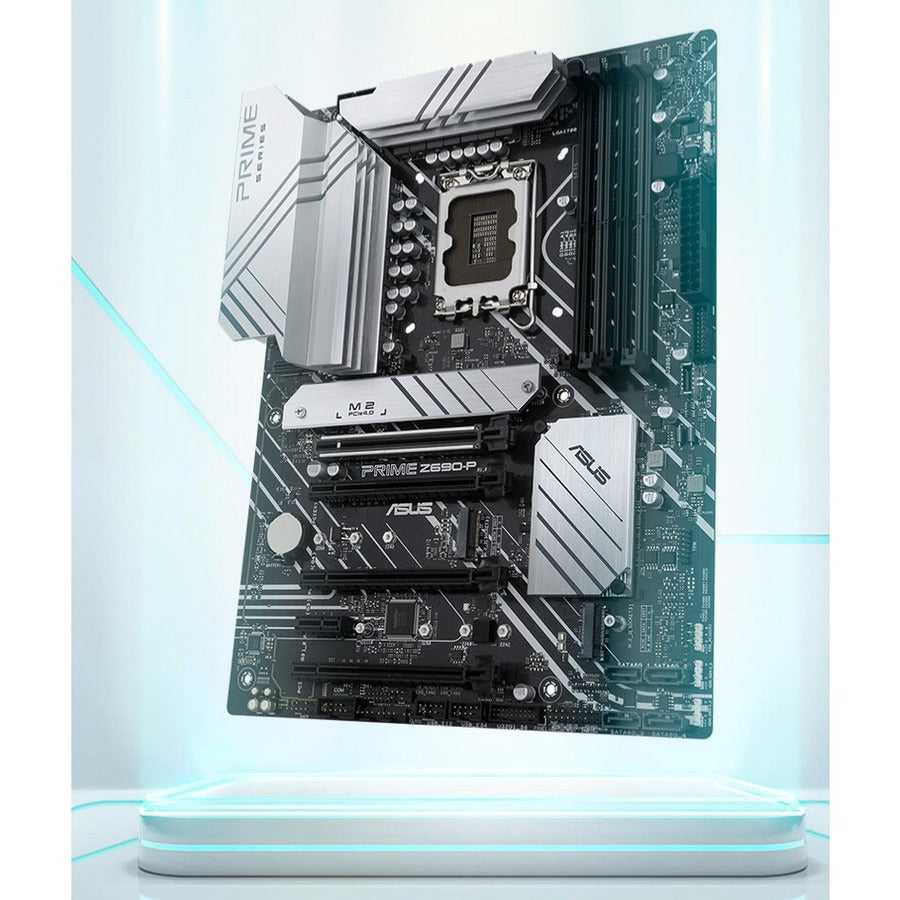

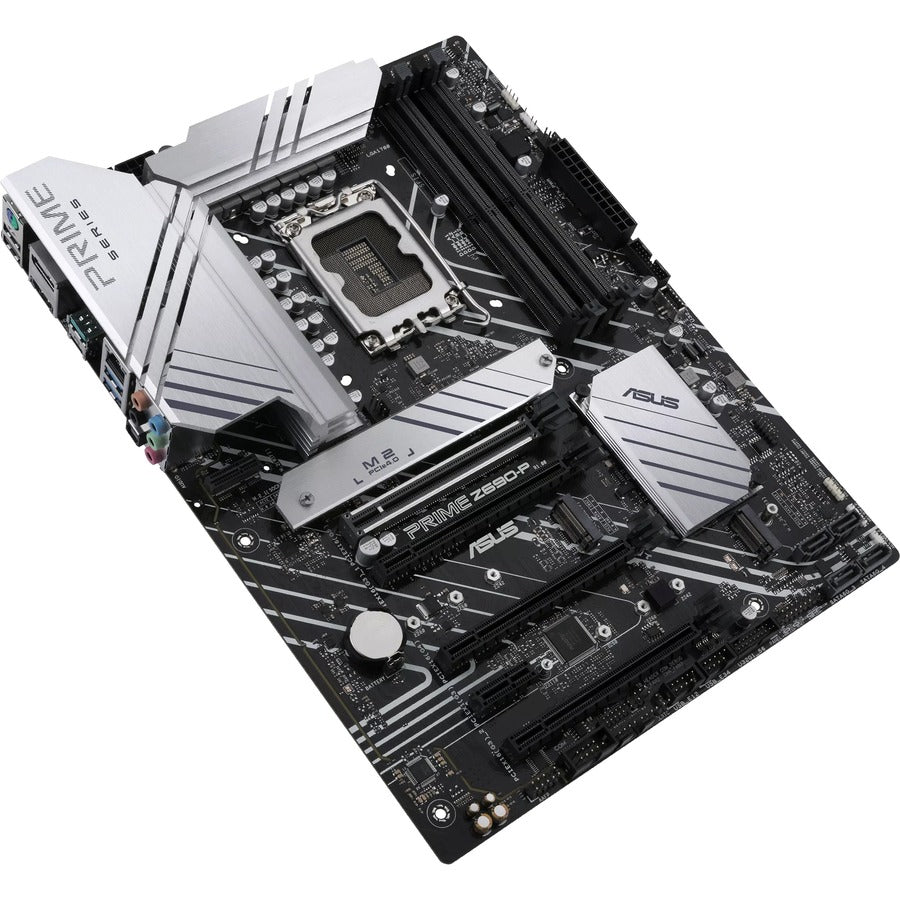

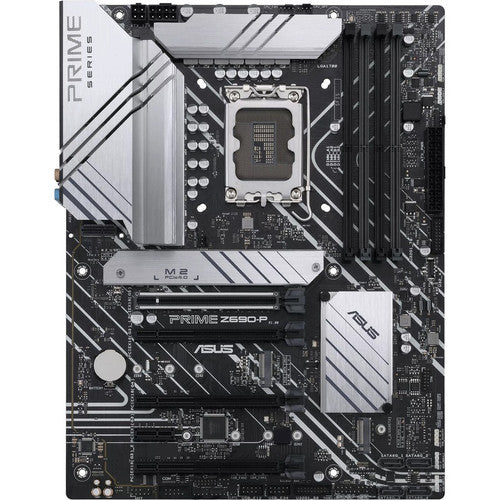

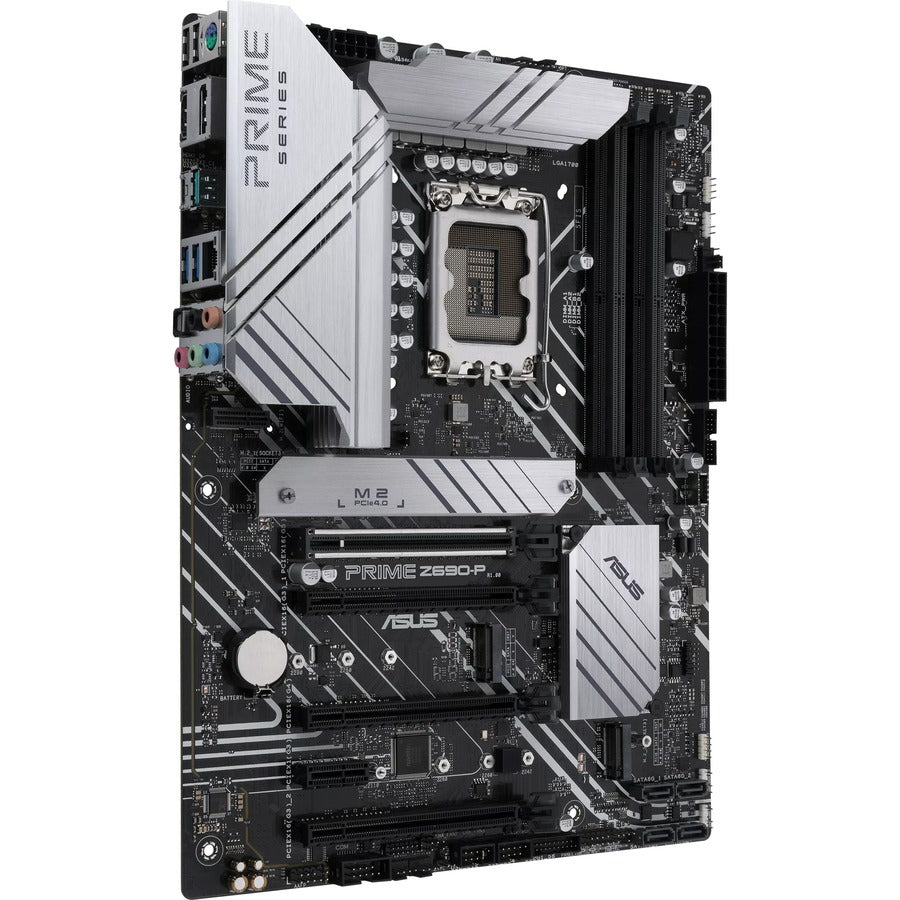

Intel® Z690 (LGA 1700) ATX motherboard with PCIe® 5.0, DDR5, three M.2 slots, 14+1 DrMOS, HDMI®, DisplayPort™, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 support and Aura Sync RGB lighting
- Intel® LGA 1700 socket: Ready for 12th gen Intel® processors
- Enhanced power solution: 14+1 DrMOS, 8+4 pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
- Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Next-gen connectivity: DDR5, PCIe® 5.0, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 header support
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z690-P provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z690 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
All-Around Energy Efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode - a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
Flexible Air- and Liquid-Cooling Controls
ASUS Fan Xpert 4 software provides comprehensive control over fans and all-in-one (AiO) cooler. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans and AiO cooler can also be controlled via the UEFI BIOS.
Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
Search Function
Quickly and easily find the option or setting you need.
ASUS User Profile
Port configuration settings between different BIOS versions or share them with friends.
COOLING
Prime Z690 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
- Compatible Pentium Gold processor lets you perform all your computational tasks at a swift pace
- DDR5 SDRAM slot for convenient installation of memory
- Supported 0 RAID levels provide data reliability and fault tolerance
- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX desktop motherboard
- With 2 USB 2.0 ports, connect devices for a quick data movement
- Chipset Manufacturer : Intel
- Number of SATA Interfaces : 4
- Processor Supported : Pentium Gold,Celeron,Core i5,Core i7,Core i9
- Memory Speed Supported : 6000 MHz,5800 MHz,5600 MHz,5400 MHz,5200 MHz,5000 MHz,4800 MHz
- Number of M.2 Interfaces : 3
- Controller Type : Serial ATA/600
- Chipset Model : Z690
- Number of USB 2.0 Ports : 2
- Maximum Memory Supported : 128 GB
- Intel Optane Memory Ready : Yes
- Total Number of USB Ports : 6
- Number of USB 3.2 Gen 1 Ports : 2
- S/PDIF : Yes
- RAID Supported : Yes
- Form Factor : ATX
- Memory Technology : DDR5 SDRAM
- Onboard Video : CPU Dependent Video

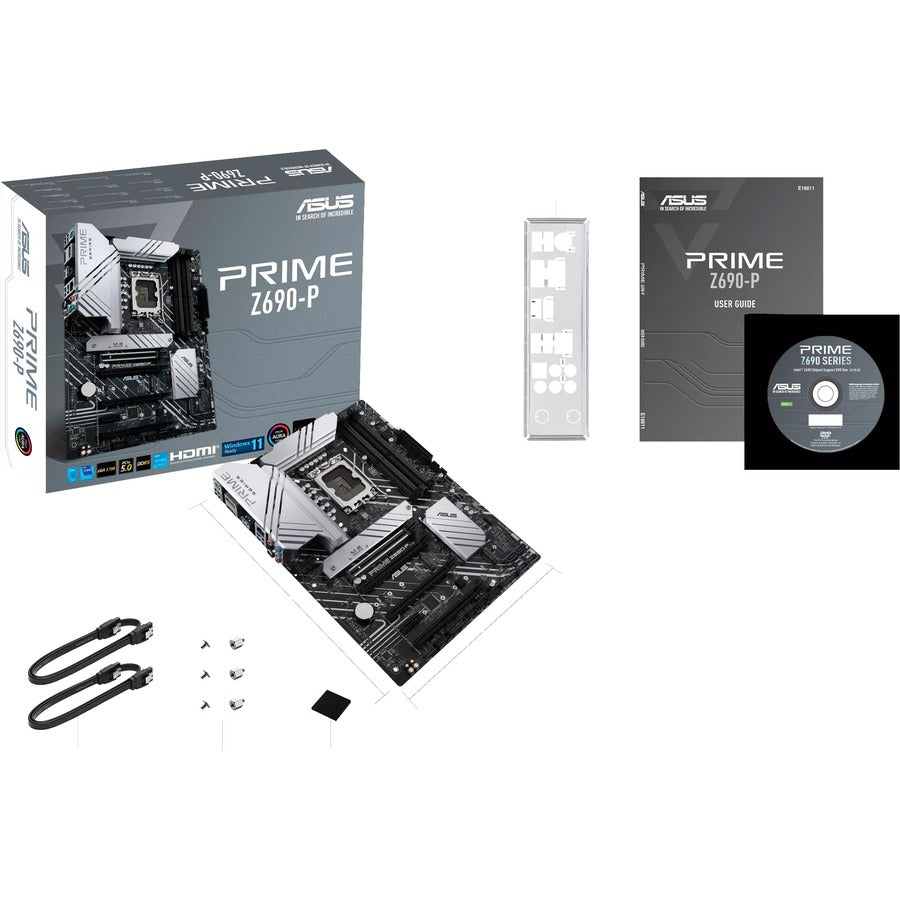

- Package Contents :
- Prime Z690-P Desktop Motherboard
- 2 x SATA 6Gb/s cables

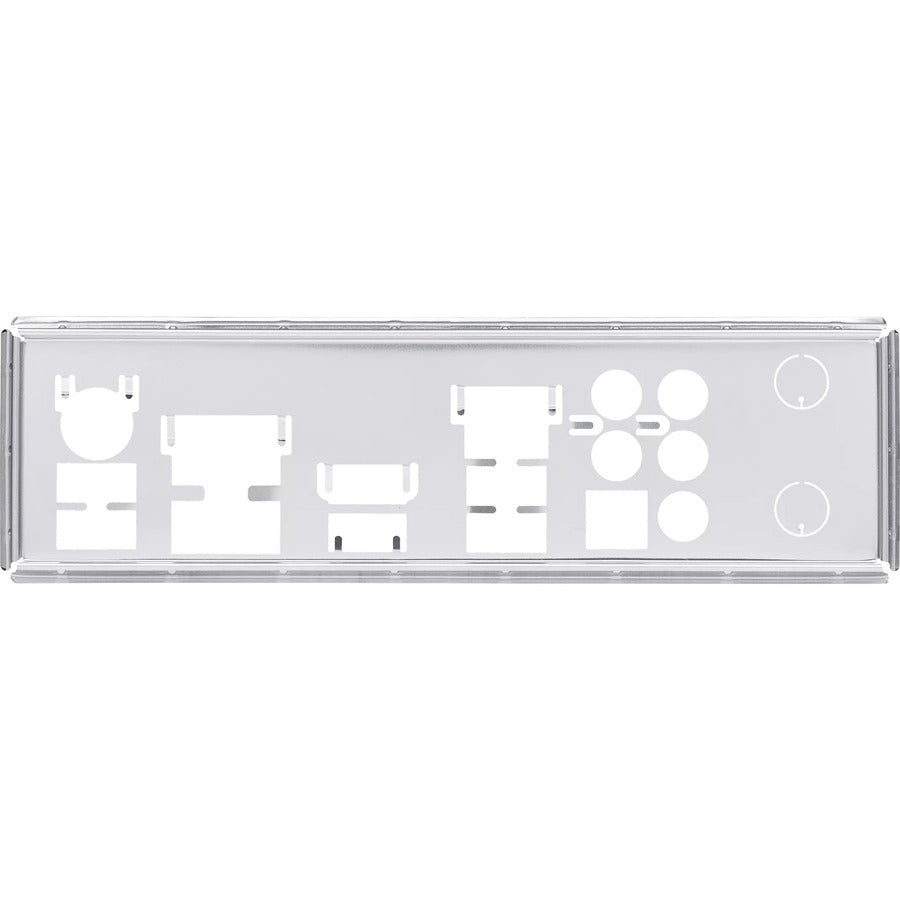

- 1 x I/O Shield
- 1 x M.2 Rubber Package
- 2 x M.2 SSD screw packages
- 1 x Support DVD
- 1 x User Guide
- Manufacturer Website Address : http://www.asus.com
- Audio Channels : 7.1
- Total Number of Onboard USB Ports : 7
- Number of Onboard USB 3.2 Ports : 3
- DisplayPort : Yes
- Processor Socket : Socket LGA-1700
- Manufacturer : ASUS Computer International
- Product Model : Z690-P
- RAID Levels : 0,1,5,10
- 2.5Gigabit Ethernet : Yes
- Environmental Certification : RoHS
- Environmentally Friendly : Yes
- Number of Memory Slots : 4
- Processor Generation Supported : 12th Gen
- Number of PCI Express x16 Slots : 4
- Memory Form Factor : DIMM,UDIMM
- Limited Warranty : 3 Year
- Total Number of PCI Express Slots : 5
- Number of PCI Express x1 Slots : 1
- Number of USB 3.2 Gen 2 Type-A Ports : 1
- Product Type : Desktop Motherboard
- Total Processor Supported : 1
- Number of Total Expansion Slots : 5
- Number of USB 3.2 Ports : 1
- HDMI : Yes
- Intel RST : Yes
- Number of Network (RJ-45) Ports : 1
- Product Line : PRIME
- Number of Onboard USB 2.0 Ports : 4
