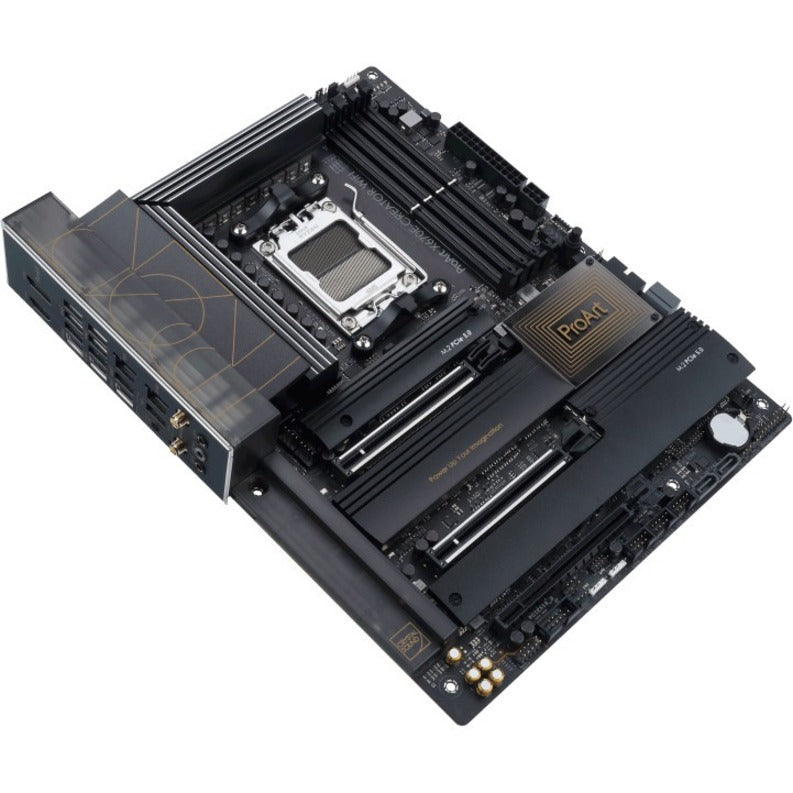

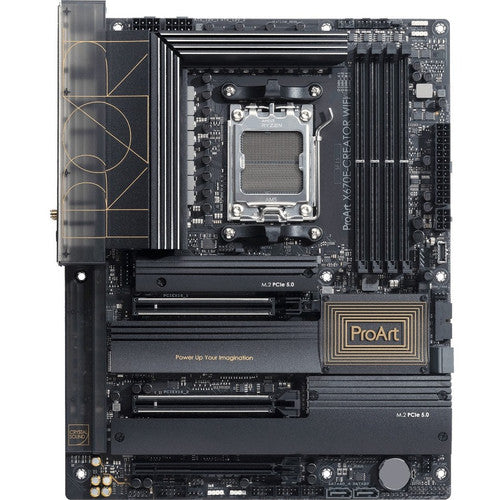

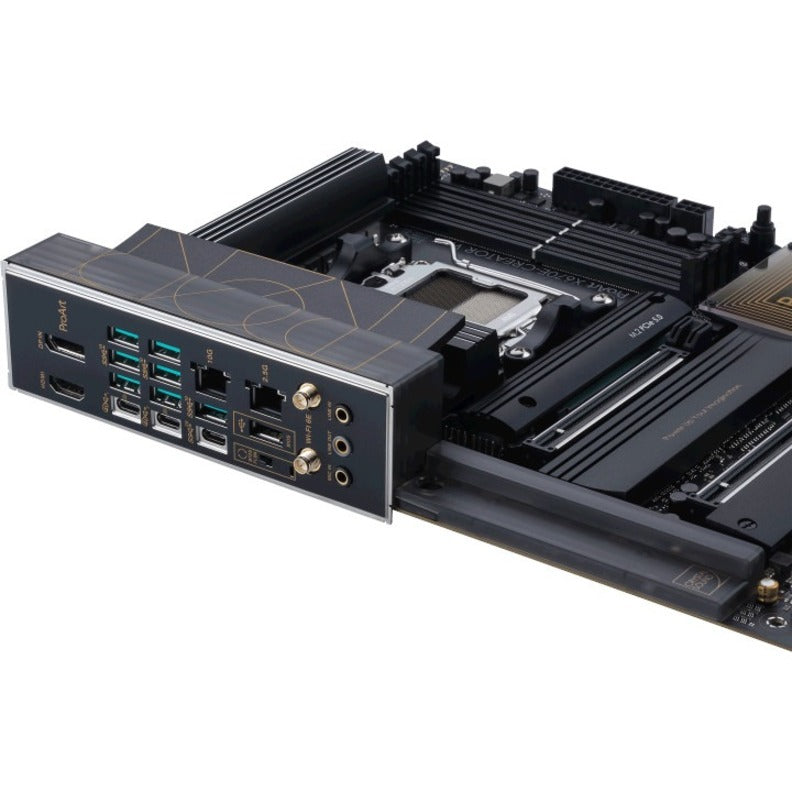

Asus ProArt X670E-CREATOR WIFI Desktop Motherboard - AMD X670 Chipset - Socket AM5 - ATX PROART X670E-CREATOR WIFI

The ProArt X670E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen™ 7000 Series processors with 16+2 team power stages, DDR5 and PCIe 5.0 and lightning-fast connectivity including USB4®, 10 Gb and 2.5 Gb Ethernet, plus WiFi 6E.

It manifests a professional, elegant and precise vision for content creators of all kinds with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.

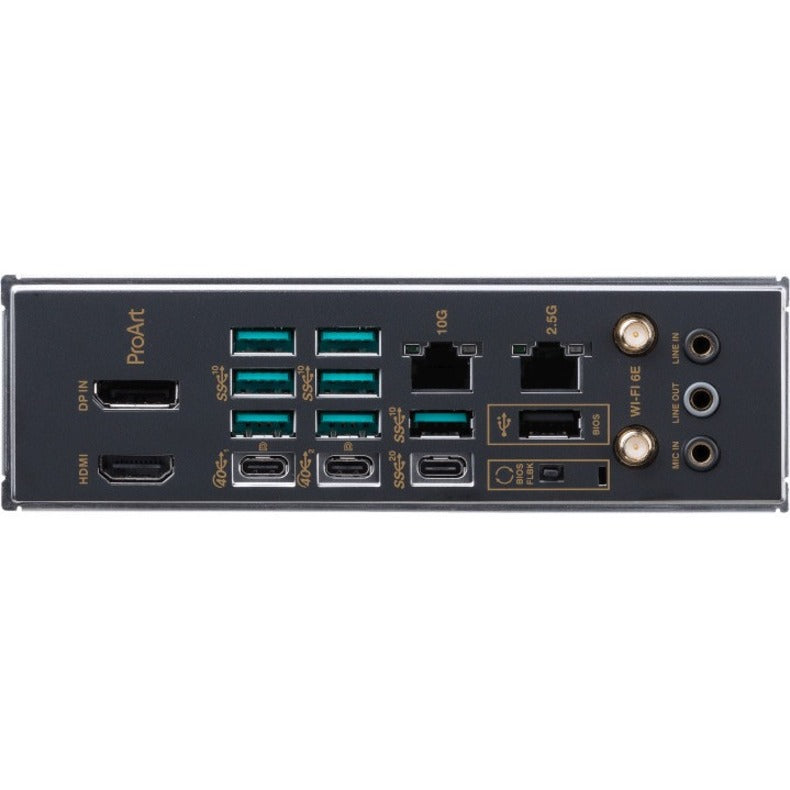

All you need for maximum productivity | Dual USB4® connectivity

Get immersed in your creations with two USB4® ports connect to all your content creation gadgets and enable up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort-in port at the back I/O and direct the video output via the USB4® port.

Ultrafast networking | WiFi 6E

Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band, providing up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds along with improved capacity and better performance in dense wireless environments.

10 Gb & 2.5 Gb Ethernet

Dual Ethernet ports provide fast data transfers simultaneously for 2.5 Gb internet streaming or uploading and 10 Gb for local network-attached storage (NAS), allowing for improved data organization and security.

PCIe 5.0 support

Fully embracing the new standard, the ProArt X670E-Creator WiFi offers PCIe 5.0 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.

Four onboard M.2 slots

The ProArt X670E-Creator WiFi features four onboard M.2 slots, two of which are PCIe 5.0-ready to offer blistering 16 GB/s speed, while the remaining pair can still deliver massive 8 GB/s transfers through their PCIe 4.0 interfaces.

PCIe 5.0 expansion slots

Both of the x16 expansion slots have the PCIe 5.0 treatment to offer incredible speeds up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the top slot can be released easily thanks to the Q-Release button.

Quick charging your USB devices | USB 3.2 Gen 2x2 Type-C® front-panel connector with Quick Charge 4+

USB 3.2 Gen 2x2 boosts data transfers with speeds of up to 20 Gbps. This header also features Quick Charge 4+ technology that can quickly charge your pen display, tablet or mobile phone up to 60 watts by using a PCIe power supply cable plugged into the nearby 6-pin connector.

• Compatible Ryzen 5 processor lets you perform all your computational tasks at a swift pace
• DDR5 SDRAM slot for convenient installation of memory
• Enjoy the freedom of wireless connectivity and get the devices connected faster with IEEE 802.11 a/b/g/n/ac/ax wireless standard support
• HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
• Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX desktop motherboard

• Chipset Manufacturer : AMD
• Wireless LAN : Yes
• Number of SATA Interfaces : 4
• Bluetooth : Yes
• Processor Supported : Ryzen 5,Ryzen 7,Ryzen 9
• Memory Speed Supported : 6400 MHz,6200 MHz,6000 MHz,5800 MHz,5600 MHz,5400 MHz,5200 MHz,5000 MHz,4800 MHz
• Number of M.2 Interfaces : 4
• Controller Type : Serial ATA/600
• Chipset Model : X670
• Number of USB 2.0 Ports : 1
• Maximum Memory Supported : 128 GB
• Total Number of USB Ports : 11
• RAID Supported : Yes
• Form Factor : ATX
• Memory Technology : DDR5 SDRAM
• Onboard Video : CPU Dependent Video
• Package Contents :
  • ProArt X670E-CREATOR WIFI Desktop Motherboard
  • 1 x DisplayPort Cable
  • 4 x SATA 6Gb/s Cables

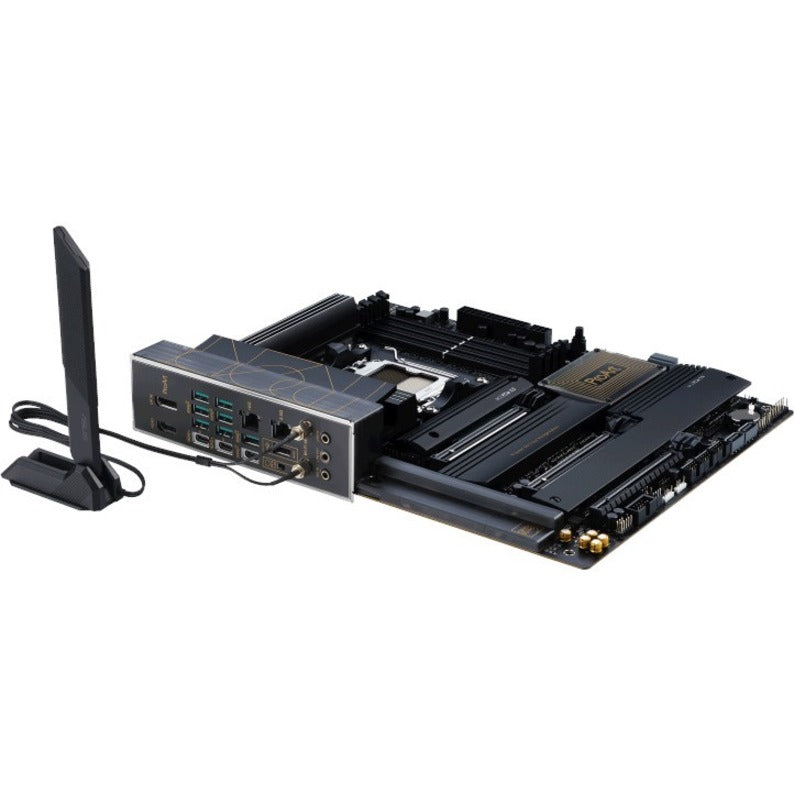

  • 1 x ASUS Wi-Fi Moving Antennas
  • 1 x Q-connector
  • 1 x M.2 Q-Latch Package for M.2 Backplate
  • 2 x Rubber Packages for M.2
  • 1 x Rubber Package for M.2 Backplate
  • 1 x Screw Packages for M.2 SSD
  • 1 x ProArt Ruler
  • 1 x ACC Express Activation Key Card
  • 1 x User Guide
• Manufacturer Website Address : http://www.asus.com
• Audio Channels : 7.1
• Total Number of Onboard USB Ports : 9
• HDMI Version : 2.1
• Number of Onboard USB 3.2 Ports : 3
• DisplayPort : Yes
• Processor Socket : Socket AM5
• PCI Express Standard : PCI Express 4.0,PCI Express 5.0
• Manufacturer : ASUS Computer International
• Product Model : X670E-CREATOR WIFI
• 10Gigabit Ethernet : Yes
• Bluetooth Standard : Bluetooth 5.2
• RAID Levels : 0,1,10
• 2.5Gigabit Ethernet : Yes
• Wireless LAN Standard : IEEE 802.11 a/b/g/n/ac/ax
• Environmental Certification : RoHS
• Environmentally Friendly : Yes
• Number of Memory Slots : 4
• Number of PCI Express x16 Slots : 3
• Memory Form Factor : DIMM,UDIMM
• Limited Warranty : 3 Year
• Total Number of PCI Express Slots : 3
• Number of USB 3.2 Gen 2 Type-A Ports : 7
• Product Type : Desktop Motherboard
• Total Processor Supported : 1
• Number of Total Expansion Slots : 3
• Number of USB 3.2 Ports : 1
• HDMI : Yes
• Number of Network (RJ-45) Ports : 2
• Product Line : ProArt
• Number of Onboard USB 2.0 Ports : 6
