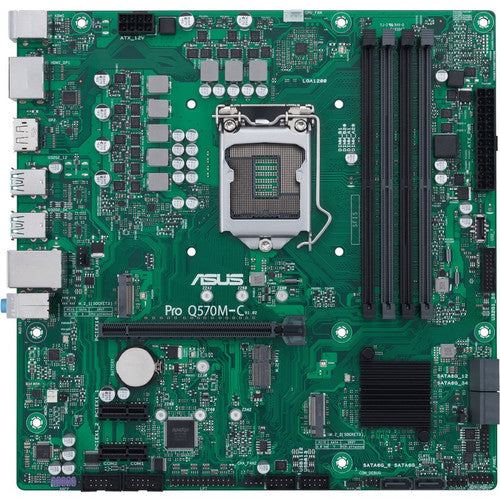

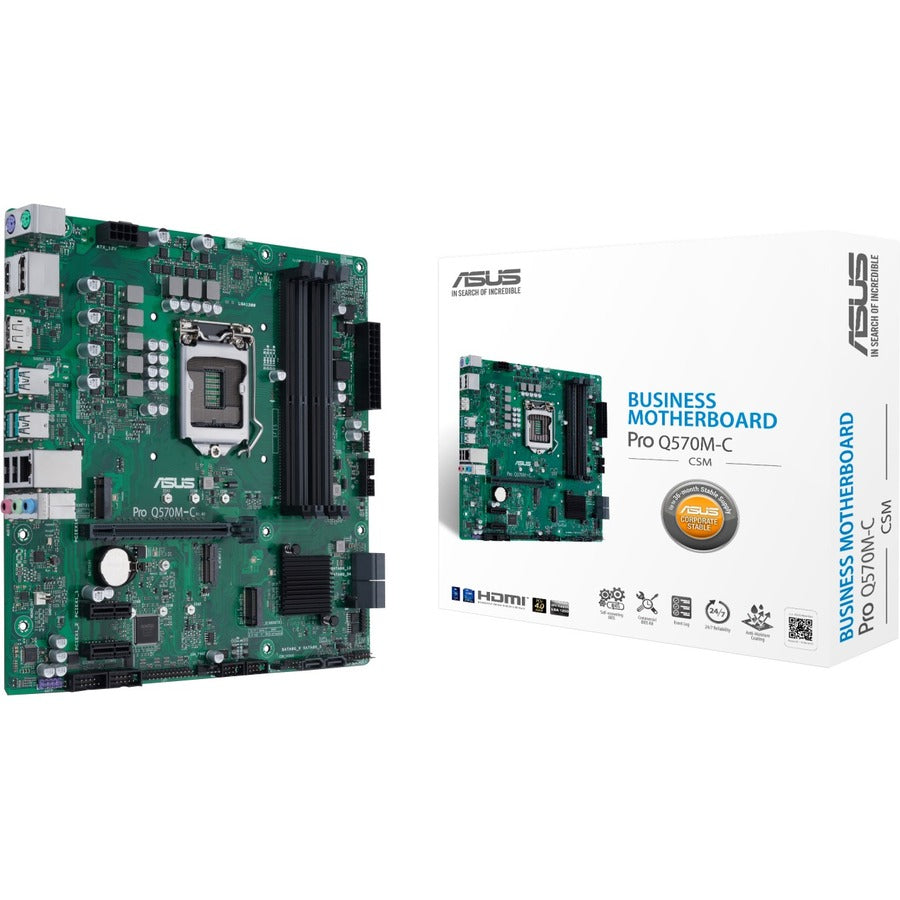

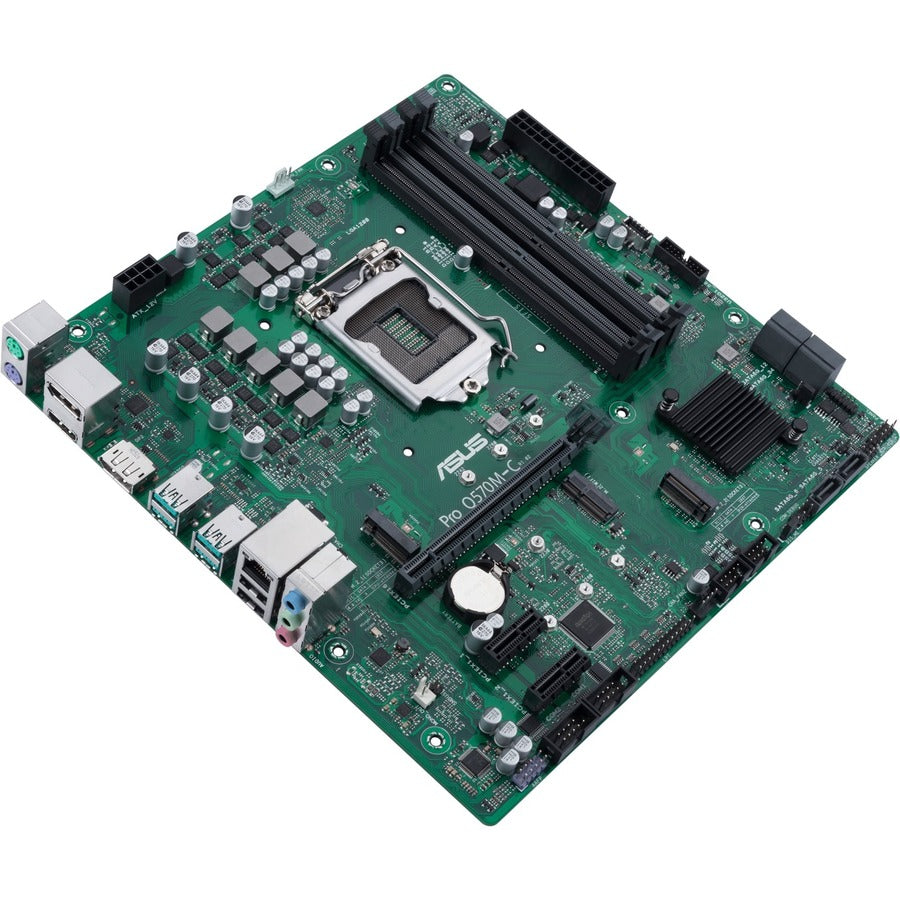

Asus Q570M-C/CSM Desktop Motherboard - Intel Chipset - Socket LGA-1200 - Intel Optane Memory Ready - Micro ATX PRO Q570M-C/CSM

Micro-ATX Q570 business motherboard with Intel® vPro support and enhanced security, reliability and manageability

• Intel® LGA 1200 socket: Ready for 11th Gen Intel® Core™ processors
• ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
• Supports SMBUS header that connects to a DASH LAN for remote IT management

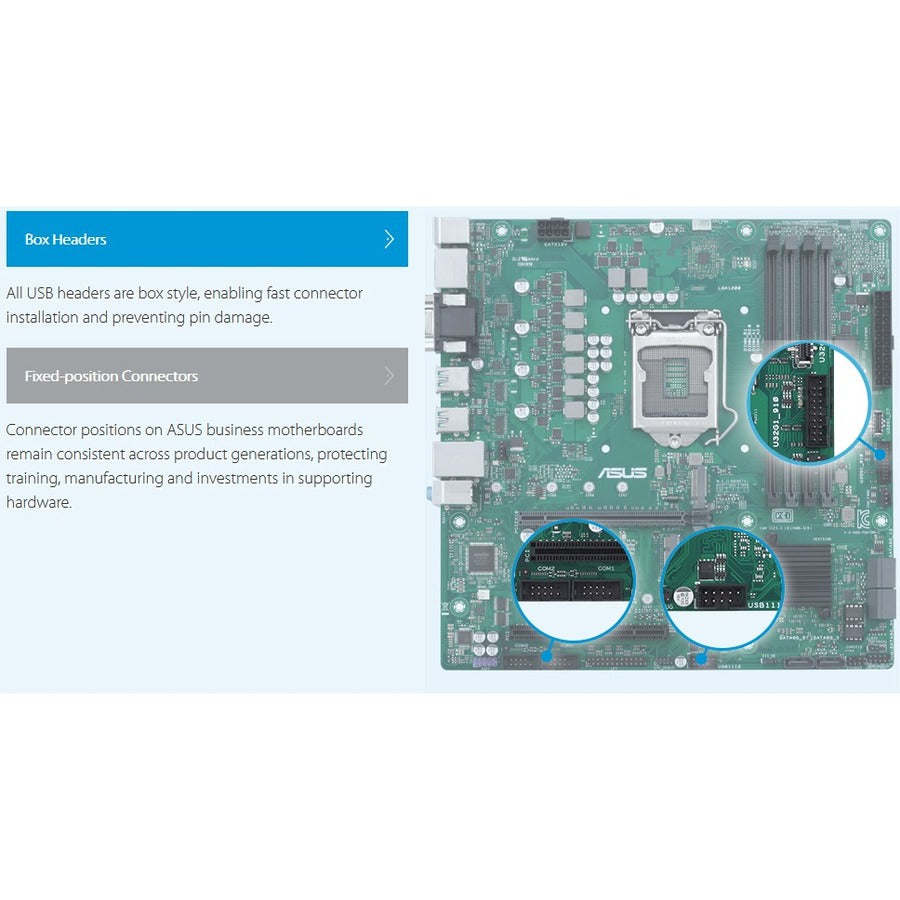

• ASUS COM debug header for more efficient troubleshooting
• Event log for capturing and managing detailed system information
• Innovative moisture-resistant coating to protect the motherboard from harsh environments
• Commercial BIOS kit for faster and more efficient customization
• ASUS Control Center Express (ACCE) for easier IT endpoint management
• Ultrafast connectivity: PCIe® 4.0, Intel® 1 Gb Ethernet and front header for USB 3.2 Gen 1 Type-C

PRO

ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.

ASUS Corporate Stable Model

ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

ASUS Control Center Express

ASUS Control Center Express is a real-time IT monitoring and management tool designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks. The intuitive dashboard enables easy, real-time hardware and software management across your organization. Purchase of a Pro motherboard entitles you to a copy of Control Center Express - a US,60

Optimize IT endpoint management

Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely

Automate IT maintenance

Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility

Securely manage all of endpoints

Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices

Internationally Certified Business Motherboard

ASUS business motherboards are enterprise proven with leading quality that exceeds industry standards. Certified by multiple international safety and environmental organizations, ASUS business motherboards provide a safe, secure and sustainable solution, making them the ideal choice for your business.

ASUS Shield | Enhances system security from bottom to top

ASUS Self-recovering BIOS

ASUS-exclusive BIOS protection technology automatically recovers the system BIOS with a verified backup in the event of an update failure, preventing the need to replace or reinstall hardware.

• Compatible Intel Core i7 processor provides lightning fast speed and peak performance, even for the toughest tasks and intensive games
• DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
• HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
• Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the Micro ATX desktop motherboard
• With 2 USB 2.0 ports, transfer several documents without error

. .

• Memory Technology : DDR4 SDRAM
• Number of USB 3.2 Gen 2 Type-A Ports : 4
• DisplayPort : Yes
• Manufacturer Website Address : http://www.asus.com
• Number of Onboard USB 2.0 Ports : 4
• Country of Origin : Switzerland
• Chipset Manufacturer : Intel
• Maximum Memory Supported : 128 GB
• Product Series : PRO
• Controller Type : Serial ATA/600
• Memory Speed Supported : 2133 MHz
• Processor Supported : Pentium Gold
• Number of SATA Interfaces : 6

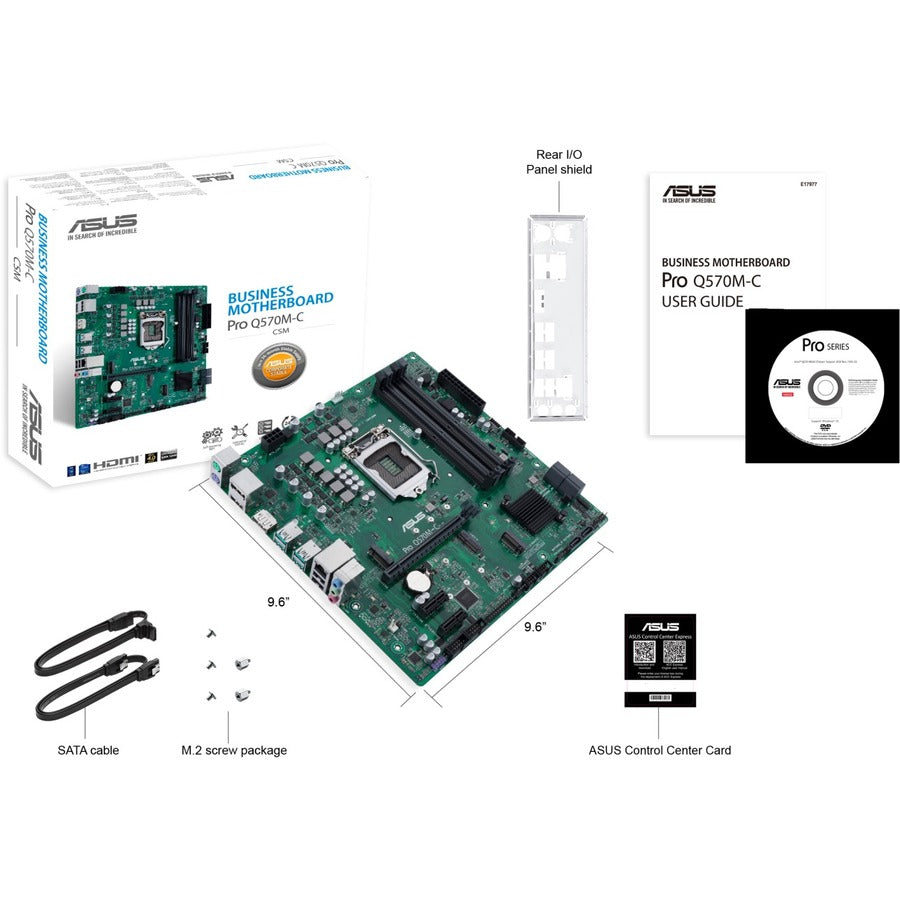

• Package Contents :
  • PRO Q570M-C/CSM Desktop Motherboard
  • 2 x SATA 6Gb/s Cables

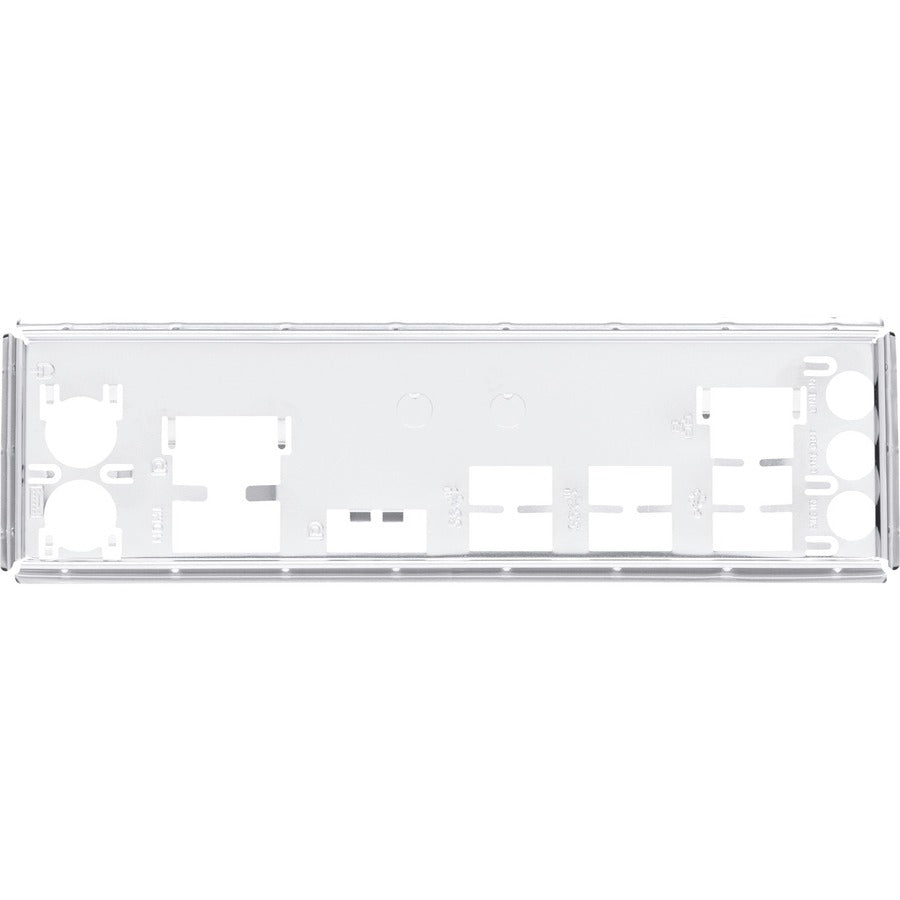

  • 1 x I/O Shield
  • 1 x M.2 SSD Screw Package
  • 1 x M.2 Key E Screw Package
  • 1 x Support DVD
  • 1 x ACC Express Activation Key Card
  • 1 x User Manual
• Intel Optane Memory Ready : Yes
• Environmentally Friendly : Yes
• Number of Total Expansion Slots : 3
• Environmental Certification : RoHS
• Number of Onboard USB 3.2 Ports : 3
• Form Factor : Micro ATX
• Number of PCI Express x1 Slots : 2
• Manufacturer : ASUS Computer International
• Total Processor Supported : 1
• Product Type : Desktop Motherboard
• Gigabit Ethernet : Yes
• Limited Warranty : 3 Year
• Product Model : Q570M-C/CSM
• Number of Network (RJ-45) Ports : 1
• Number of Memory Slots : 4
• Memory Form Factor : UDIMM
• HDMI : Yes
• Total Number of PCI Express Slots : 3
• Processor Socket : Socket LGA-1200
• Number of M.2 Interfaces : 2
• Onboard Video : CPU Dependent Video
• Number of USB 2.0 Ports : 2
• Number of PCI Express x16 Slots : 1
• Audio Channels : 7.1
• Total Number of USB Ports : 6
• Total Number of Onboard USB Ports : 7
