Description
AMD X570 mini-ITX Gaming motherboard with PCIe 4.0, Aura Sync RGB, Intel Gigabit Ethernet, Wi-Fi 6 (802.11ax), M.2 Audio Combo Card, HDMI 2.0, DisplayPort 1.4, SATA 6Gb/s, and USB 3.2 Gen2.
- AM4 socket: Ready for 2nd and 3rd Gen AMD Ryzen™ processors to maximize connectivity and speed with up to two M.2 Drives, USB 3.2 Gen 2 and AMD StoreMI
- Aura Sync RGB: ASUS-exclusive Aura Sync RGB lighting, including RGB header and addressable Gen 2 header
- Optimal Power Solution: 8+2 power stages with a ProCool II power connector, alloy chokes and durable capacitors to support multi-core processors
- Comprehensive cooling design: VRM and chipset heatsinks add mass to help absorb more heat and feature miniature fans, an embedded chipset heatpipe, an M.2 heatsink and an aluminum backplate with cyber-text pattern
- Gaming connectivity: Supports PCIe 4.0, HDMI 2.0 and DisplayPort 1.4 and features dual M.2 and USB 3.2 Type-A and Type-C connectors
- Gaming networking: Intel Gigabit Ethernet with ASUS LANGuard, Wi-Fi 6 (802.11ax) with MU-MIMO support, and gateway teaming via GameFirst V
- 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles tailor made for your rig
- Gaming audio: High-fidelity audio with SupremeFX S1220A, DTS® Sound Unbound and Sonic Studio III to draw you deeper into the action
- Gamer's Guardian: ASUS SafeSlot and premium components for maximum endurance.

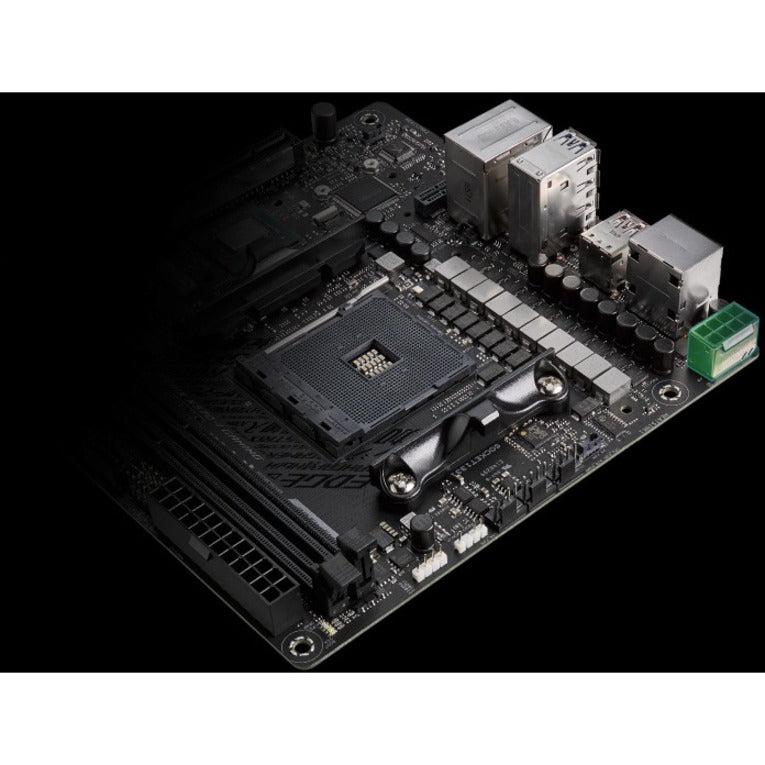

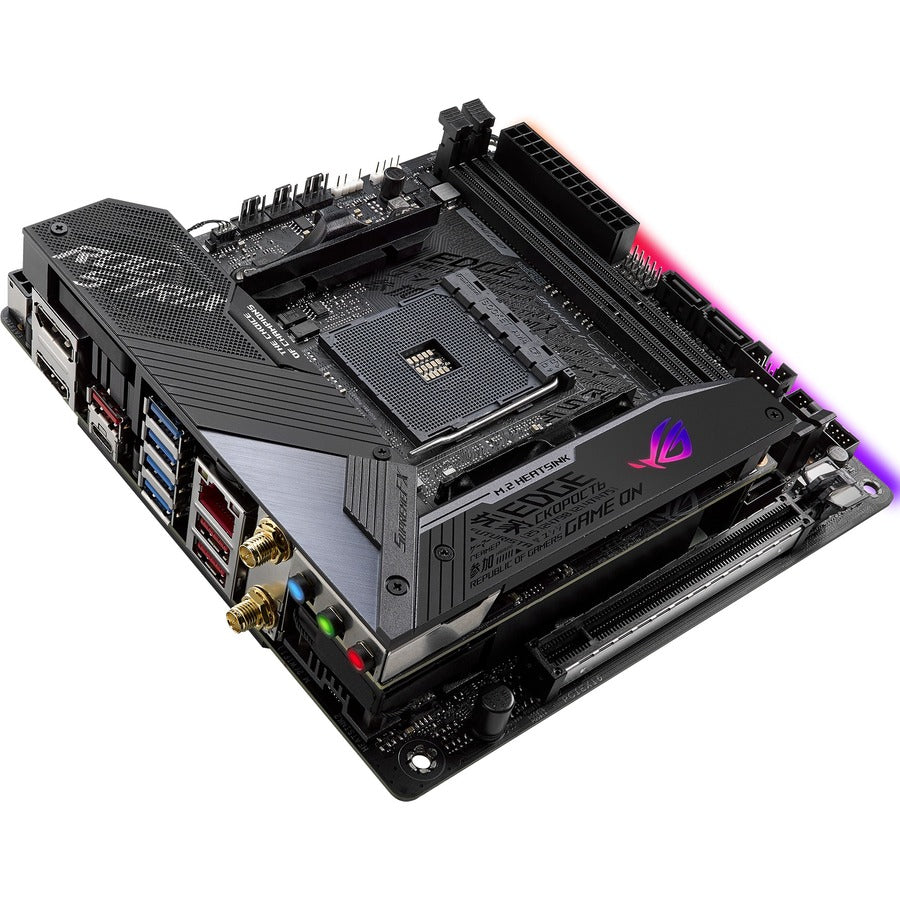

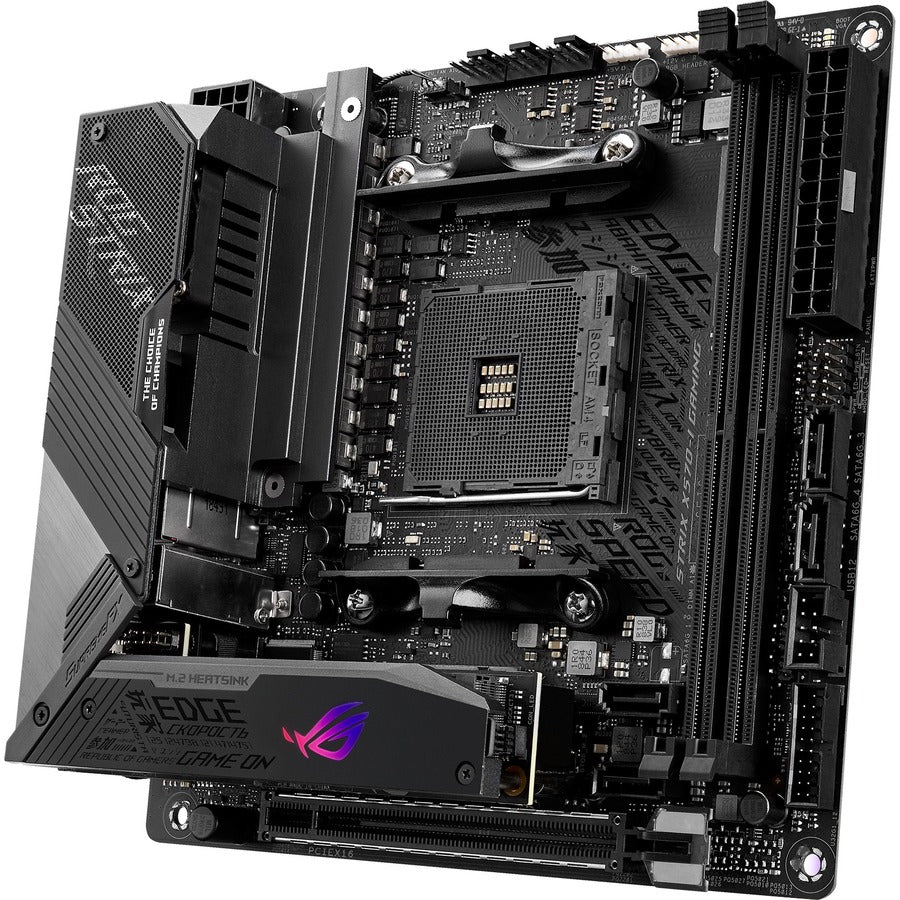

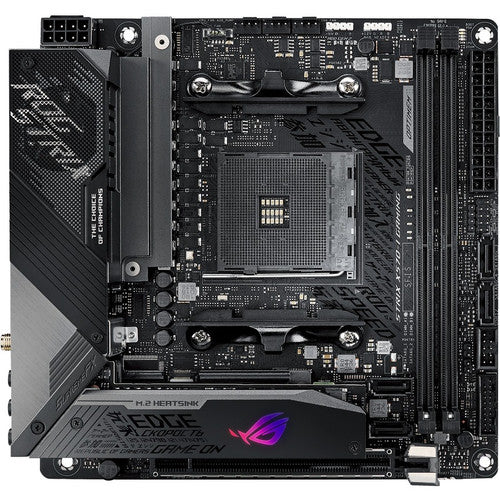

ROG Strix X570-I Gaming rises above the rest to deliver incredible power and undeniable style for your small form factor gaming build. With support for the latest AMD Ryzen processors, ROG Strix X570-I Gaming is primed to deliver maximum gaming performance, while its revolutionary miniature active cooling design efficiently works to keep temperatures down. Coupled with HDMI 2.0 and DisplayPort 1.4 for ultra-high-resolution video output, ultrafast next-generation wireless networking and PCIe 4.0 connectivity, ROG Strix X570-I Gaming is a compact gaming powerhouse.

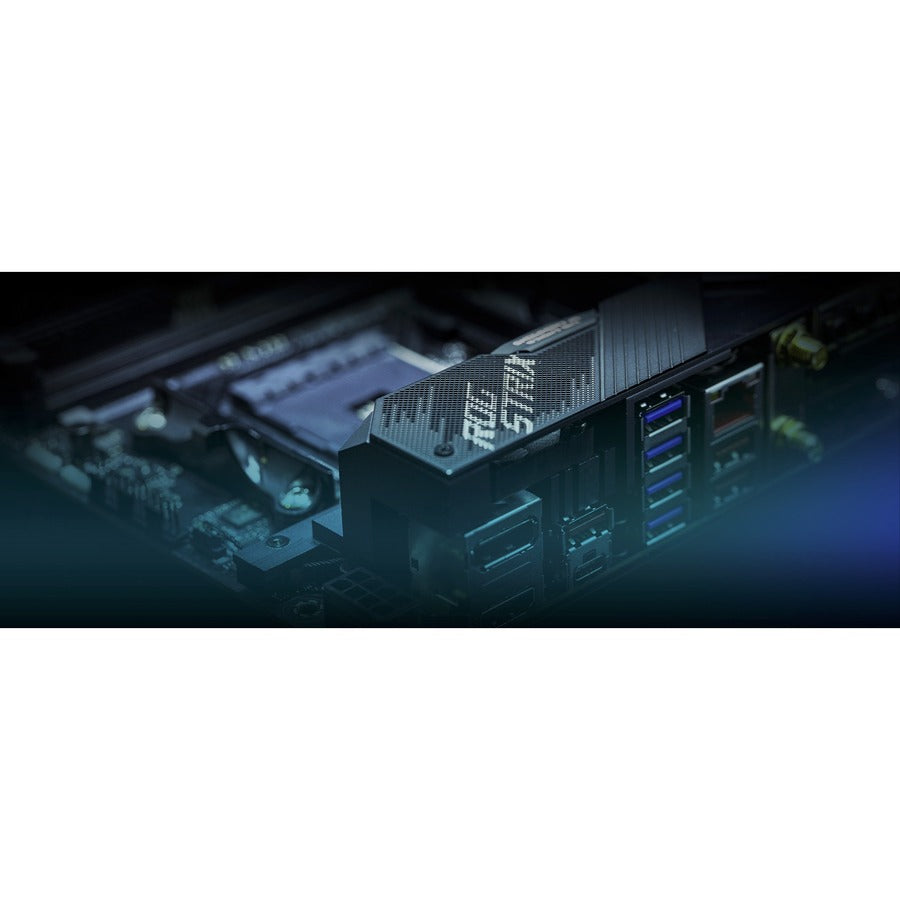

Designed to be Chilled
Effective cooling is extremely important, so ROG Strix X570-I Gaming provides comprehensive cooling features that enable higher performance at lower temperatures.
SOLID HARDWARE SPECS
With upgraded power delivery to fuel high-core-count Ryzen CPUs, plus faster storage and networking, ROG Strix X570-I Gaming provides all the essentials you need to harness the full potential of components in your build for top-tier gaming performance.
- Compatible Ryzen 9 PRO processor lets you perform all your computational tasks at a swift pace
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- Supported 0 RAID levels provide data reliability and fault tolerance
- Supports AMD Radeon controller to ensure amazing graphics output
- Enjoy the freedom of wireless connectivity and get the devices connected faster with IEEE 802.11 a/b/g/n/ac/ax wireless standard support
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- Have a perfect symmetry of hardware components needed in the media server or NAS box with Mini ITX form factor
- Memory Technology : DDR4 SDRAM
- Bluetooth : Yes
- DisplayPort : Yes
- Manufacturer Website Address : http://www.asus.com
- Number of Onboard USB 2.0 Ports : 2
- Chipset Manufacturer : AMD
- Maximum Memory Supported : 64 GB
- Controller Type : Serial ATA/600
- Wireless LAN : Yes
- Graphics Controller Manufacturer : AMD
- RAID Supported : Yes
- Memory Speed Supported : 3466 MHz
- Processor Supported : Athlon PRO
- Number of SATA Interfaces : 4
- Product Line : Strix
- Wireless LAN Standard : IEEE 802.11 a/b/g/n/ac/ax
- RAID Levels : 10
- Number of Total Expansion Slots : 1
- Graphics Controller Model : Radeon
- Number of Onboard USB 3.2 Ports : 2
- Form Factor : Mini ITX
- Number of USB 3.2 Ports : 7
- Manufacturer : ASUS Computer International
- Total Processor Supported : 9
- Product Type : Desktop Motherboard
- VGA : Yes
- Gigabit Ethernet : Yes
- Product Model : Strix X570-I Gaming
- Number of Network (RJ-45) Ports : 1
- Number of Memory Slots : 2
- Memory Form Factor : UDIMM
- HDMI : Yes
- Processor Socket : Socket AM4
- Number of M.2 Interfaces : 2
- Number of PCI Express x16 Slots : 1
- Total Number of USB Ports : 8
