Description

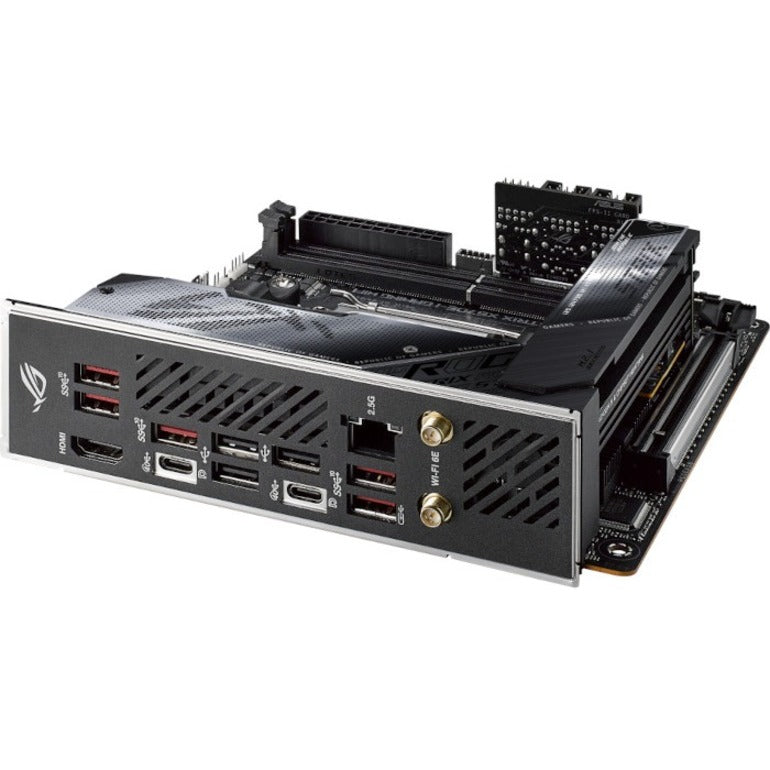

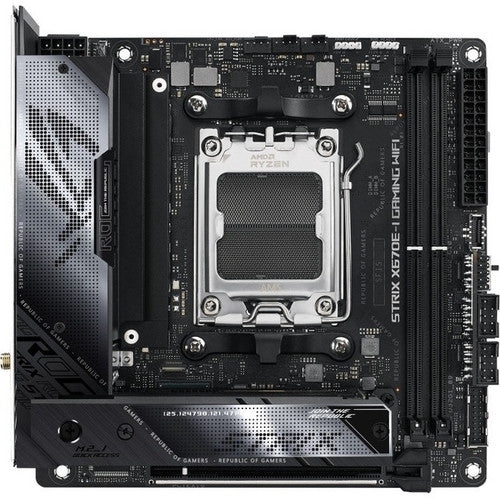

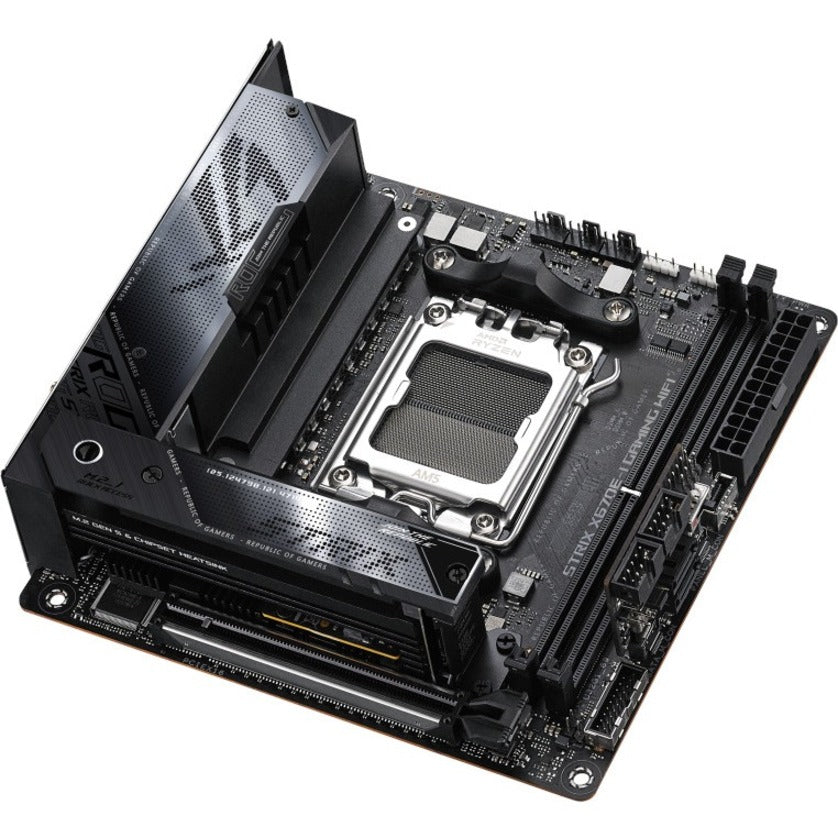

STRIX X670E-I GAMING WIFI
The ROG Strix X670E-I Gaming WiFi crams the latest tech into the diminutive mini-ITX footprint and then branches out with the ROG Hive to put vital controls and I/O at your fingertips. At motherboard level, PCIe 5.0 slots for graphics and storage ride alongside dual-channel DDR5 to bring large-scale bandwidth to games and CPU-intensive workloads. Heavyweight power delivery and vertically-stacked heatsinks crush thermals and lay a potent foundation for exclusive ROG overclocking tools to push performance boundaries. With all this and more, this tiny titan dishes up a space-saving AM5 build that allows you to comfortably host larger displays and a spread of ROG gaming peripherals on your desktop.
ALL-ROUND PERFORMANCE
Robust power delivery, innovative overclocking tools, and comprehensive cooling controls make the ROG Strix X670E-I more than a match for larger rivals. Load up and freely customize your AMD Ryzen™ 7000 Series processor to shred through everything.
PCIE PERFORMANCE

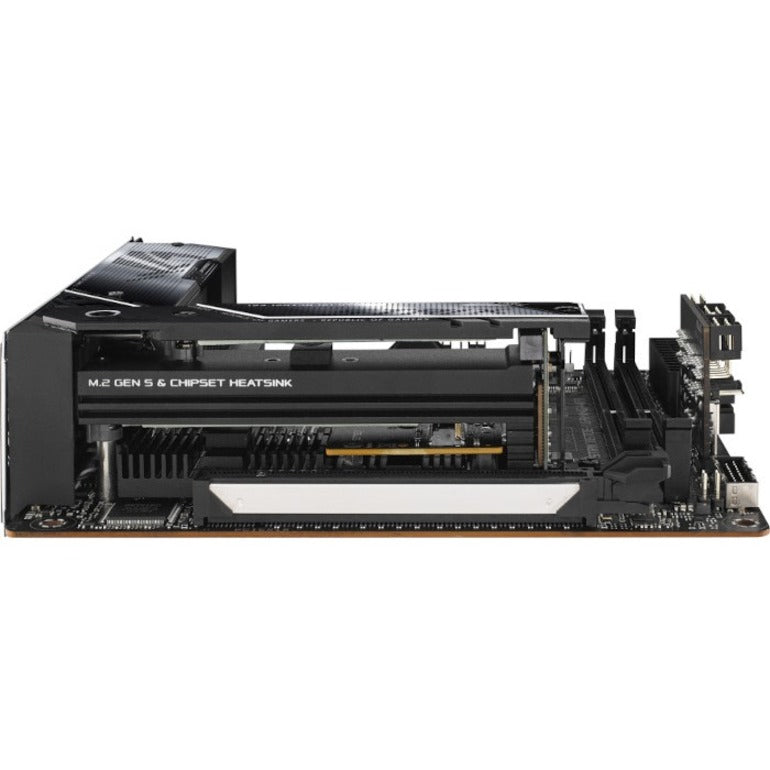

The ROG Strix X670E-I neatly increases mini-ITX expansion capabilities with vertically-stacked PCIe 5.0 and PCIe 4.0 M.2 slots. PCIe 5.0 support also extends to the x16 slot, which is reinforced with SafeSlot, providing structural support and bandwidth to handle large and powerful next-gen GPUs.
LEADING CONNECTIVITIY
The ATX experience thoughtfully scaled into mini-ITX: build easier the ROG FPS-II card, and grace your desktop with the ROG Hive, dual USB4® ports, and support for the latest WiFi 6E standard.
ROG STRIX HIVE
The all-new ROG Strix Hive brings critical controls and I/O within arm's reach, moving them from the cramped quarters of an SFF chassis to a compact peripheral that sits on the desktop. DIY-friendly buttons and diagnostic LEDs are brought front and center along with a large volume dial. On the sides, a varied group of I/O ports handle audio input and output and provide convenient connectivity for grab-and-go peripherals.
PLAY IN STYLE
The dark ROG Strix colorway pairs perfectly with other products from the diverse ROG ecosystem, allowing you to create a fully customized gaming setup that reflects your personal style.
UNDENIABLY ROG STRIX

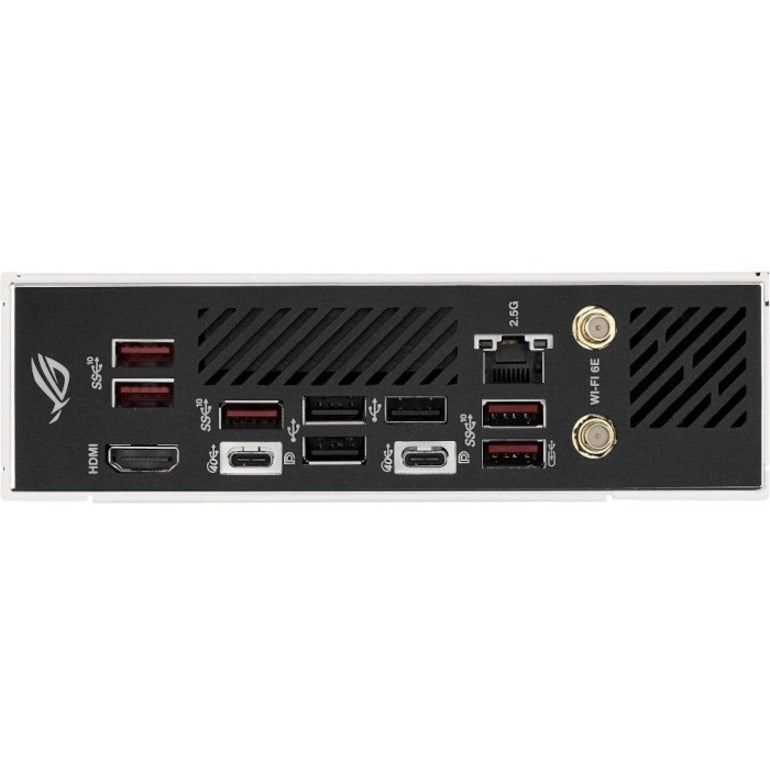

A perforated metal mesh design on the I/O shield and M.2 heatsink can catch the light of internal RGB accessories or elegantly fade into the darkness of stealthy builds. Cypertext and angular accents make this board an unmistakable member of the ROG Strix series.
SOFTWARE UTILITIES
ROG-exclusive software delivers intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want.
- Compatible Ryzen 5 processor lets you perform all your computational tasks at a swift pace
- DDR5 SDRAM slot for convenient installation of memory
- IEEE 802.11 a/b/g/n/ac/ax wireless standard support enables a hassle-free peripheral connection
- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- Mini ITX form factor builds a perfect symmetry of hardware components needed in media server or NAS box
- With 3 USB 2.0 ports, transfer several documents without error
- Chipset Manufacturer : AMD
- Wireless LAN : Yes
- Number of SATA Interfaces : 2
- Bluetooth : Yes
- Processor Supported : Ryzen 5,Ryzen 7,Ryzen 9
- Memory Speed Supported : 6400 MHz,6200 MHz,6000 MHz,5800 MHz,5600 MHz,5400 MHz,5200 MHz,5000 MHz,4800 MHz
- Number of M.2 Interfaces : 2
- Controller Type : Serial ATA/600
- Chipset Model : X670
- Number of USB 2.0 Ports : 3
- Maximum Memory Supported : 64 GB
- Total Number of USB Ports : 10
- RAID Supported : Yes
- Form Factor : Mini ITX
- Memory Technology : DDR5 SDRAM
- Onboard Video : CPU Dependent Video
- Package Contents :
- Strix X670E-I GAMING WIFI Gaming Desktop Motherboard
- 2 x SATA 6Gb/s Cables
- 1 x ROG USB2.0 Splitter Cable
- 1 x Panel Cable
- 1 x ROG FPS-II Card
- 1 x ROG STRIX HIVE
- 1 x USB Type-C® Power Connection Cable
- 1 x Thermal pad for M.2
- 1 x ASUS Wi-Fi Moving Antennas
- 1 x Cable Ties Pack
- 1 x Rubber Package(s) for M.2
- 1 x Q-Latch Package(s) for M.2
- 1 x ROG Key Chain
- 1 x ROG Strix Stickers
- 1 x ROG Strix Thank You Card
- 1 x User Guide
- Manufacturer Website Address : http://www.asus.com
- Audio Channels : 7.1
- Total Number of Onboard USB Ports : 3
- HDMI Version : 2.1
- Number of Onboard USB 3.2 Ports : 3
- Processor Socket : Socket AM5
- PCI Express Standard : PCI Express 5.0
- Manufacturer : ASUS Computer International
- Product Model : X670E-I GAMING WIFI
- Bluetooth Standard : Bluetooth 5.2
- RAID Levels : 0,1
- 2.5Gigabit Ethernet : Yes
- Wireless LAN Standard : IEEE 802.11 a/b/g/n/ac/ax
- Environmental Certification : RoHS
- Environmentally Friendly : Yes
- Number of Memory Slots : 2
- Number of PCI Express x16 Slots : 1
- Memory Form Factor : DIMM,UDIMM
- Limited Warranty : 3 Year
- Total Number of PCI Express Slots : 1
- Number of USB 3.2 Gen 2 Type-A Ports : 5
- Product Type : Gaming Desktop Motherboard
- Total Processor Supported : 1
- Number of Total Expansion Slots : 1
- HDMI : Yes
- Number of Network (RJ-45) Ports : 1
- Product Line : Strix
