Description
Brand-New ADM 4.0
ADM 4.0 is here and brings a whole host of intuitive design changes to ADM OS. The upgraded UI brings a new aesthetically-pleasing dark mode that helps to save and preserve OLED displays. ADM 4.0 introduces a new login page that contains a variety of customizable elements, a more convenient and easier-to-use quick search feature and new custom themes. Under the hood, ADM 4.0 brings improvements to performance, compatibility and security as the new version of OpenSSL plugs vulnerabilities found in previous versions, increasing security while efficiency improvements bring better performance.
Rose Gold Coloring
The all-new Rose Gold Logo is elegant and distinct, enabling easy distinction between ASUSTOR NAS models.
Realtek Quad-Core CPU and DDR4 RAM
The Drivestor 2 and Drivestor 4 are equipped with a Realtek RTD1296 1.4GHz Quad-Core 64-bit CPU. Transcode, stream and play multimedia in 4K, transfer files and easily multitask with the Drivestor series. The Drivestor handles multitasking with ease by utilizing its 1 GB of DDR4 memory ensuring that virtually any task on an ASUSTOR NAS is executed smoothly.
Efficient and Powerful
The Drivestor 2 and 4 are ASUSTOR's highest value devices ever. Transcode 10-bit 4K H.265 media with hardware decoding easily that enables unbelievably smooth video playback in LooksGood.
Media Mode
The Drivestor 2 and 4 come with 1 GB of memory. Media Mode is a new feature that efficiently reserves 512 MB of RAM for multimedia tasks as a variety of tasks require large amounts of RAM. With dedicated RAM for multimedia, video playback remains smooth and is not interrupted by other tasks.

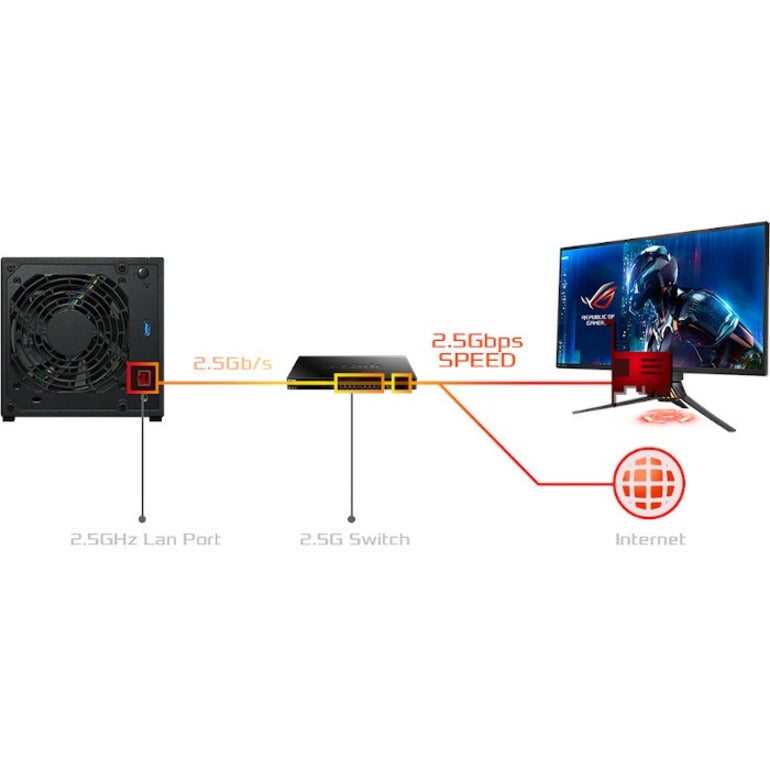

2.5-Gigabit Ethernet - Double Speed
The Drivestor 4, despite being extremely affordable contains 2.5-Gigabit Ethernet and more than doubles the performance of comparable Gigabit-class devices.
Toolless installation
The sliding cover design found on the Drivestor makes opening your NAS easy. The inner hard drive rails and outer cover all use thumb screws making hard drive installation simple and easy without tools.
Free exFAT
exFAT is now supported free of charge in ADM 4.0 due to a policy change by Microsoft.
Ultra-quiet Operation
The AS11 series devices produce only 19 decibels of noise during system standby, equivalent to the almost inaudible sound of a pin drop. During system operation, only 32 decibels of noise is produced, equivalent to the hushed tones of a quiet library, allowing the AS11 series devices to seamlessly and comfortably integrate into any living environment.
. .- Memory Technology : DDR4 SDRAM
- Standard Memory : 1 GB
- Manufacturer Website Address : http://www.asustor.com
- Total Hard Drive Capacity Supported : 72 TB
- Flash Memory Capacity : 8 GB
- Number of Total Expansion Bays : 4
- Number of 2.5"/3.5" Bays : 4
- Processor Core : Quad-core (4 Core)
- Processor Manufacturer : Realtek
- Controller Type : Serial ATA/600
- RAID Supported : Yes
- Operating System : ADM 4.0
- Packaged Quantity : 1
- Number of Solid State Drive Supported : 4
- Number of Solid State Drive Installed : 0
- Package Contents :
- Drivestor 4 AS1104T SAN/NAS Storage System
- Quick Installation Guide
- 1 x AC Power Cord
- 1 x AC Power Adapter
- 1 x RJ-45 LAN Cable(Cat 5e)
- 16 x Thumb Screws (for 3.5" HDD)
- RAID Levels : 0, 1, 5, 6, 10, JBOD
- Number of Hard Drives Supported : 4
- Number of USB 3.2 Gen 1 Ports : 2
- Number of Hard Drives Installed : 0
- Form Factor : Desktop
- Manufacturer : ASUSTOR
- Product Type : SAN/NAS Storage System
- Limited Warranty : 3 Year
- Ethernet Technology : 2.5 Gigabit Ethernet
- Product Model : AS1104T
- Number of Network (RJ-45) Ports : 1
- Network (RJ-45) : Yes
- Maximum Power Supply Wattage : 90 W
- HDMI : No
- Processor Model : RTD1296
- Processor Speed : 1.40 GHz
- Total Number of USB Ports : 2
- Protocols : IPSec,TCP/IP,LDAP,HTTPS,L2TP,SFTP,UDP,SSH,CHAP,FTPS,AFP,SMB 2.0,FTP,IPv4,PAP,WEBDAV,SSL,SNMP,iSCSI,TLS,NFS,TFTP,HTTP,UPnP,RSync,DDNS,CIFS/SMB,IPv6,PPTP
