Description

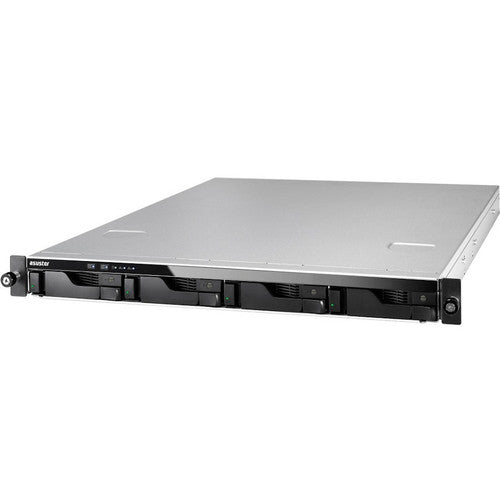

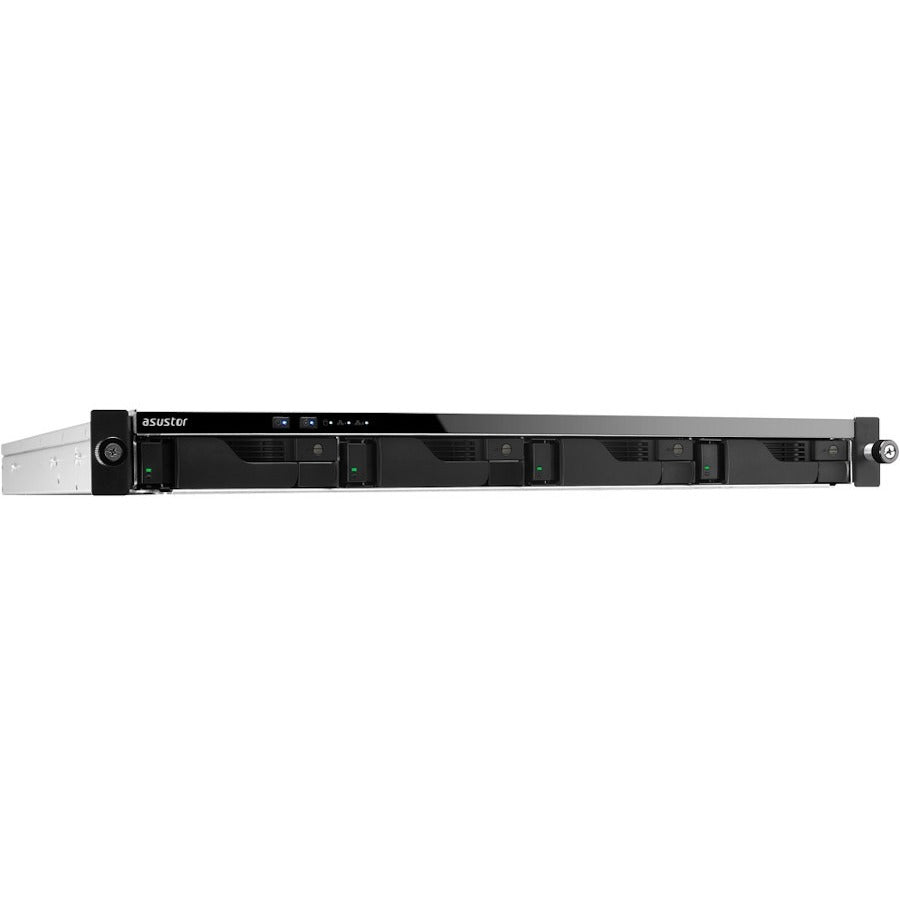

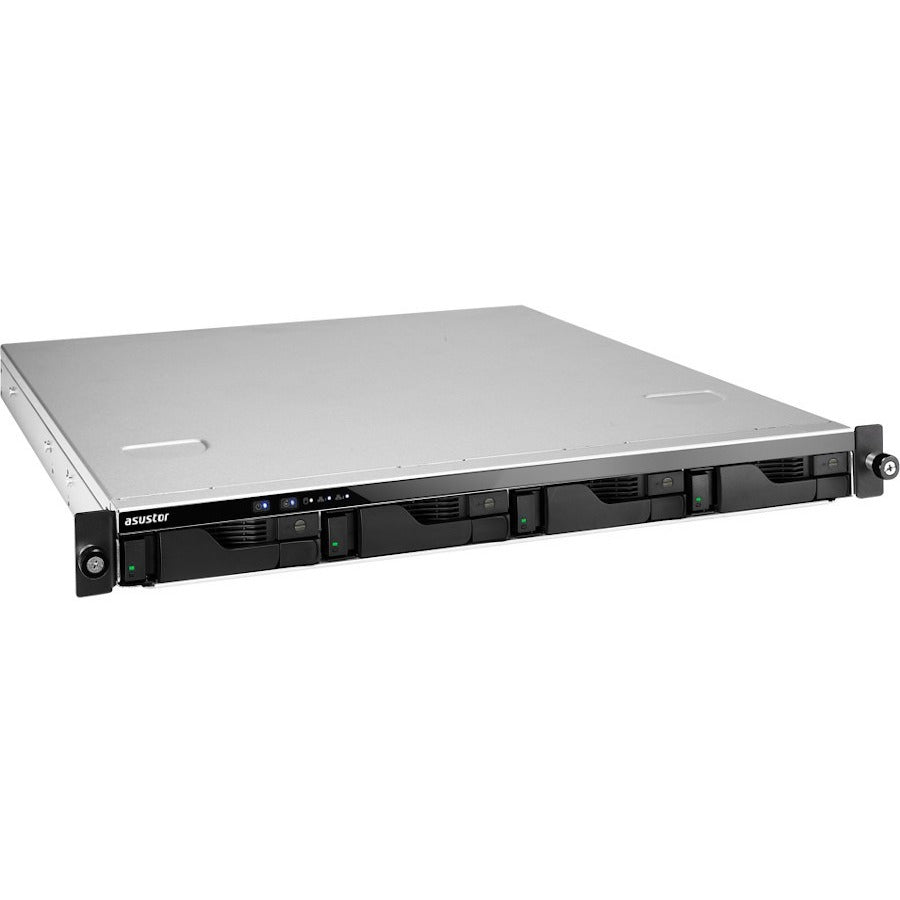

Cost-effective 2.5GbE 1U Rackmount Server
A thin 1U rack 2.5GbE server providing stable performance and four bays for expandable and easy SATA storage. The Lockerstor 4RS and 4RD bring expandability by bringing PCI Express capabilities, creating one of the most flexible and lightweight solutions for small businesses.
Enterprise Grade Quad-Core Intel Atom CPU and DDR4 RAM
Equipped with the new Quad-Core Intel Atom C3538 that is clocked at 2.1GHz and combined with more than 8GB of DDR4 RAM makes for an ultra-fast, ultra-smooth file sharing experience for your office.

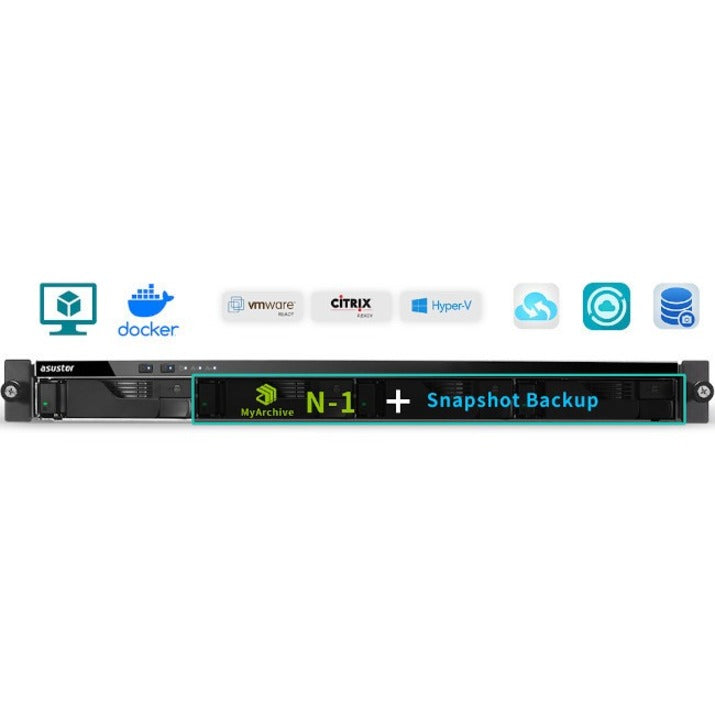

Enterprise Backup

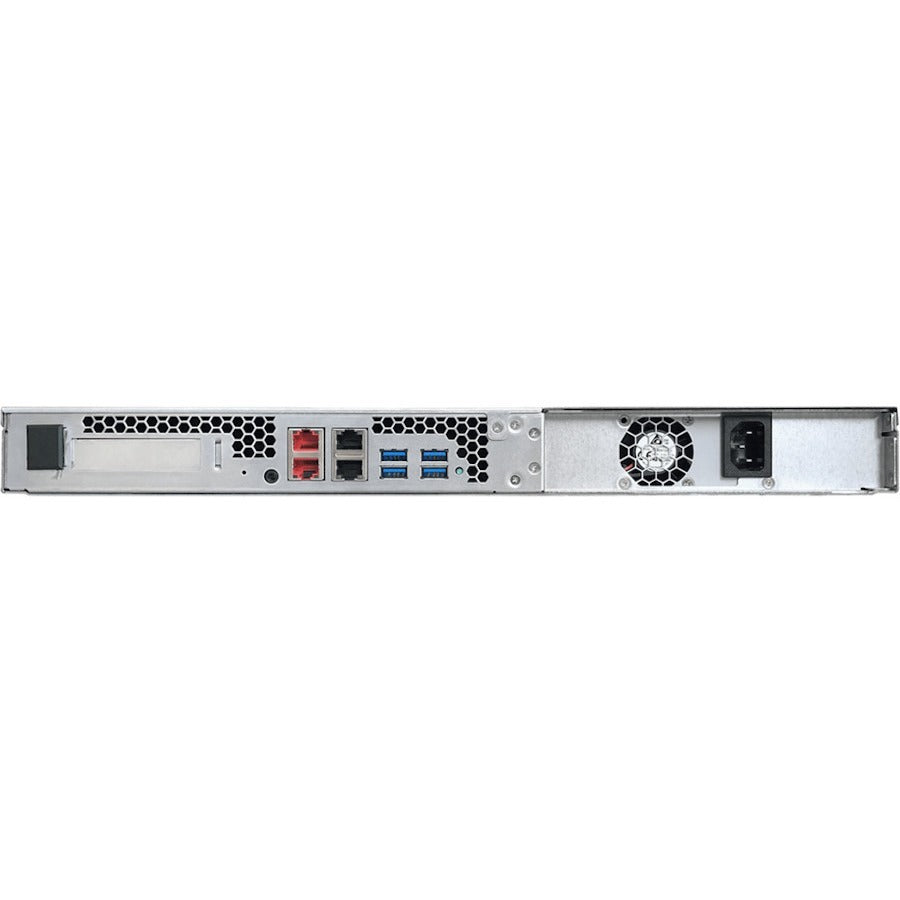

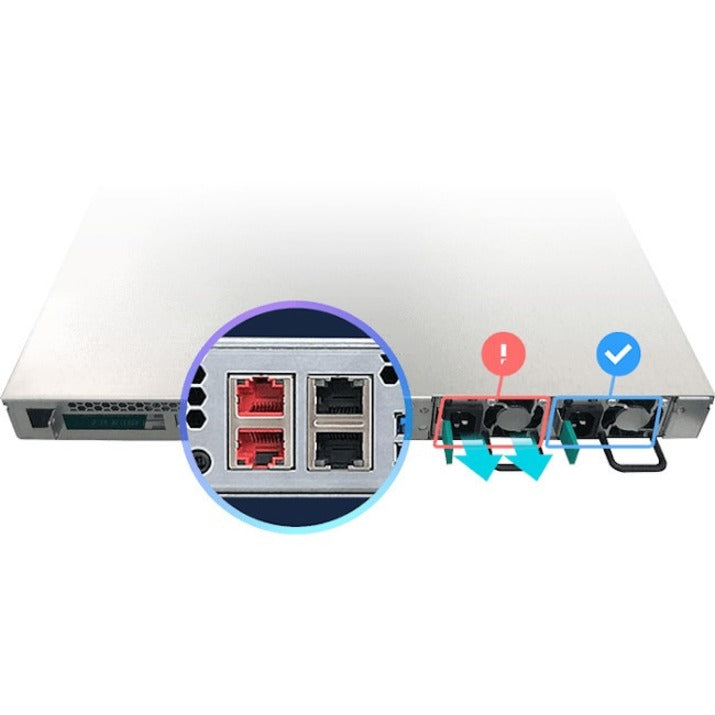

The Lockerstor RD has complete backup and safety mechanisms by including dual backup power supplies for safety while including four Ethernet ports for additional performance and redundancy. Two Gigabit and two 2.5-Gigabit Ethernet ports adorn the rear of the NAS, ensuring that everyone can access their files quickly and efficiently. The Lockerstor RD makes no sacrifices by ensuring zero downtime if a port or power supply is offline.
"Find Me" Function and Service Light for Server Rooms

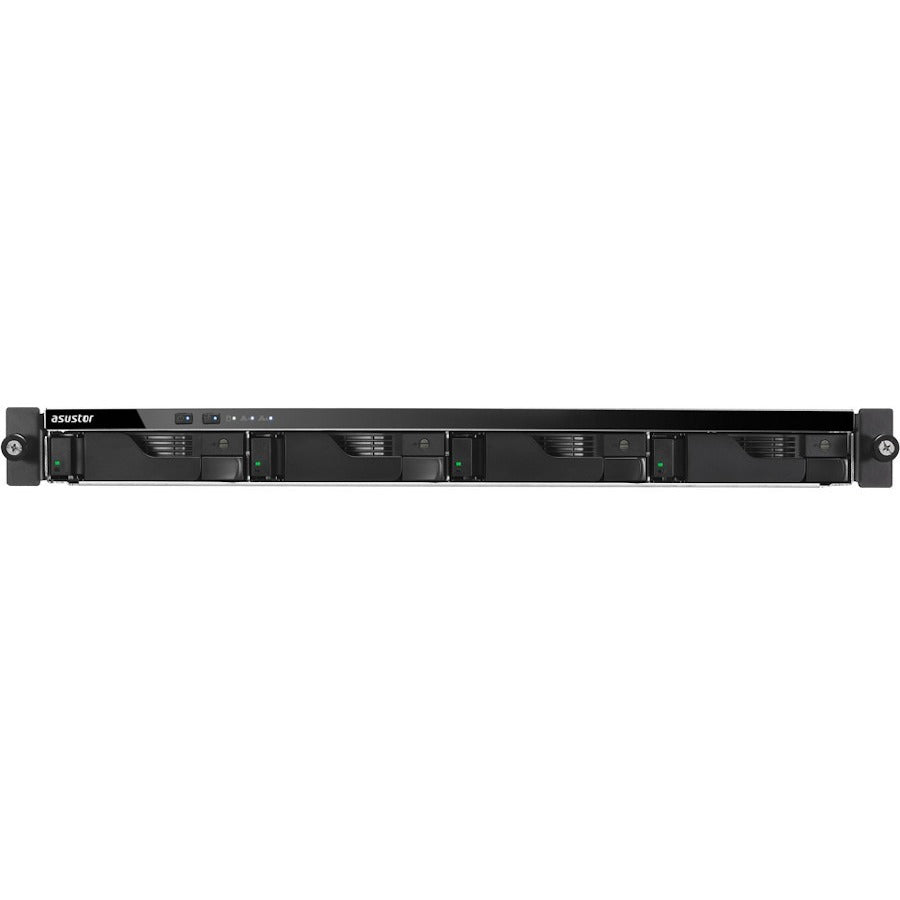

In enterprise environments, storage devices are commonly placed together in a server room. In order to allow administrators to quickly find the NAS from among many servers the Lockerstor 4RS/RD(1U) provides a dedicated button on front panel. When this button is pressed, the LED service light on the rear panel of the NAS will light up. ASUSTOR also offers the mobile NAS management app, AiMaster which provides the exclusive Find Me function. When Find Me is activated, the system status light on the front of the NAS will flash and the system buzzer will sound, helping users to quickly find the NAS.
Agile Expandability

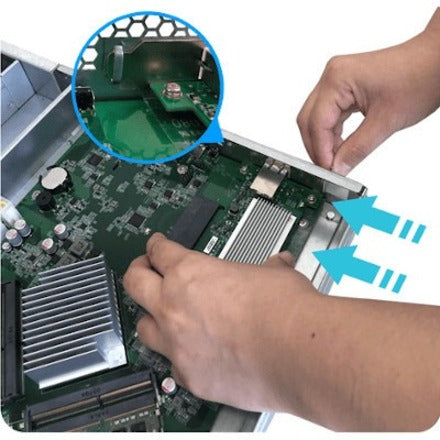

The ASUSTOR Lockerstor 4RD rackmount series prepares you for the needs of tomorrow. PCIe expansion enables 10-Gigabit Ethernet can be installed to increase performance and expandability. Combine the Ethernet ports and connect to a 2.5-Gigabit Ethernet switch to take advantage of extreme speeds. Break free from restrictions with the Lockerstor 4RD.
Efficient, Redundant and Powerful
The Lockerstor 4RD contains four Ethernet ports. Two are Gigabit and two are 2.5-Gigabit Ethernet. Combine the two 2.5-Gigabit Ethernet ports to increase performance and redundancy. Link aggregation increases performance to up to 5 gbps while also ensuring zero downtime in the event of one port going offline.
Expand your storage space

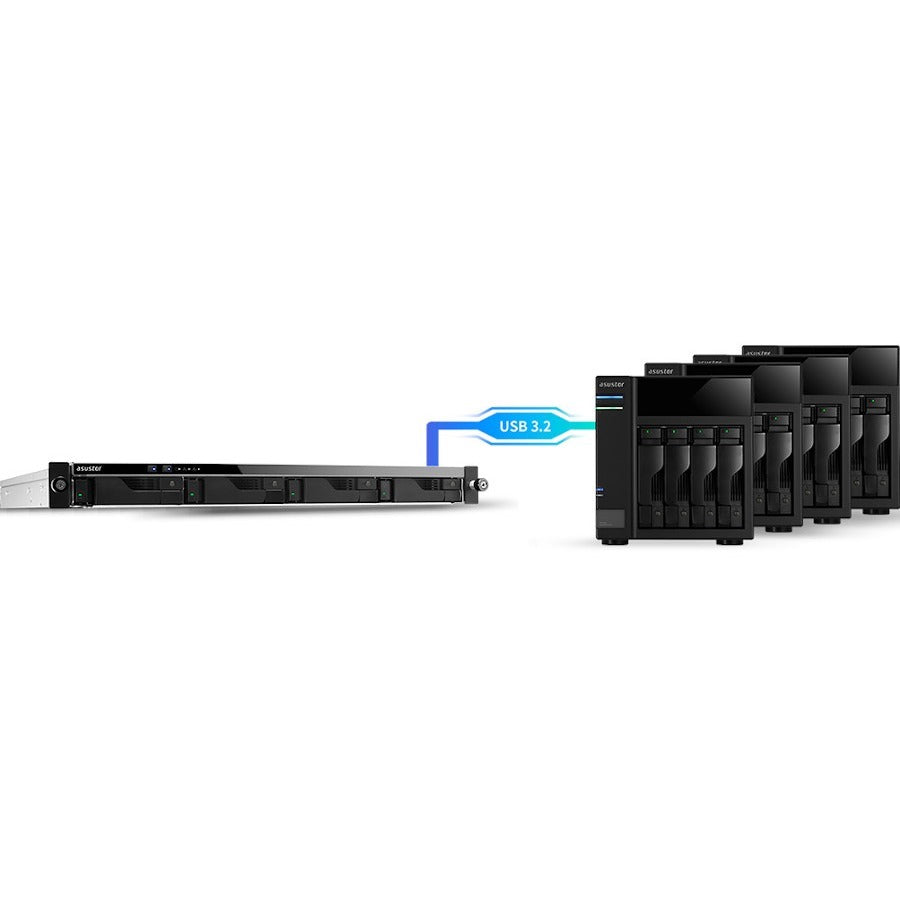

A professional grade NAS needs to be equipped with a diverse array of expansion functionality. In addition to the 4 drive bays, we have also included 4 USB 3.2 ports, allowing you to create a tailored storage space for both your work and entertainment needs.
- Enjoy quick web browsing and efficiently deal with your crazy work weeks or playtime marathons with the Intel Atom 2.10 ghz processor that kicks execution into high gear
- Through RAID levels (0, 1, 5, 6, 10, jbod), RAID provides data reliability, fault tolerance and improves overall performance
- Featuring Gigabit Ethernet port for ultra-fast network speeds
- Memory Technology : DDR4 SDRAM
- Standard Memory : 8 GB
- Manufacturer Website Address : http://www.asustor.com
- Total Hard Drive Capacity Supported : 72 TB
- Number of Power Supplies Installed : 1
- Flash Memory Capacity : 8 GB
- Number of Total Expansion Bays : 4
- Number of 2.5"/3.5" Bays : 4
- Processor Core : Quad-core (4 Core)
- Processor Manufacturer : Intel
- Controller Type : Serial ATA/600
- RAID Supported : Yes
- Operating System : ADM 3.5
- Rack Height : 1U
- Packaged Quantity : 1
- Processor Type : Atom
- Number of Solid State Drive Supported : 4
- Expansion Slot Type : PCI Express 3.0 x8
- Number of Solid State Drive Installed : 0
- Package Contents :
- Lockerstor AS6504RS SAN/NAS Storage System
- Quick Installation Guide
- 1 x AC Power Cord
- 2 x RJ-45 LAN Cable(Cat 5e)
- 16 x Flat Head Screw (for 3.5" HDD)
- 16 x Flat Head Screw (for 2.5" HDD)
- RAID Levels : 0, 1, 5, 6, 10, JBOD
- Number of Hard Drives Supported : 4
- Number of USB 3.2 Gen 1 Ports : 4
- Number of Hard Drives Installed : 0
- Number of Total Expansion Slots : 1
- Form Factor : Rack-mountable
- Manufacturer : ASUSTOR
- Product Type : SAN/NAS Storage System
- Limited Warranty : 3 Year
- Product Model : AS6504RS
- Number of Network (RJ-45) Ports : 4
- Network (RJ-45) : Yes
- Maximum Power Supply Wattage : 250 W
- HDMI : No
- Processor Model : C3538
- Processor Speed : 2.10 GHz
- Total Number of USB Ports : 4
- Redundant Power Supply : No
- Protocols : IMAP,IPSec,TCP/IP,SMTP,HTTPS,LDAP,L2TP,SFTP,UDP,SSH,CHAP,FTPS,AFP,RTSP,FTP,SMB 2.0,IPv4,PAP,WEBDAV,SSL,iSCSI,SNMP,TLS,HTTP,TFTP,NFS,UPnP,RSync,POP3,DDNS,CIFS/SMB,IPv6,PPTP
- Ethernet Technology : Gigabit Ethernet,2.5 Gigabit Ethernet
