Description

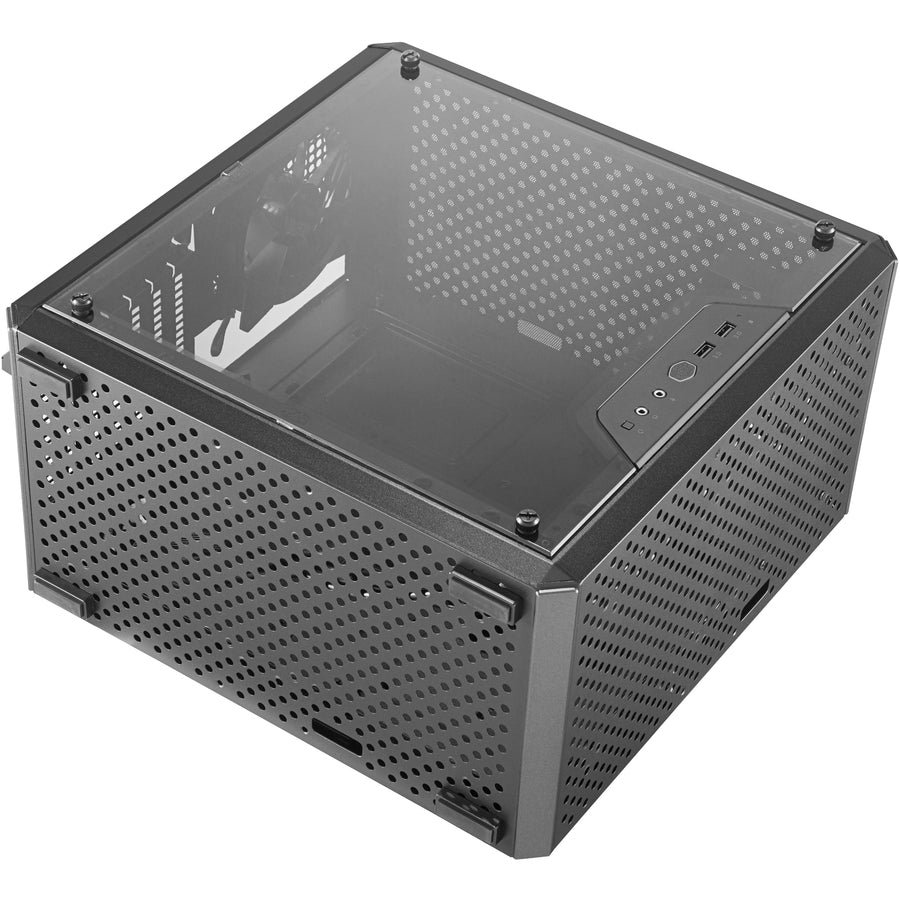

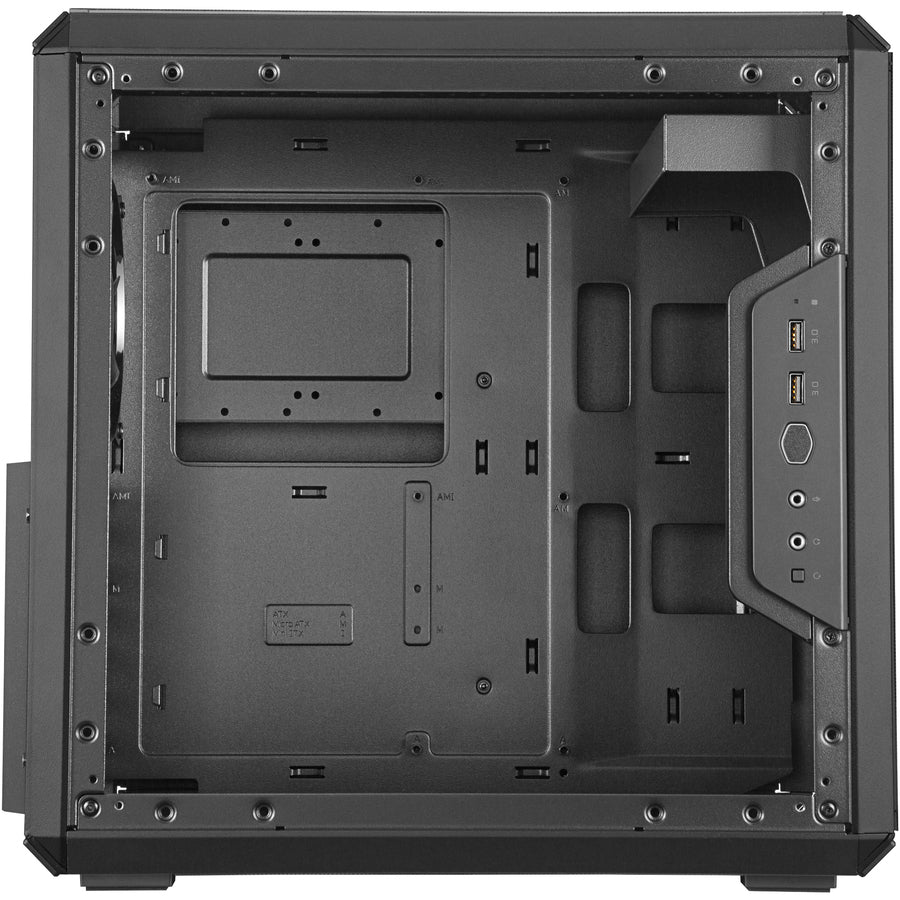

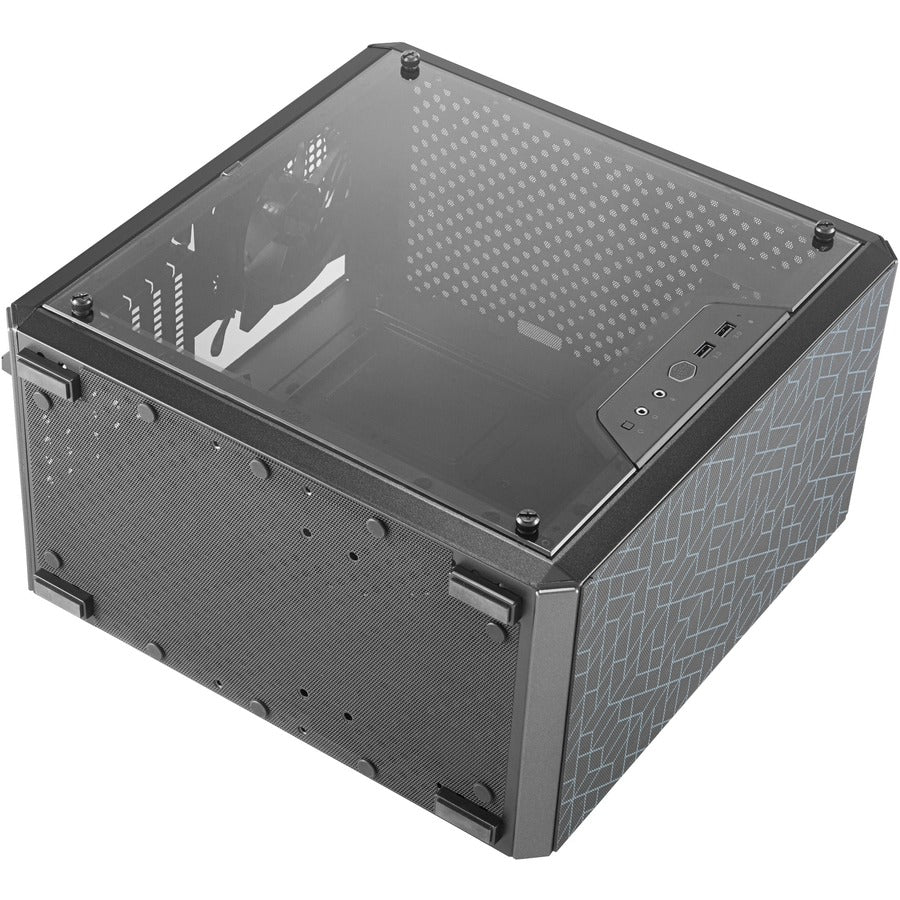

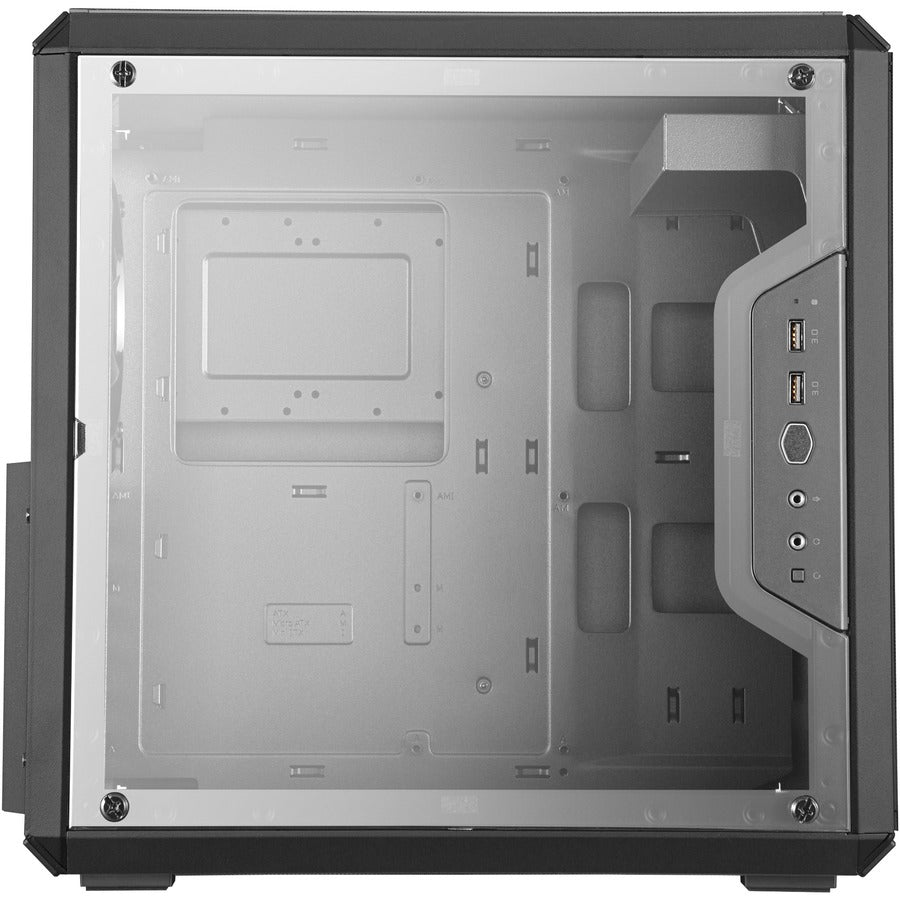

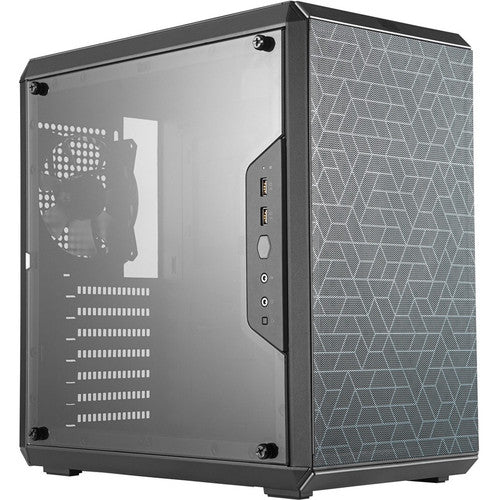

Orientation & A Movable I/O Panel
The modular MasterBox Q500L can orient vertically and horizontally with rubberized thumbscrews that also act as feet. Depending on hardware configuration, the movable I/O panel can be relocated to multiple positions to retain its accessibility.
Versatile PSU Bracket
The PSU bracket enables the PSU to adapt to different clearance requirements and motherboard form factors. The PSU bracket can shift up or down for top radiator/graphics card clearance and can also be relocated for ITX systems.

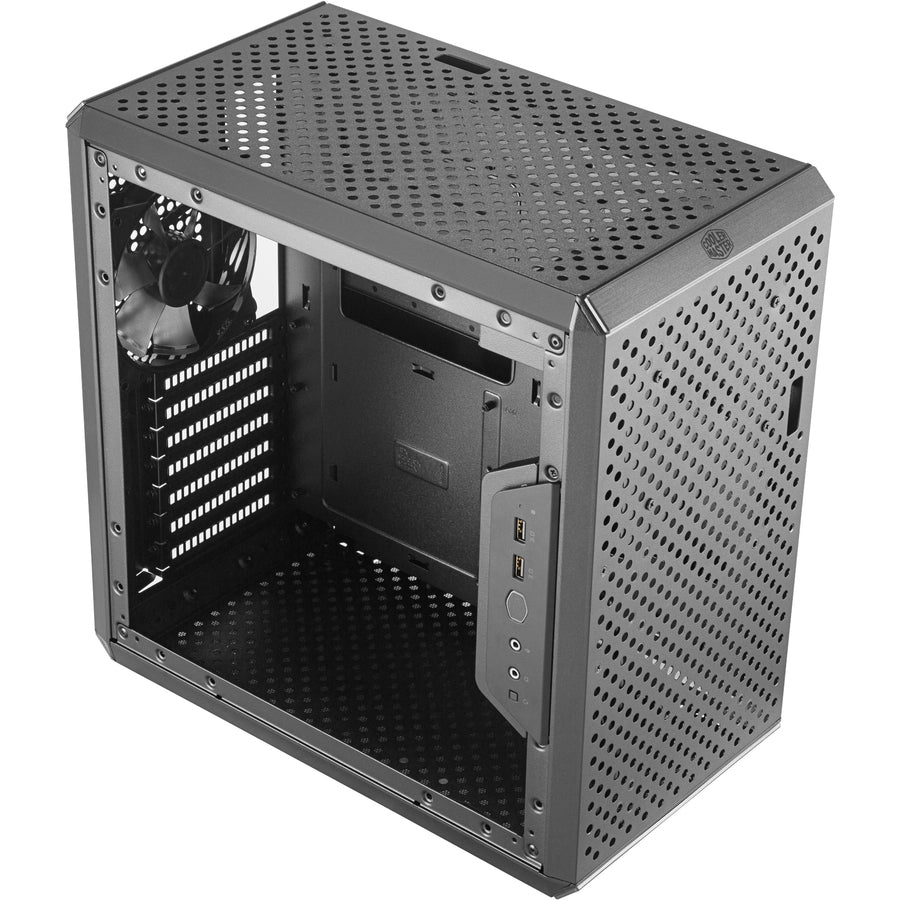

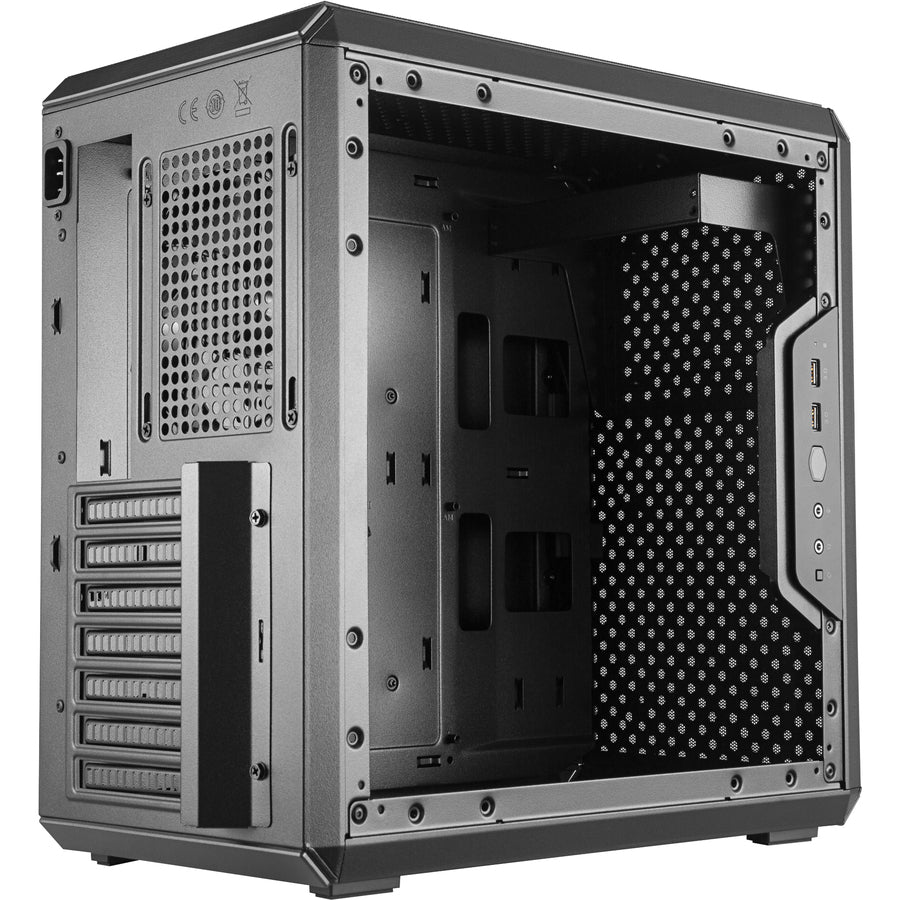

Fully Perforated Chassis

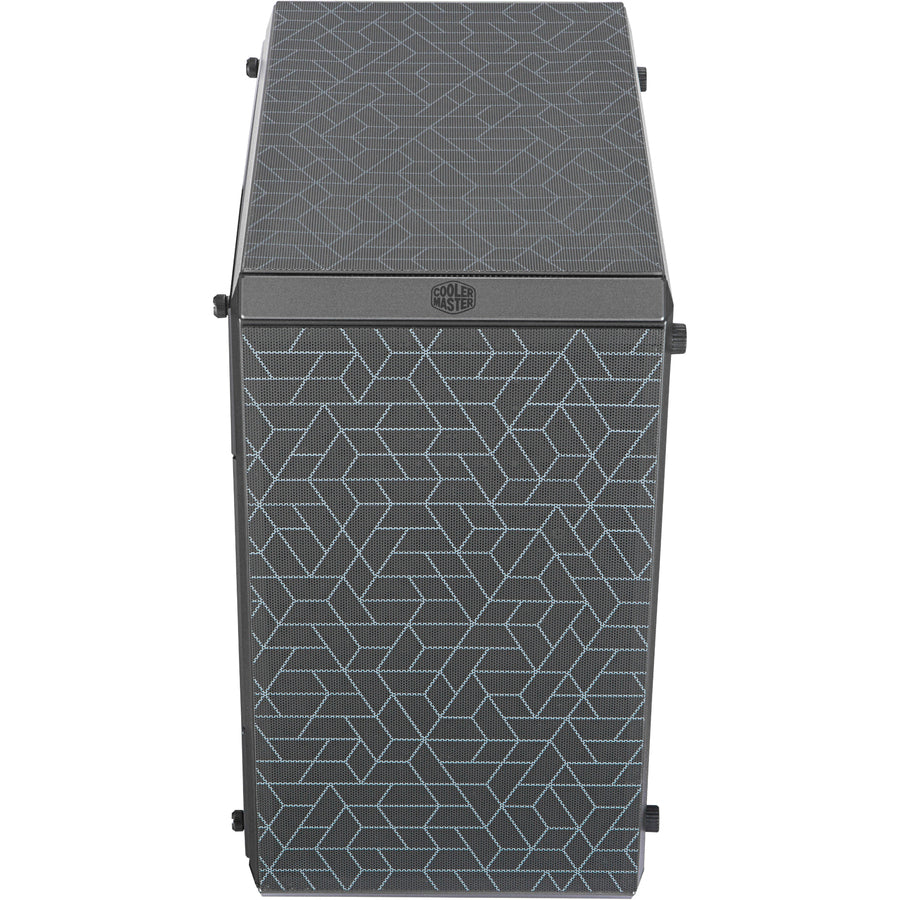

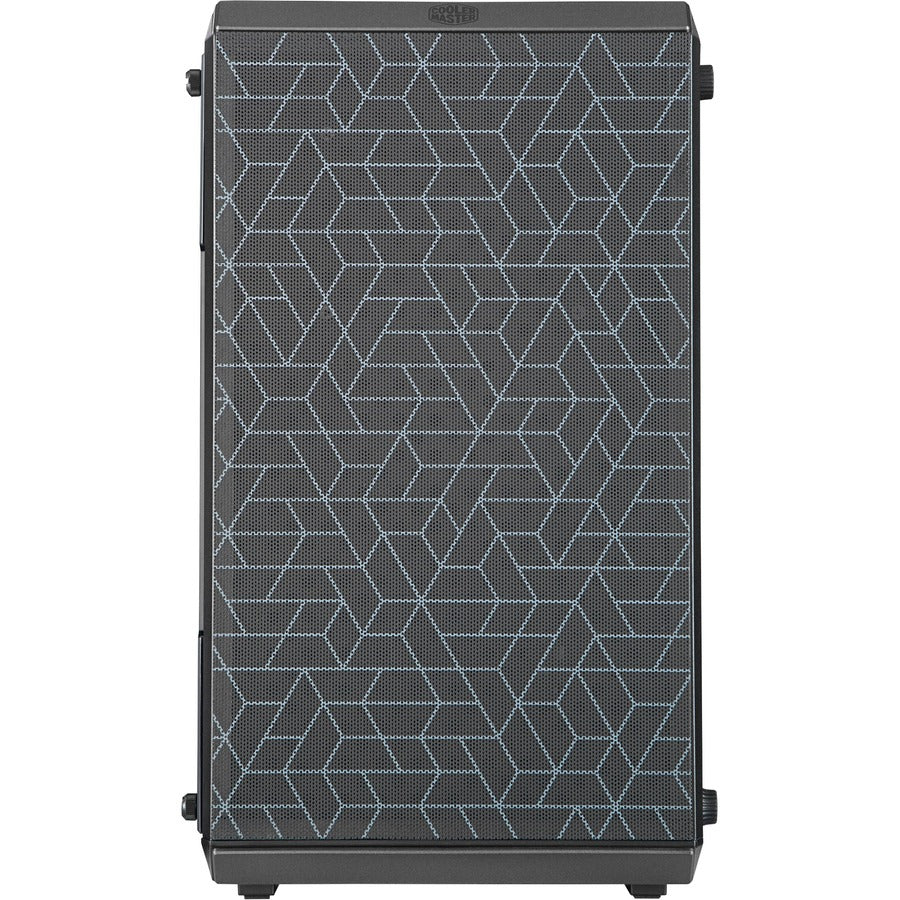

The top, front, rear, and bottom panels are fully perforated to support various fan configurations.
Magnetic Dust Filters
The magnetic dust filters feature a unique design. Magnets allow for quick removal and installation for easy cleaning of the dust filters with rubber stompers to keep the filters from sliding.
Cooling Support
The bottom supports up to two 120mm fans.

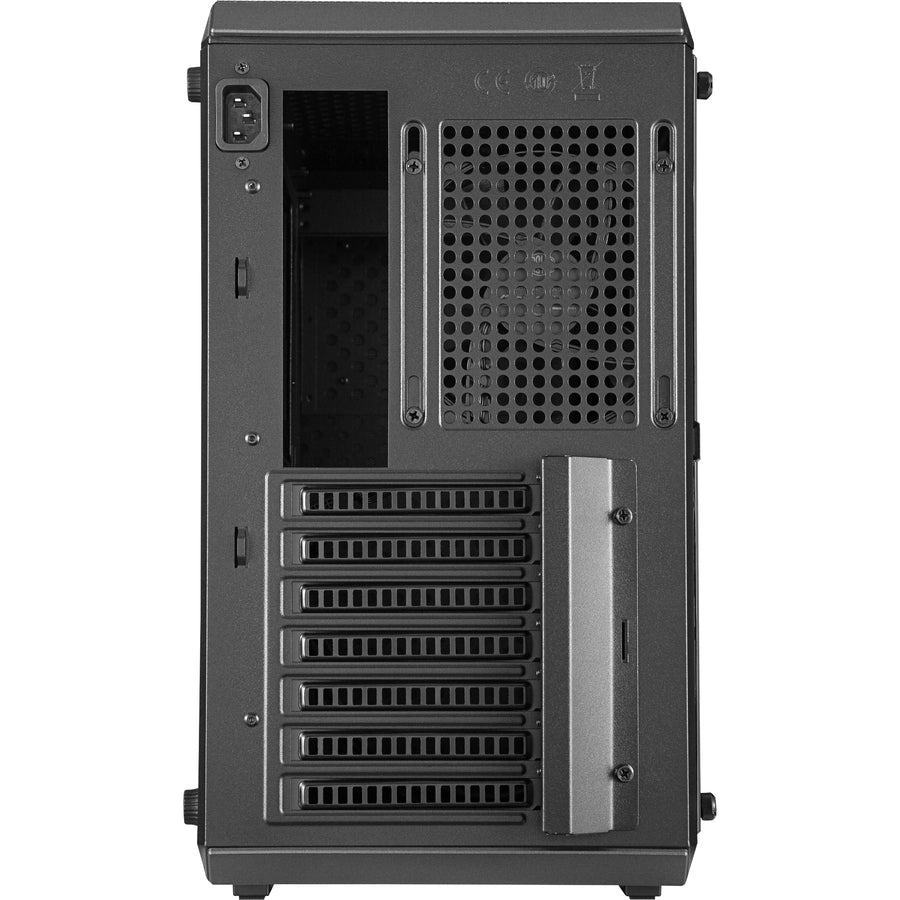

The rear supports a 120mm fan or 120mm radiator.
The top supports up to two 120mm/140mm fans or a 120/240mm radiator.

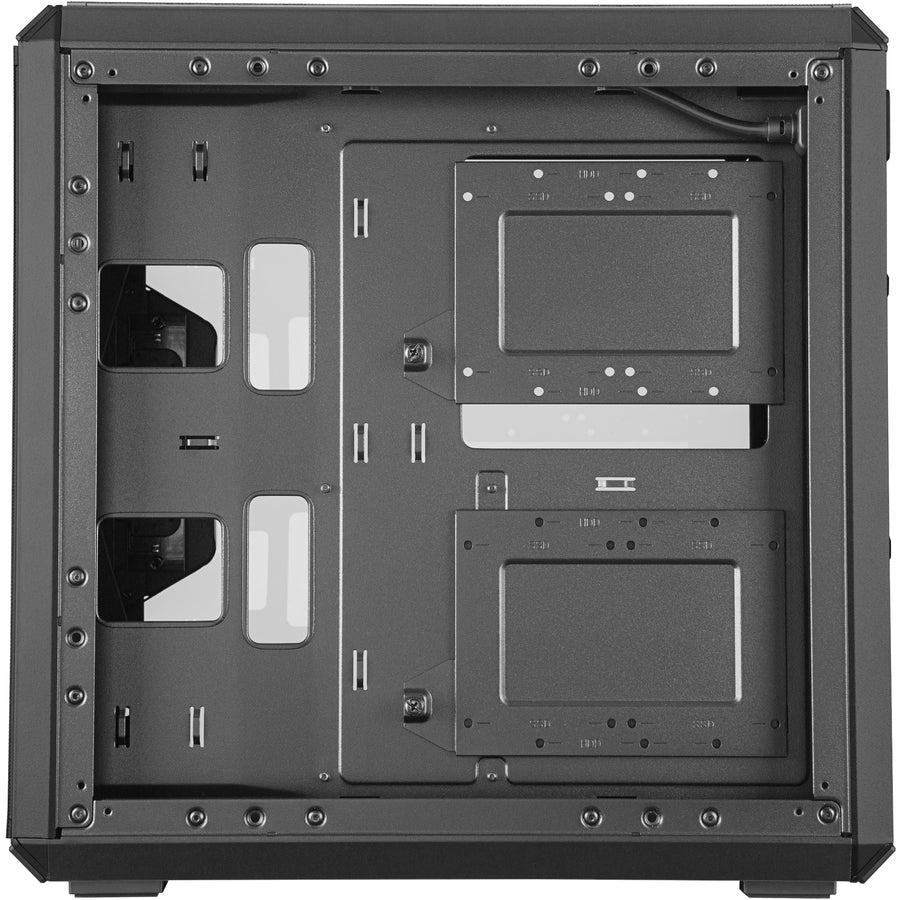

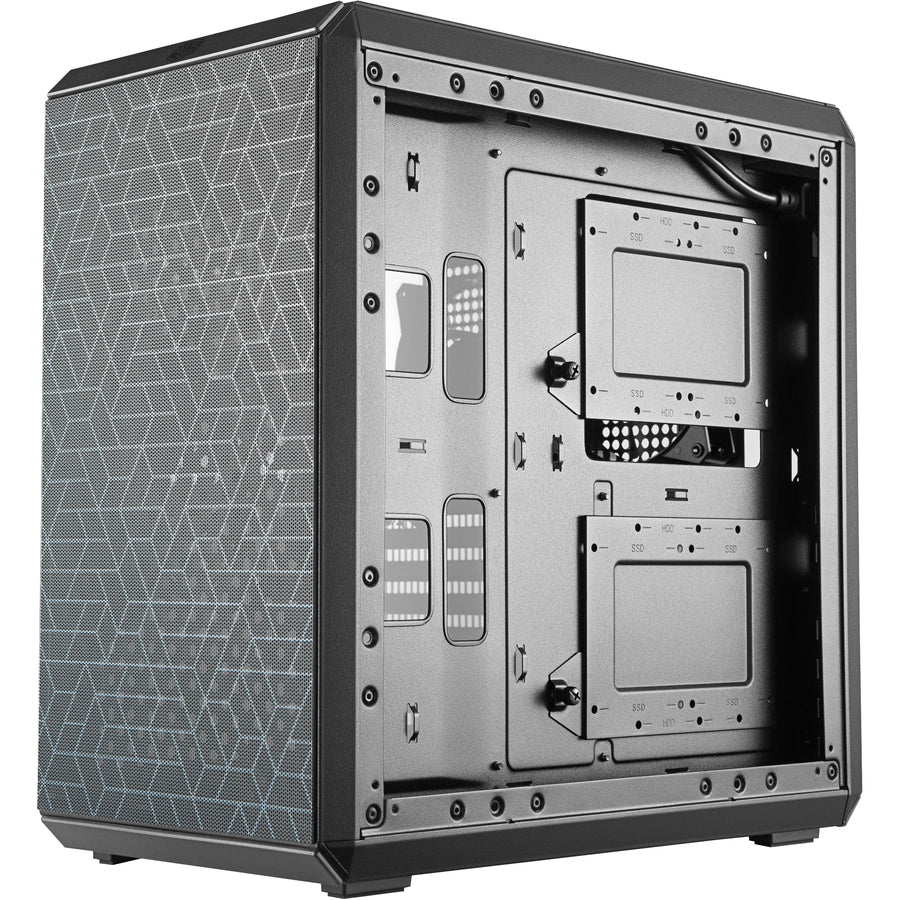

Storage Support
Each storage caddy can mount either 2x 2.5" drives or 1x 3.5" drive, two caddies included.
Possible Configurations:
4x 2.5" drives | 2x 3.5" drives | 2x 2.5" drives + 1x 3.5" drive
Motherboard Support

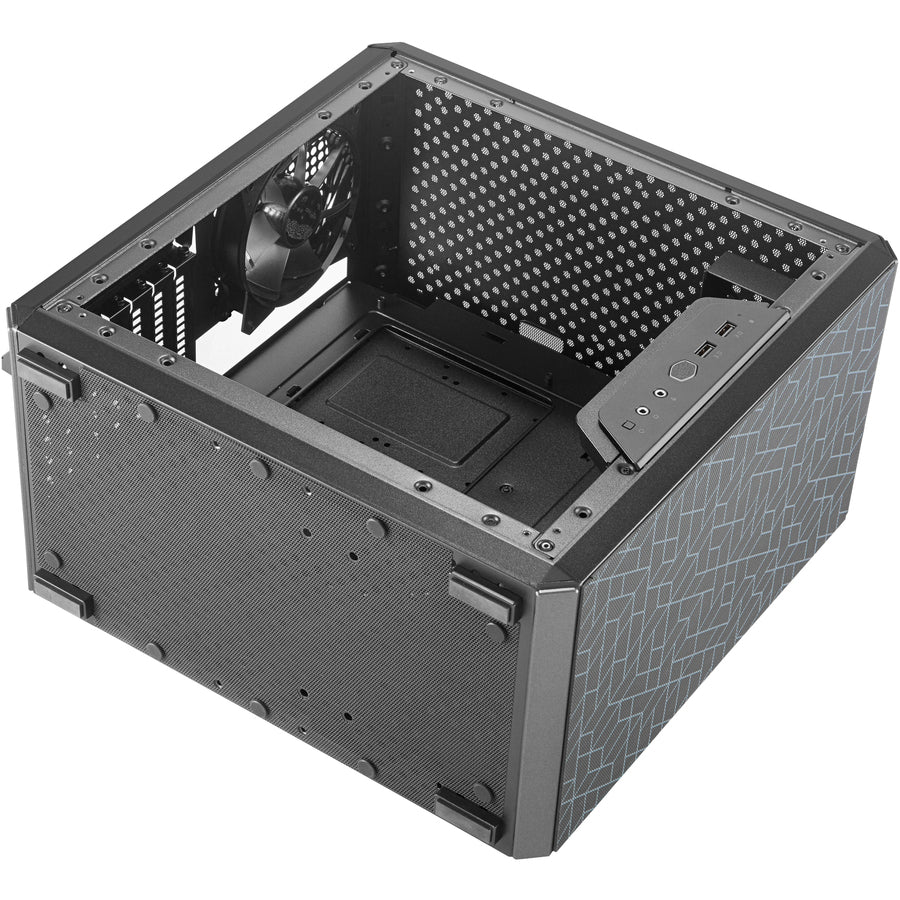

The internal layout and PSU location adapts to the motherboard. If a standard ATX motherboard is used, the PSU mounts to the top-front of the chassis with the ability to shift upward or downward. For mini-ITX builds, the PSU can be located in the conventional bottom-rear position for increased front panel ventilation.
Clean Routing Space
Behind the motherboard tray, 27~30mm width of space is offered for cable management with the entire perimeter dedicated as a channel for cables.
- Supports micro ATX motherboard to provide a significant number of PCI slots, expansion slots and peripheral ports with enhanced heat dissipation capability
- Mid-tower structure offers a cooler place for other hardware components by supporting up to 5 fan(s)
- Motherboard Supported : Mini ITX,Micro ATX,ATX
- Total Number of Audio Out Ports : 1
- Installed Fan Size : 4.72" (120 mm)
- Total Number of USB Ports : 2
- Total Number of Audio In Ports : 1
- Number of Fans Installed : 1
- Form Factor : Mid-tower
- Number of Power Supplies Supported : 1
- Manufacturer Website Address : http://www.coolermaster.com
- Number of Power Supplies Installed : 0
- Manufacturer : Cooler Master Co., Ltd
- Number of Fans Supported : 5
- Number of Total Expansion Bays : 2
- Product Model : Q500L
- Number of Internal 2.5" Bays : 0
- Number of Internal 2.5"/3.5" Bays : 2
- Limited Warranty : 2 Year
- Power Supply Installed : No
- Product Type : Computer Case
- Number of External 5.25" Bays : 0
- Number of Total Expansion Slots : 7
- Country of Origin : China
- Product Line : MasterBox
- Product Color : Black
- Product Material : Steel,Plastic,Acrylic
