Description

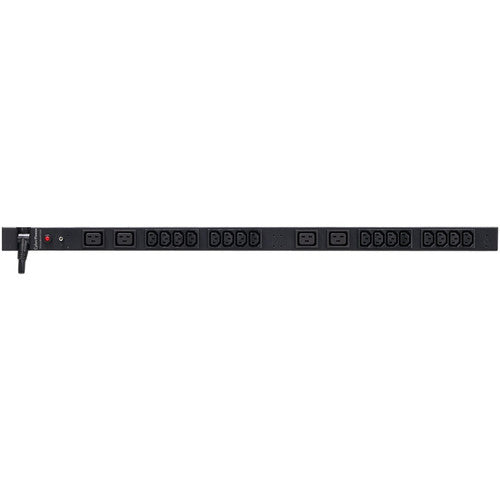

The CyberPower 20-outlet (20 Front) 0U vertical rack mount basic power distribution unit (PDU20BVHVT20F) provides 200/230V 20A output. It distributes power to 20 IEC-320 (4-C19 and 16-C13) receptacles from a single NEMA L6-20P twist lock plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal and wall mount installation, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
- Basic PDU
- Single NEMA L6-20P twist lock plug
- 200/230V AC - 50/60Hz - 20-amp electrical capacity with circuit breaker
- 36 inch 0U Vertical Rack Mount - Rugged industrial metal housing
- 36 inch 0U Vertical Rack Mount - Rugged industrial metal housing
- 200/230V AC - 50/60Hz - 20-amp electrical capacity with circuit breaker
- Basic PDU
- Single NEMA L6-20P twist lock plug
- Energy Star : No
- Input Voltage : 230 V AC
- Protection Type : Overload Protection
- PDU Type : Basic
- Mount Type : Rack-mountable
- Manufacturer Website Address : http://www.cyberpowersystems.com
- Output Voltage : 230 V AC
- Mounting Orientation : Vertical
- Environmentally Friendly : Yes
- Plug/Connector Type : NEMA L6-20P
- Environmental Certification : RoHS
- Manufacturer : CyberPower Systems, Inc
- Product Type : PDU
- Receptacle Type : IEC 60320 C13
- Limited Warranty : Lifetime
- Receptacle Detail : 16 x IEC 60320 C13
- Product Model : PDU20BVHVT20F
- Length : 1.50" (38.10 mm)
- Country of Origin : China
- Energy Star : No
- Mounting Orientation : Vertical
- Environmentally Friendly : Yes
- Environmental Certification : RoHS
- Manufacturer : CyberPower Systems, Inc
- Product Type : PDU
- Limited Warranty : Lifetime
- Product Model : PDU20BVHVT20F
- Length : 1.50" (38.10 mm)
- Country of Origin : China
- Input Voltage : 230 V AC
- Protection Type : Overload Protection
- Mount Type : Rack-mountable
- PDU Type : Basic
- Output Voltage : 230 V AC
- Manufacturer Website Address : http://www.cyberpowersystems.com
- Plug/Connector Type : NEMA L6-20P
- Receptacle Type : IEC 60320 C13
- Receptacle Detail : 16 x IEC 60320 C13
