Description

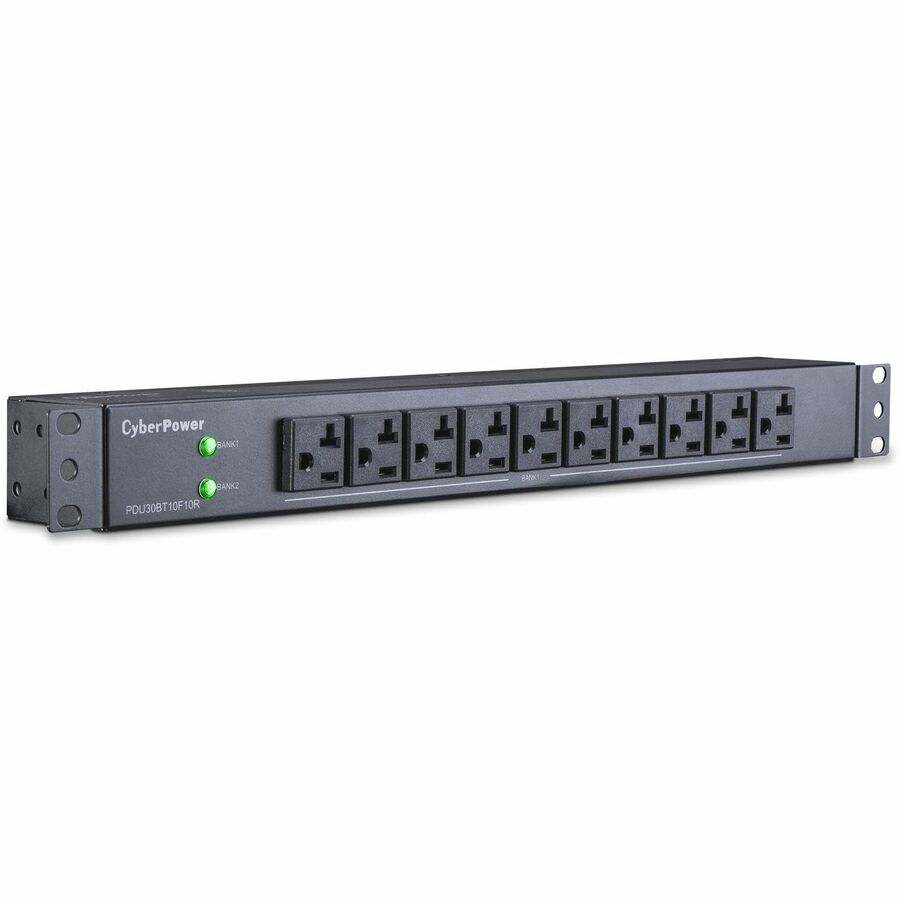

The CyberPower Basic PDU30BT10F10R 20-Outlets PDU provides 120V 30A output. It distributes power to 20 NEMA 5-20R receptacles from a single NEMA L5-30P twist lock plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
- 1U Rack Mount - Rugged industrial-grade metal housing
- 120V AC - 50/60Hz - 30-amp electrical capacity with circuit breaker
- Basic PDU

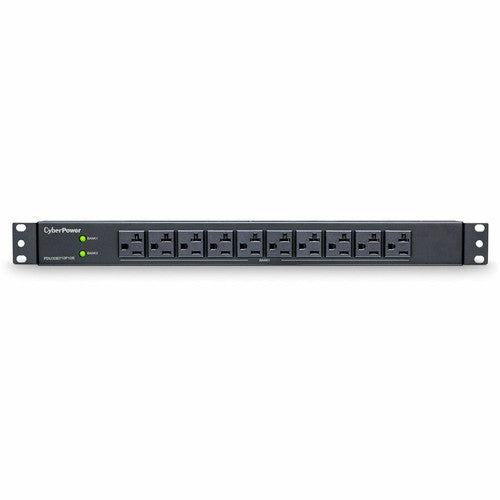

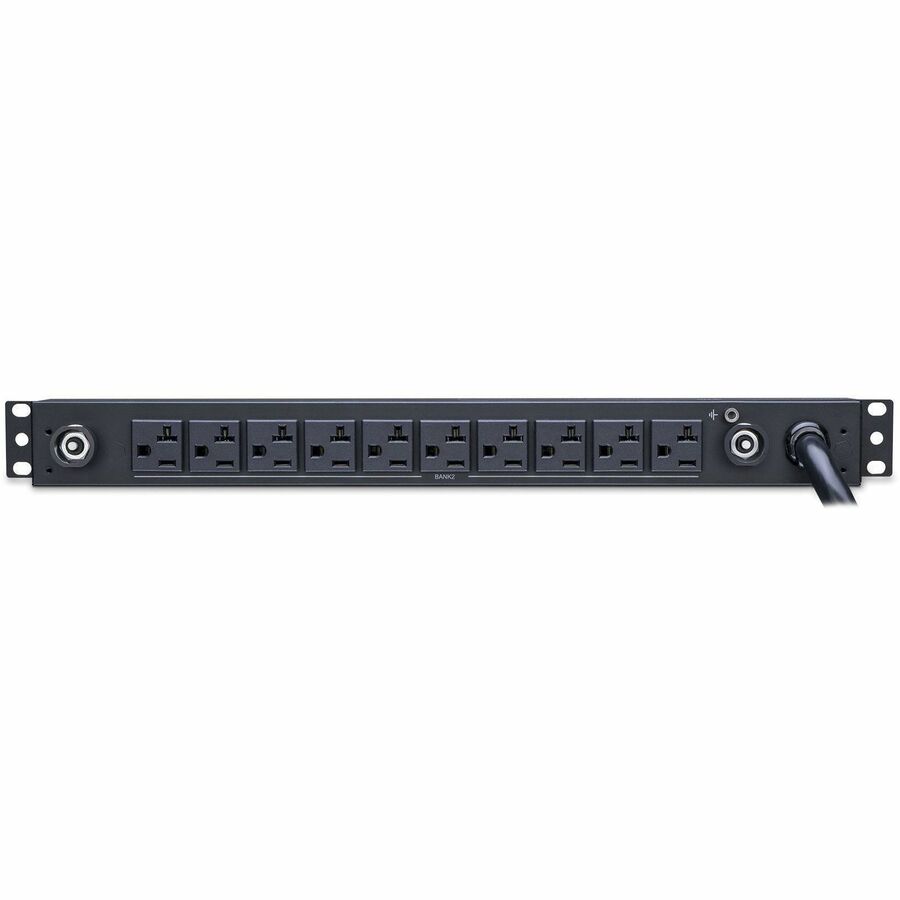

- 20 NEMA 5-20R output receptacles (10 Front/10 Rear)
- Receptacle Type : NEMA 5-20R
- Receptacle Detail : 20 x NEMA 5-20R
- Environmentally Friendly : Yes
- PDU Type : Basic
- Input Voltage : 120 V AC
- Product Series : Basic PDU
- Limited Warranty : Lifetime
- Package Contents :
- Basic PDU30BT10F10R 20-Outlets PDU
- Cord Retention Tray
- Manufacturer Website Address : https://www.cyberpowersystems.com/
- Plug/Connector Type : NEMA L5-30P
- Product Type : PDU

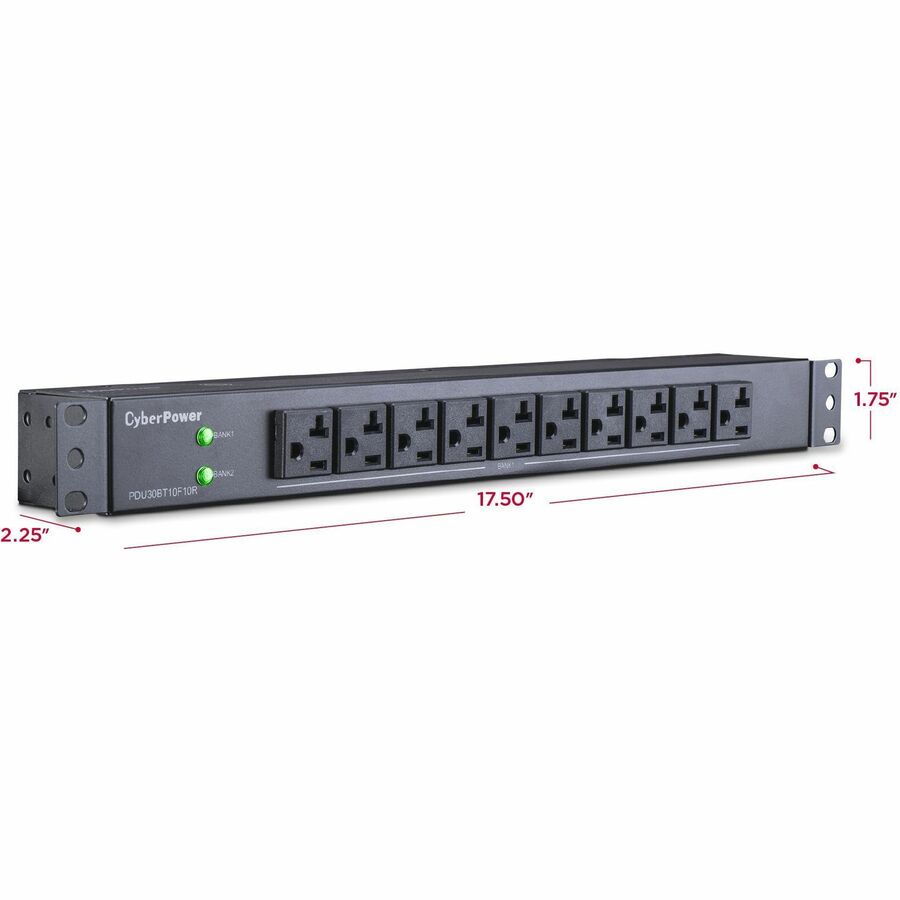

- Length : 2.25" (57.15 mm)
- Energy Star : No
- Mount Type : Rack-mountable
- Protection Type : Overload Protection
- Manufacturer : CyberPower Systems, Inc
- Output Voltage : 120 V AC
- Mounting Orientation : Vertical
- Rack Height : 1U
