Description

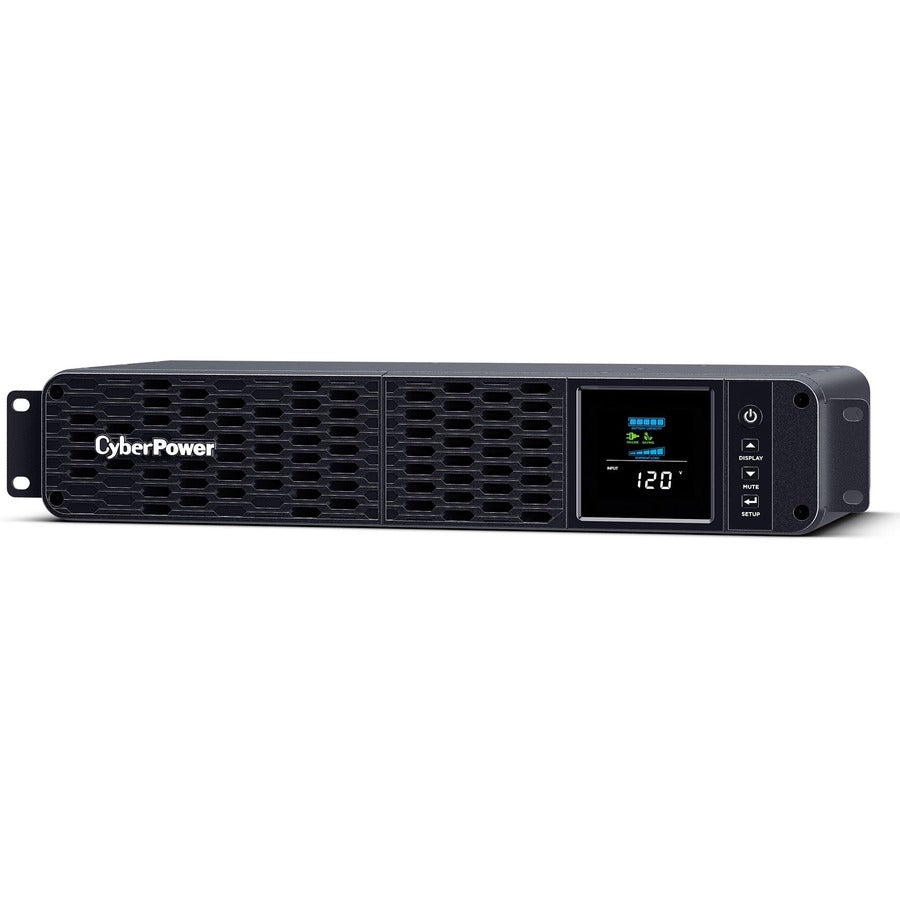

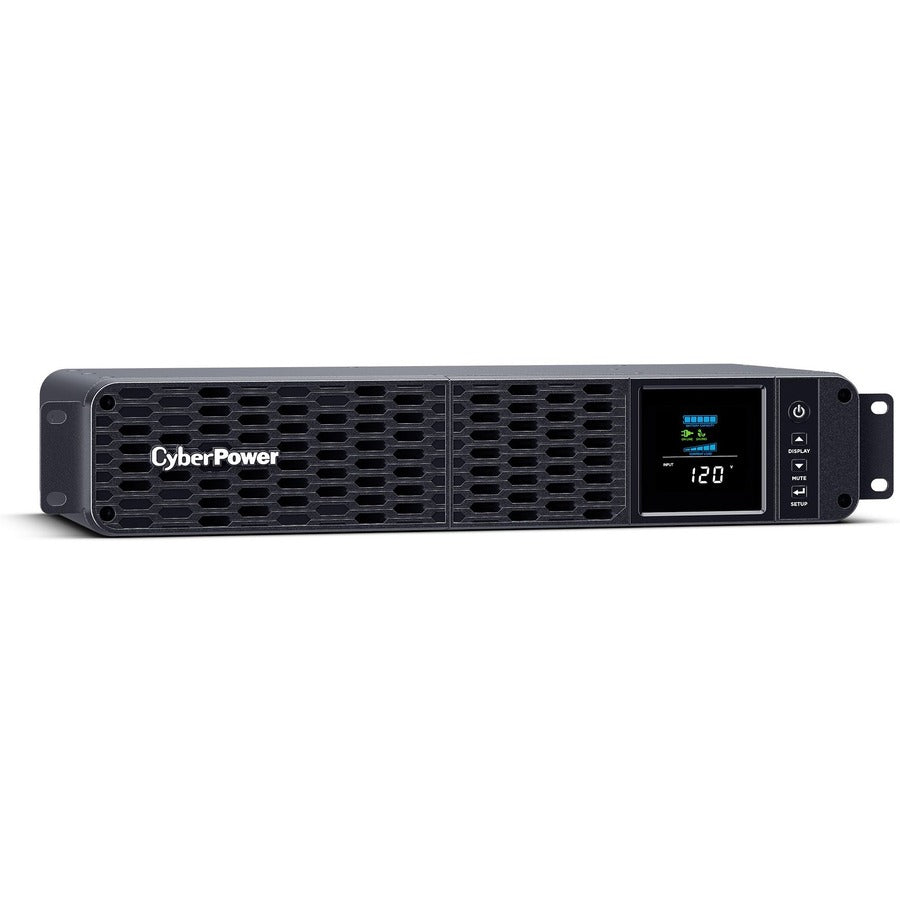

The CP1500PFCRM2U is a PFC Sinewave rackmount UPS that provides battery backup (using sine wave output), surge protection, and EMI/RFI filtration for security systems, audio/visual equipment, and networking equipment requiring active PFC power source compatibility.

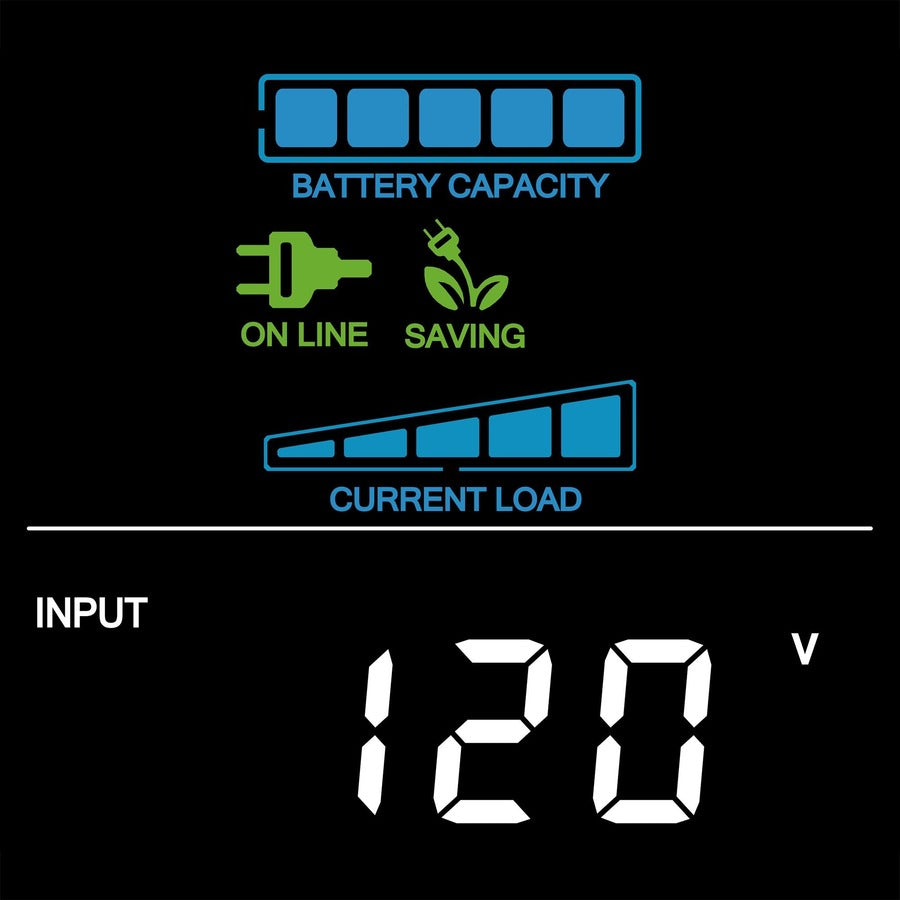

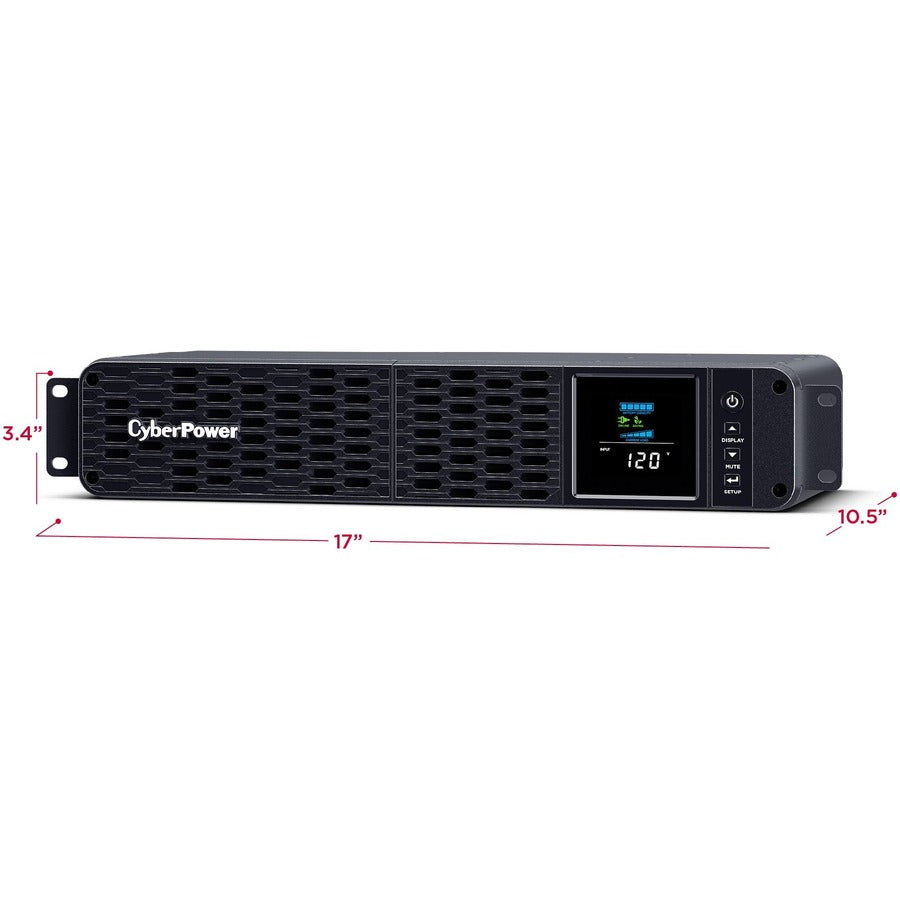

The CP1500PFCRM2U features Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power, and a multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. Remote management and/or monitoring is available with optional purchase of a Remote Network Management Card or Cloud Monitoring Card. At only 10.5 inches in depth, the CP1500PFCRM2U fits comfortably in short-depth rack installations where space is at a premium.
The CP1500PFCRM2U comes with a three-year warranty (including coverage of batteries) and a ,500,000 Connected Equipment Guarantee
- Experience higher efficiency with lower energy cost
- Up to 3.10 minute runtime on full load to preserve critical data from power shortage interruptions

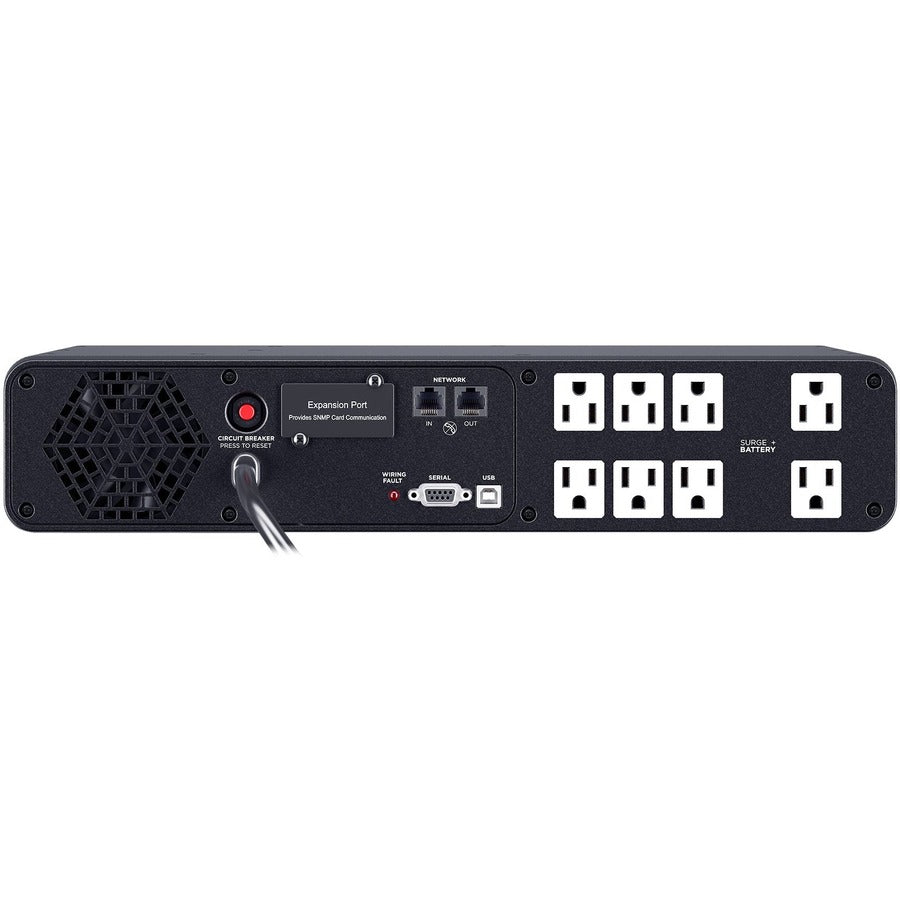

- Receptacle Detail : 8 x NEMA 5-15R
- Number of Battery & Surge Outlets : 8
- Form Factor : Rack-mountable
- Manufacturer Website Address : http://www.cyberpowersystems.com
- Backup/Run Time (Full Load) : 3.10 Minute
- Load Capacity : 1.50 kVA/1 kW
- Energy Star : Yes
- Battery Chemistry : Lead Acid
- Manufacturer : CyberPower Systems, Inc
- Product Model : CP1500PFCRM2U
- Input Voltage Range : 88 VAC - 144 VAC
- Backup/Run Time (Half Load) : 10.20 Minute
- Rack Height : 2U
- Receptacle Type : NEMA 5-15R
- Environmentally Friendly : Yes
- Product Color : Black
- Input Voltage : 120 V AC
- Transfer Time : 4 ms
- Limited Warranty : 3 Year
- Typical Battery Recharge Time : 8 Hour
- Waveform Type : Sine Wave
- Plug/Connector Type : NEMA 5-15P
- Product Type : Line-interactive UPS
- Replaceable Battery : Yes
- Application/Usage : Surveillance System,Security System,POS,Network Device,Storage Device,Audio System
- AVR : Yes
- Country of Origin : China
- Product Line : PFC Sinewave
- DC System Voltage : 12 V DC
- Output Frequency : 60 Hz
- Input Frequency : 63 Hz
- Battery Capacity : 9000 mAh
- Dataline Protection : Coax
- USB (HID Compliant) Port : Yes
- Network Management : SNMP/HTTP Remote Monitoring,SNMP/Webcard
- Serial Port : Yes
- Maximum Operating Elevation : 10000 ft (3048000 mm)
- Number of Batteries : 2
- Thermal Dissipation : 52 BTU/h
- Maximum Operating Temperature : 104°F (40°C)
- Battery Characteristics : Sealed
- Storage Temperature : 5°F (-15°C) - 113°F (45°C)
- EMI/RFI Noise Filter : Yes
- Overload Protection : Yes
- Surge Energy Rating : 1500 J
- Alarm : Battery Mode,Low Battery,Overload,Fault
- Maximum Storage Elevation : 50000 ft (15240000 mm)
- Status Indicators :
Multifunction LCD
