Description

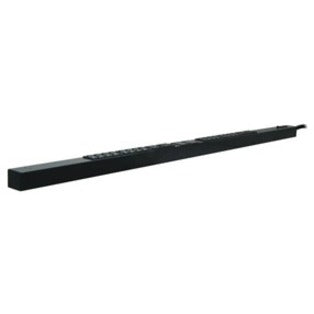

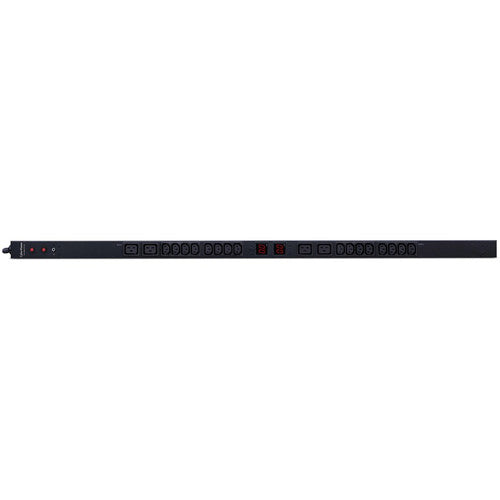

The CyberPower 20-outlet (20 Front) 0U vertical rack mount metered power distribution unit (PDU30MVHVT20F) provides 200/230V 30A output. It distributes power to 20 IEC-320 (4-C19 and 16-C13) receptacles from a single NEMA L6-20P twist lock plug, with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front of two LCDs for real-time load monitoring. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal and wall mount installation, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
- 48 inch 0U Vertical Rack Mount - Rugged industrial metal housing
- 200/230V AC - 50/60Hz - 30-amp electrical capacity with circuit breaker
- 20 IEC-320 (4-C19 and 16-C13) output receptacles
- Metered PDU
- Energy Star : No
- Product Series : Metered PDU
- Input Voltage : 230 V AC
- Protection Type : Overload Protection
- Mount Type : Rack-mountable
- Manufacturer Website Address : http://www.cyberpowersystems.com
- Output Voltage : 230 V AC
- Mounting Orientation : Vertical
- Environmentally Friendly : Yes
- Plug/Connector Type : NEMA L6-30P
- Environmental Certification : RoHS
- Manufacturer : CyberPower Systems, Inc
- Product Type : PDU
- Receptacle Type : IEC 60320 C13
- Limited Warranty : Lifetime
- Receptacle Detail : 16 x IEC 60320 C13
- Product Model : PDU30MVHVT20F
- Length : 2.25" (57.15 mm)
- Energy Star : No
- Mounting Orientation : Vertical
- Environmentally Friendly : Yes
- Environmental Certification : RoHS
- Manufacturer : CyberPower Systems, Inc
- Product Type : PDU
- Limited Warranty : Lifetime
- Product Model : PDU30MVHVT20F
- Length : 2.25" (57.15 mm)
- Receptacle Type : IEC 60320 C13
- Receptacle Detail : 16 x IEC 60320 C13
- Product Series : Metered PDU
- Input Voltage : 230 V AC
- Protection Type : Overload Protection
- Mount Type : Rack-mountable
- Output Voltage : 230 V AC
- Manufacturer Website Address : http://www.cyberpowersystems.com
- Plug/Connector Type : NEMA L6-30P
