Description

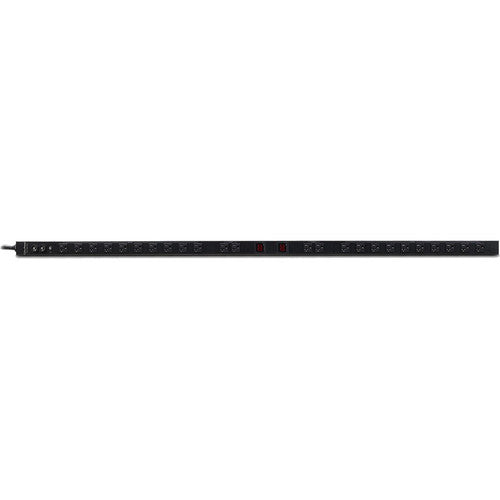

The CyberPower 24-outlet (24 Front) 0U vertical rack mount metered power distribution unit (PDU30MVT24F) provides 120V 30A output. It distributes power to 24 NEMA 5-20R receptacles from a single NEMA L5-30P twist lock plug, with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front of two LCDs for real-time load monitoring. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal and wall mount installation, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
- 60 inch 0U Vertical Rack Mount - Rugged industrial metal housing
- 120V AC - 50/60Hz - 30-amp electrical capacity with circuit breaker
- Metered PDU
- 24 NEMA 5-20R (24 Front) output receptacles
- Product Series : Metered PDU
- Input Voltage : 120 V AC
- Protection Type : Overload Protection
- Mount Type : Rack-mountable
- Package Contents :
- Metered PDU30MVT24F 24-Outlets PDU
- Cord Retention Tray
- Manufacturer Website Address : http://www.cyberpowersystems.com
- Output Voltage : 120 V AC
- Mounting Orientation : Horizontal/Vertical
- Plug/Connector Detail : 1 x NEMA L5-30P
- Environmentally Friendly : Yes
- Plug/Connector Type : NEMA L5-30P
- Environmental Certification : RoHS
- Manufacturer : CyberPower Systems, Inc
- Product Type : PDU
- Receptacle Type : NEMA 5-20R
- Limited Warranty : Lifetime
- Receptacle Detail : 24 x NEMA 5-20R
- Product Model : PDU30MVT24F
- Country of Origin : China
- Mounting Orientation : Horizontal/Vertical
- Environmentally Friendly : Yes
- Environmental Certification : RoHS
- Manufacturer : CyberPower Systems, Inc
- Product Type : PDU
- Limited Warranty : Lifetime
- Product Model : PDU30MVT24F
- Product Series : Metered PDU
- Input Voltage : 120 V AC
- Protection Type : Overload Protection
- Mount Type : Rack-mountable
- Package Contents :
- Metered PDU30MVT24F 24-Outlets PDU
- Cord Retention Tray
- Output Voltage : 120 V AC
- Manufacturer Website Address : http://www.cyberpowersystems.com
- Plug/Connector Detail : 1 x NEMA L5-30P
- Plug/Connector Type : NEMA L5-30P
- Receptacle Type : NEMA 5-20R
- Receptacle Detail : 24 x NEMA 5-20R
- Country of Origin : China
