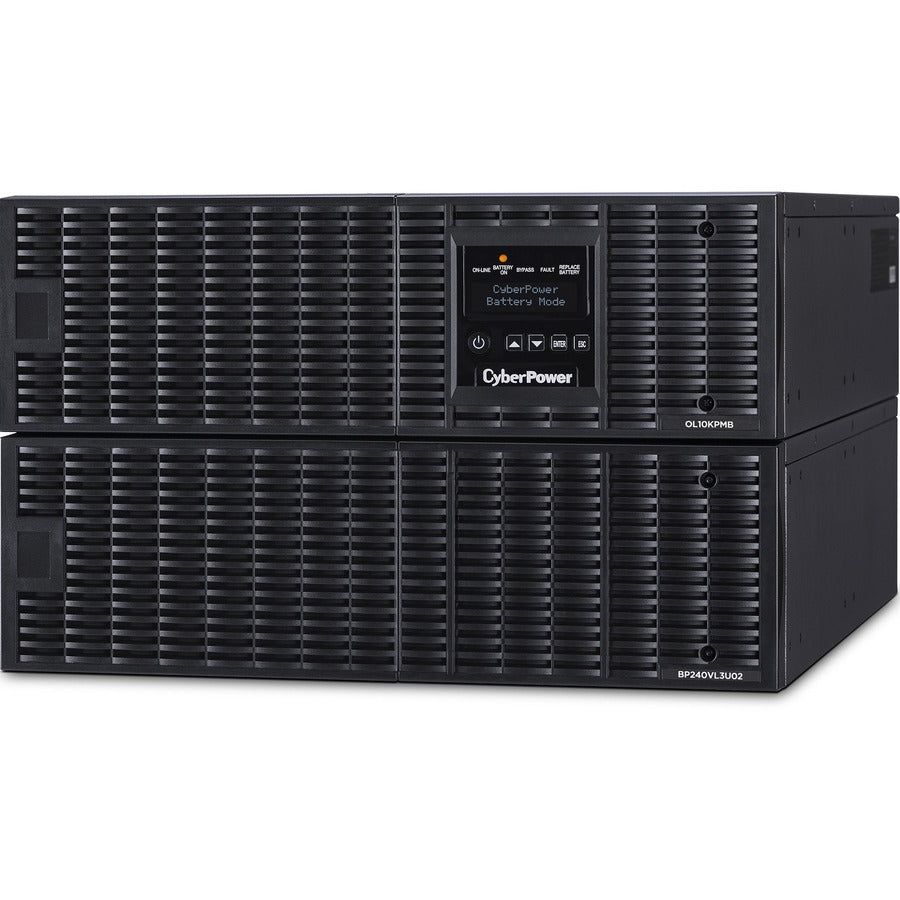

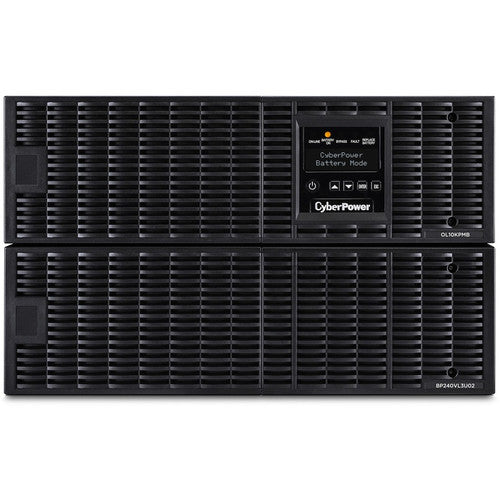

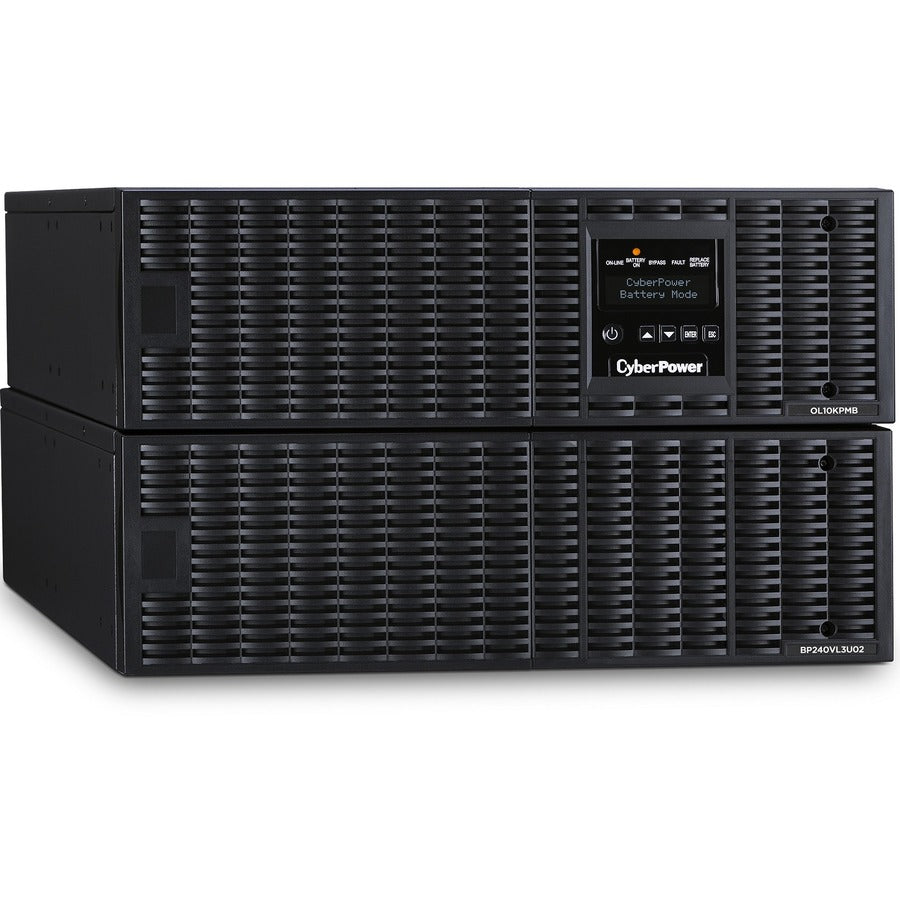

CyberPower OL10KRTMB Smart App Online UPS Systems OL10KRTMB

The CyberPower Smart App Online OL10KRTMB is a 6U rack/tower UPS featuring double-conversion topology for seamless power protection, an intuitive maintenance bypass switch design, and a pre-installed RMCARD205. Ensure maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS™ ECO Mode enables up to 97% efficiency while reducing power consumption and thermal dissipation. Smart battery management charging technology increases battery life up to 50% and replenishes battery charge from 0-90% in five hours.

The OL10KRTMB enhanced LCD control panel functionality provides the ability to change the IP address, view UPS load energy consumptions, and select UPS diagnostic tests.

Variable 4-speed fans provide automatic thermal management, based on power load, to reduce noise. A tamper-proof input circuit breaker ensures power is not turned off unexpectedly during service or maintenance. The OL10KRTMB simplifies installation with a quick start guide, user-friendly lifting straps, and an enhanced hanging rack mount rail system.

The optional BP240VL3U01 Extended Battery Module expands runtime and speeds restoration of full backup power. The OL10KRTMB comes with a three-year warranty (including batteries) and a ,300,000 Connected Equipment Guarantee.

• Outlet types: 2 � NEMA L6-20R, 4 x NEMA L6-30R, 1 x Hardwire Terminal Block
• Plug type & cord: Hardwire
• Outlets: 7
• Runtime (half/full): 10 minutes / 3.6 minutes
• Waveform: Sine Wave
• Output: 200, 208, 220, 230, 240 VAC User Configurable ±2%
• Topology: Double-Conversion
• Power Factor (PF): 1.0
• Capacity: 10000 VA / 10000 W

• Input Voltage : 230 V AC
• Application/Usage : Network Equipment
• Manufacturer Website Address : http://www.cyberpowersystems.com
• Output Voltage : 240 V AC
• Product Condition : New
• Input Voltage Range : 200 V AC - 240 V AC
• Waveform Type : Sine Wave
• Backup/Run Time (Half Load) : 10 Minute
• Network Management : SNMP Manageable
• Country of Origin : China
• Color : Black
• Replaceable Battery : Yes
• Energy Star : Yes
• Product Series : Smart App Online UPS
• Rack Height : 6U
• Package Contents :
  • Smart App Online OL10KRTMB 10000VA Rack/Tower UPS
  • USB Cable
  • Serial Cable
  • Phone Cable
  • Rack Mounting Hardware
• Battery Chemistry : Lead Acid
• Environmentally Friendly : Yes
• Typical Battery Recharge Time : 5 Hour
• Backup/Run Time (Full Load) : 3.60 Minute
• Plug/Connector Type : Hardwired
• Environmental Certification : GreenPower UPS
• Load Capacity : 10 kVA
• Form Factor : Rack/Tower
• Manufacturer : CyberPower Systems, Inc
• Product Type : Dual Conversion Online UPS
• Receptacle Type : Terminal Block
• Limited Warranty : 3 Year
• Receptacle Detail : 1 x Terminal Block
• Product Model : OL10KRTMB

• Energy Star : Yes
• Rack Height : 6U
• Product Condition : New
• Environmentally Friendly : Yes
• Environmental Certification : GreenPower UPS
• Form Factor : Rack/Tower
• Manufacturer : CyberPower Systems, Inc
• Product Type : Dual Conversion Online UPS
• Limited Warranty : 3 Year
• Product Model : OL10KRTMB
• Country of Origin : China
• Color : Black
• Input Voltage : 230 V AC
• Application/Usage : Network Equipment
• Output Voltage : 240 V AC
• Manufacturer Website Address : http://www.cyberpowersystems.com
• Input Voltage Range : 200 V AC - 240 V AC
• Waveform Type : Sine Wave
• Backup/Run Time (Half Load) : 10 Minute
• Network Management : SNMP Manageable
• Replaceable Battery : Yes
• Product Series : Smart App Online UPS
• Package Contents :
  • Smart App Online OL10KRTMB 10000VA Rack/Tower UPS
  • USB Cable
  • Serial Cable
  • Phone Cable
  • Rack Mounting Hardware
• Battery Chemistry : Lead Acid
• Typical Battery Recharge Time : 5 Hour
• Backup/Run Time (Full Load) : 3.60 Minute
• Plug/Connector Type : Hardwired
• Load Capacity : 10 kVA
• Receptacle Type : Terminal Block
• Receptacle Detail : 1 x Terminal Block
