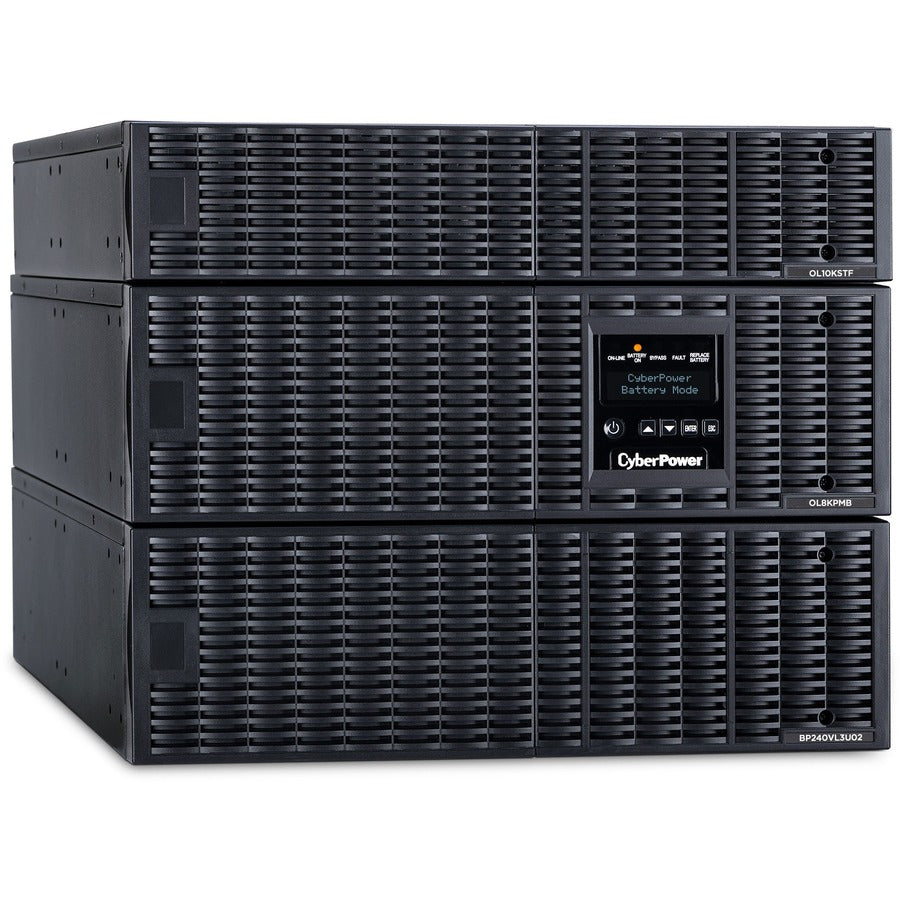

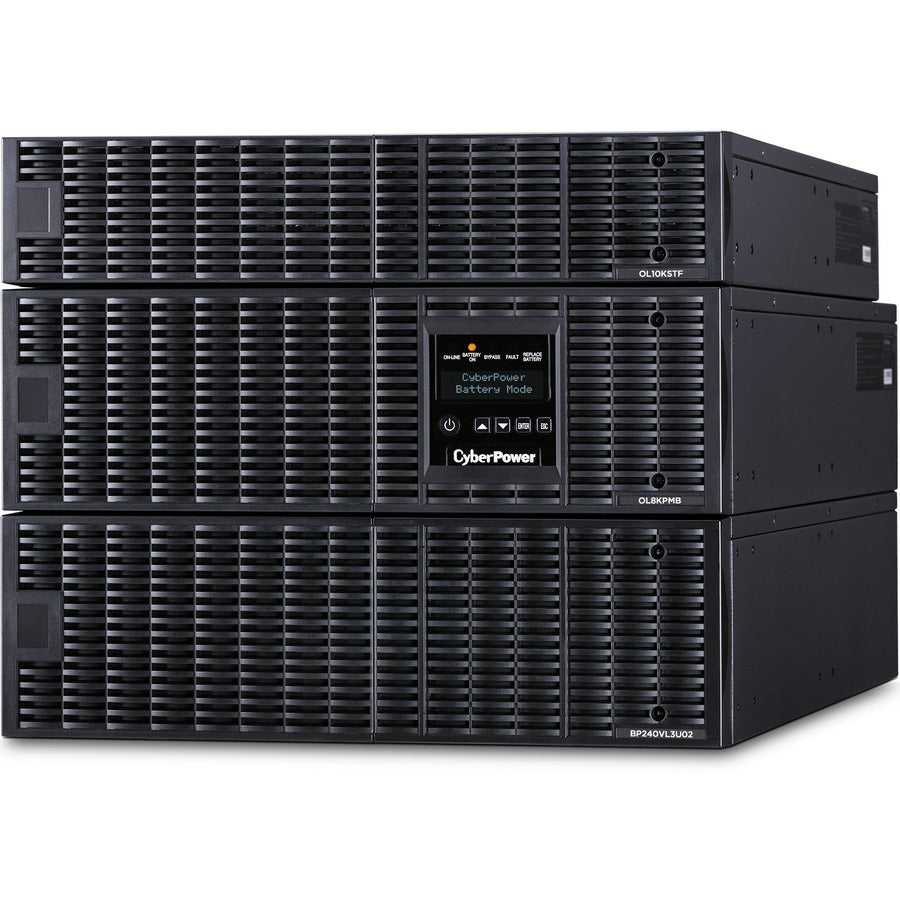

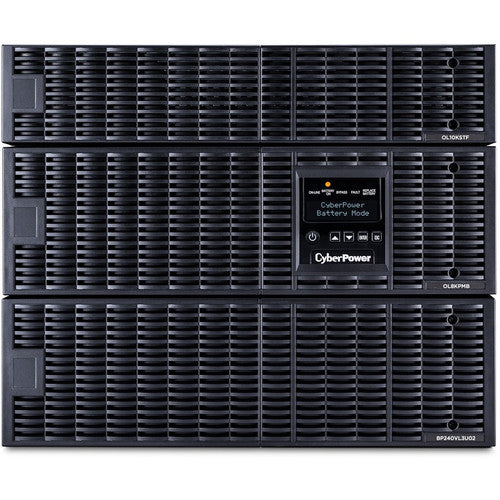

CyberPower OL8KRTMBTF Smart App Online UPS Systems OL8KRTMBTF

The CyberPower Smart App Online OL8KRTMBTF is a 8U rack/tower UPS featuring double-conversion topology for seamless power protection, an intuitive maintenance bypass switch design, a pre-installed RMCARD205 and a 2U step-down transformer to support 120 V and 200-240 V output requirements. Ensure maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS™ ECO Mode enables up to 96% efficiency while reducing power consumption and thermal dissipation. Smart battery management charging technology increases battery life up to 50% and replenishes battery charge from 0-90% in five hours.

The OL8KRTMBTF enhanced LCD control panel functionality provides the ability to change the IP address, view UPS load energy consumptions, and select UPS diagnostic tests.

Variable 4-speed fans provide automatic thermal management, based on power load, to reduce noise. A tamper-proof input circuit breaker ensures power is not turned off unexpectedly during service or maintenance. The OL8KRTMBTF simplifies installation with a quick start guide, user-friendly lifting straps, and an enhanced hanging rack mount rail system.

The optional BP240VL3U01 Extended Battery Module expands runtime and speeds restoration of full backup power. The OL8KRTMBTF comes with a three-year warranty (including batteries) and a ,300,000 Connected Equipment Guarantee.

• Data line protection: Telephone, Network
• Communication ports: USB, Serial, SNMP, Relay, EPO
• Maintenance Bypass Switch: Yes
• Plug type & cord: Hardwire
• Outlet types: 6 x NEMA 5-20R, 2 � NEMA L6-20R, 4 x NEMA L6-30R, 1 x Hardwire Terminal Block
• Output: 120 VAC; 200, 208, 220, 230, 240 VAC User Configurable ±2%
• Topology: Double-conversion
• Waveform: Sine Wave
• Power Factor (PF): 1
• Capacity: 8000 VA / 8000 W

• Input Voltage : 230 V AC
• Application/Usage : Network Equipment
• Manufacturer Website Address : http://www.cyberpowersystems.com
• Output Voltage : 240 V AC
• Product Condition : New
• Input Voltage Range : 200 V AC - 240 V AC
• Waveform Type : Sine Wave
• Backup/Run Time (Half Load) : 12 Minute
• Network Management : SNMP/HTTP Remote Monitoring
• Country of Origin : China
• Color : Black
• Replaceable Battery : Yes
• Energy Star : Yes
• Product Series : Smart App Online UPS
• Rack Height : 8U
• Package Contents :
  • Smart App Online OL8KRTMBTF 8KVA Rack/Tower UPS
  • USB Cable
  • Serial Cable
  • Phone Cable
  • Rack Mounting Hardware
• Battery Chemistry : Lead Acid
• Environmentally Friendly : Yes
• Typical Battery Recharge Time : 5 Hour
• Backup/Run Time (Full Load) : 4.70 Minute
• Plug/Connector Type : Hardwired
• Environmental Certification : GreenPower UPS
• Load Capacity : 8 kVA
• Form Factor : Rack/Tower
• Manufacturer : CyberPower Systems, Inc
• Product Type : Dual Conversion Online UPS
• Receptacle Type : NEMA 5-20R
• Limited Warranty : 3 Year
• Receptacle Detail : 6 x NEMA 5-20R
• Product Model : OL8KRTMBTF

• Energy Star : Yes
• Rack Height : 8U
• Product Condition : New
• Environmentally Friendly : Yes
• Environmental Certification : GreenPower UPS
• Form Factor : Rack/Tower
• Manufacturer : CyberPower Systems, Inc
• Product Type : Dual Conversion Online UPS
• Limited Warranty : 3 Year
• Product Model : OL8KRTMBTF
• Country of Origin : China
• Input Voltage : 230 V AC
• Application/Usage : Network Equipment
• Output Voltage : 240 V AC
• Manufacturer Website Address : http://www.cyberpowersystems.com
• Input Voltage Range : 200 V AC - 240 V AC
• Waveform Type : Sine Wave
• Backup/Run Time (Half Load) : 12 Minute
• Network Management : SNMP/HTTP Remote Monitoring
• Color : Black
• Replaceable Battery : Yes
• Product Series : Smart App Online UPS
• Package Contents :
  • Smart App Online OL8KRTMBTF 8KVA Rack/Tower UPS
  • USB Cable
  • Serial Cable
  • Phone Cable
  • Rack Mounting Hardware
• Battery Chemistry : Lead Acid
• Typical Battery Recharge Time : 5 Hour
• Backup/Run Time (Full Load) : 4.70 Minute
• Plug/Connector Type : Hardwired
• Load Capacity : 8 kVA
• Receptacle Type : NEMA 5-20R
• Receptacle Detail : 6 x NEMA 5-20R
