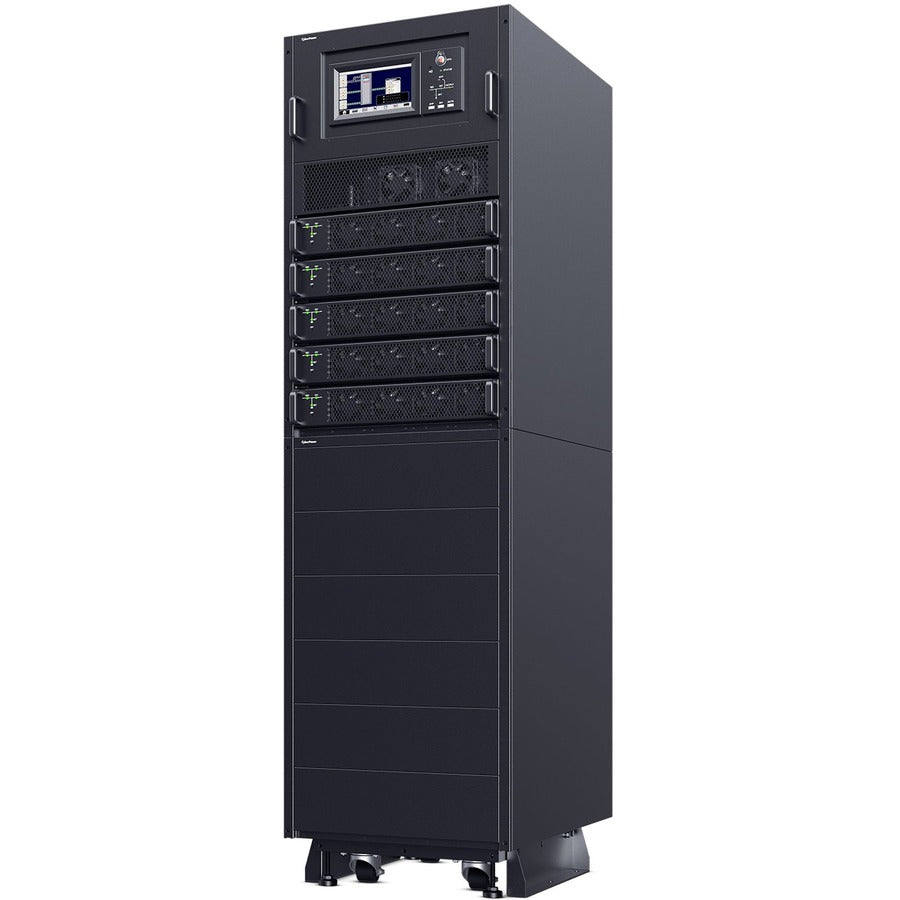

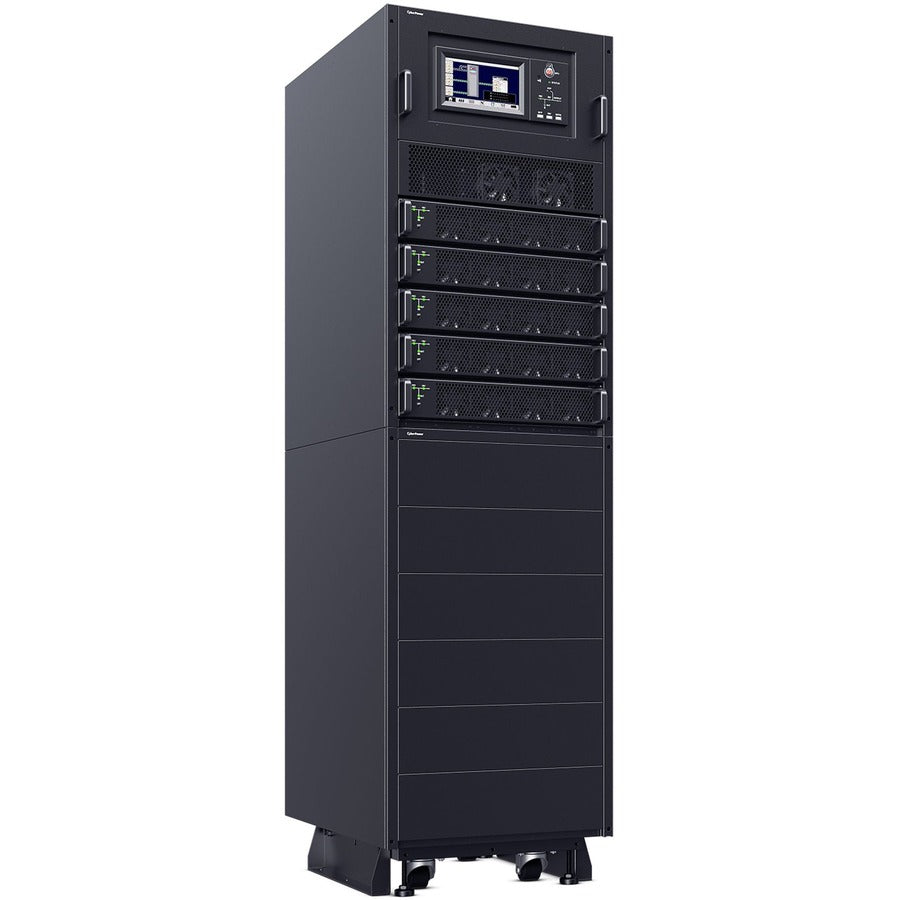

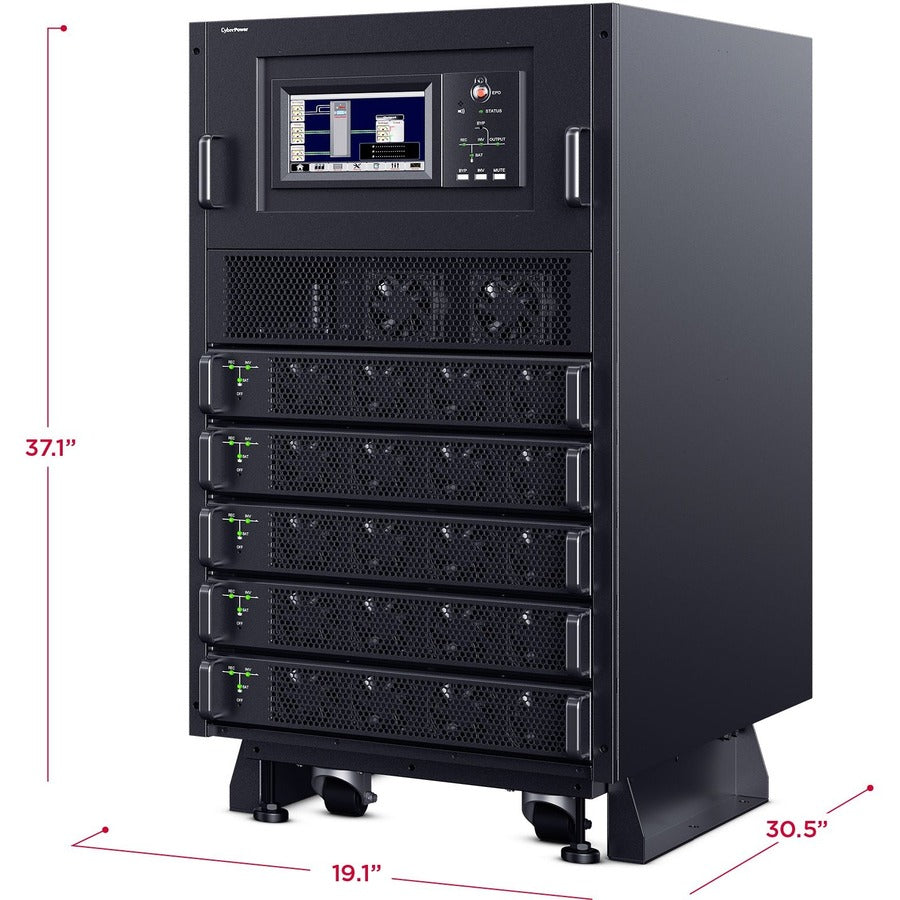

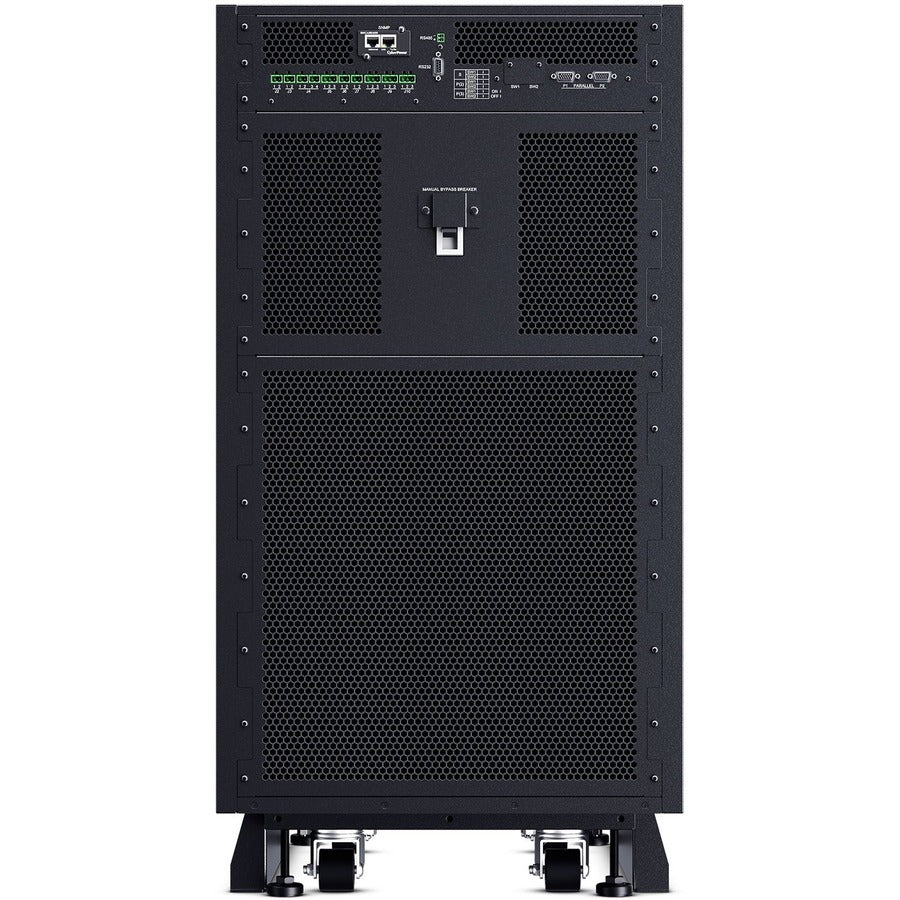

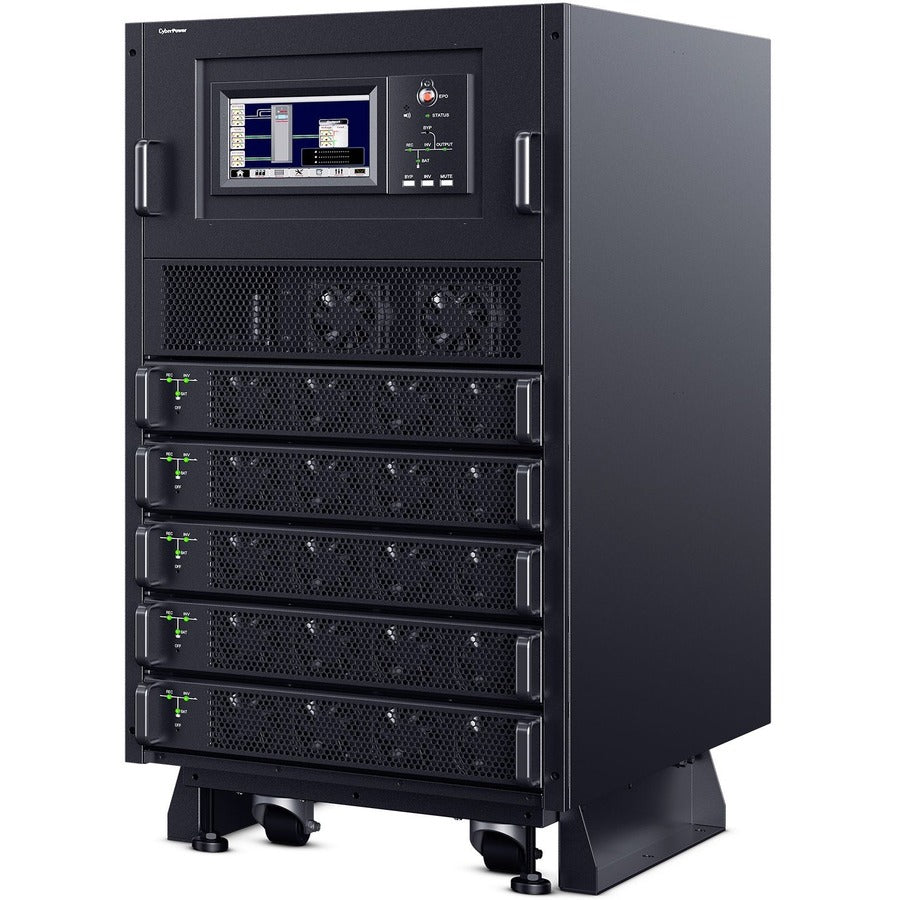

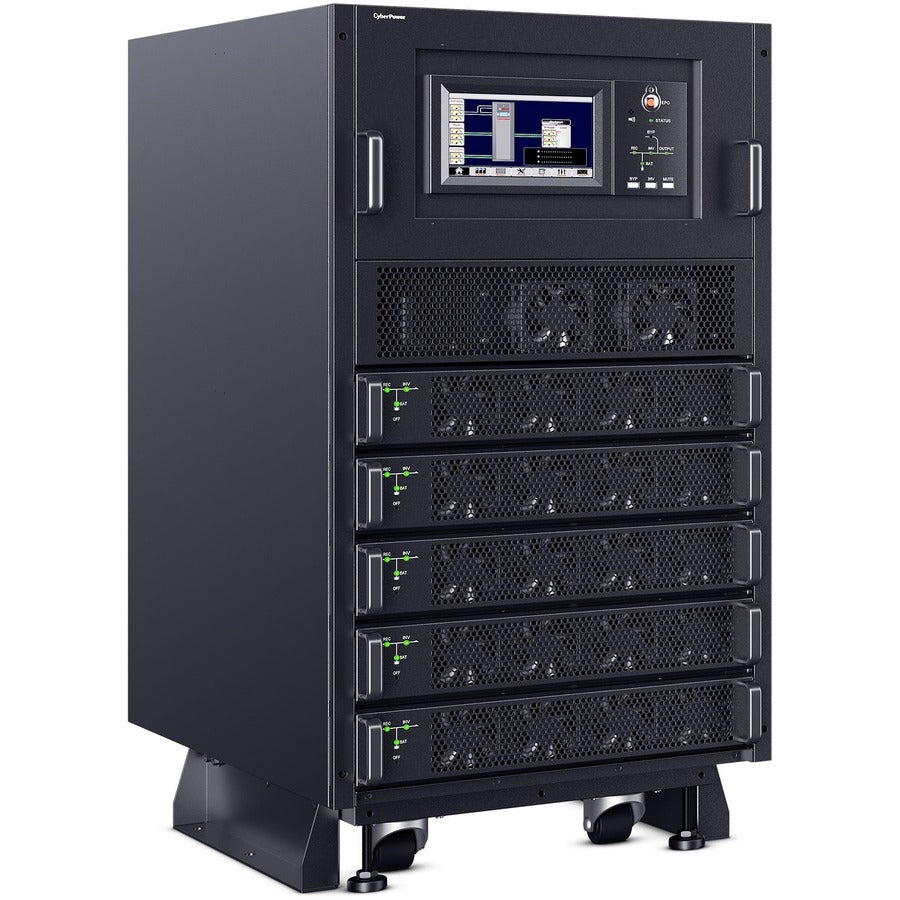

CyberPower SM040KAMFA 3-Phase Modular Smart App Online UPS System SM040KAMFA

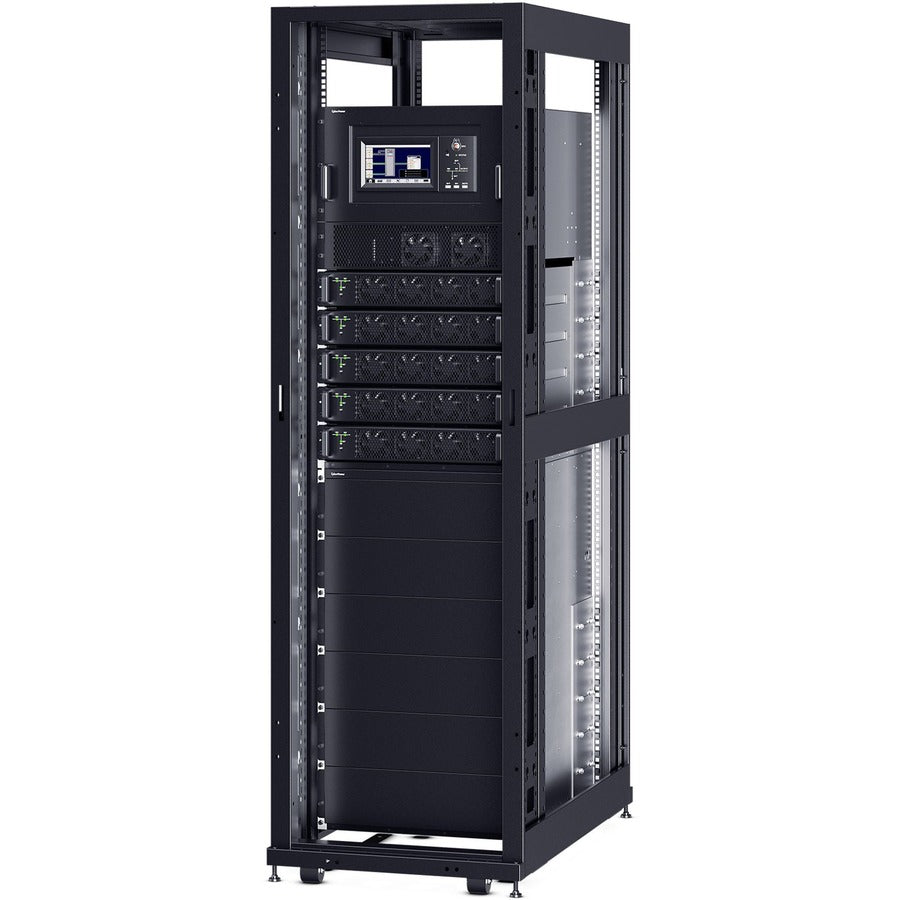

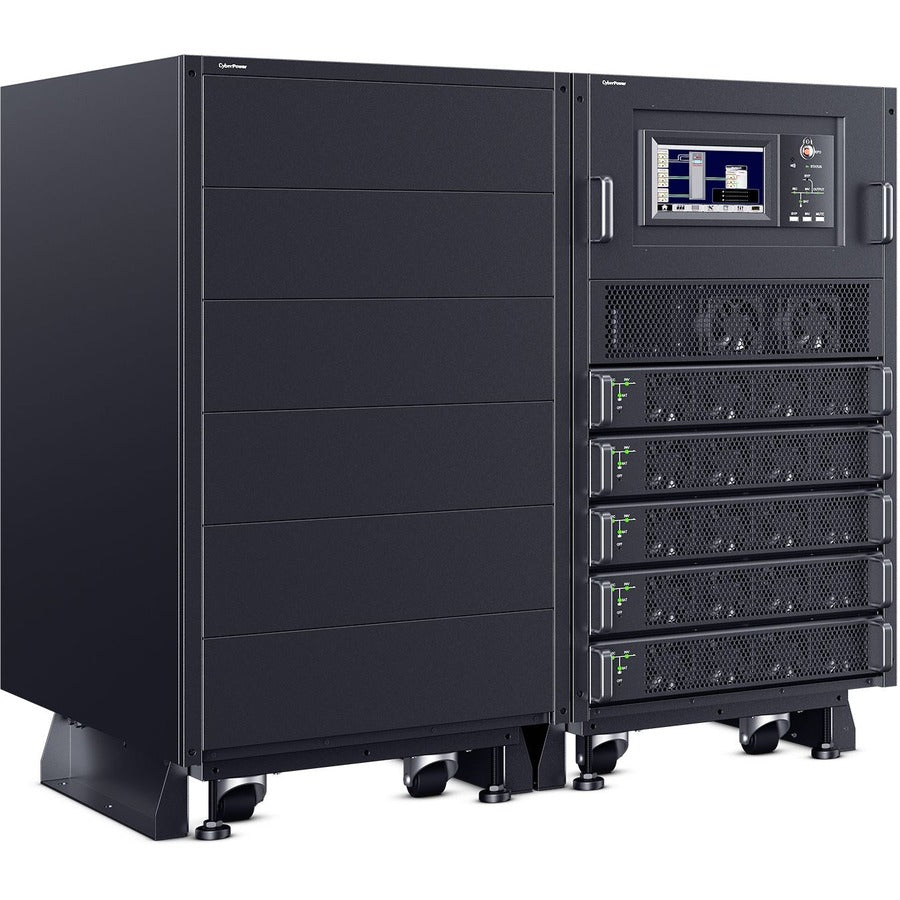

The CyberPower SM040KAMFA Smart App Online 3-Phase Modular UPS System brings flexibility, space savings, and efficiency to 3-Phase power protection technology. Configurable for N+N system or N+1 power module redundancy, the system can intelligently manage individual modules to achieve higher efficiency. The customizable modular design can be configured as a tower, side-by-side, or integrated within a rack. The high-density, scalable 10kVA/10kW power modules are 2U in height, saving space while providing more options for capacity expansion.

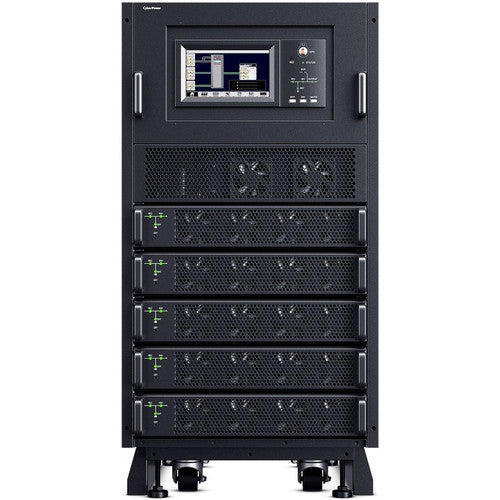

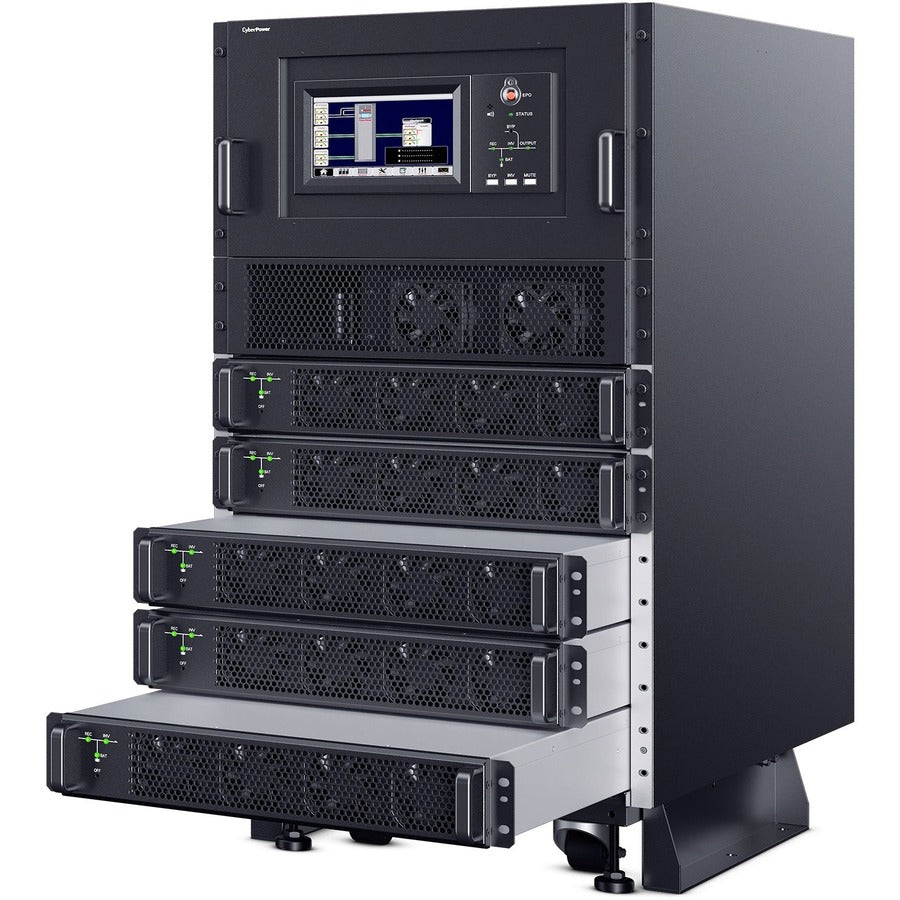

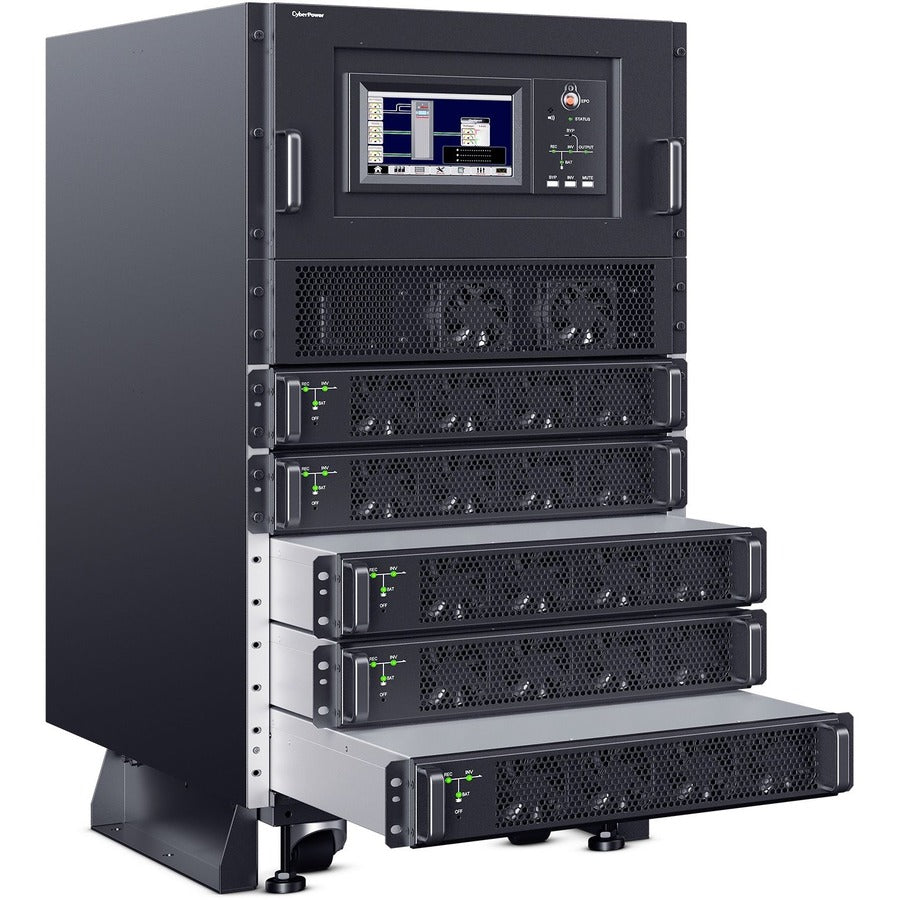

The SM040KAMFA features double-conversion topology for seamless power protection and a pre-installed RMCARD205 for remote management. The user-friendly 7" color touchscreen displays key status indicators at-a-glance. Three-stage Smart Battery Management (SBM) equalizes battery voltages and reduces excessive heat to extend battery life. Plus, hot-swappable power modules, battery and, bypass allow for rapid replacement and minimal impact to system operation. Ideal for high-end data centers, the SM040KAMFA 3-Phase Modular UPS System assures reliable, high-quality AC power and includes a One-Year Limited Warranty.

• Receptacle Detail : 1 x Hardwired
• Phase : Three Phase
• Network Management : SNMP/HTTP Remote Monitoring
• Product Series : Smart App Online UPS
• Form Factor : Modular
• Package Contents :
  • SM040KAMFA 3-Phase Modular Smart App Online UPS System
  • Mounting Hardware
• Load Capacity : 40 kVA
• Manufacturer : CyberPower Systems, Inc
• Product Model : SM040KAMFA
• Input Voltage Range : 187 V AC - 260 V AC
• Rack Height : 19U
• Receptacle Type : Hardwired
• Environmentally Friendly : Yes
• Product Color : Black
• Input Voltage : 120 V AC,230 V AC
• Limited Warranty : 1 Year
• Waveform Type : Sine Wave
• Plug/Connector Type : Hardwired
• Product Type : Double Conversion Online UPS
• Replaceable Battery : Yes
• Application/Usage : Data Center
• Output Voltage : 120 V AC,127 V AC,208 V AC,220 V AC
• AVR : Yes
• Manufacturer Website Address : https://www.cyberpowersystems.com/
• DC System Voltage : 120 V DC
• Software Included : PowerPanel Business
• Serial Port : Yes
• Sound Emission (A-Weighted) : 56 dB(A)
• Maximum Operating Elevation : 10000 ft (3048000 mm)
• Energy Saving : Online ECO Mode Efficiency >97.5%
• Thermal Dissipation : 11430.20 BTU/h
• Maximum Operating Temperature : 104°F (40°C)
• Battery Characteristics : Hot-swappable
• Output Frequency : 60 Hz
• Storage Temperature : -4°F (-20°C) - 158°F (70°C)
• EPO Port : Yes
• Transfer Time : 0 ns
• Number of External Battery Cabinets : 12
• Input Frequency : 60 Hz
• Overload Protection : Yes
• Storage Relative Humidity : 0% - 95%
• USB (HID Compliant) Port : Yes
• Status Indicators :
  • LCD: Multifunction LCD
  • LED Indicators: Rectifier
• Country of Origin : Taiwan
• Protection Type : Short Circuit,Backfeed
