Description

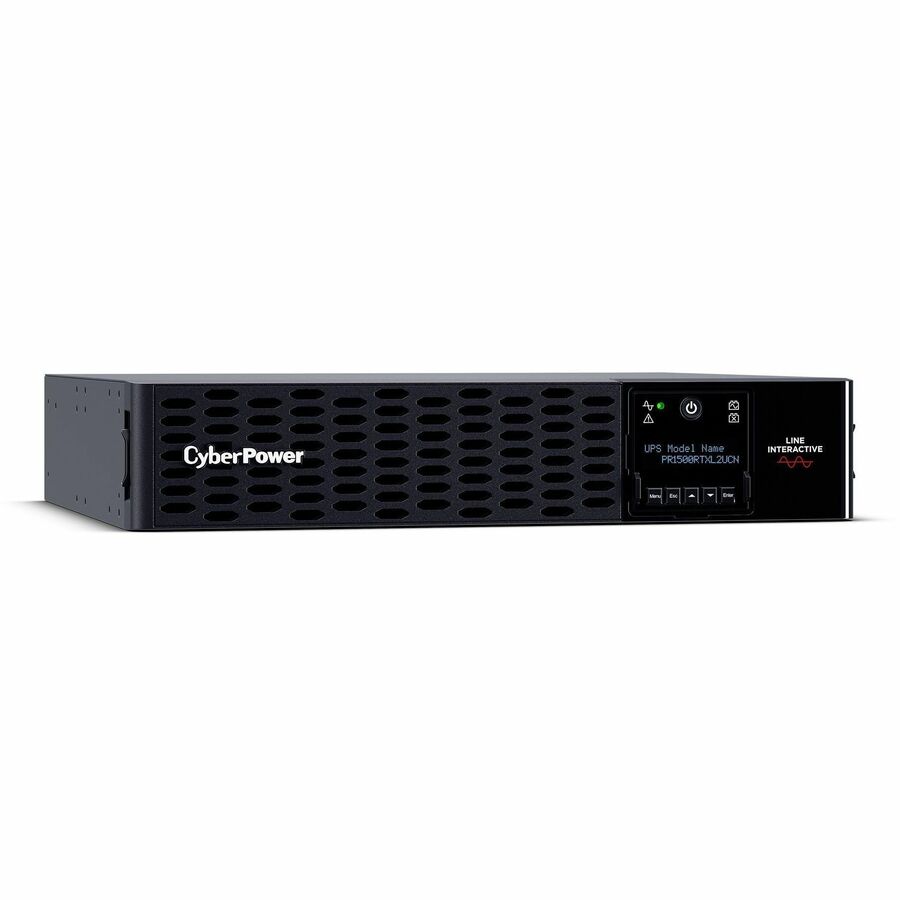

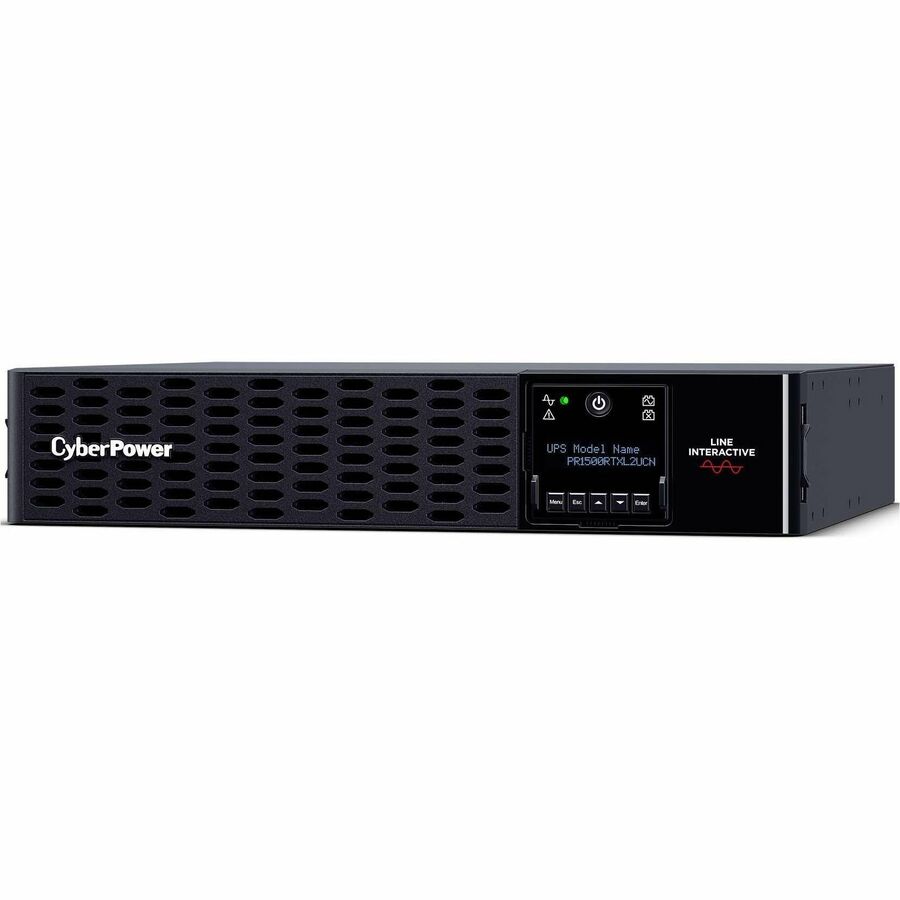

The PR1500RTXL2UCN is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.

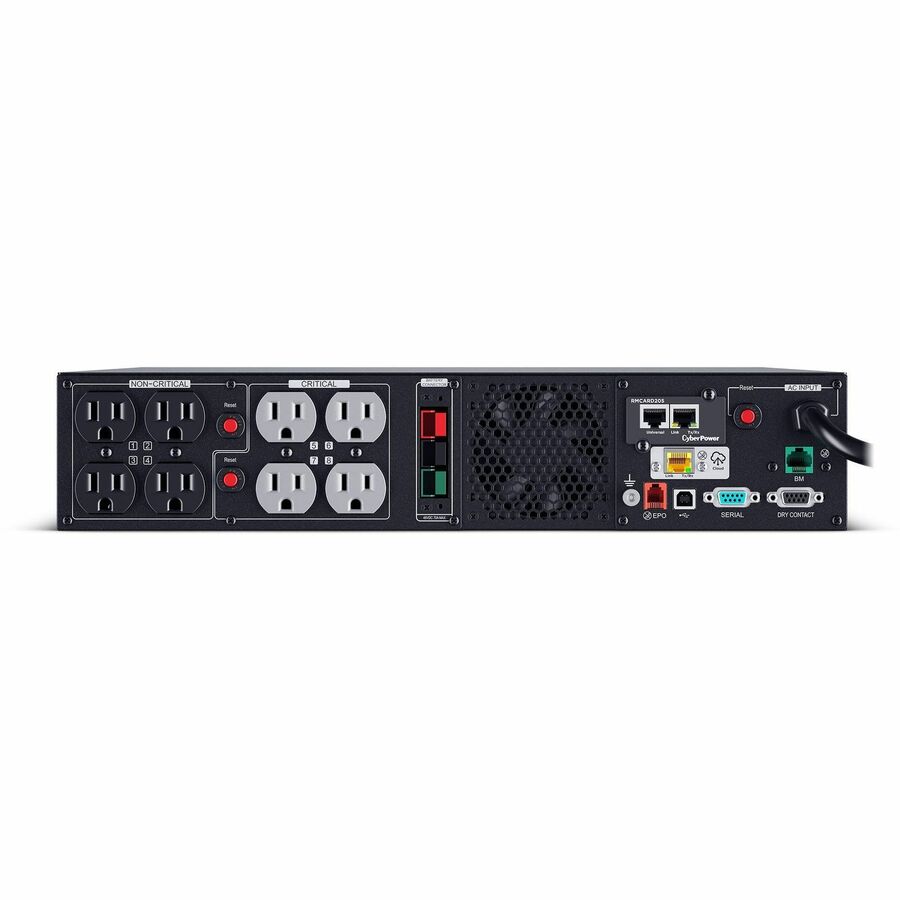

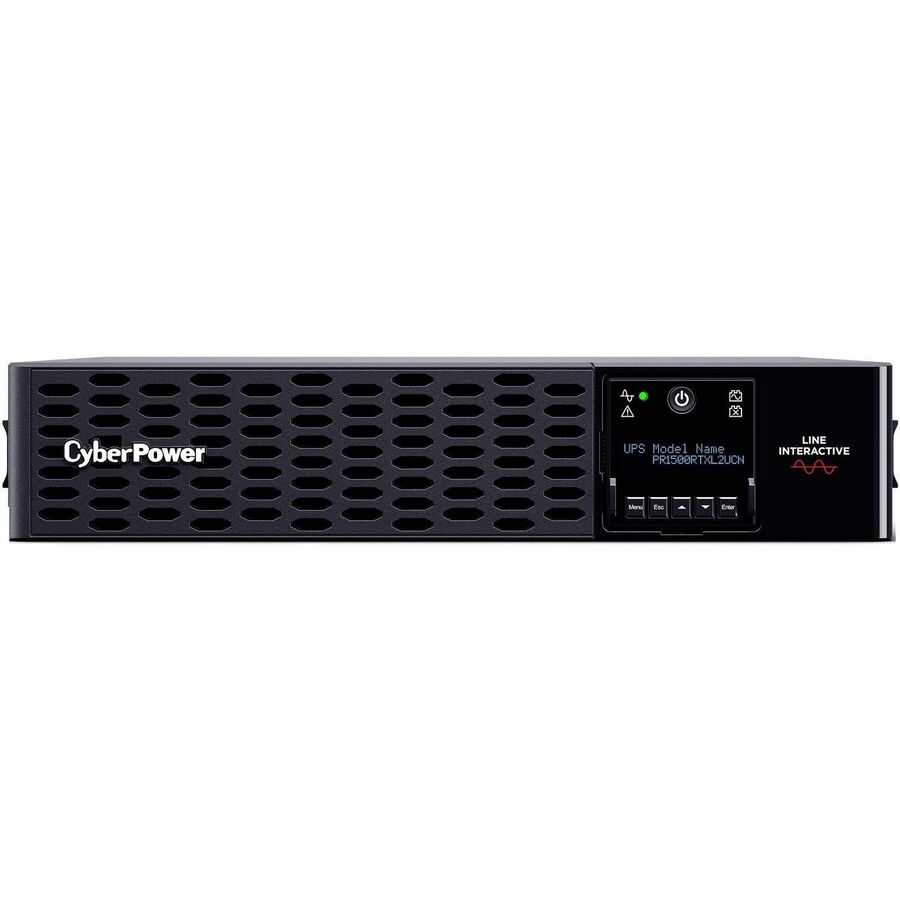

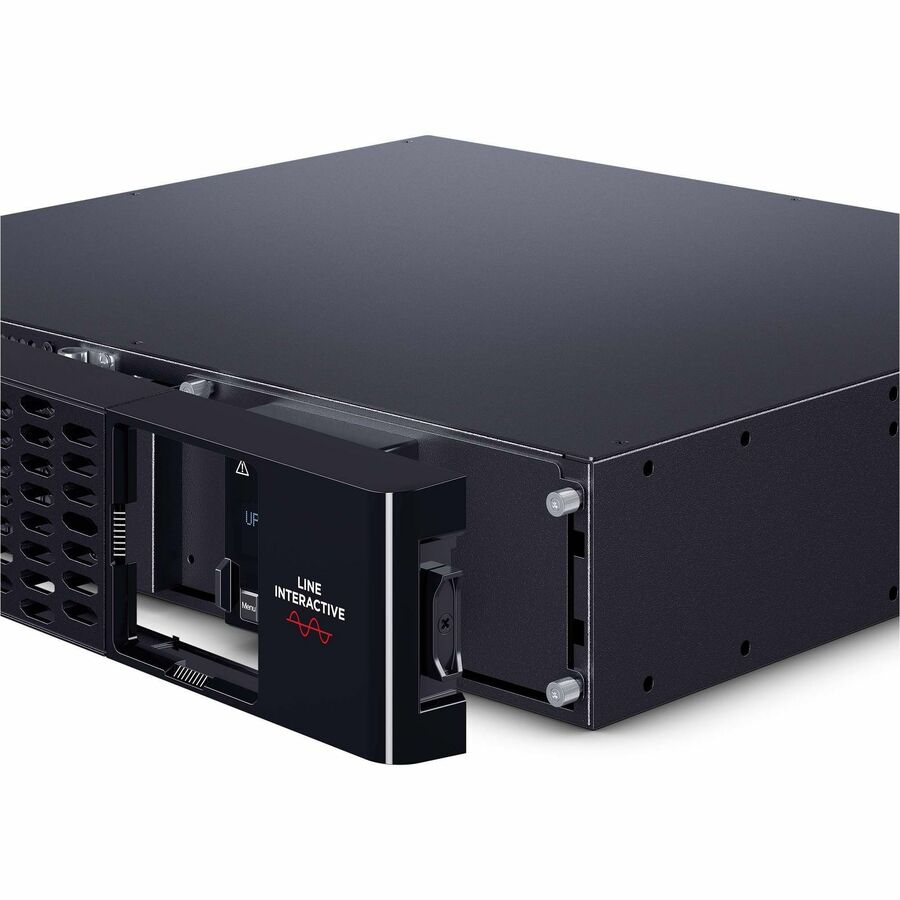

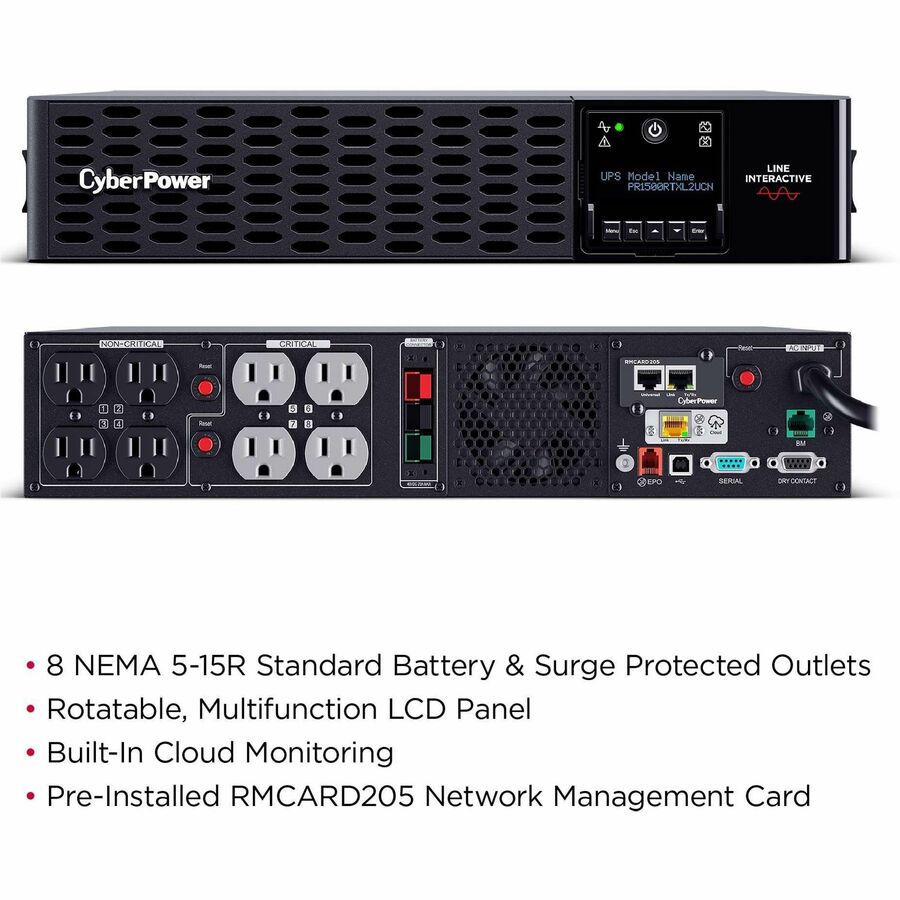

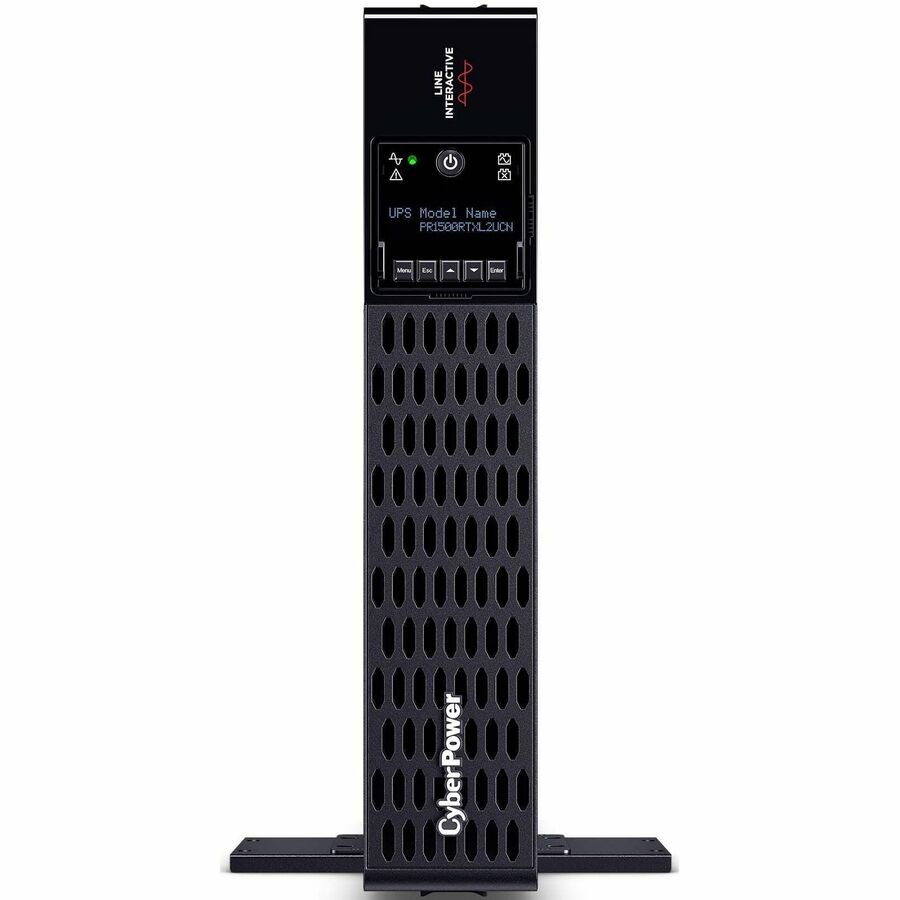

The Smart App Sinewave PR1500RTXL2UCN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR1500RTXL2UCN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.

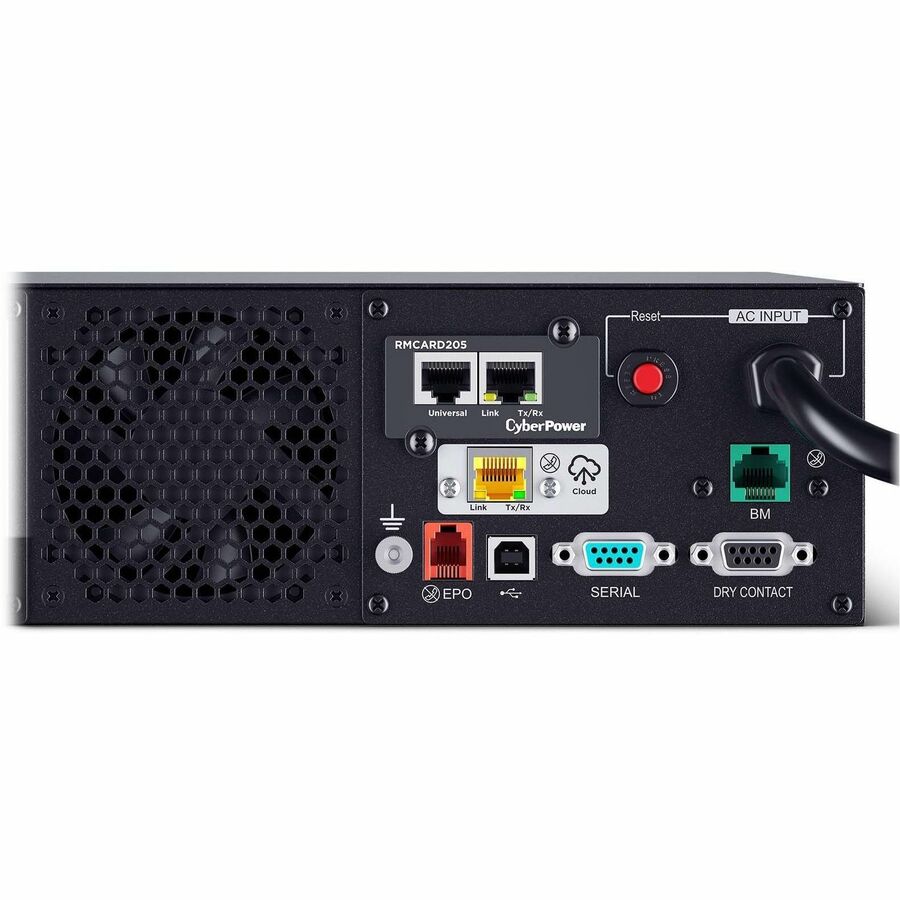

This model accepts the BP48VP2U02 Extended Battery Module (EBM) for expanded runtime during power outages and includes pre-installed RMCARD205 network management card for remote management and control via a standard web browser or network management system. Includes built in cloud monitoring.
With a ,400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR1500RTXL2UCN.
- Experience higher efficiency with lower energy cost
- Up to 6.50 minute runtime on full load to preserve critical data from power shortage interruptions

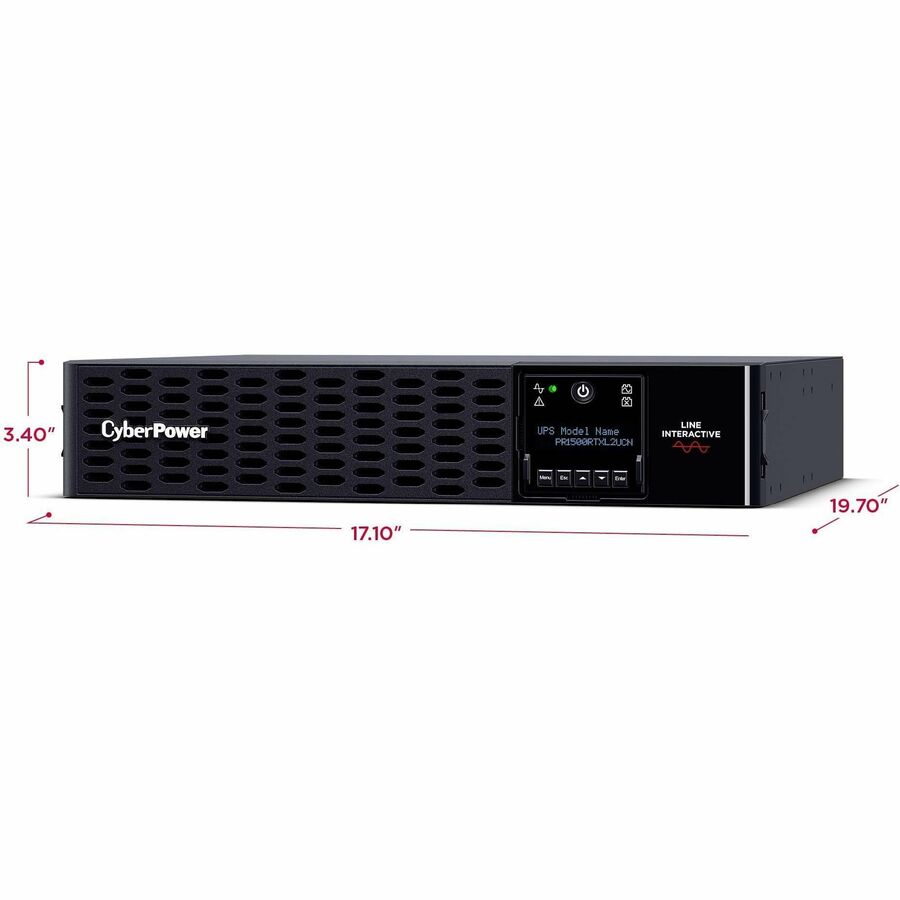

- Length : 24.13" (612.90 mm)
- Battery Size : 12V
- Number of Battery & Surge Outlets : 8
- Backup/Run Time (Full Load) : 6.50 Minute
- Load Capacity : 1.50 kVA/1.50 kW
- Energy Star : Yes
- Manufacturer : CyberPower Systems, Inc
- Input Voltage Range : 70 V AC - 155 V AC
- Rack Height : 2U
- Output Frequency : 60 Hz
- Output Power Factor : 1
- Environmental Certification : GreenPower UPS,RoHS
- Environmentally Friendly : Yes

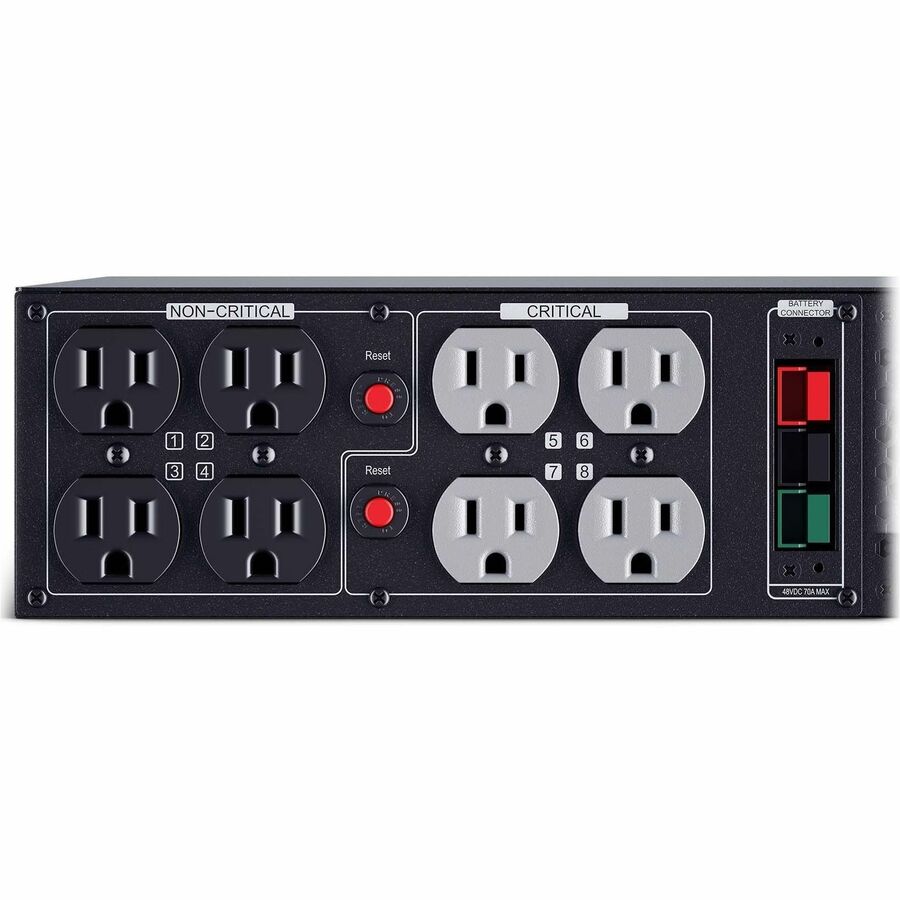

- Number of Critical Load Outlets : 4
- Product Color : Black
- Additional Warranty Information :
- Connected Equipment Guarantee: Lifetime
- Connected Equipment Guarantee: $400,000
- Input Voltage : 120 V AC
- Circuit Breaker : Yes
- Limited Warranty : 3 Year
- Typical Battery Recharge Time : 3 Hour
- Waveform Type : Sine Wave
- Input Frequency : 63 Hz
- Operating Humidity : 0% - 95%
- Battery Capacity : 9000 mAh
- Product Type : Line-interactive UPS
- Replaceable Battery : Yes
- Storage Relative Humidity : 0% - 95%
- USB (HID Compliant) Port : Yes
- Output Voltage : 100 V AC,110 V AC,120 V AC,125 V AC
- AVR : Yes
- Receptacle Detail : 8 x NEMA 5-15R
- Network Management : SNMP/HTTP Remote Monitoring,Relay-MS Card,Network Card
- Serial Port : Yes
- Sound Emission (A-Weighted) : 55.5 dB(A)
- Maximum Operating Elevation : 9842.52 ft (3000000 mm)

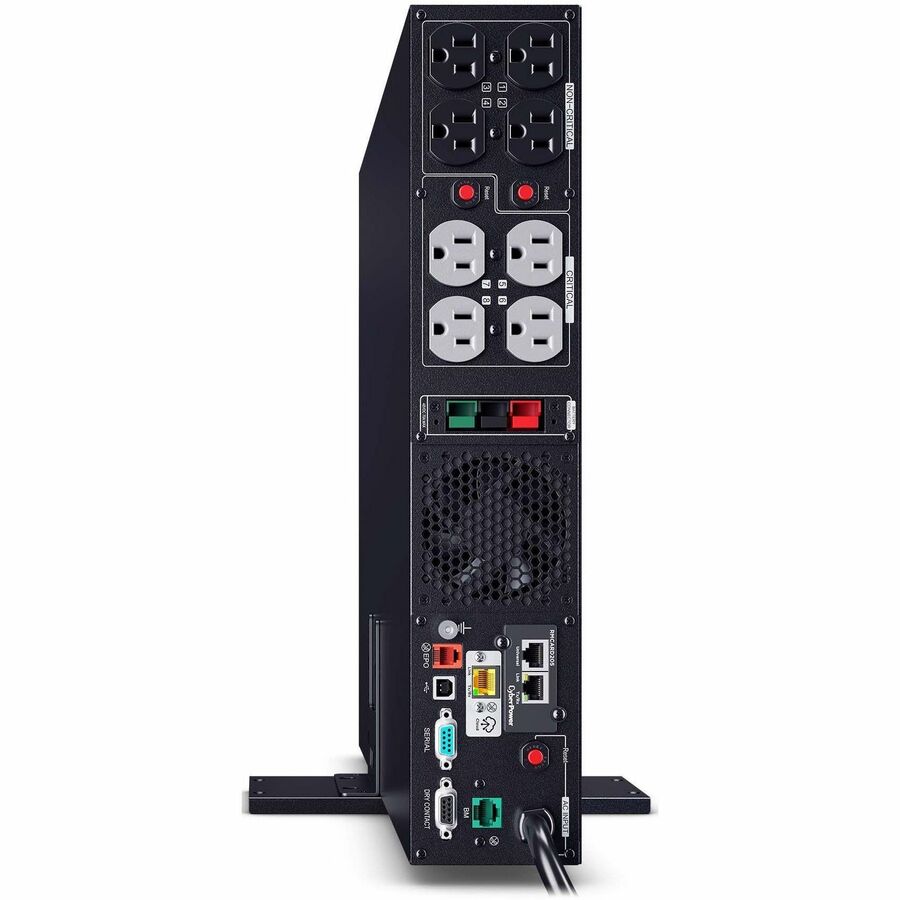

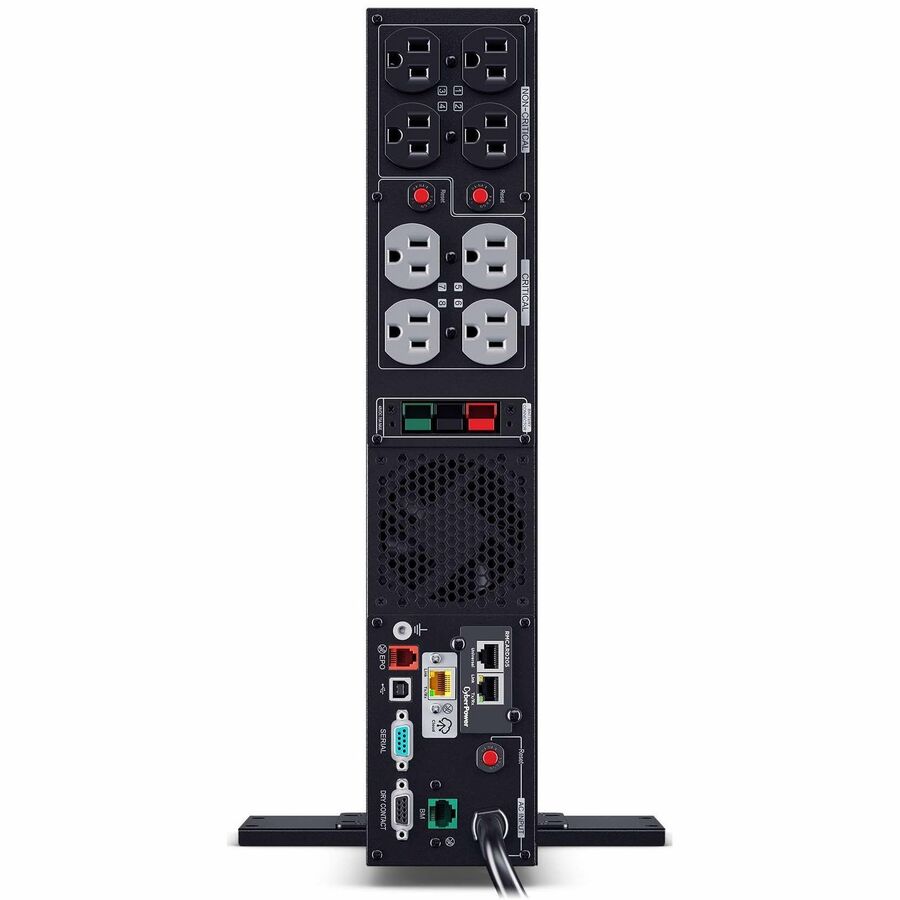

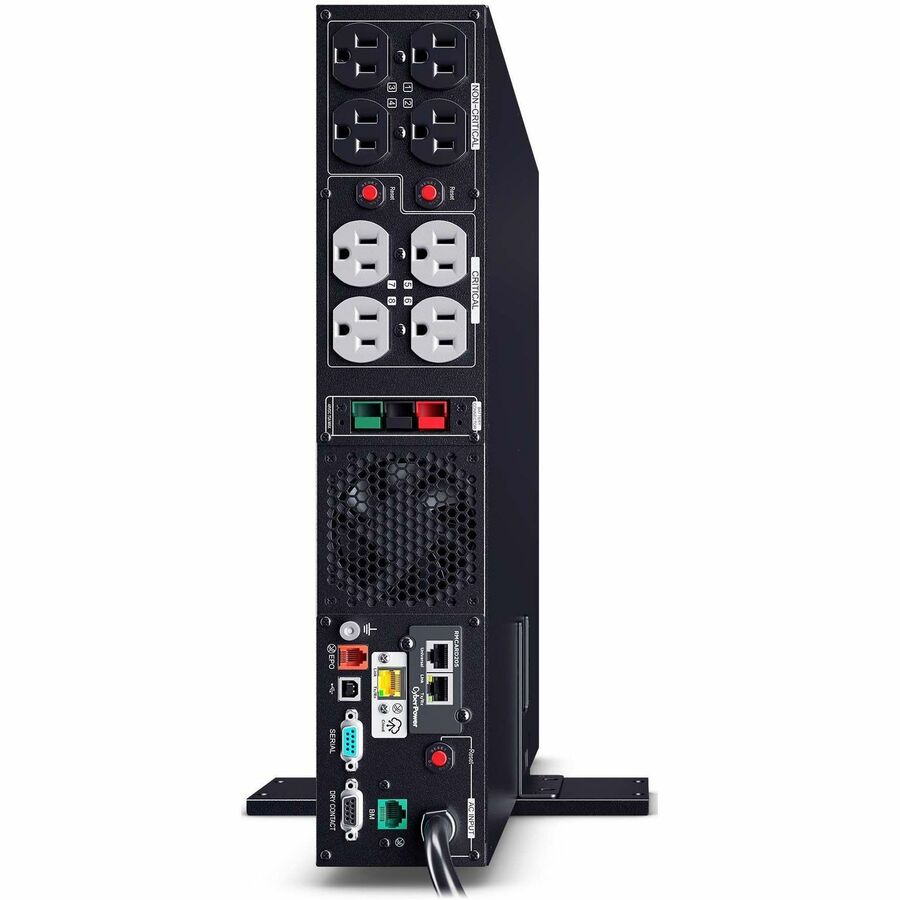

- Form Factor : Tower/Rack Convertible
- Manufacturer Website Address : https://www.cyberpowersystems.com/
- Number of Batteries : 4
- Thermal Dissipation : 96.70 BTU/h
- Battery Chemistry : Lead Acid
- Product Model : PR1500RTXL2UCN
- Maximum Operating Temperature : 104°F (40°C)
- Backup/Run Time (Half Load) : 17.90 Minute
- Battery Characteristics : Sealed
- Storage Temperature : 5°F (-15°C) - 113°F (45°C)
- Receptacle Type : NEMA 5-15R
- USB : Yes
- EMI/RFI Noise Filter : Yes
- EPO Port : Yes
- Transfer Time : 4 ms
- Minimum Operating Temperature : 32°F (0°C)
- Overload Protection : Yes
- Plug/Connector Type : NEMA 5-15P
- Cord Length : 10 ft
- Surge Energy Rating : 2430 J
- Alarm : Battery Mode
- Maximum Storage Elevation : 49209.32 ft (14999000 mm)
- Hot Swappable : Yes
- Display : LCD
- Status Indicators :
LED Indicators:
- Power On
- Product Line : Smart App Sinewave
