Description

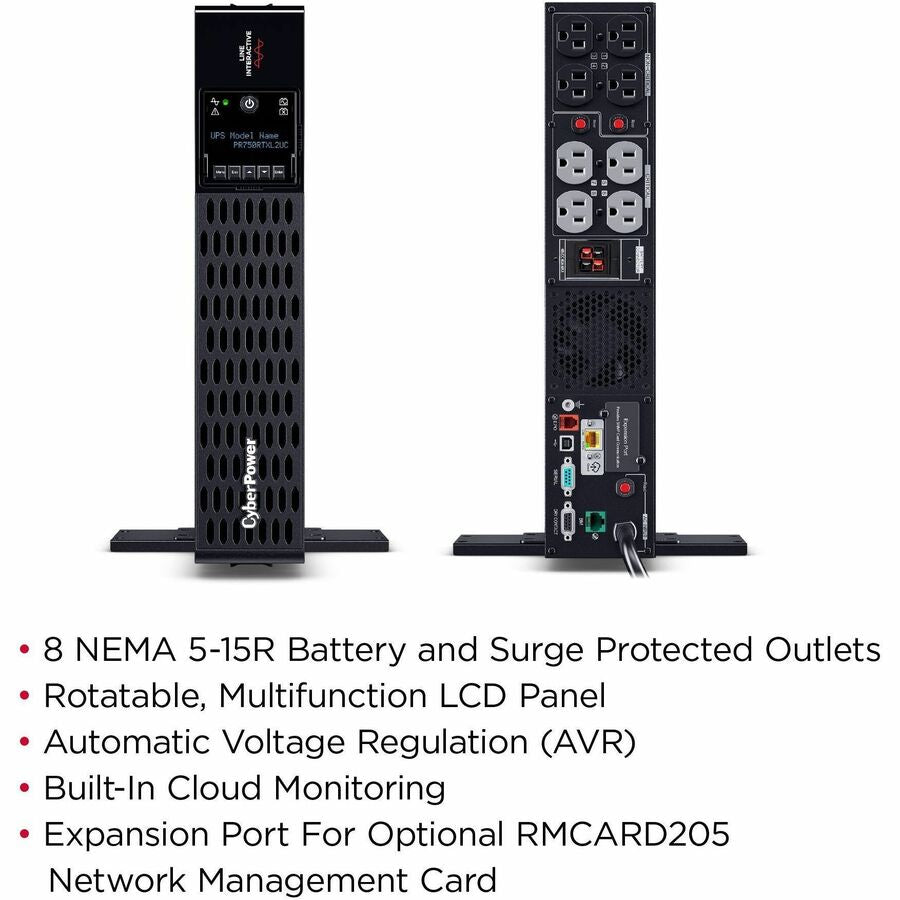

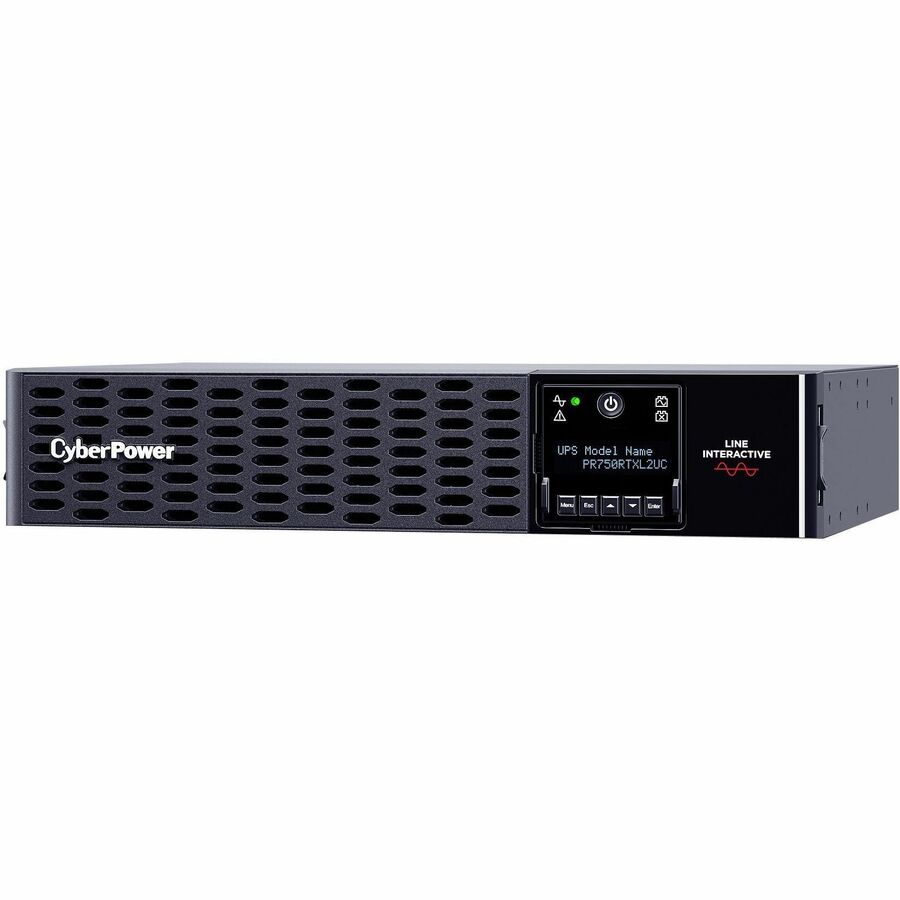

The PR750RTXL2UC is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.

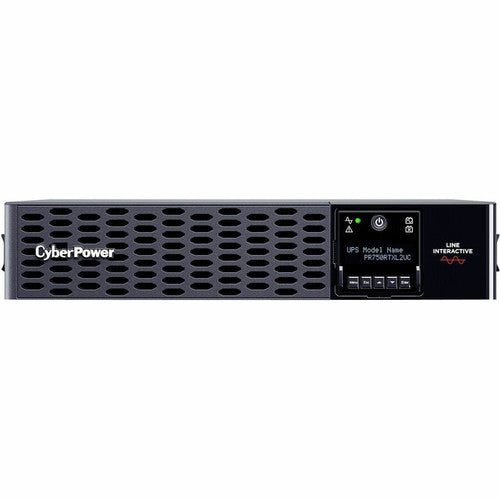

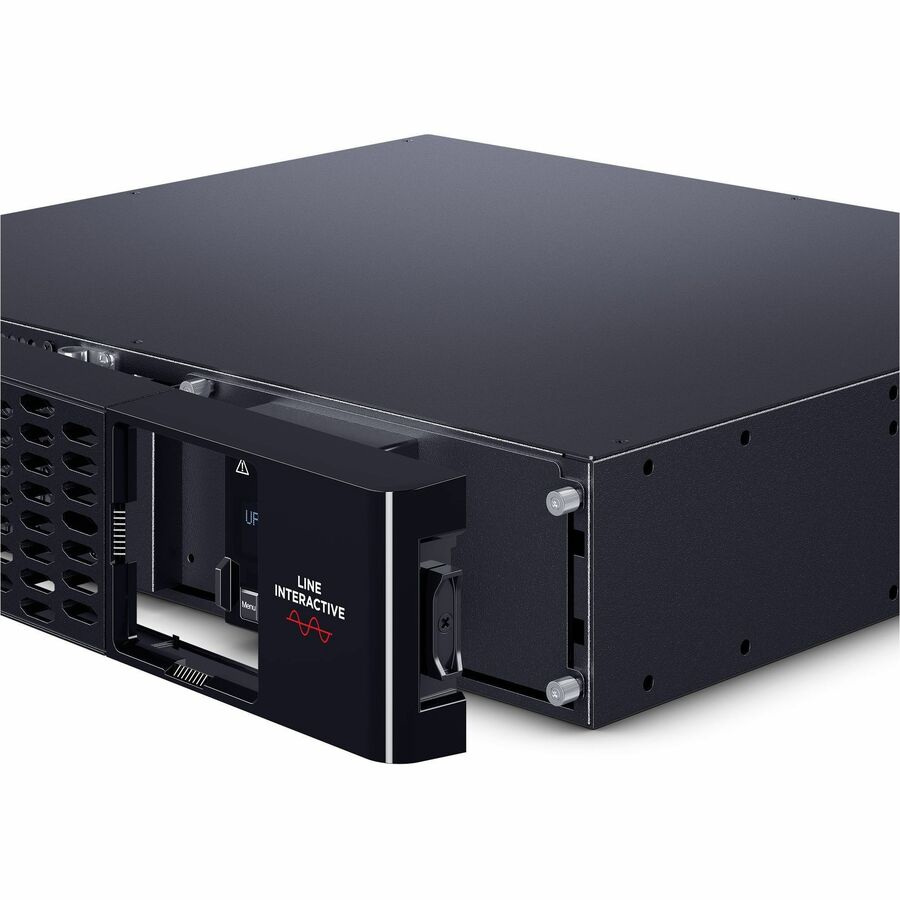

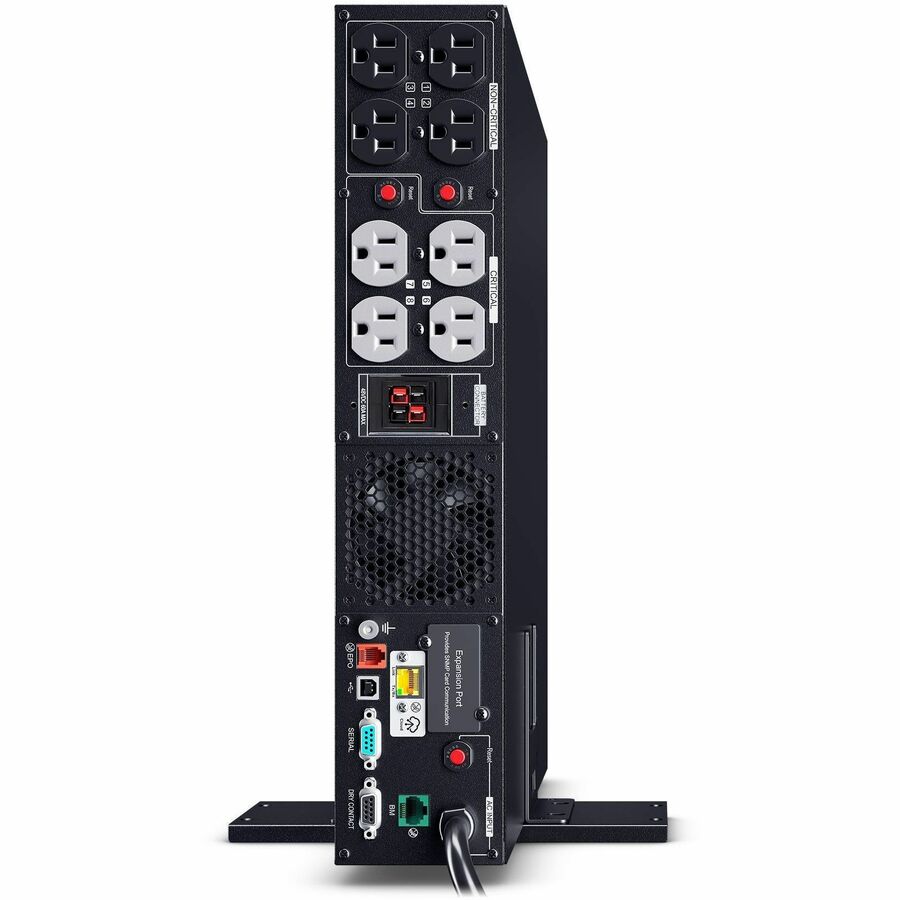

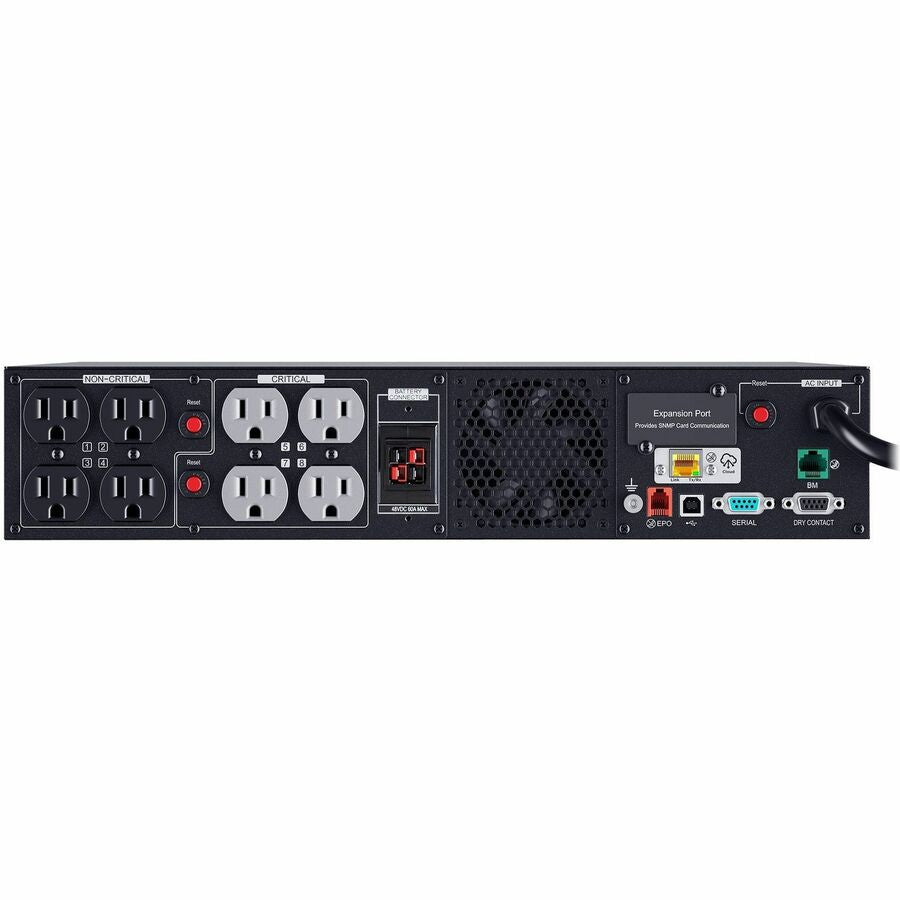

The Smart App Sinewave PR750RTXL2UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR750RTXL2UC also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.

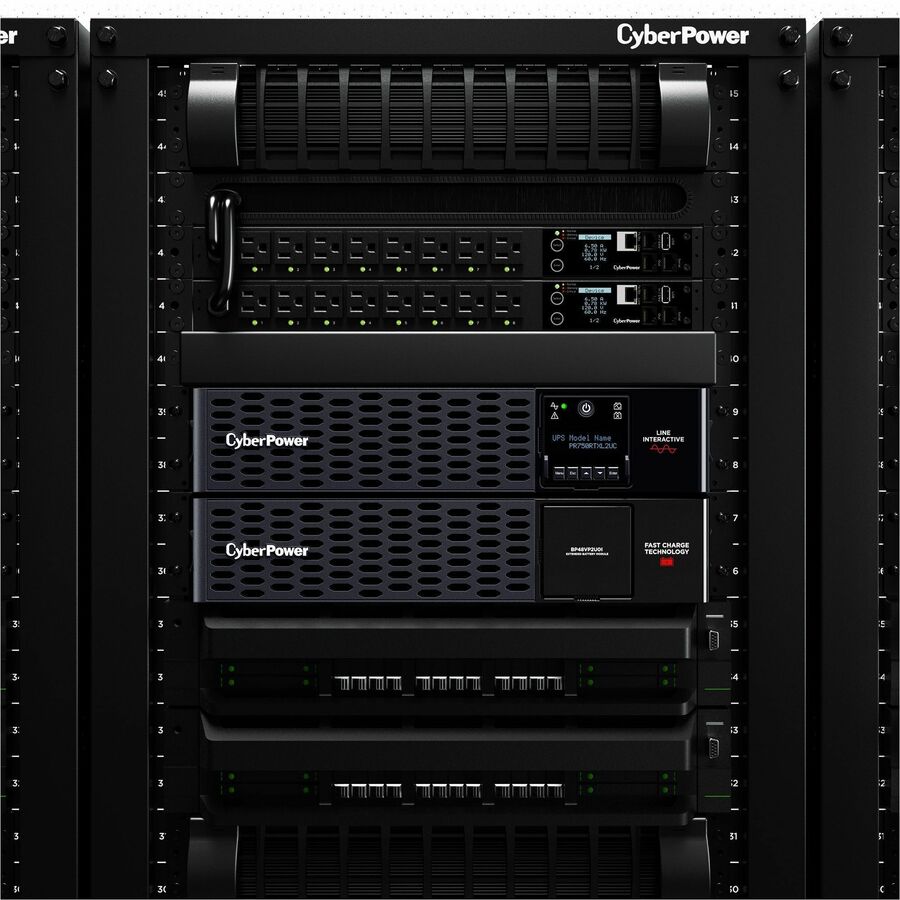

This model accepts the BP48VP2U01 Extended Battery Module (EBM) for expanded runtime during power outages and the RMCARD205 network management card for remote management and control via a standard web browser or network management system. Includes built-in cloud monitoiring.
With a ,400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR750RTXL2UC.
- Experience higher efficiency with lower energy cost
- Keep your sensitive devices powered with a backup of up to 11.30 minute at full load
- Battery Size : 12V
- Number of Battery & Surge Outlets : 8
- Backup/Run Time (Full Load) : 11.30 Minute
- Load Capacity : 750 VA/750 W
- Energy Star : Yes
- Manufacturer : CyberPower Systems, Inc
- Input Voltage Range : 70 V AC - 155 V AC
- Rack Height : 2U
- Output Frequency : 60 Hz
- Output Power Factor : 1
- Environmental Certification : GreenPower UPS,RoHS
- Environmentally Friendly : Yes
- Number of Critical Load Outlets : 4
- Product Color : Black
- Additional Warranty Information :
Connected Equipment Guarantee: Lifetime
- Input Voltage : 120 V AC
- Limited Warranty : 3 Year
- Typical Battery Recharge Time : 3 Hour
- Waveform Type : Sine Wave
- Input Frequency : 63 Hz
- Operating Humidity : 95%
- Battery Capacity : 7000 mAh
- Product Type : Line-interactive UPS
- Replaceable Battery : Yes
- USB (HID Compliant) Port : Yes
- Output Voltage : 100 V AC,110 V AC,120 V AC,125 V AC
- AVR : Yes

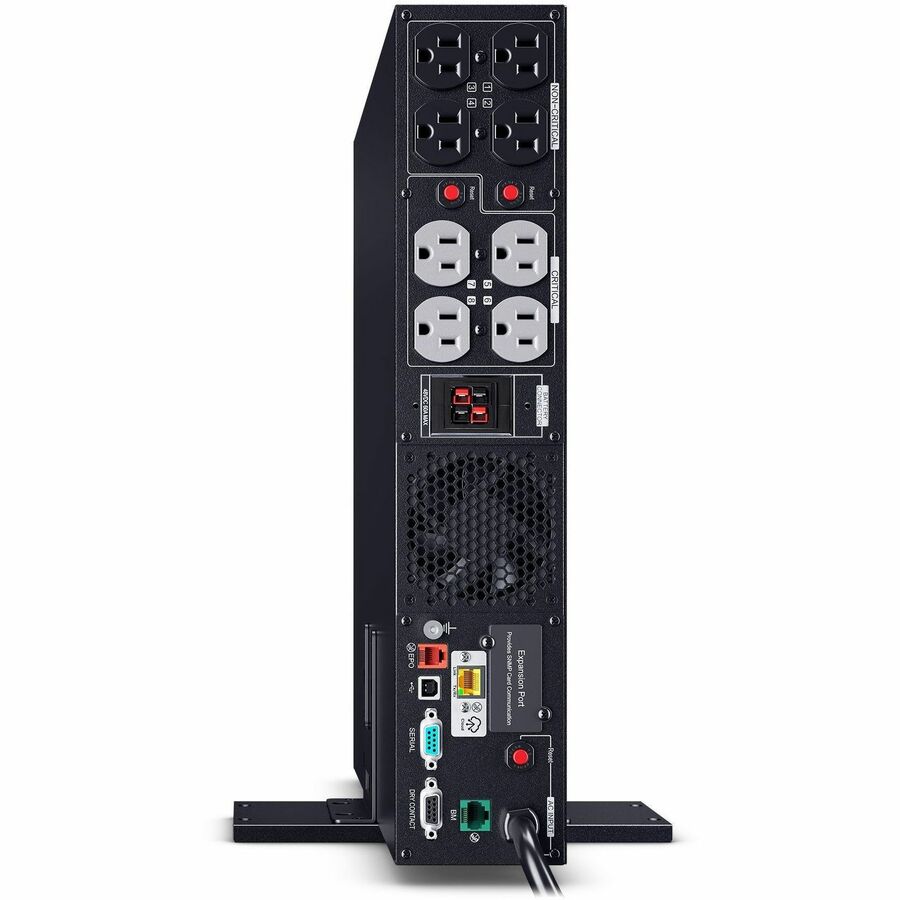

- Receptacle Detail : 8 x NEMA 5-15R
- Network Management : SNMP/HTTP Remote Monitoring,Relay-MS Card,Dry Contact
- Serial Port : Yes
- Sound Emission (A-Weighted) : 52.5 dB(A)
- Maximum Operating Elevation : 9842.52 ft (3000000 mm)

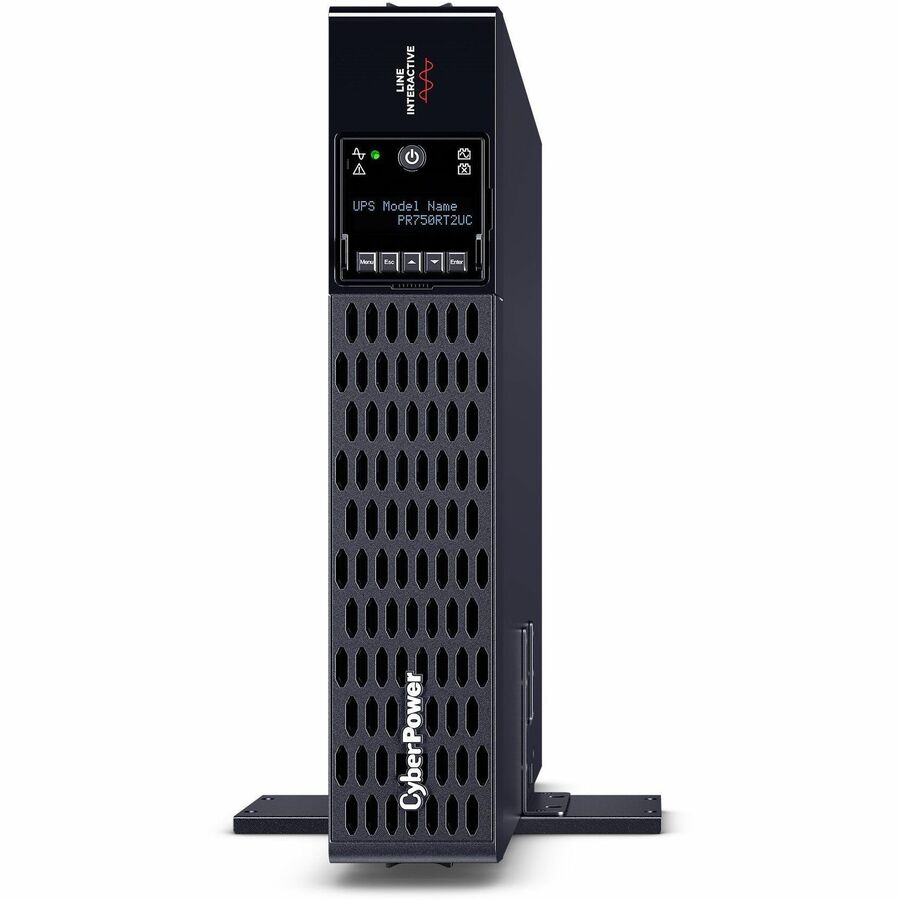

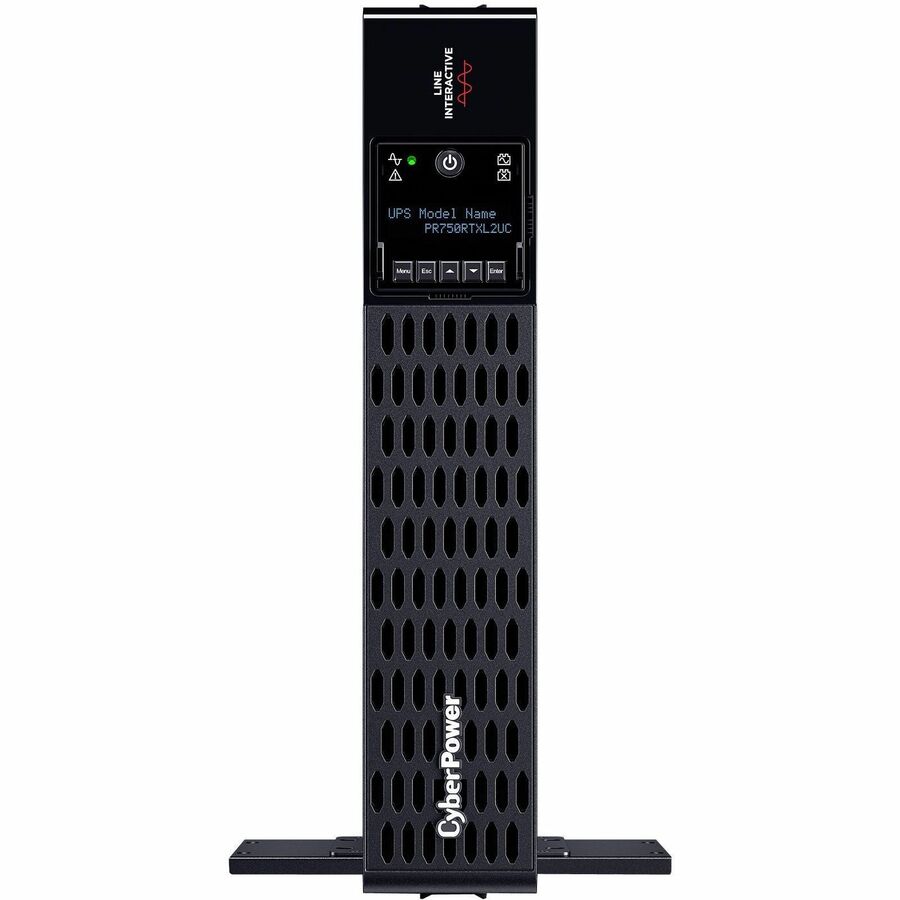

- Form Factor : Rack/Tower
- Number of Batteries : 4
- Thermal Dissipation : 34.90 BTU/h
- Battery Chemistry : Lead Acid
- Product Model : PR750RTXL2UC
- Maximum Operating Temperature : 104°F (40°C)
- Backup/Run Time (Half Load) : 28 Minute
- Battery Characteristics : Sealed
- Storage Temperature : 5°F (-15°C) - 113°F (45°C)
- Receptacle Type : NEMA 5-15R
- USB : Yes
- EMI/RFI Noise Filter : Yes
- EPO Port : Yes
- Transfer Time : 4 ms
- Overload Protection : Yes
- Plug/Connector Type : NEMA 5-15P
- Surge Energy Rating : 2430 J
- Alarm : Battery Mode,Low Battery,Overload,Over-charge,Overheat
- Application/Usage : Server,Storage Device,VoIP,Network Device,Telecommunication,Equipment,Corporate
- Maximum Storage Elevation : 49209.32 ft (14999000 mm)
- Hot Swappable : Yes
- Country of Origin : China
- Display : LCD
- Status Indicators :
LED Indicators:
- Power On
- Line Mode
- Battery Mode
- Fault
- Night Mode
- Wiring Fault
- Product Line : Smart App Sinewave

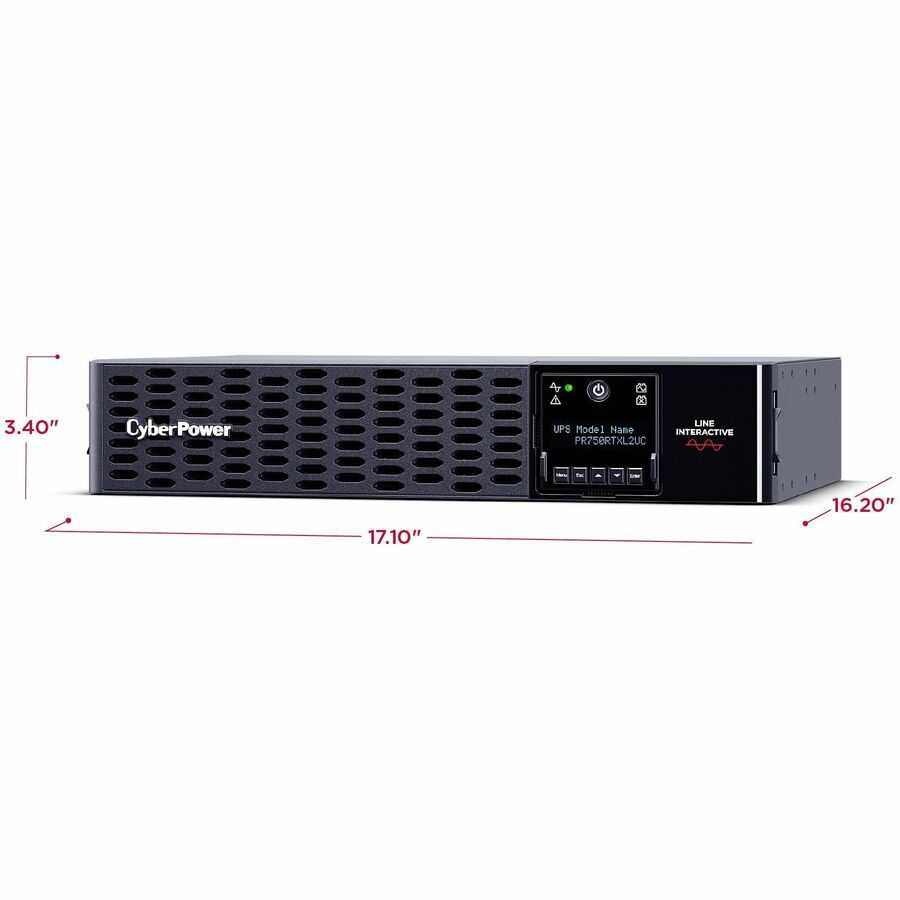

- Length : 22" (558.80 mm)
- Manufacturer Website Address : https://www.cyberpowersystems.com/
