Description

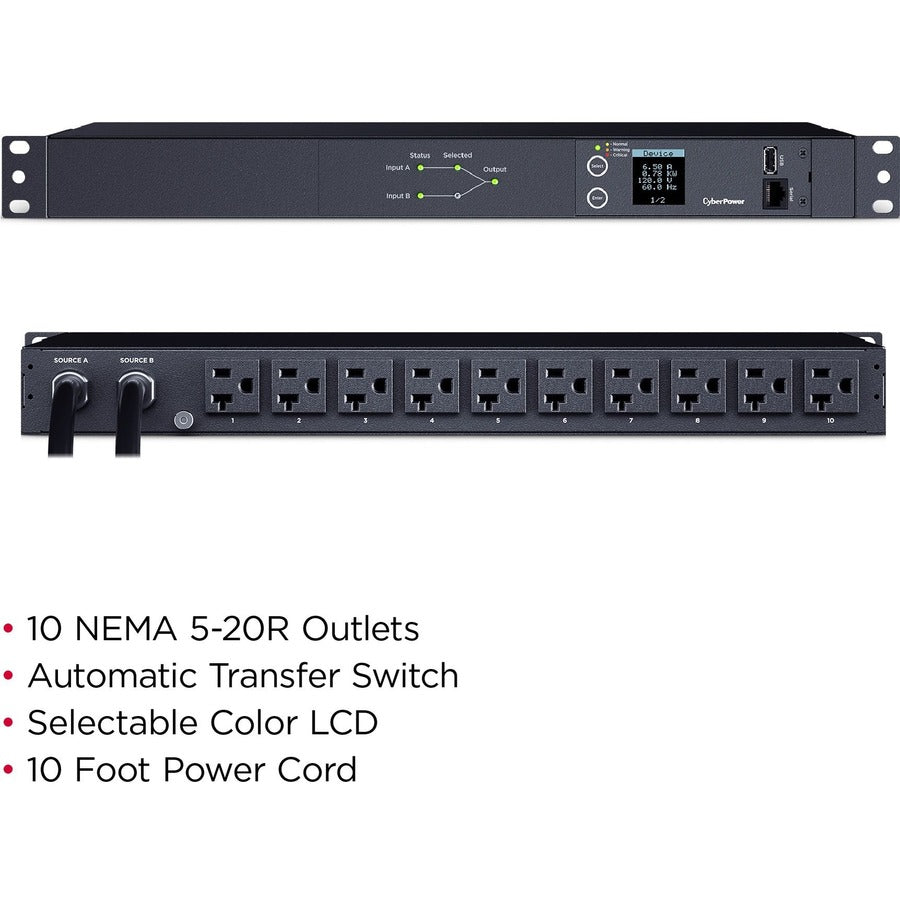

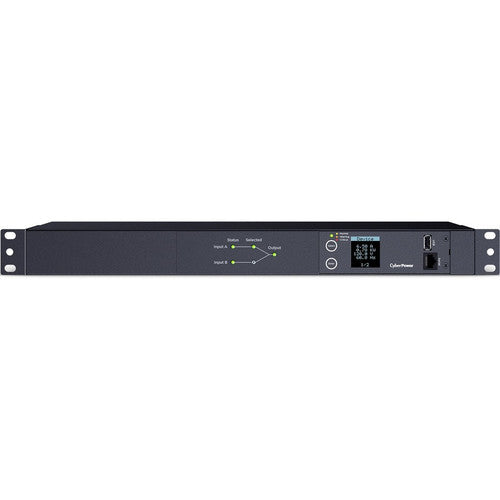

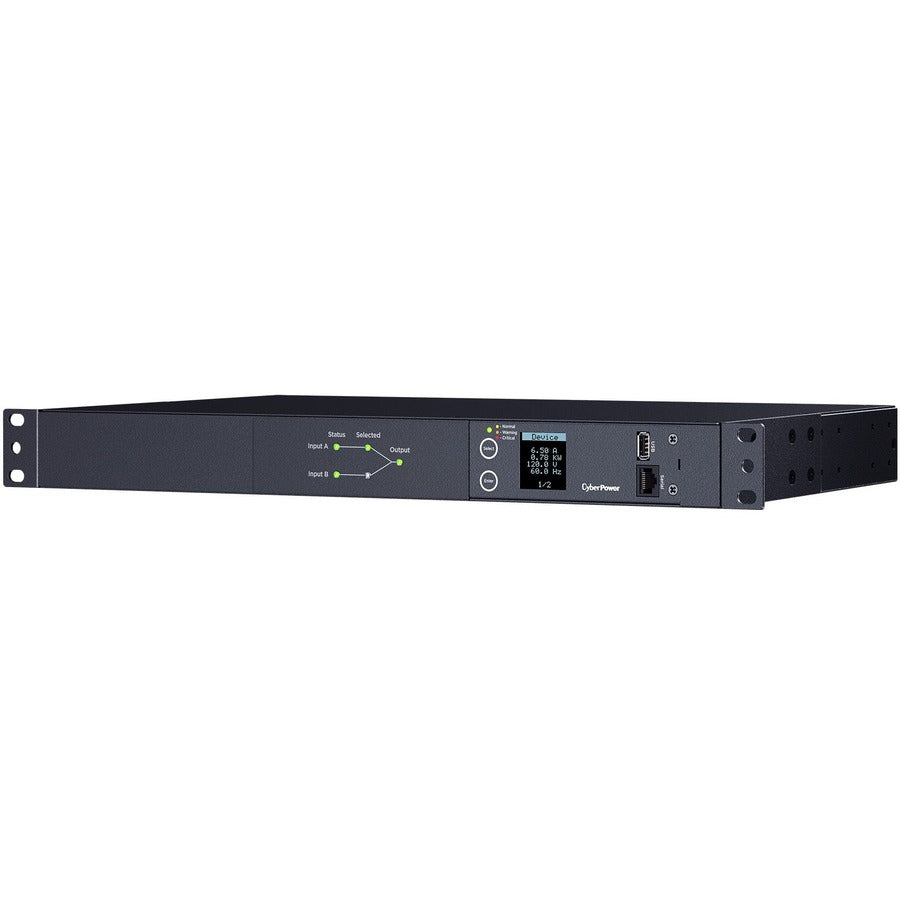

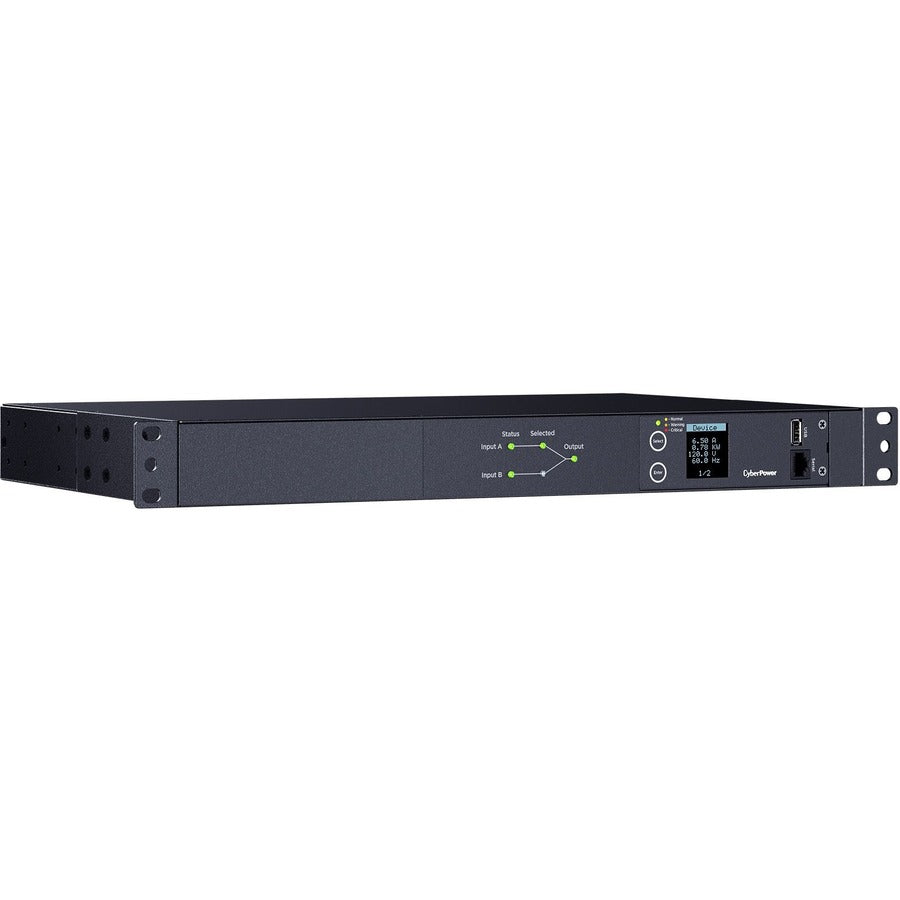

Ensure continued operation of critical devices with the CyberPower PDU24002 Metered ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable.

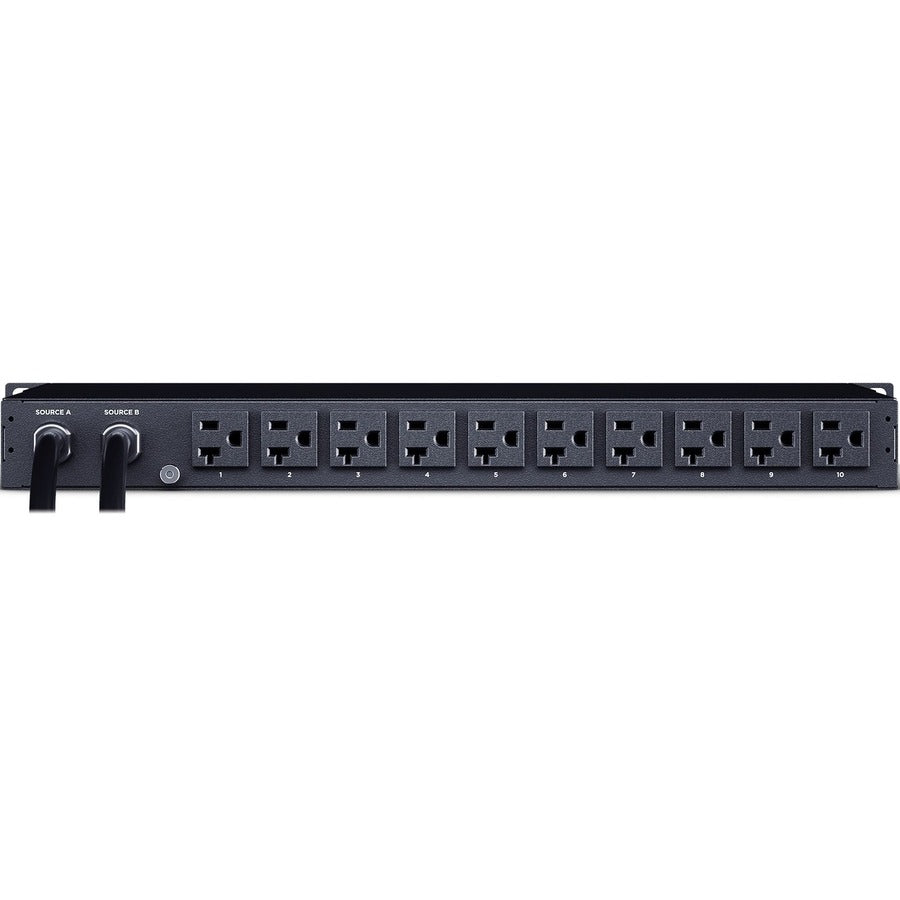

The PDU24002 supports inputs between 100-120V and includes (10) NEMA 5-20R outlets. Dual NEMA L5-20P (L5-20P to non-locking 5-20P adpaters included) power cords are plugged into separate power sources (A and B), and information about each power source is provided via LED indicator lights on the front of the unit. Other features include an LCD with selectable background color, ugradeable firmware, and network-grade plugs and outlets. The CyberPower PDU24002 is protected by a three-year limited warranty.
- PDU distributes AC power to multiple servers and balances the load on the servers
- Monitor load level efficiently with PDU meter
- Receptacle Detail : 10 x NEMA 5-20R
- Phase : Single Phase
- PDU Type : Metered
- Product Series : Metered ATS PDU
- Design : Modular
- Plug/Connector Detail : 2 x NEMA L5-20P
- Package Contents :
- Switched ATS PDU PDU24005 10-Outlets PDU
- L5-20P to non-locking 5-20P Adapter
- Mount Type : Rack-mountable
- Manufacturer : CyberPower Systems, Inc
- Product Model : PDU24002
- Input Voltage Range : 100 V AC - 120 V AC
- Rack Height : 1U
- Receptacle Type : NEMA 5-20R
- Environmentally Friendly : Yes
- Product Color : Black
- Input Voltage : 120 V AC
- Limited Warranty : 3 Year
- Plug/Connector Type : NEMA L5-20P
- Product Type : PDU
- Output Voltage : 120 V AC
- Output Voltage Range : 100 V AC - 120 V AC
- Mounting Orientation : Horizontal
- Input Current : 20 A
- Country of Origin : China
- Manufacturer Website Address : https://www.cyberpowersystems.com/
