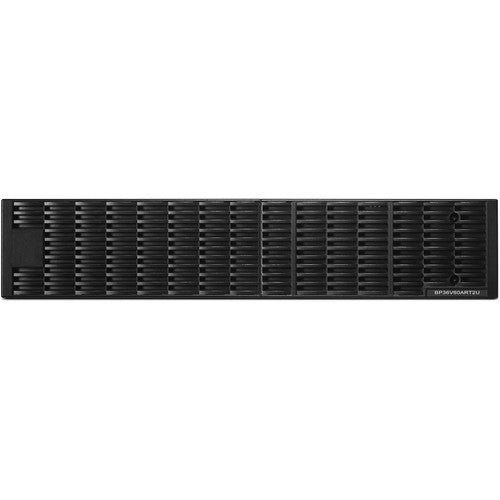

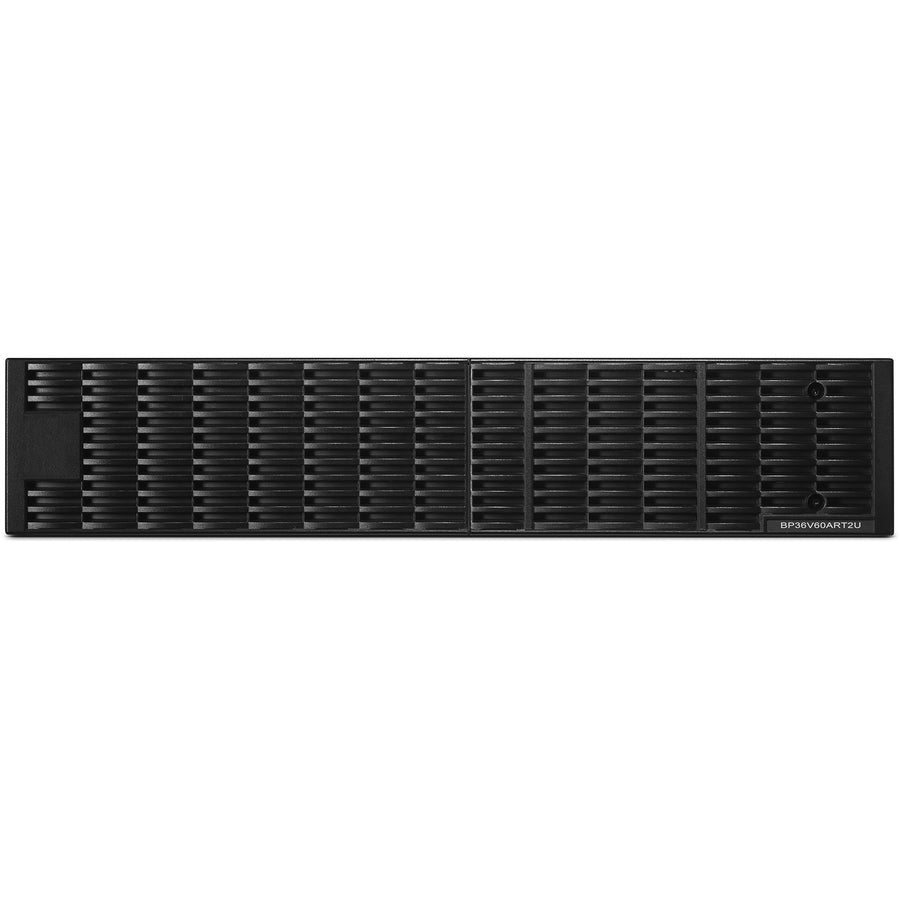

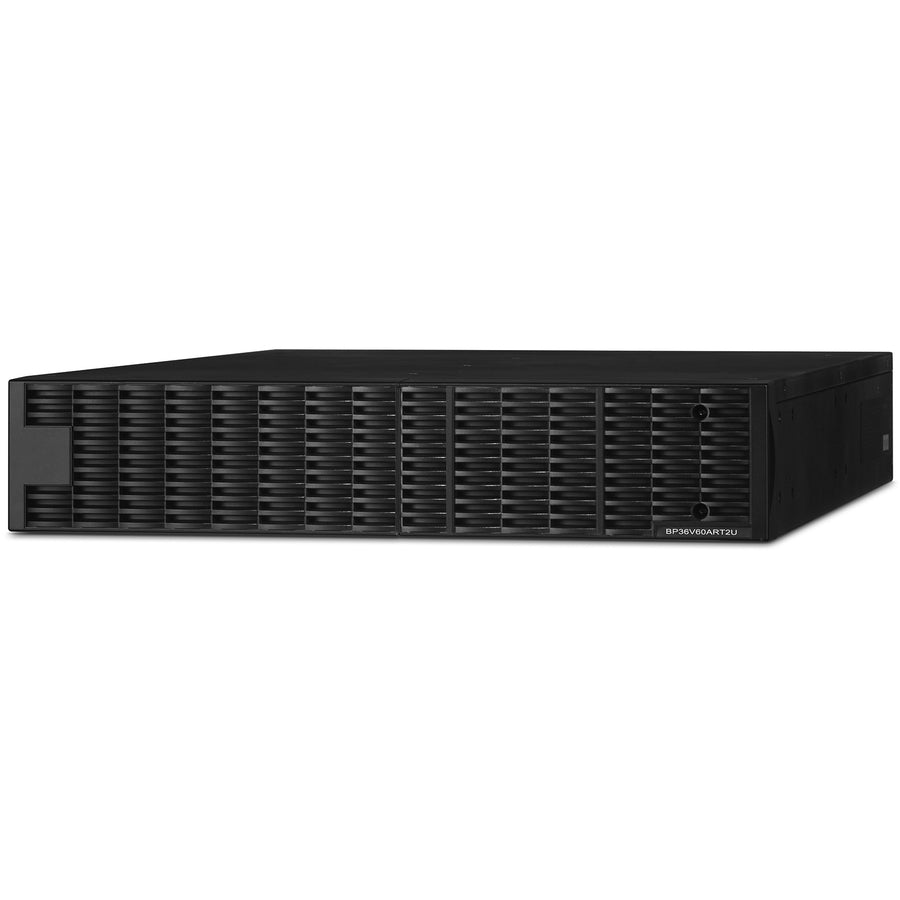

CyberPower UPS Systems BP36V60ART2U Extended Battery Modules - Output: 36V/60A BP36V60ART2U

The CyberPower BP36V60ART2U rack/tower convertible Extended Battery Module (EBM), which extends battery runtimes during power outages, is designed for Smart App Online UPS systems OL1000RTXL2U, OL1000RTXL2UN, OL1500RTXL2U and OL1500RTXL2UN. This EBM takes 2U of rack space and can be installed in a rack or tower configuration to match the UPS form factor. It also has a built-in battery charger, providing Fast Charge Technology to quickly restore the backup power supply to full capacity.

Up to ten EBMs can be added to the UPS, and the module's DC plug-and-play power connectors allow for daisy-chaining additional EBMs to a UPS system. The BP36V60ART2U typically has a UPS charging time of 4 hours (0-90%), regardless of whether one or ten EBMS are installed, and comes with a three-year warranty.

Extended Battery Module
Expands runtime and quickly restores full backup power with Fast Charge Technology.

Hot-Swappable Batteries
Can be replaced without powering down vital equipment.

Fast Charge Technology
Uses a built-in battery charger in each EBM for quick charging, regardless of the number of EBMs attached to a UPS.

Smart Battery Management
Uses a three-cycle charging mode that improves battery life and reduces generated heat.

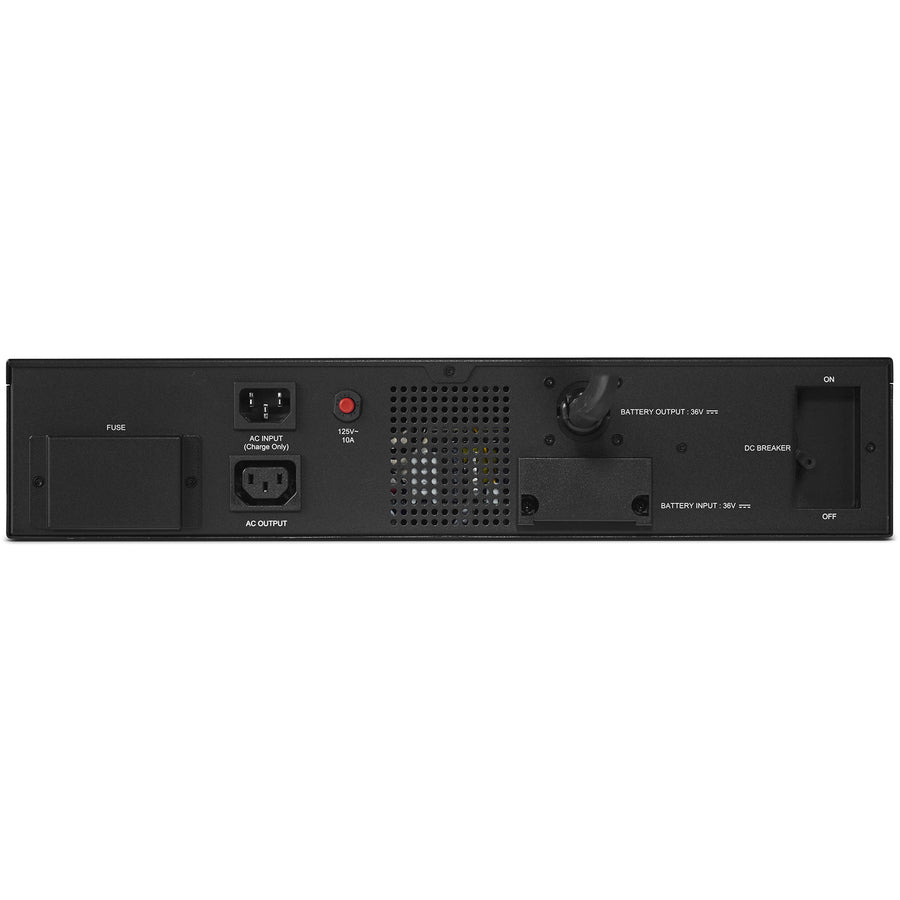

Plug-and-Play DC Connectors
Allow for daisy-chaining additional EBMs to a UPS system.

Replaceable DC Fuses
Are located behind an easy-access panel.

Resettable AC Circuit Breaker
Resets the UPS swiftly in case of an overload.

Rack/Tower Configuration
Allows for horizontal rack or vertical tower installation.

Three-Year Warranty
Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.

What's In The Box

Extended Battery Module, User's manual, Registration card, Rackmount left rail, Rackmount right rail, Left hanging bracket, Right hanging bracket, IEC320 C14 to NEMA 5-15P Power cord, Rackmount ears (Stands) (2), Tie plate, M5X8L black pan head screws (8), M5X12L black pan head screws (12), M5X6L silver pan head screws (6), Plastic washers (8), Screw hole dust covers (10), Rubber feet (12)

• Warranty: 3 year
• Hot swappable: Yes
• Fast Charge Technology: Yes
• Weight: 50.6 lbs.
• Form factor: Rack/Tower
• Battery type & quantity: 12V/9AH (6)
• Output: 36V/60A
• Recharge time: 4 Hours (0-90% charged)

• Product Series : Extended Battery Modules
• Package Contents :
  • BP36V60ART2U Battery Unit
  • User's manual
  • Registration card
  • Rackmount left rail
  • Rackmount right rail
  • Left hanging bracket
  • Right hanging bracket
  • IEC320 C14 to NEMA 5-15P Power cord
  • 2 x Rackmount ears (Stands)
  • Tie plate
  • 8 x M5X8L black pan head screws
  • 12 x M5X12L black pan head screws
  • 6 x M5X6L silver pan head screws
  • 8 x Plastic washers
  • 10 x Screw hole dust covers
  • 12 x Rubber feet
• Battery Characteristics : User Replaceable
• Manufacturer Website Address : http://www.cyberpowersystems.com
• Output Voltage : 36 V DC
• Battery Chemistry : Sealed Lead Acid (SLA)
• Hot Swappable : Yes
• Environmentally Friendly : Yes
• Compatibility :

  CyberPower UPS:

  • OL1000RTXL2U
  • OL1000RTXL2UN
  • OL1500RTXL2U
  • OL1500RTXL2UN

• Maximum Battery Recharge Time : 4 Hour
• Environmental Certification : RoHS
• Manufacturer : CyberPower Systems, Inc
• Product Type : Battery Unit
• Limited Warranty : 3 Year
• Product Model : BP36V60ART2U
• Capacity : 9000 mAh

. .

• Environmentally Friendly : Yes
• Environmental Certification : RoHS
• Manufacturer : CyberPower Systems, Inc
• Product Type : Battery Unit
• Limited Warranty : 3 Year
• Product Model : BP36V60ART2U
• Product Series : Extended Battery Modules
• Package Contents :
  • BP36V60ART2U Battery Unit
  • User's manual
  • Registration card
  • Rackmount left rail
  • Rackmount right rail
  • Left hanging bracket
  • Right hanging bracket
  • IEC320 C14 to NEMA 5-15P Power cord
  • 2 x Rackmount ears (Stands)
  • Tie plate
  • 8 x M5X8L black pan head screws
  • 12 x M5X12L black pan head screws
  • 6 x M5X6L silver pan head screws
  • 8 x Plastic washers
  • 10 x Screw hole dust covers
  • 12 x Rubber feet
• Battery Characteristics : User Replaceable
• Output Voltage : 36 V DC
• Manufacturer Website Address : http://www.cyberpowersystems.com
• Hot Swappable : Yes
• Compatibility :

  CyberPower UPS:

  • OL1000RTXL2U
  • OL1000RTXL2UN
  • OL1500RTXL2U
  • OL1500RTXL2UN

• Maximum Battery Recharge Time : 4 Hour
• Battery Chemistry : Sealed Lead Acid (SLA)
• Capacity : 9000 mAh
