CyberPower UPS Systems OL10KRTHW Smart App Online - Capacity: 10,000 VA / 10,000 W OL10KRTHW

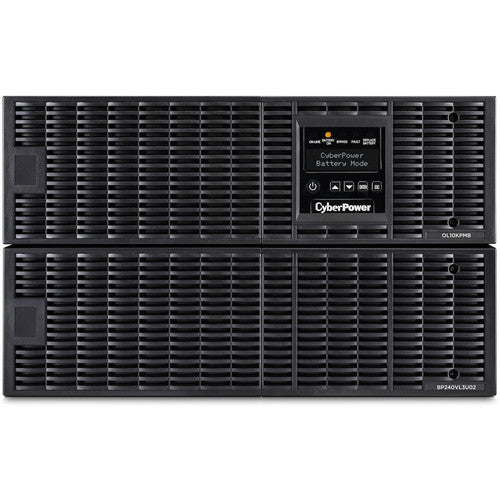

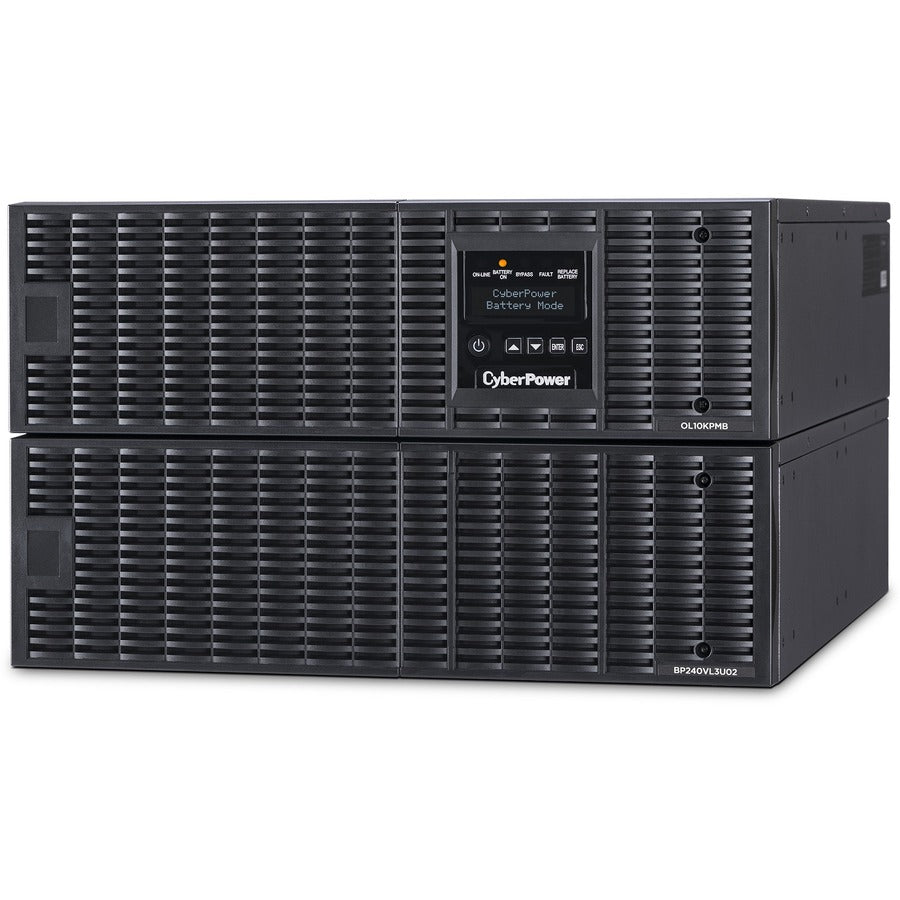

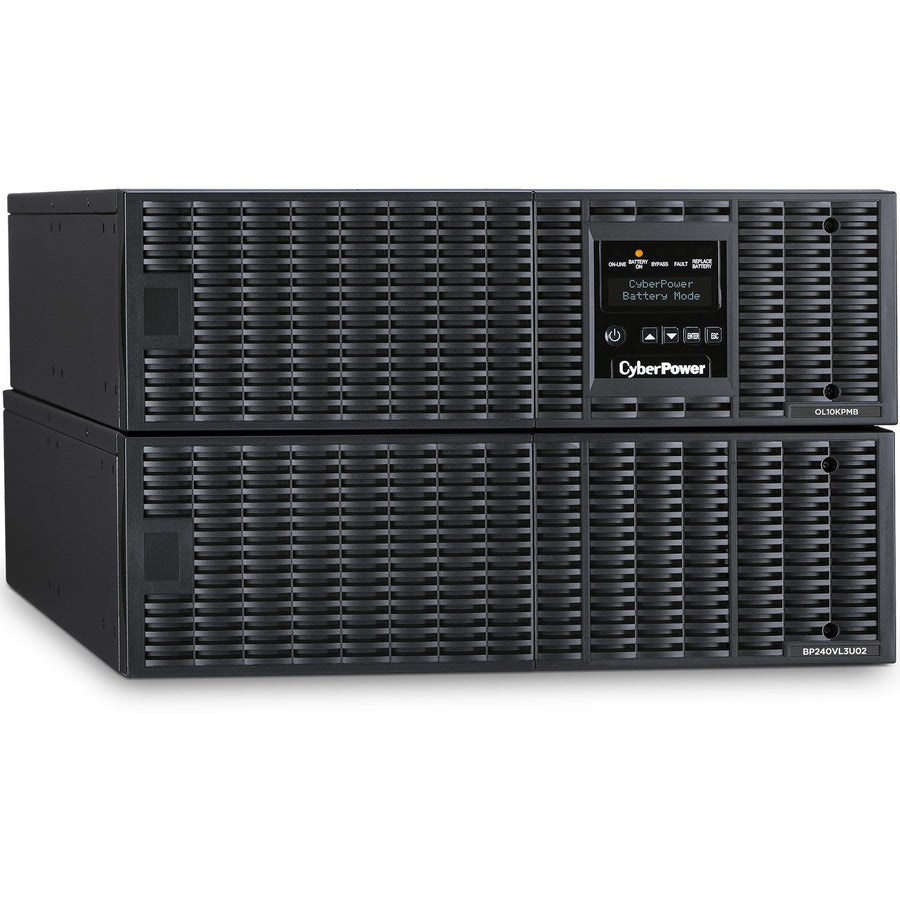

The CyberPower Smart App Online OL10KRTHW is a 6U rack/tower UPS featuring double-conversion topology for seamless power protection, an intuitive maintenance bypass switch design, and a pre-installed RMCARD205. Ensure maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS™ ECO Mode enables up to 97% efficiency while reducing power consumption and thermal dissipation. Smart battery management charging technology increases battery life up to 50% and replenishes battery charge from 0-90% in five hours.

The OL10KRTHW enhanced LCD control panel functionality provides the ability to change the IP address, view UPS load energy consumptions, and select UPS diagnostic tests.

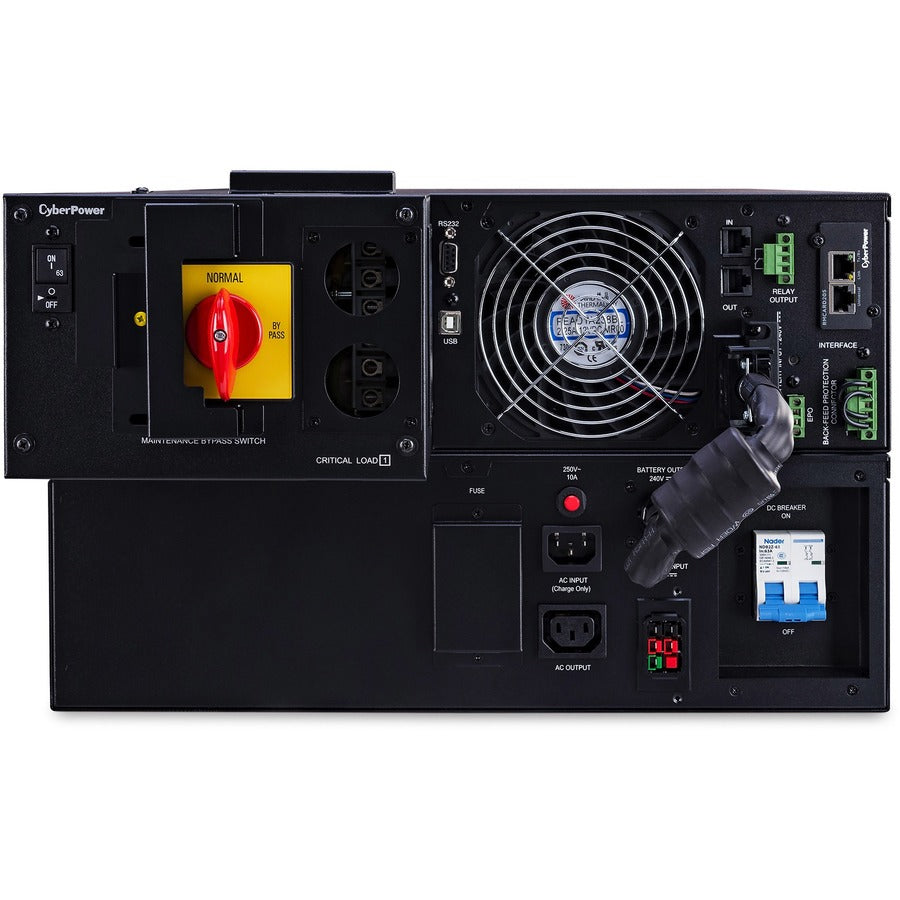

Variable 4-speed fans provide automatic thermal management, based on power load, to reduce noise. A tamper-proof input circuit breaker ensures power is not turned off unexpectedly during service or maintenance. The OL10KRTHW simplifies installation with a quick start guide, user-friendly lifting straps, and an enhanced hanging rack mount rail system.

The optional BP240VL3U01 Extended Battery Module expands runtime and speeds restoration of full backup power. The OL10KRTHW comes with a three-year warranty (including batteries) and a ,300,000 Connected Equipment Guarantee.

• Capacity:10,000 VA / 10,000 W
• Output Power Factor (PF): 1.0
• Topology: Double Conversion
• Waveform: Sine Wave
• Output: 200, 208, 220, 230, 240 V ±2% User Configurable
• Plug type & cord: Hardwire
• Outlet types:1 x Hardwire Terminal Block
• Maintenance bypass switch: Yes
• Communication ports: USB, Serial, Ethernet, Relay, EPO
• Data-line protection: Yes, 1 x RJ-45 In/Out

• Input Voltage : 230 V AC
• Manufacturer Website Address : http://www.cyberpowersystems.com
• Output Voltage : 240 V AC
• Input Voltage Range : 200 V AC - 240 V AC
• Waveform Type : Sine Wave
• Backup/Run Time (Half Load) : 10 Minute
• Country of Origin : China
• Color : Black
• Replaceable Battery : Yes
• Energy Star : No
• Product Series : Smart App Online UPS
• Rack Height : 6U
• Package Contents :
  • Smart App Online OL10KRTHW 10KVA Tower/Rack Convertible UPS
  • Rack Mounting Hardware
  • USB Cable
  • Serial Cable
  • Phone Cable
• Battery Chemistry : Lead Acid
• Environmentally Friendly : Yes
• Typical Battery Recharge Time : 5 Hour
• Backup/Run Time (Full Load) : 3.60 Minute
• Plug/Connector Type : Hardwired
• Environmental Certification : RoHS
• Load Capacity : 10 kVA
• Manufacturer : CyberPower Systems, Inc
• Product Type : Dual Conversion Online UPS
• Receptacle Type : Terminal Block
• Limited Warranty : 3 Year
• Receptacle Detail : 1 x Terminal Block
• Product Model : OL10KRTHW

• Energy Star : No
• Rack Height : 6U
• Environmentally Friendly : Yes
• Environmental Certification : RoHS
• Manufacturer : CyberPower Systems, Inc
• Product Type : Dual Conversion Online UPS
• Limited Warranty : 3 Year
• Product Model : OL10KRTHW
• Country of Origin : China
• Input Voltage : 230 V AC
• Output Voltage : 240 V AC
• Manufacturer Website Address : http://www.cyberpowersystems.com
• Input Voltage Range : 200 V AC - 240 V AC
• Waveform Type : Sine Wave
• Backup/Run Time (Half Load) : 10 Minute
• Color : Black
• Replaceable Battery : Yes
• Product Series : Smart App Online UPS
• Package Contents :
  • Smart App Online OL10KRTHW 10KVA Tower/Rack Convertible UPS
  • Rack Mounting Hardware
  • USB Cable
  • Serial Cable
  • Phone Cable
• Battery Chemistry : Lead Acid
• Typical Battery Recharge Time : 5 Hour
• Backup/Run Time (Full Load) : 3.60 Minute
• Plug/Connector Type : Hardwired
• Load Capacity : 10 kVA
• Receptacle Type : Terminal Block
• Receptacle Detail : 1 x Terminal Block
