Description

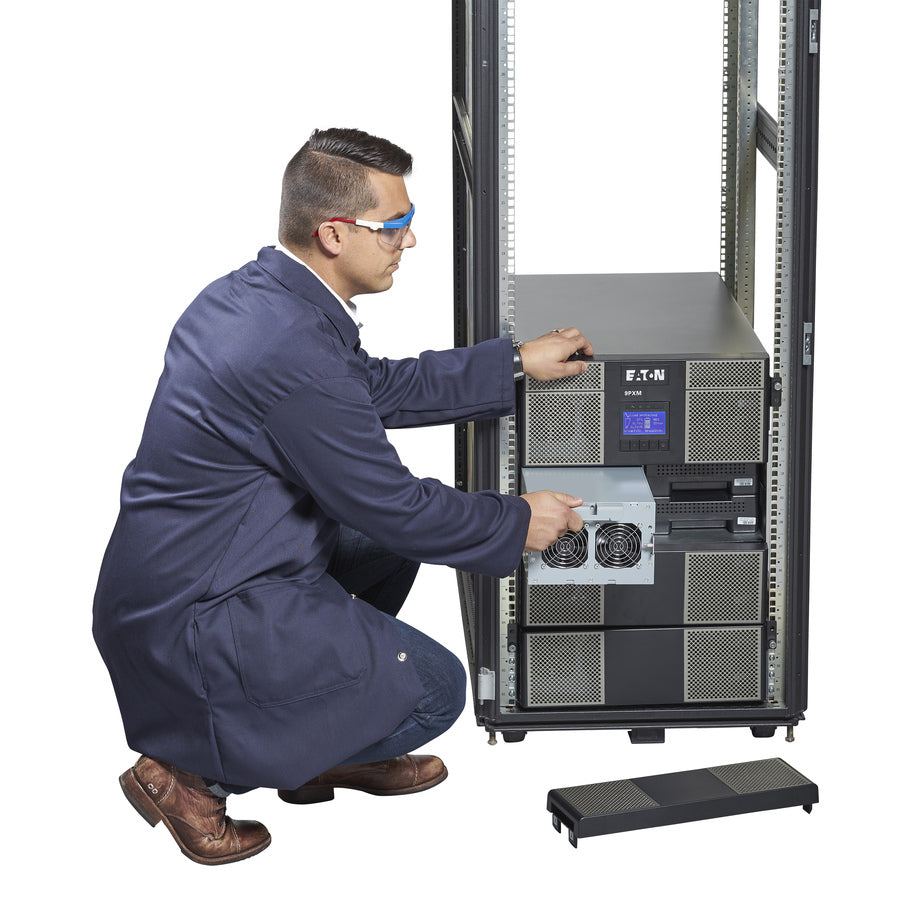

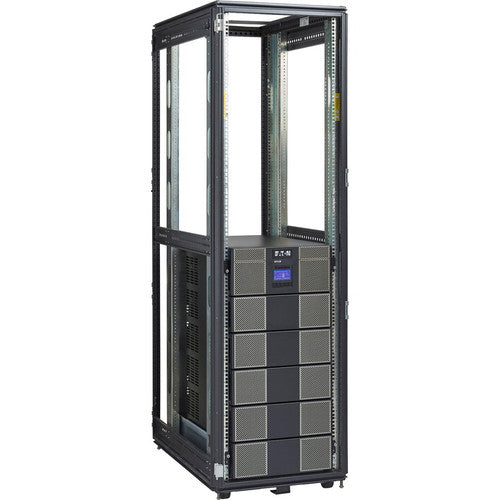

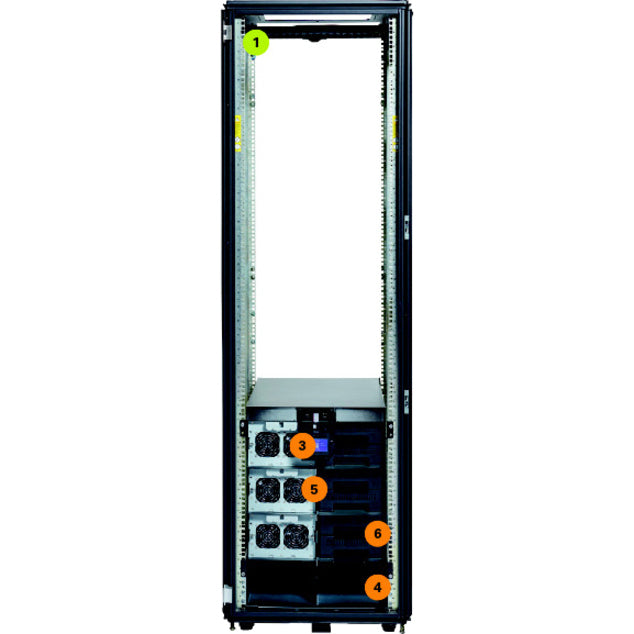

The Eaton 9PXM UPS is a scalable, modular UPS that combines the highest level of reliability with the lowest cost of ownership. Through 4 kVA plug-and-play power modules, the 9PXM delivers an expandable level of N+X redundancy. The 9PXM fits eight or twelve-slot tower enclosures which are easily converted into 14U and 21U rackmount solutions.
. .- Receptacle Type : NEMA 5-20R,NEMA L6-20R,NEMA L6-30R,NEMA L14-30R
- Receptacle Detail : 8 x NEMA 5-20R,2 x NEMA L6-20R,2 x NEMA L6-30R,2 x NEMA L14-30R
- TAA Compliant : Yes
- Network Management : SNMP/HTTP Remote Monitoring
- Input Voltage : 230 V AC
- Limited Warranty : 2 Year
- Typical Battery Recharge Time : 4 Hour
- Packaged Quantity : 1
- Form Factor : Rack/Tower
- Package Contents :
- 9PXM UPS
- 1 x 9PXM Tower UPS 12-Slot Cabinet - Convertible To Rackmount
- 2 x Split-Phase Power Module 4 kVA
- 4 x Battery Module (2 per slot)
- 1 x Network-MS Card, Mini-Slot, Ethernet, Sensor
- Manufacturer Website Address : http://www.eaton.com/EatonCom/Markets/NorthAmerica
- Backup/Run Time (Full Load) : 6 Minute
- Plug/Connector Type : Hardwired
- Product Type : Double Conversion Online UPS
- Load Capacity : 4 kVA/3.60 kW
- Application/Usage : Network Device,Commercial,Server,Banking,Voice/Data Network,Office,IT System,Data Center,Computer Room,POS Terminal,Call Center
- Manufacturer : Eaton Corporation
- Product Model : 9PXM12S8K-PD
- Input Voltage Range : 208 V AC - 240 V AC
- Hot Swappable : Yes
- Country of Origin : United States
