Description

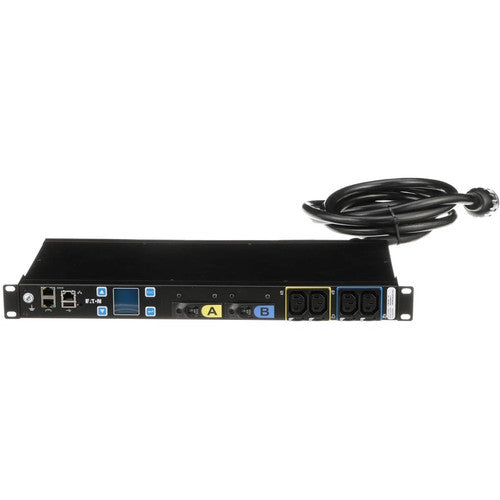

Eaton Metered Input ePDUs provide remote monitoring of the current draw of individual sections via network communication. This capability, combined with state-of-the-art software allows you to aggregate the information from many ePDUs in one location. A local display is also available for phase balancing and for easy start-up and provisioning of servers. New ePDU G3 Metered Input models feature best-in-class technologies, including ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address. .
- Receptacle Type : IEC 60320 C13
- Receptacle Detail : 16 x IEC 60320 C13
- Power Rating (Watt) : 5.76 kW
- Input Voltage : 230 V AC
- Product Series : Metered
- Limited Warranty : 3 Year
- Plug/Connector Detail : 1 x NEMA L6-30P
- Package Contents :
- ePDU Metered EMIT04-10 12-Outlet PDU
- SPK021 - INSTALLATION
- SPK013 - NETWORK
- Manufacturer Website Address : http://www.eaton.com/EatonCom/Markets/NorthAmerica
- Network (RJ-45) : Yes
- Plug/Connector Type : NEMA L6-30P
- Product Type : PDU
- Manufacturer : Eaton Corporation
- Product Model : EMIT05-10
- Output Voltage : 230 V AC
- Mounting Orientation : Horizontal
- Input Current : 24 A
- Rack Height : 1U
- Country of Origin : United States
- Product Line : ePDU
