Description

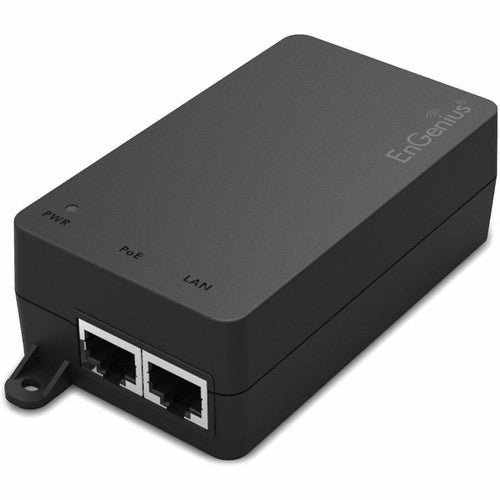

The EnGenius EPA5060XBT PoE Injector delivers 60-watts of power and 10Gb data communication to compatible network devices up to 328 feet (100m) over Cat5e cable. Compact design with IEEE802.3bt compliance offers easy installation while providing built-in power protection to preserve valuable equipment.
- IEEE 802.3bt Type 3 compliant
- IEEE 802.3af/at backward compatible
- Backward compatible for legacy PoE
- Supports 10/100/1000 Mbps and 1Gb/2.5Gb/10Gb applications
- Output power up to 60W over four pairs with auto-detection on power requirement
- Leverage energy efficient PoE up to 60W with full power capabilities mount use
- Fan-less design ideal for silent operation
- Simple plug-and-play installation
- Certifications & Standards :
- IEC 62328-1: 2014
- UL 62328-1
- FCC Subpart 15 Class B
- EN 55032: 2012 / CA: 2013
- EN 55024: 2010
- Input Voltage : 120 V AC,230 V AC
- Maximum Input Current : 1.12 A
- Packaged Quantity : 1
- Output Ports : 1 x 10 Gigabit Ethernet
- Manufacturer Website Address : http://www.engeniustech.com
- Product Type : PoE Injector
- Length : 3.90" (99.06 mm)
- Input Ports : 1 x 10 Gigabit Ethernet
- Manufacturer : EnGenius Technologies, Inc
- Product Model : EPA5060XBT
- Maximum Output Power : 60 W
- Minimum Input Current : 750 mA
