Description

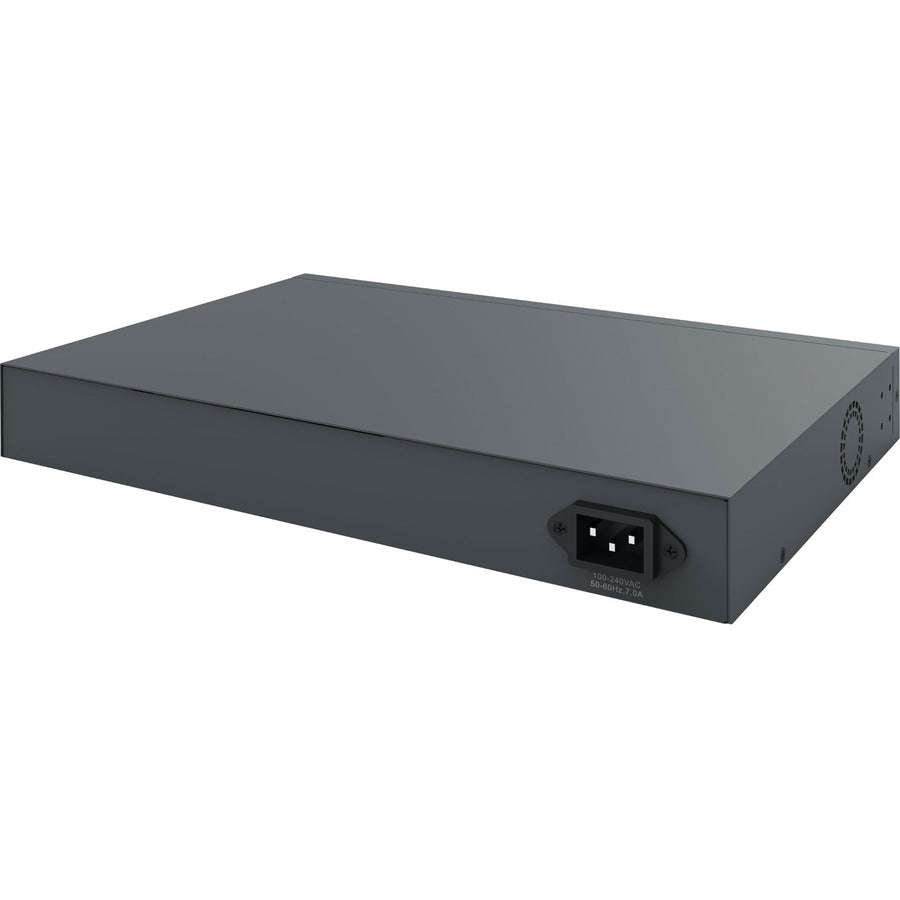

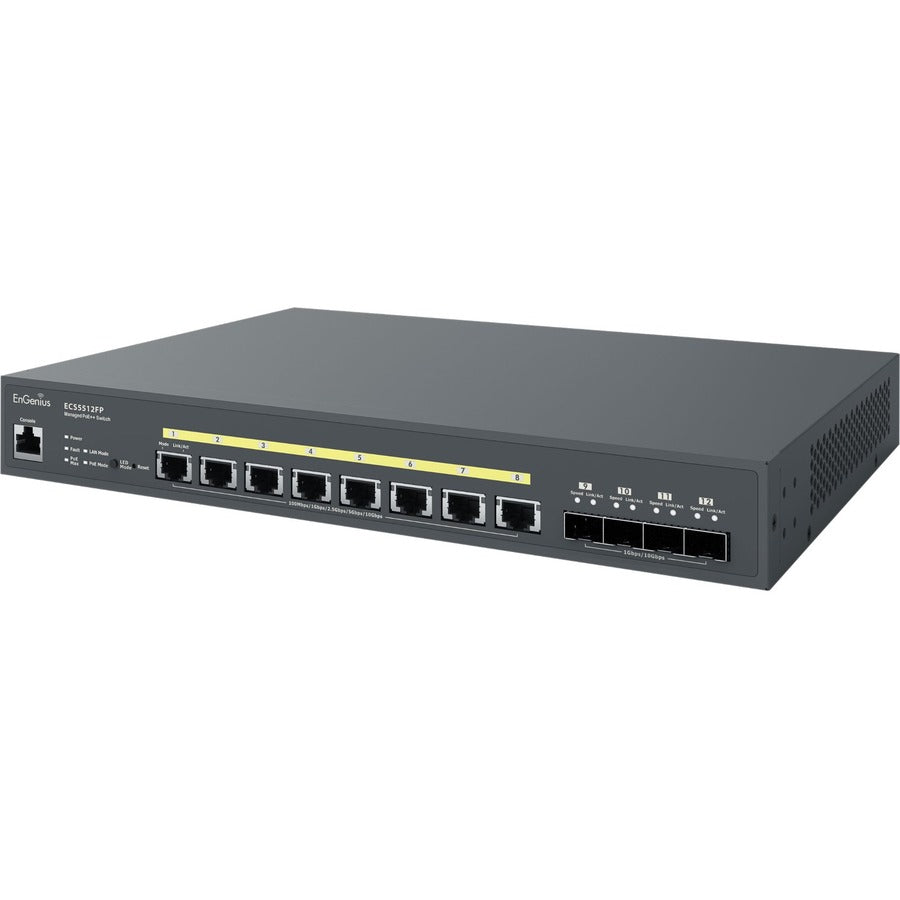

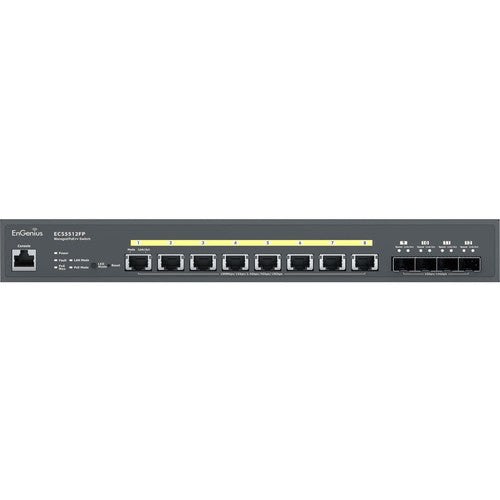

The EnGenius Cloud ECS5512FP is an 8-port, 10G per port, PoE++ layer 2+ switch that comes with a 420W power budget and 4 10G uplink ports, ensuring peak network efficiency and performance for successful large businesses. Choose Cloud or on-premises management based on your network architecture, administrative permissions, technical aptitude, and budget.
Features & Benefits
- ull-featured layer 2+ switching
- 8 100/1000/2500/5000/10000 Base-T GbE ports to serve high-bandwidth devices
- 802.3af/at/bt PoE++ capable on all ports with a 420W PoE budget for maximum power supply to devices
- 240 Gbps switching capacity for improved performance
- 4 Dual-Speed 10G SFP+ (fiber) uplink ports to connect at long distances, high speeds & high capacity
- Security - access control list/port security; 802.1X & RADIUS authentication
- IGMP & MLD snooping provides advanced multicast filtering & network efficiency
- 802.3ad link aggregation (LACP) supports traffic load balancing
- Spanning Tree (STP), Rapid Spanning Tree (RSTP) & Multiple Spanning Tree (MSTP)
- Features 8 networking ports to easily establish a local network or expand your existing one
- Cascade to other network devices through the uplink port to expand your local area network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Can work as layer 3 routing for scalable network design
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Rack mounting enables you to organize wires & secure cables for professional installation
- Length : 12.99" (329.95 mm)
- Power Source : Power Supply
- Product Series : ECS
- PoE (RJ-45) Port : Yes
- Packaged Quantity : 1
- Form Factor : Rack-mountable
- Package Contents :
- Cloud Managed 8-Port 10 Gigabit PoE++ Switch with 4 SFP+ Ports
- 1 x Quick Installation Guide
- 1 x Power Cord
- 1 x RJ45 Console Cable
- 1 x Rack Mount Kit
- Manufacturer Website Address : http://www.engeniustech.com
- Uplink Port : Yes
- Manufacturer : EnGenius Technologies, Inc
- Product Model : ECS5512FP
- Manageable : Yes
- Network Technology : 10/100/1000Base-T,10GBase-X
- Ethernet Technology : 10 Gigabit Ethernet
- Layer Supported : 3
- PoE Budget : 420 W
- Input Voltage : 120 V AC,230 V AC
- Port/Expansion Slot Details : 8 x 10Gigabit Ethernet PoE++,4 x Expansion Slots
- Limited Warranty : 2 Year
- Product Type : Ethernet Switch
- Number of Total Expansion Slots : 4
- Networking Standards : IEEE 802.3x,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3ab,IEEE 802.3bt,IEEE 802.3u,IEEE 802.3bz,IEEE 802.3an,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q
- Total Number of Network Ports : 8
- Media Type Supported : Twisted Pair,Optical Fiber
- Expansion Slot Type : SFP+
- Number of SFP+ Slots : 4
