Description

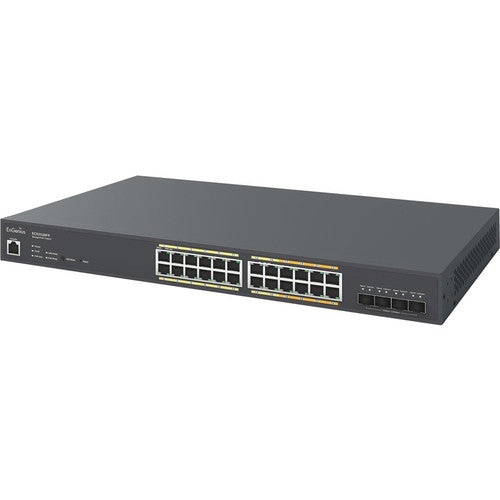

The EnGenius ECS2528FP cloud-managed 410 Watt 24-port PoE+ multi-gigabit switch with simple network configuration, monitoring, and management powers IP cameras, VoIP phones, and access points. The ECS2528FP offers features like extended PoE mode, PD lifeguard, and continuous PoE power, to extend the reach and to maximize uptime for surveillance cameras.
Features & Benefits
- 24 10/100/1000/2500 Base-T GbE Ports
- 16 Gigabit and 8 2.5-Gigabit PoE Ethernet Ports
- Full-Featured Layer 2+ Ethernet Switch,
- 802.3 at/af PoE+ Ready on All Ports with 410W PoE budget
- 152 Gbps Switching capacity
- 4 10-Gigabit Dual-Speed SFP+ (fiber) uplink ports
- Quick-Scan Device Register, Remote Monitoring and Troubleshooting
- PoE Extended Mode - Extend PoE Ethernet cable deploying range up to 250 meters
- PD Lifeguard - Real-time detecting and auto-reboot PoE power for failed camera
- Continuous PoE Power - Steady supply of PoE power for camera during switch upgrades
- Features 24 networking ports to establish large network
- Cascade to other network devices through the uplink port to expand your local area network
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports layer 3 switching for enhanced performance and usability
- Managed switch provides a reliable foundation for your network
- Rack mounting enables you to organize wires & secure cables for professional installation
- Length : 17.32" (439.93 mm)
- Product Series : ECS
- PoE (RJ-45) Port : Yes
- Packaged Quantity : 1
- Form Factor : Rack-mountable
- Package Contents :
- ECS2528FP Ethernet Switch
- 1x Quick Installation Guide
- 1x Power Cord
- 1x RJ45 Console Cable
- 1x Rack Mount Kit
- Manufacturer Website Address : http://www.engeniustech.com
- Uplink Port : Yes
- Manufacturer : EnGenius Technologies, Inc
- Product Model : ECS2528FP
- Manageable : Yes
- Network Technology : 10/100/1000Base-T,10GBase-X
- Ethernet Technology : 10 Gigabit Ethernet,Gigabit Ethernet
- Layer Supported : 3
- PoE Budget : 410 W
- Input Voltage : 120 V AC,230 V AC
- Port/Expansion Slot Details : 24 x Gigabit Ethernet Ports,4 x 10 Gigabit Expansion Slots
- Limited Warranty : 2 Year
- Product Type : Ethernet Switch
- Number of Total Expansion Slots : 4
- Networking Standards : IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3bz,IEEE 802.3x,IEEE 802.3af,IEEE 802.3at,IEEE 802.1p,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1x,IEEE 802.3az
- Total Number of Network Ports : 24
- Media Type Supported : Optical Fiber,Twisted Pair
- Expansion Slot Type : SFP+
- Number of SFP+ Slots : 4
