Description

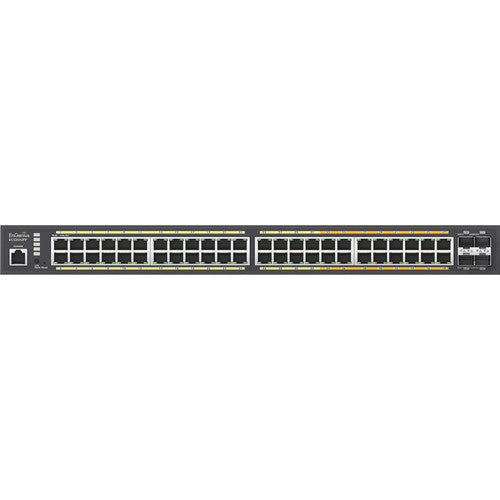

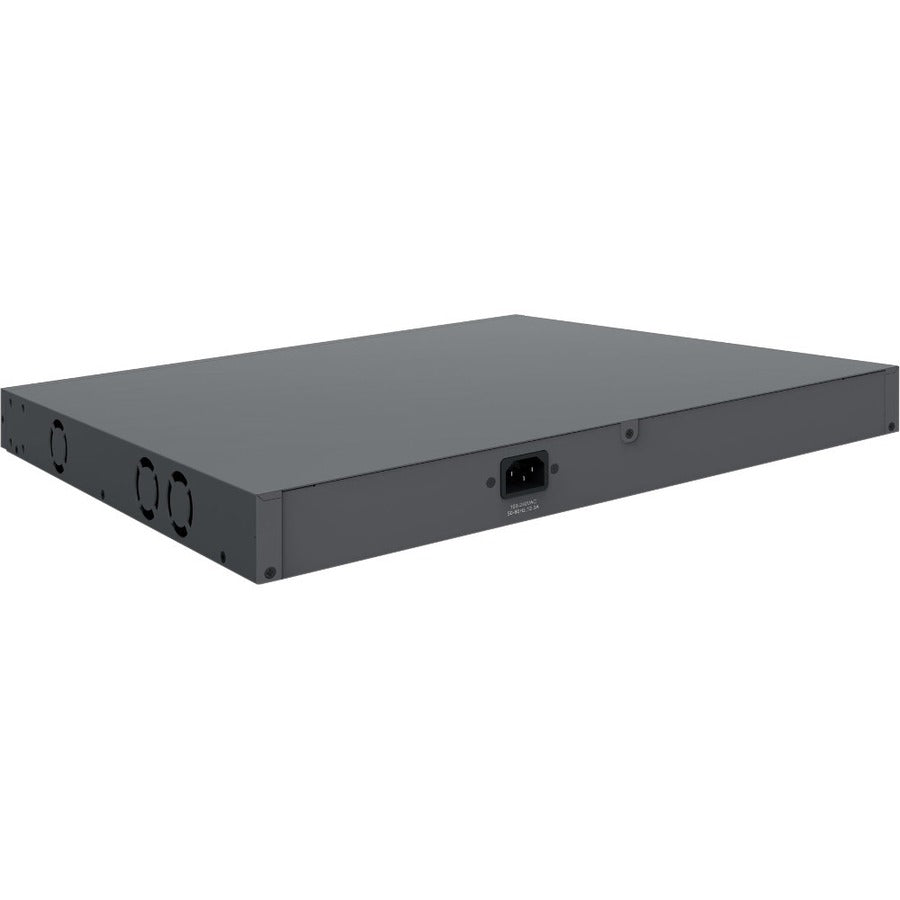

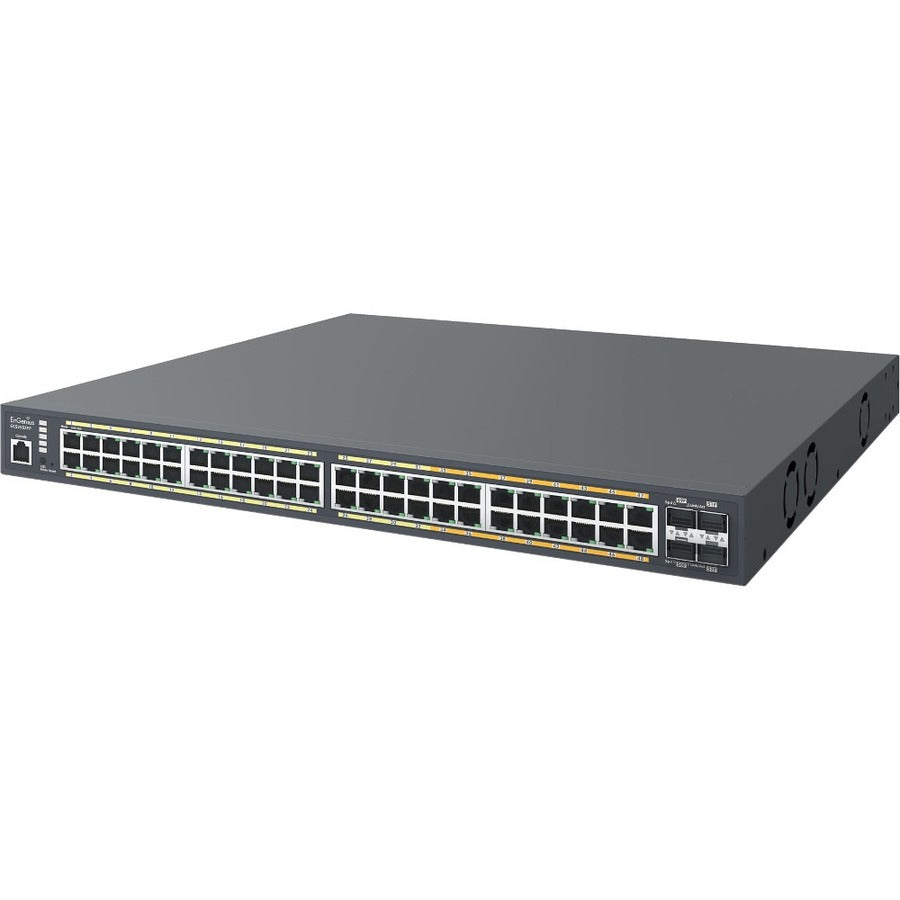

The EnGenius ECS2552FP cloud-managed 48-port PoE+ multi-gigabit switch with 740-Watt budget, simple network configuration, monitoring, and management powers IP cameras, VoIP phones, and access points. The ECS2552FP offers features like extended PoE mode, PD lifeguard, and continuous PoE power, to extend the reach and to maximize uptime for surveillance cameras.
Features & Benefits
- 48 10/100/1000/2500 Base-T GbE Ports
- 32 Gigabit and 16 2.5-Gigabit PoE Ethernet Ports
- Full-Featured Layer 2+ Ethernet Switch
- 802.3 at/af PoE+ Ready on All Ports with 740W PoE budget
- 224 Gbps Switching capacity
- 4 10-Gigabit Dual-Speed SFP+ (fiber) uplink ports
- Quick-Scan Device Register, Remote Monitoring and Troubleshooting
- PoE Extended Mode - Extend PoE Ethernet cable deploying range up to 250 meters
- PD Lifeguard - Real-time detecting and auto-reboot PoE power for failed camera
- Continuous PoE Power - Steady supply of PoE power for camera during switch upgrades
- Features 48 networking ports to meet the requirements of the most demanding workgroups
- Cascade to other network devices through the uplink port to expand your local area network
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports layer 3 switching for enhanced performance and usability
- Management capability provides control over setup and configuration of your network
- Rack mounting enables you to organize wires & secure cables for professional installation
- Length : 17.32" (439.93 mm)
- Product Series : ECS
- PoE (RJ-45) Port : Yes
- Packaged Quantity : 1
- Form Factor : Rack-mountable
- Package Contents :
- ECS2552FP Ethernet Switch
- 1x Quick Installation Guide
- 1x Power Cord
- 1x RJ45 Console Cable
- 1x Rack Mount Kit
- Manufacturer Website Address : http://www.engeniustech.com
- Uplink Port : Yes
- Manufacturer : EnGenius Technologies, Inc
- Product Model : ECS2552FP
- Manageable : Yes
- Network Technology : 10/100/1000Base-T,10GBase-X
- Ethernet Technology : 10 Gigabit Ethernet,Gigabit Ethernet
- Layer Supported : 3
- PoE Budget : 740 W
- Input Voltage : 120 V AC,230 V AC
- Port/Expansion Slot Details : 48 x Gigabit Ethernet Ports,4 x 10 Gigabit Expansion Slots
- Limited Warranty : 2 Year
- Product Type : Ethernet Switch
- Number of Total Expansion Slots : 4
- Networking Standards : IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3bz,IEEE 802.3x,IEEE 802.3af,IEEE 802.3at,IEEE 802.1p,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1x,IEEE 802.3az
- Total Number of Network Ports : 48
- Media Type Supported : Optical Fiber,Twisted Pair
- Expansion Slot Type : SFP+
- Number of SFP+ Slots : 4
