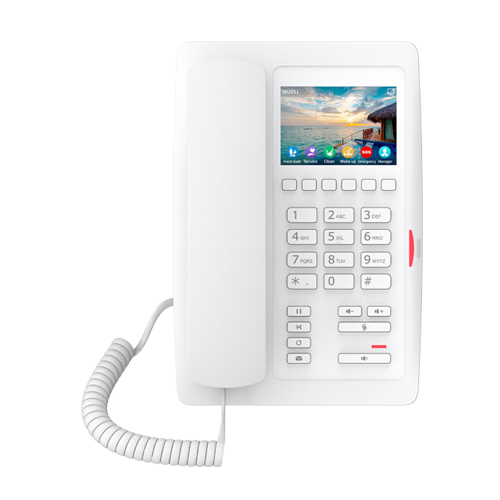

Fanvil H5W WiFi IP Hotel Phone - White


Sale price$145.00
Only 7 units left


Fanvil H5W WiFi IP Phone - White (H5W-WHITE)

Fanvil H5W WiFi IP Phone

As a WiFi IP phone with HD audio, Fanvil H5W can deliver you a smoother communication experience with HD audio and no cabling troubles. Fanvil H5W supports H.264 video decoding to help owners to view the video image before opening the door.

More than a hotel IP phone, it is also suitable for the supermarket, hospital, shopping mall, etc.

Fanvil H5W IP phones can share one number from the server. When a call comes in, each extension phone will ring together to make sure you won’t miss a call.

Get tired of the messy cables? Connecting to the Network with 2.4G built-in WiFi, Fanvil H5W can be installed anywhere in the room without the limitation of cabling.


· Black OR White
· Built-in 2.4G WiFi
· Support H.264 Video Decoding
· 3.5-inch Color Screen
· HD Audio with G.722 and Opus
· 2 SIP Lines
· 1 USB Port for Phone Charging
· 6 Programmable Keys for Speed Dial Functions
· Support PoE

A new generation of IP phones has been introduced and the Fanvil White H5W Wi-Fi VoIP phone is perfect for hotels, hospitals, retail stores and many other applications, as this phone does so much more than meet your basic needs. Designed to be sleek and fit anywhere in a room the H5W brings the features you love from Fanvil hotel phones and pairs them with their latest innovations.

Beginning with the 3.5-inch color display the H5W provides users with a familiar and easy to use interface and by using the phones management system you can customize screen prompts allowing you to display information to your user. 6 programable soft keys lets the user easily access the front desk, emergency lines and wake up calls just to name a few. Another optional yet splendid feature is this phone's ability to support video decoding and connect to SIP phones, intercoms or door cameras allowing the user to see who is at the door before remotely unlocking.

Are you sick of not being able to put the phone where you want due to cables and wiring, well the H5W has built in 2.4G Wi-Fi allowing the phone to be set up anywhere you need it? Built in wideband audio and Opus allows the user of the phone to hear and be heard clearly through HD audio and auto provisioning means no intricate set-up is needed.

Compatible with most major providers the H5W is a great solution for your business needs.


  • Network Connectivity: Wi-Fi, Ethernet
  • Wi-Fi: 802.11 n
  • SIP Lines: 2
  • Display: 3.5 in (320 x 480 px) color
  • Physical Connectors:
    • Ethernet: 2x 10/100 PoE
    • Handset: 1x RJ9
    • USB: 1x USB-A
  • Audio Codecs: G.711u/a, G.729AB, iLBC, G.722, Opus
  • Video Decoding: H.264, H.265 (optional)
  • Video Resolution: up to 1080p Full HD


  • H5W Hotel Phone, White
  • Handset
  • Handset Cord
  • Ethernet Cable
  • Quick Installation Guide

Fanvil H5W Technical Specification


  • 2 SIP Lines
  • HD Voice
  • PoE
  • Handset / Hands-free mode
  • External Power Supply(Optional)

Phone Functions

  • Call logs (In/Out/Missed, Max support 600 records in the web)
  • Programmable DSS/soft keys
  • Action URL / Active URI
  • Web dial
  • Dial plan
  • SIP Hotspot
  • Distinctive ring
  • Multicast

Call Functions

  • Call out / Answer
  • Mute / Unmute
  • Call Hold / Resume
  • Speed Dial
  • Redial
  • Auto-Answering
  • Hot Line
  • Customised ring


  • Wideband ADC/DAC 16KHz sampling
  • Narrowband codec: G.711A/U, G.729AB, iLBC
  • Wideband codec: G.722, Opus
  • Full-duplex hands-free speakerphone with AEC
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive Jitter Buffer
  • DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO
  • VQM voice quality monitoring


  • Hardware video decoding: H.264/H.265(Optional)
  • Video call resolution: QVGA / CIF / VGA / 4CIF / 720P / 1080P


  • 10/100 Mbps Ethernet
  • IP Mode:IPv4/IPv6/IPv4&IPv6
  • IP Configuration: Static / DHCP / PPPoE
  • Network Access Control: 802.1x
  • VPN: L2TP / OpenVPN
  • VLAN: 802.1P/Q
  • QoS
  • RTCP-XR (RFC3611), VQ-RTCPXR(RFC6035)


  • SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
  • STUN
  • DHCP
  • IPv6
  • PPPoE
  • L2TP
  • OpenVPN
  • SNTP
  • TR-069

Deployment & Maintenance

  • Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIPPNP/TR-069
  • Web management portal
  • Web-based packet dump
  • Configuration export / import
  • Firmware upgrade
  • Syslog

Physical Specifications

  • 3.5-inch (320x480) colour screen
  • Keypad: 26 keys, including:
    - 6 DSS Key
    - 4 Function keys (Hold, Call Transfer, Redial, MWI)
    - 12 Standard Phone Digits keys
    - 3 Volume Control keys, Up/Down/Mute(with red colour LED)
    - 1 Hands-free key
  • MSG indicator (with red colour LED) x1
  • HD Handset (RJ9) x1
  • Standard RJ9 Handset Cord x1
  • RJ9 Port x1: Handset x1
  • RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
  • USB Port x1: Standard A
  • Power: 5V/2A or PoE
  • Power Consumption (PoE): 1.5W ~ 5.65W
  • Power Consumption (Adapter): 2.13W ~ 7.46W
  • Working Temperature: 0~45?
  • Working Humidity: 10~95%
  • Installation: Desktop
  • Colour: Black/white
  • Device Dimensions: 151.7x193.2x131.7mm
  • Gift Box Dimensions: 225x210x125mm
  • Outer CTN Dimensions: 515x435x245mm(8 PCS)
