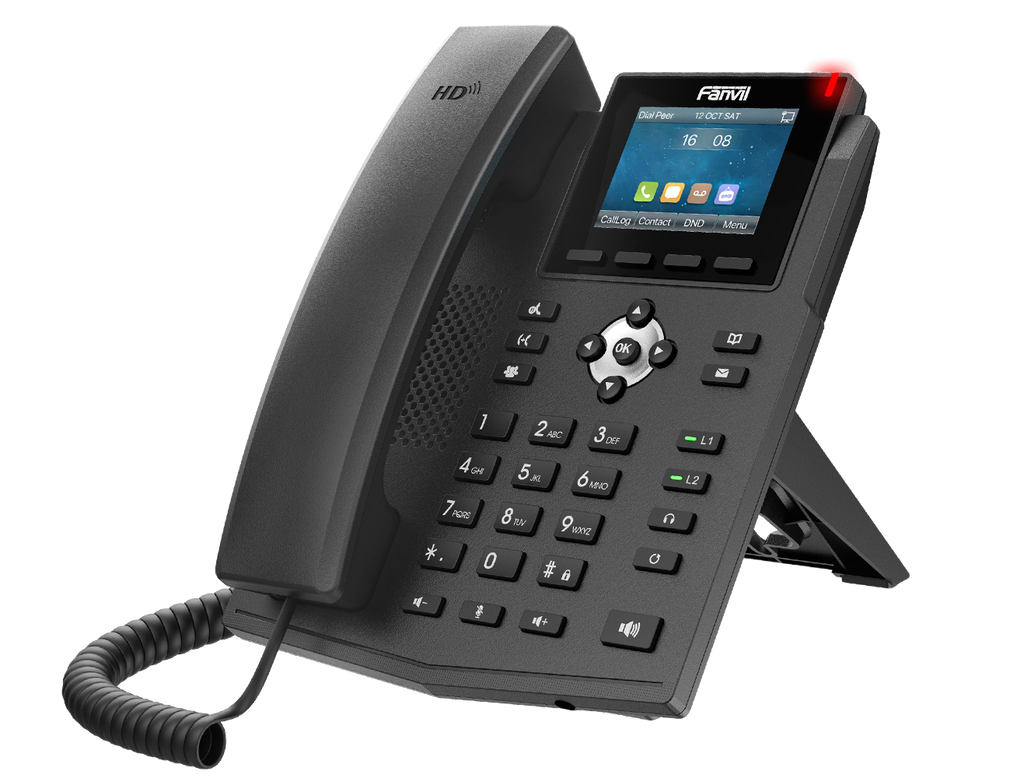

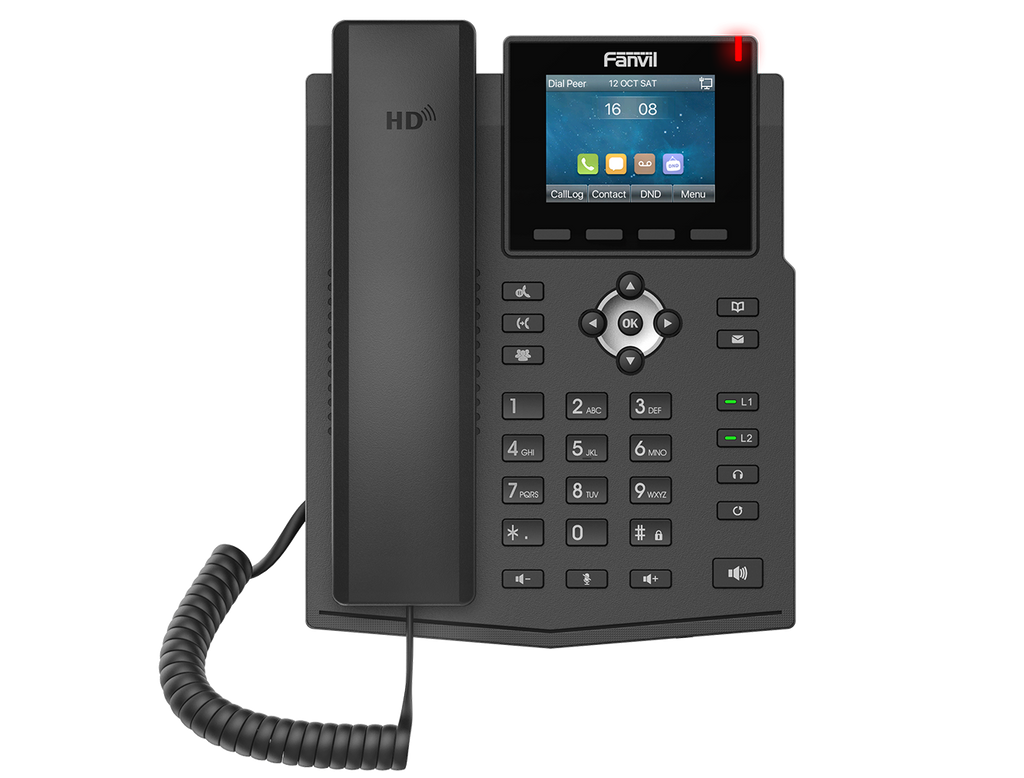

Fanvil X3SG Pro Gigabit IP Phone

FanvilSKU: X3SG-PRO

Price:
Sale price$92.99
Stock:
Only 12 units left

Description

Fanvil X3SG Pro Gigabit IP Phone

X3SG Pro is an entry-level color screen IP Phone. With HD audio, 2.8” main color display, 4 SIP lines, local 6-way conference call and other extended features like EHS headset, it provides the high-quality and convenient experience for users at an affordable price.

Fanvil X3SG Pro Features and Specifications:

  • 4 SIP accounts
  • 2.8-inch 320*240 color display
  • Support EHS wireless headset
  • Support IPv4 , IPv6 protocol
  • Dual Gigabit ports, integrated PoE
  • Support local 6-way audio conference
  • HD audio on speakerphone and handset with G.722 and Opus
  • Newly increased phone book/ voice message key, 2 line keys with LED light
  • Support G.723.1, G.726 narraw-band voice codec

Simplicity and Ease of Use

By inheriting the aesthetic design of Fanvil’s previous generation IP phones, the X3SG Pro’s appearance is elegant, simple and stylish. The Intuitive and user-friendly UI, make navigation easy and requires minimal training.

HD Audio Call with Excellent Noise Reduction

The X3SG Pro supports full HD audio effect, by built-in HD audio handset, HD speakers, and using wideband audio codec protocol G.722 and Opus. Efficient ANS (Automatic Noise Suppression) technology can reduce the background noise in different environment, and provide you comfortable communication experience.

Support 6-way Audio Conference

The X3SG Pro supports 6-way audio conference, the conference organizer can invite up to 5 participants to join in the conference, making the collaboration between different departments or organizations easier and more efficient.

High Scalability with DSS Keys

Line keys can also be adjusted as DSS keys according to the requirements of the configuration to achieve application functions. Each DSS key can be set to LINE /BLF/ speed dial extension which can be triggered by one click after configuring the change function.

Flexible Office Collaboration

The X3SG Pro supports connecting the EHS wireless earphone through the EHS adapter so you can multitask while making an audio call, that will greatly improve your work efficiency.

Flexible Installation for Multiple Scenes

The PoE function enable power supply and networking via one cable. 45° or 50° angle installation mode for desktop scenario, or wall mount mode with the wall bracket accessories (require additional purchases), which can meet the needs of various office environment.

Generic
4 SIP Lines
HD Voice
PoE Enabled
2.8-inch color screen
Handset / Hands-free / Headset mode
Desktop Desktop Stand / Wall-mounted (need an additional wall hanging parts)
Optional External Power Supply

Phone Functions
Local Phonebook (1000 entries)
Remote Phonebook (XML/LDAP, 1000 entries)
Call logs (In/Out/Missed, 600 entries)
Black/White List Call Filter
Screen saver
Voice Message Waiting Indication (VMWI)
Programmable DSS/Soft keys
Network Time Synchronization
Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
Support Recording (Through Server)
Action URL / Active URI
uaCSTA

Call Functions
Call out / Answer / Reject
Mute / Unmute (Microphone)
Call Hold / Resume
Call Waiting
Intercom
Caller ID Display
Speed Dial
Anonymous Call (Hide Caller ID)
Call Forward (Always/Busy/No Answer)
Call Transfer (Attended/Unattended)
Call Parking/Pick-up (Depending on server)
Redial
Do-Not-Disturb
Auto-Answering
Voice Message (With server)
3-way Conference
Hot Line
Hot desking

Audio
HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
HAC handset
Wideband ADC/DAC 16KHz Sampling
Narrowband Codec: G.711a/u, G.726-32K, G.729AB, iLBC
Wideband Codec: G.722, Opus
Full-duplex Acoustic Echo Canceller (AEC)
Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
Packet Loss Concealment (PLC)
Dynamic Adaptive Jitter Buffer
DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking
Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
IP Mode:IPv4/IPv6/IPv4&IPv6
IP Configuration: Static IP / DHCP / PPPoE
Network Access Control: 802.1x
VPN: L2TP / OpenVPN
VLAN
LLDP
QoS
RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Protocols
SIP2.0 over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
IPv6
LLDP
PPPoE
802.1x
L2TP
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR-069

Deployment & Management
Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
Web Management Portal
Web-based Packet Dump
Configuration Export / Import
Phonebook Import/Export
Firmware Upgrade
Syslog

Physical Specifications
Main LCD x1: 2.8-inch (320x240) Color Screen
Keypad: 34 keys, including
- 4 Soft-keys
- 7 Function keys (Hold/Transfer/Conference/Phonebook/MWI/Headsets/Redial)
- 2 Line keys (With LED Indicator Light)
- 4 Navigation keys
- 1 OK key
- 12 Standard Phone Digits keys
- 3 Volume Control keys (Up/Down/Mute (Microphone))
- 1 Hands-free key
HD Handset (RJ9) x1
Standard RJ9 Handset Wire x1
1.5M CAT5 Ethernet Cable x1
Back Rack x1
Status Indicator Light x1 (Red)
RJ9 Port x2: Handset x1, Headset x1
RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
Safety Keyhole x1
DC Power Input: 5V/0.6A
Power Consumption: Idle 0.9~1.65W,Peak 1.8~2.95W
Working Temperature: 0~45ȭ
Working Humidity: 10~95%
Installation:
- Desktop Stand
- Wall-mounted (need an additional wall hanging parts)
Color: Black
Device Dimensions:
- Desktop Stand (Angles 1): 169x186.3x174.5 mm
- Desktop Stand (Angles 2): 169x177.6x183.7 mm
- Wall-mounted: 169x115.6x212.5 mm
Gift Box Dimensions: 274x215x68 mm
Outer CTN Dimensions: 450x360x294 mm (10 PCS)
