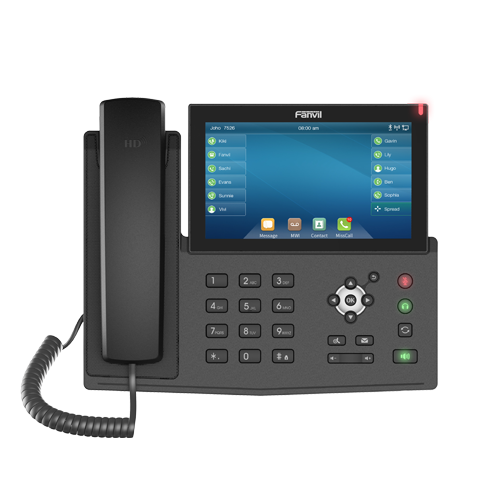

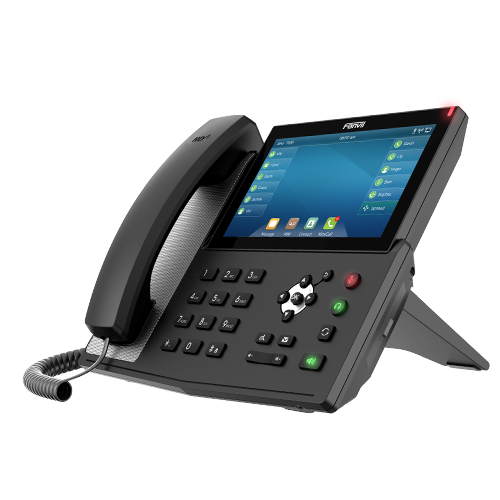

Fanvil X7 Touch Screen Enterprise IP Phone (X7)

With a modern, clear design, Fanvil X7 is a high-end enterprise IP phone for business users who need immediate access to all of their important information. In addition to a 7-inch capacitive touch screen for up to 127 DSS key entries, the telephone also features 20 SIP lines, HD audio with Opus support, Built-in Bluetooth, Wi-Fi connectivity and more!

· 20 SIP lines, 3-way conference, hotspot
· 7" capacitive color touch-screen
· HD audio on speakerphone and handset
· Up to 127 DSS keys entries available at the display
· Built-in Bluetooth for connecting Bluetooth headset
· Wi-Fi connectivity (via Wi-Fi dongle)

· Video codec H.264 support for receiving video calls

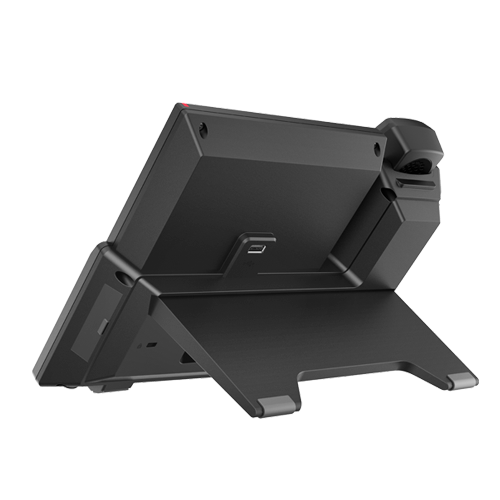

· Stand with 2 adjustable angles of 40 and 50 degrees
· Support EHS headset
· Dual Gigabit ports, integrated PoE
· Compatible with major platforms:3CX, Avaya, Asterisk,
Broadsoft, Metaswitch, Elastix etc.

Call Features

• Call out / Answer / Reject
• Mute / Unmute (microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)
• Call Forwarding (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• Call Parking/Pick-up (depending on server)
• Redial
• Do-Not-Disturb
• Auto-Answering
• Voice Message (on server)
• 3-way Conference
• Hot Line
• Hot desking

Phone Features

• Local Phonebook (2000 entries)
• Remote Phonebook (XML/LDAP, 2000 entries)
• Call logs (in/out/missed, 1000 entries)
• Black/White List Call Filtering
• Screen saver
• Voice Message Waiting Indication (VMWI)
• Programmable DSS/Soft keys
• Network Time Synchronisation
• Built-in Bluetooth 2.1: Support Bluetooth headset
• Support Wi-Fi Dongle
• Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
• Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable
• Support Recording (Through Flash Drive or Server Recording )
• Action URL / Active URI
• uaCSTA

Video

• Video codec: H.264
• Video call resolution: QCIF / CIF / VGA

Audio

• HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
• HAC handset
• Wideband ADC/DAC 16KHz Sampling
• Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB, AMR, iLBC
• Wideband CODEC: G.722, AMR-WB, Opus
• Full-duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Networking

• Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypas
• IP Mode:IPv4/IPv6/IPv4&IPv6
• IP Configuration: Static / DHCP / PPPoE
• Network Access Control: 802.1x
• VPN: L2TP / OpenVPN
• VLAN
• LLDP
• QoS
• RTCP-XR(RFC3611),VQ-RTCPXR(RFC6035)

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• 802.1x
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Deployment and Maintenance

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP
• PNP/TR-069
• Web-based Packet Dump
• We management Portal
• Configuration Export / Import
• Phonebook Import/Export
• Firmware Upgrade
• Syslog

Physical Specifications

• Main LCD x1: 7.0 inch (800x480) Capacitive touch screen
• Keypad: 26 keys, including
• 5 Function keys (Hold, MWI,Mute,Headset, Redial)
• 4 Navigation keys
• 1 OK key
• 1 Return key
• 12 Standard Phone Digits keys
• 2 Volume Control keys, Up/Down
• 1 Hands-free key
• HD Handset (RJ9) x1
• Standard RJ9 Handset Wire x1
• 1.5M CAT5 Ethernet Cable x1
• Back Rack x1
• RJ9 Port x2: Handset x1, Headset x1
• RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
• USB2.0 Port x1: Standard A, Connect with Wi-Fi USB dongle or Flash Driver
• DC Power Input: 5V/2A
• Power Consumption (POE): 2.6~9W
• Power Consumption (Adapter): 2.4~8W
• Working Temperature: 0~40?
• Working Humidity: 10~95%
• Installation: Desktop Stand
• Colour: Black
• Desktop Stand (angles 1): 268x185x189mm
• Desktop Stand (angles 2): 268x201x168mm
• Gift Box Dimensions: 342x271x63mm
• Outer CTN Dimensions: 570x340x365mm (10 PCS)

FANVIL X7 DATASHEET
