Description
Switching Engineered for AV over IP
The NETGEAR AV Line M4250 series was designed with input from AV Professionals. The result is a line of switches built from the ground up to support 1Gb audio and video over IP with customized hardware and software along with dedicated service and support.
NETGEAR M4250 series key features:
The NETGEAR AV Line M4250 series was designed with input from AV Professionals. The result is a line of switches built from the ground up to support 1Gb audio and video over IP with customized hardware and software along with dedicated service and support.
NETGEAR M4250 series key features:
- Ranges from 8 to 16 ports with a variety of PoE+ and Ultra90 PoE++ options for 15.4W, 30W, 60W, 75W and 90W AVoIP endpoints
- Uplink options include 1G for audio installations or standalone video installations as well as 10G uplinks for larger scale video deployments
- Also includes 12-port multi-gigabit Ethernet and 16-port 1G/10G fiber models for plug and play aggregation in a star topology
- Designed for a clean integration with traditionalrack-mounted, AV equipment

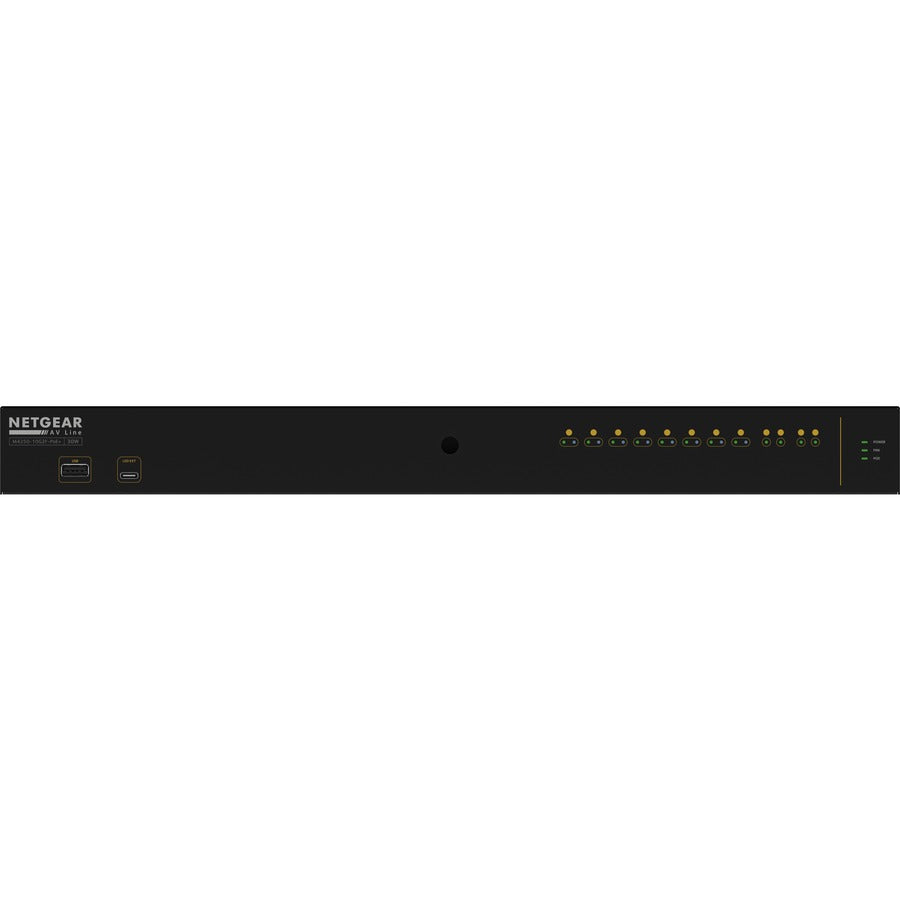

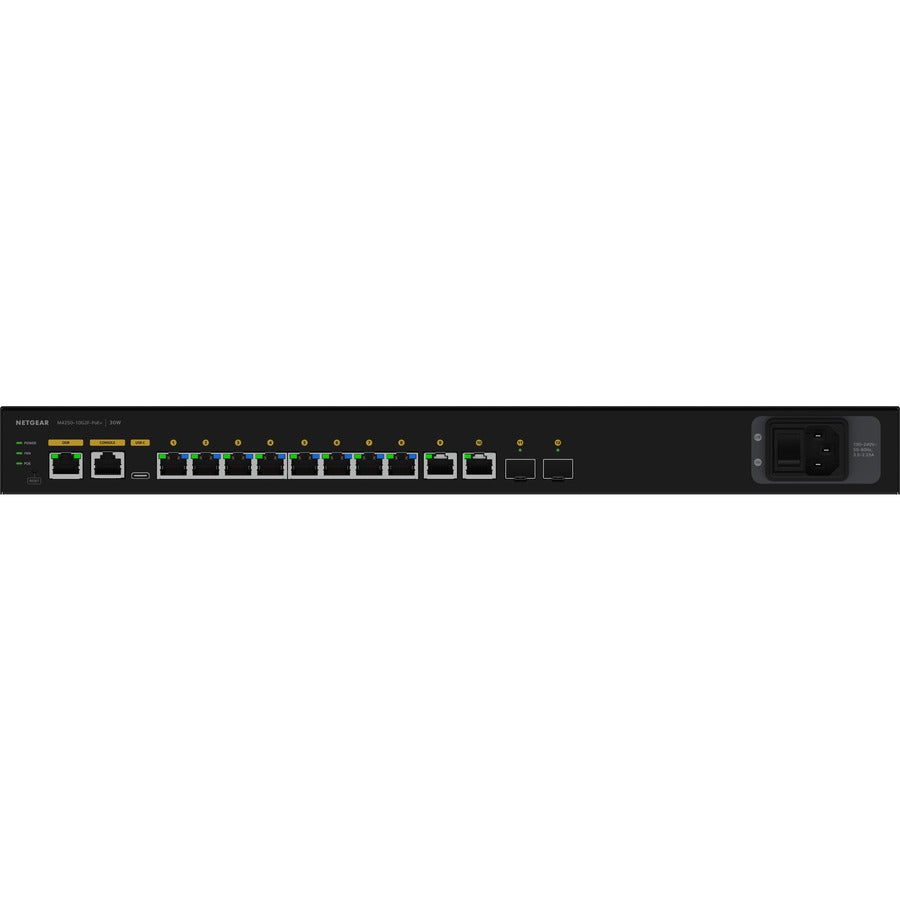

- The M4250 switches come with a sleek, black display panel with status in front and all cabling plus additional status in the back
- Reversed mounting is possible when ports are desired on the front of the rack
- A second pair of rackmount ears allows the switches to be mounted recessed by 2-inches to allow for the cabling
- Software-controlled fan adjustments enable the fans to be turned off when ambient temperature and PoE loads are appropriate for a totally fanless operation
- Threaded holes on the bottom (4xM5 for 50x100mm VESA) and in front (1xM10 for clamps) allow for universal mountingoptionsoutside the rack as well
- Pre-configured for audio and video over IP out of the box, the M4250 switches enable encoders and decoders to be connected with zero configuration
- When more configuration is required, an AV web-based GUI is available at the switch IP address:8080
- This interface has been specially designed for AV installers with specific AV-related controls made more accessible and with port-based profiles
- For audio, profiles for Dante, Q-SYS and AES67 are built-in, as well as an AVB profile (AVB license sold separately
- For video, the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Kramer KDS, Aurora Multimedia, ZeeVee, Atlona, Dante and SDVoE
- Other AV CODECs and manufactures are supported as well as audio/video/ control mixed profiles
- To further simplify star deployments, NETGEAR IGMP Plus™ brings multicast automation between all M4250 switches, and with M4300/M4500
- Simply connect the switches together and you are done!
- All M4250 switches share the same high-end NETGEAR Layer 2 / Layer 3 switching engine for a consistent experience
- All switches in the M4250 series have another main, IT web-based GUI for midsize Enterprise campus networks, IoT and IPTV
- Additional features include static, RIP and PIM-SM, DM and SSM multicast routing, DHCP Server and PTPv2 Transparent Clock (1-step E2E)
- AVB is the only feature requiring a license, all other advanced features are available license-free
- Advanced classifier-based, time-based hardware implementation for L2 (MAC), L3 (IP) and L4 (UDP/TCP transport ports)
- Selectable Port-Channel / LAG (802.3ad - 802.1AX) L2/L3/L4 hashing for fault tolerance and load sharing with any type of Ethernet channeling
- Voice VLAN with SIP, H323 and SCCP protocols detection and LLDP-MED IP phones automatic QoS and VLAN configuration
- Efficient authentication tiering with successive DOT1X, MAB and Captive Portal methods for streamlined BYOD
- Features 10 networking ports to easily establish a local network or expand your existing one
- Gigabit Ethernet port for ultra-fast network speeds
- Supports layer 3 switching for enhanced performance and usability
- Management capability provides control over setup and configuration of your network
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Environmental Certification : ErP
- Port/Expansion Slot Details : 2 x Gigabit Ethernet Expansion Slot
- Network Technology : 1000Base-X
- Media Type Supported : Twisted Pair
- Product Line : AV Line
- Compatible Rack Unit : 1U
- Environmentally Friendly : Yes
- Form Factor : Rack-mountable
- Manufacturer : Netgear, Inc
- Product Type : Ethernet Switch
- Limited Warranty : Lifetime
- Product Model : M4250-10G2F-PoE+
- Country of Origin : Thailand
- Manufacturer Website Address : http://www.netgear.com
- PoE Budget : 125 W
- Power Source : Power Supply
- Expansion Slot Type : SFP (mini-GBIC)
- Total Number of Network Ports : 10
- Modular : Yes
- Manageable : Yes
- Layer Supported : 3
- Number of Total Expansion Slots : 2
- Shared SFP Slot : No
- Number of SFP Slots : 2
- Plug/Connector Type : IEC 60320 C14
- Ethernet Technology : Gigabit Ethernet
- PoE (RJ-45) Port : Yes
