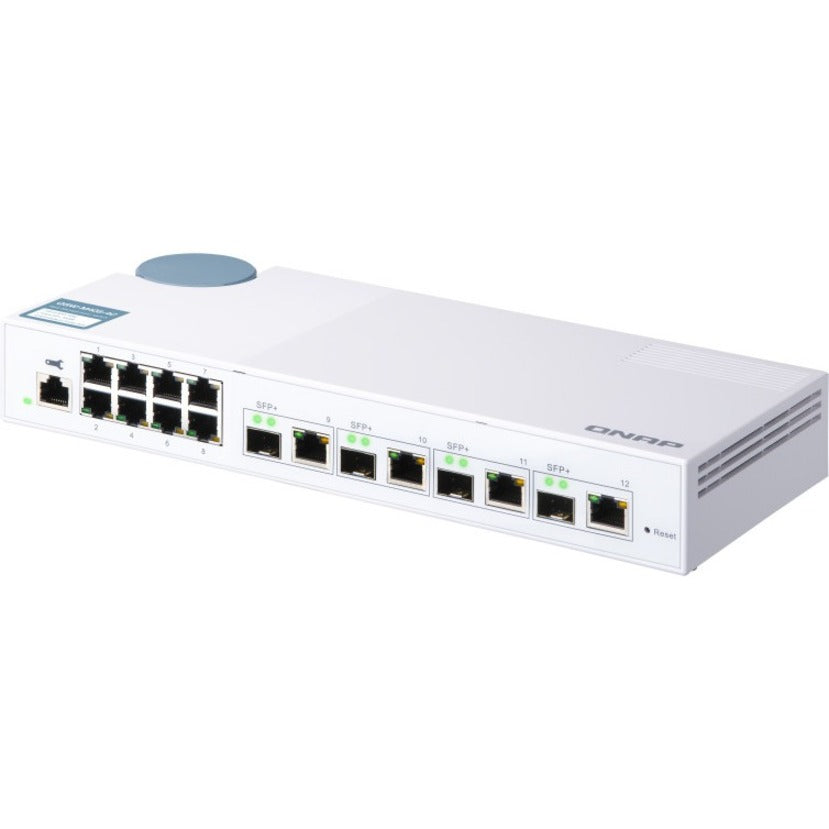

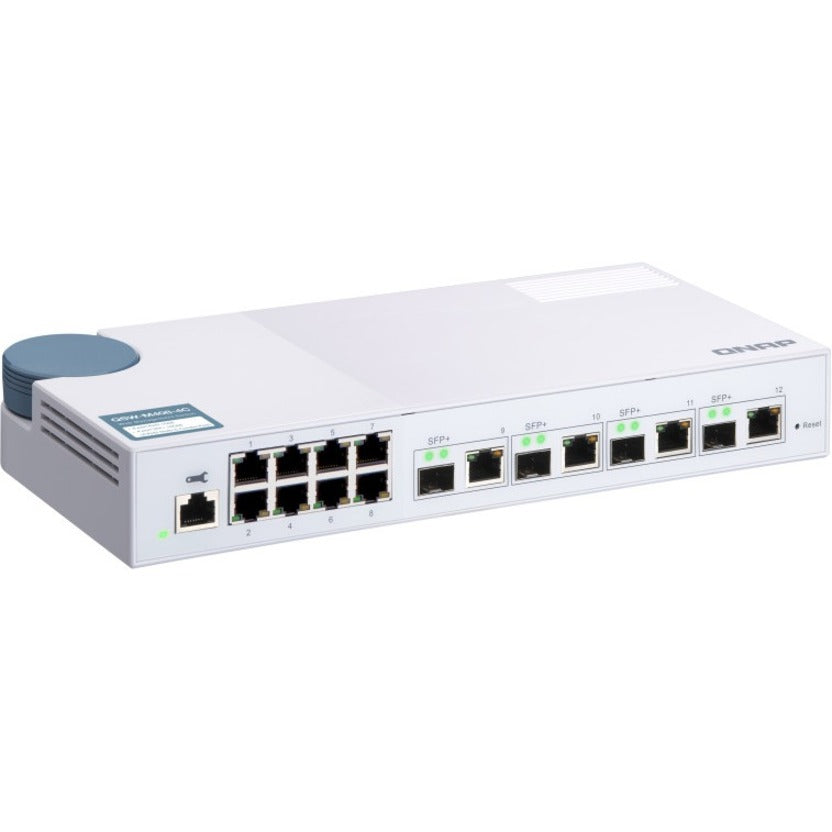

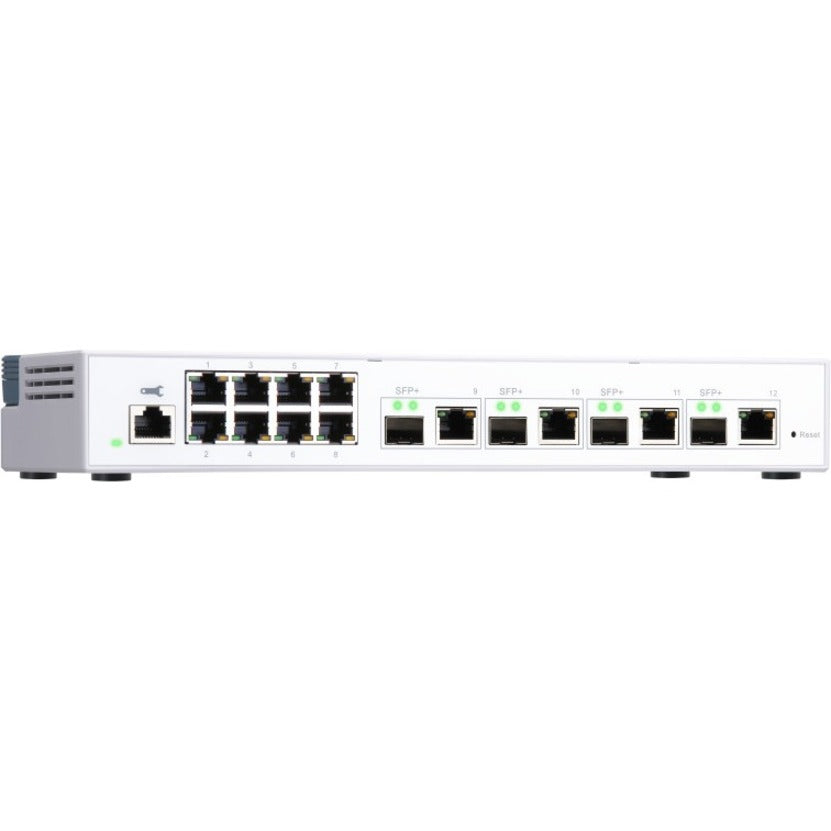

QNAP QSW-M408-4C Ethernet Switch QSW-M408-4C-US

Entry-level 10GbE Layer 2 Web Managed Switch for SMB Network Deployment

The QSW-M408-4C is a Layer 2 Web Managed Switch equipped with four 10GbE SFP+/RJ45 combo ports and eight Gigabit ports. Supporting Layer 2 switching and network management via a user-friendly web user interface, the QSW-M408-4C offers flexible deployment in hybrid high-speed network environments and provides an entry-level network management solution that is usable even by non-IT professionals. The QSW-M408-4C is compatible with 10GbE and NBASE-T technologies that supports up to five speeds (10G / 5G / 2.5G / 1G / 100M) to provide higher transmission speeds with existing Cat 5e and 6a cables. With its high performance, user-friendly management features and desktop size, the QSW-M408-4C allows you to instantly upgrade to a hybrid high-speed network environment at a cost-effective price, while optimizing network bandwidth and ensuring network maintenance security.

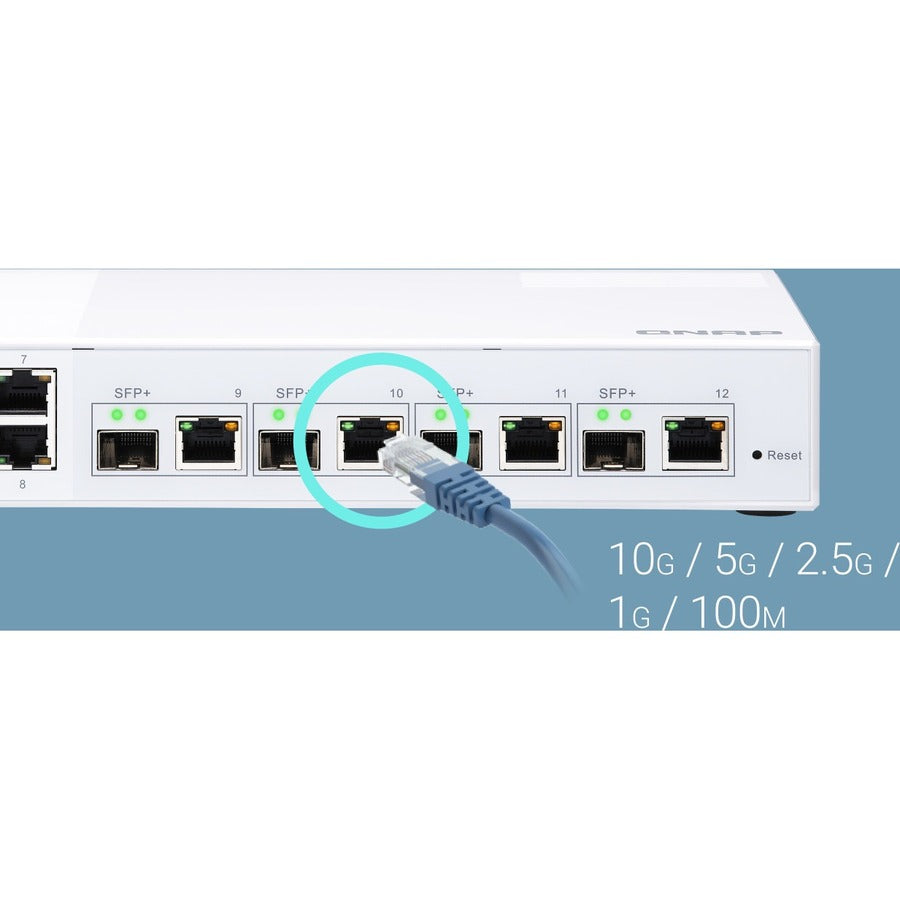

• The QSW-M408-4C is equipped with four 10GbE SFP+/ RJ45 combo ports and eight Gigabit ports. Compatible with 10GbE and NBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M), the QSW-M408-4C offers higher transmission speeds when used with existing cables.
• Featuring a user-friendly web UI, the QNAP Switch System (QSS) provides an overview dashboard, port management and setting guide, making central network management intuitive and easy.
• The QSW-M408-4C provides Layer 2 management features, such as LACP, VLAN, ACL and LLDP for IT administrators to efficiently control the network bandwidth and enhance security.
• The QSW-M408-4C is one the few web-managed switches that supports Rapid Spanning Tree Protocol (RSTP). You can easily and efficiently deploy small/medium-scale networks that support expansion, redundancy and loop prevention.
• Compliant with IEEE 802.3az Energy Efficient Ethernet and IEEE802.3x Flow Control in full-duplex mode, the QSW-M408-4C avoids packet loss from unparalleled bandwidth, and reduces power consumption for low-speed and inactive connections.
• QSS (QNAP Switch System) helps administrators update firmware with just one click, ensuring network security.

Flexible deployment with multiple 10G SFP+ fiber and Gigabit ports

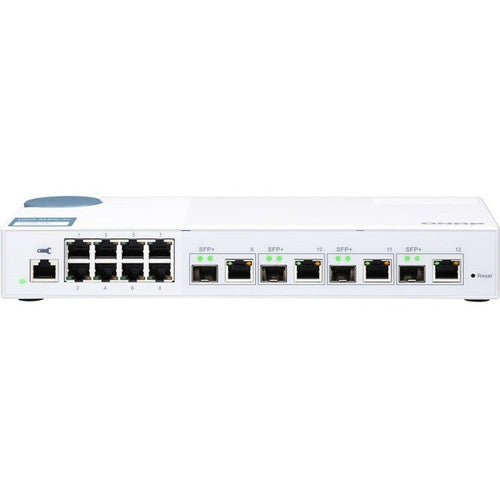

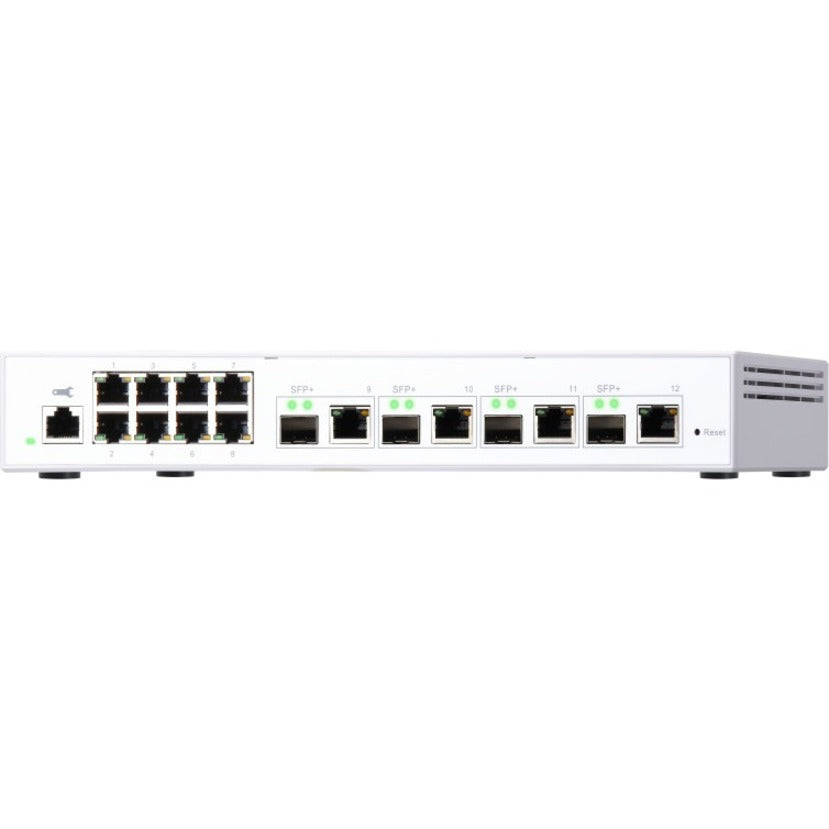

The QSW-M408-4C provides four 10GbE SFP+/RJ45 combo ports and eight Gigabit ports for connecting various devices and enabling hybrid high-speed networks. With SFP+ interfaces, direct attach copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use RJ45 ports to connect 10GBASE-T/NBASE-T™ devices through RJ45 Category 6, 5 or 5e cabling. The switching capacity of QSW-M408-4C is 96Gbps, guaranteeing the full potential of each port.

QSS: Intuitive Network Management Software with Web GUI

The QSW-M408-4C uses the QNAP Switch System (QSS), which features an easy-to-use Web GUI with value-added functions to simplify network set up and management.

Sleek Design

Use the at-a-glance major functions, flat control layers and one-click login to simplify set up and management.

GUI

The visual illustration matches physical ports for greater usability.

Value-added Functions

With the setting guide, status chart reference, online firmware update, the learning and management costs are greatly reduced.

• Features 8 networking ports to easily establish a local network or expand your existing one
• Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
• Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
• Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
• Managed switch provides a reliable foundation for your network
• No need to deal with power supply issues, the switch comes with a separate AC adapter to power up the unit
• The desktop installation makes it ideal for deployments outside the wiring closet

. .

• Power Source : AC Adapter
• Expansion Slot Type : SFP+
• Package Contents :
  • QSW-M408-4C Ethernet Switch
  • Power Cord
  • Power Adapter
  • Quick Installation Guide (QIG)
• Manufacturer Website Address : http://www.qnap.com
• Total Number of Network Ports : 8
• Modular : Yes
• Manageable : Yes
• Layer Supported : 2
• Number of Total Expansion Slots : 4
• Shared SFP Slot : Yes
• Number of SFP+ Slots : 4
• Form Factor : Desktop
• Manufacturer : QNAP Systems
• Product Type : Ethernet Switch
• Limited Warranty : 2 Year
• Product Model : QSW-M408-4C
• Country of Origin : Taiwan
• Port/Expansion Slot Details : 8 x Gigabit Ethernet Network,4 x 10 Gigabit Ethernet TP/SFP Combo
• Network Technology : 10/100/1000Base-T,10GBase-T,10GBase-X
• Media Type Supported : Twisted Pair,Optical Fiber
• Ethernet Technology : Gigabit Ethernet,10 Gigabit Ethernet
