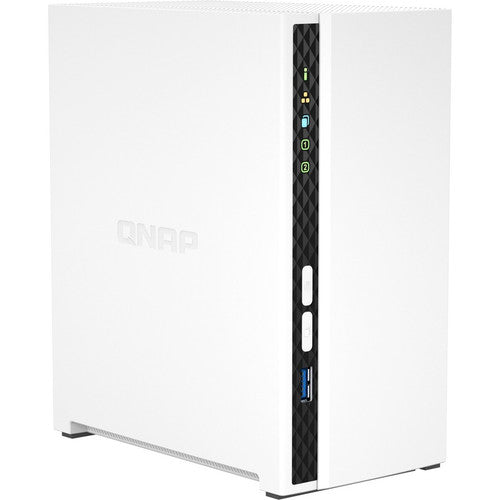

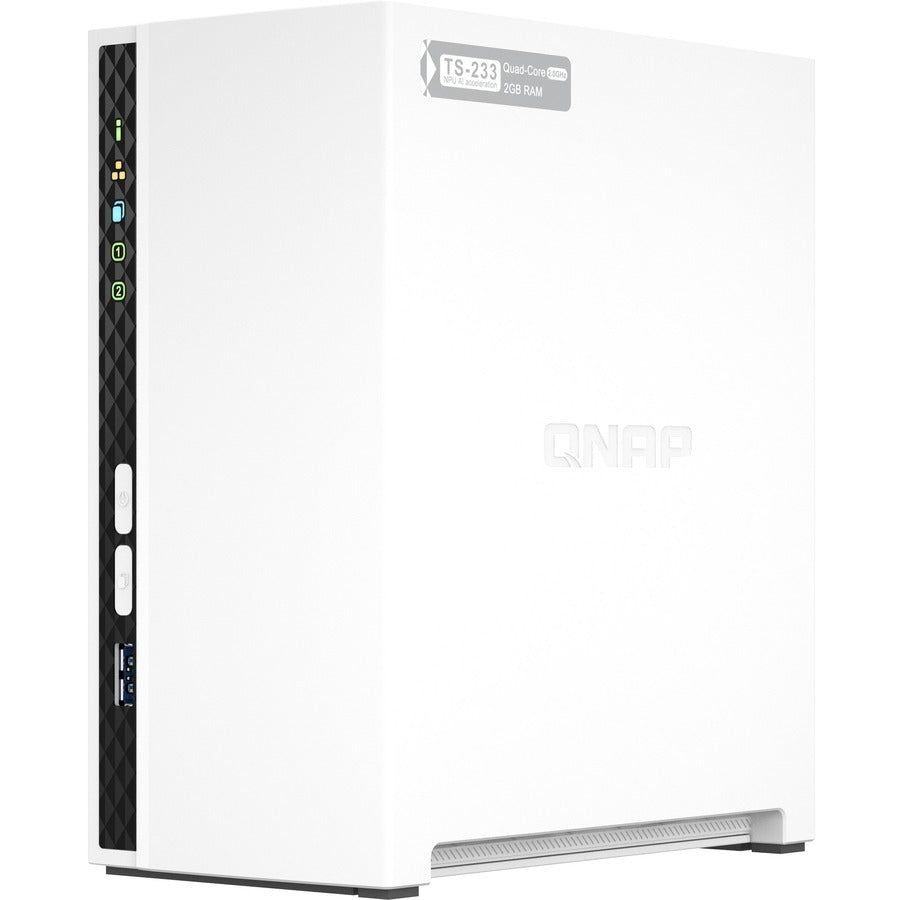

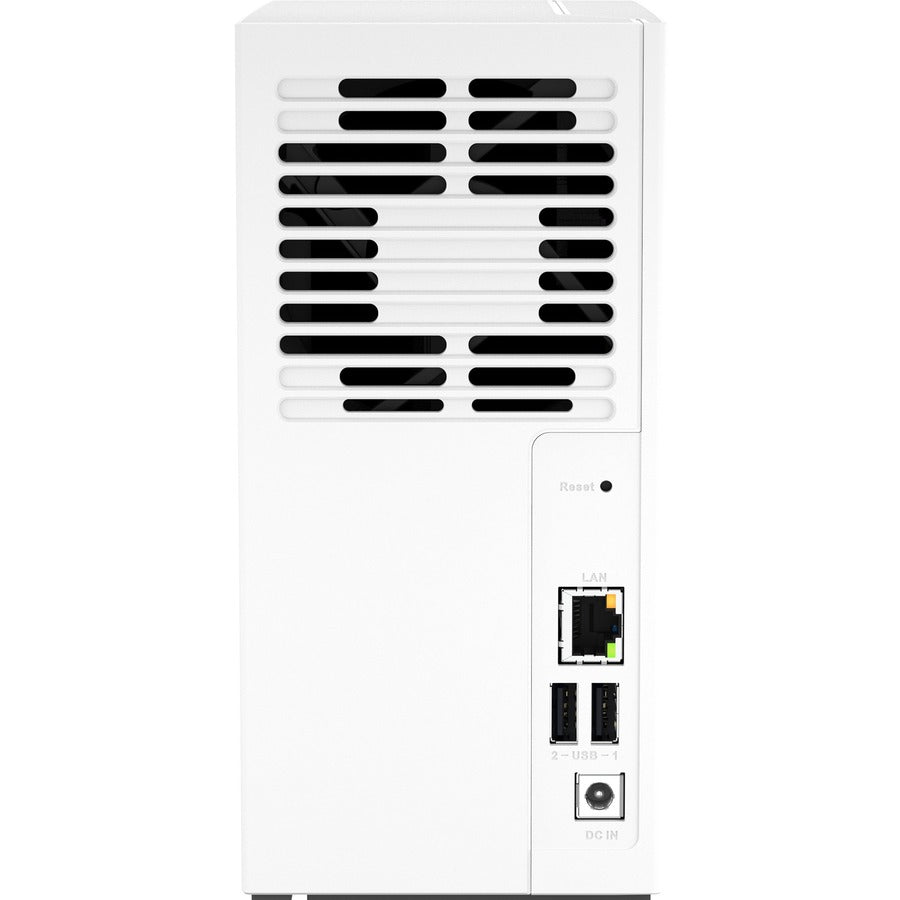

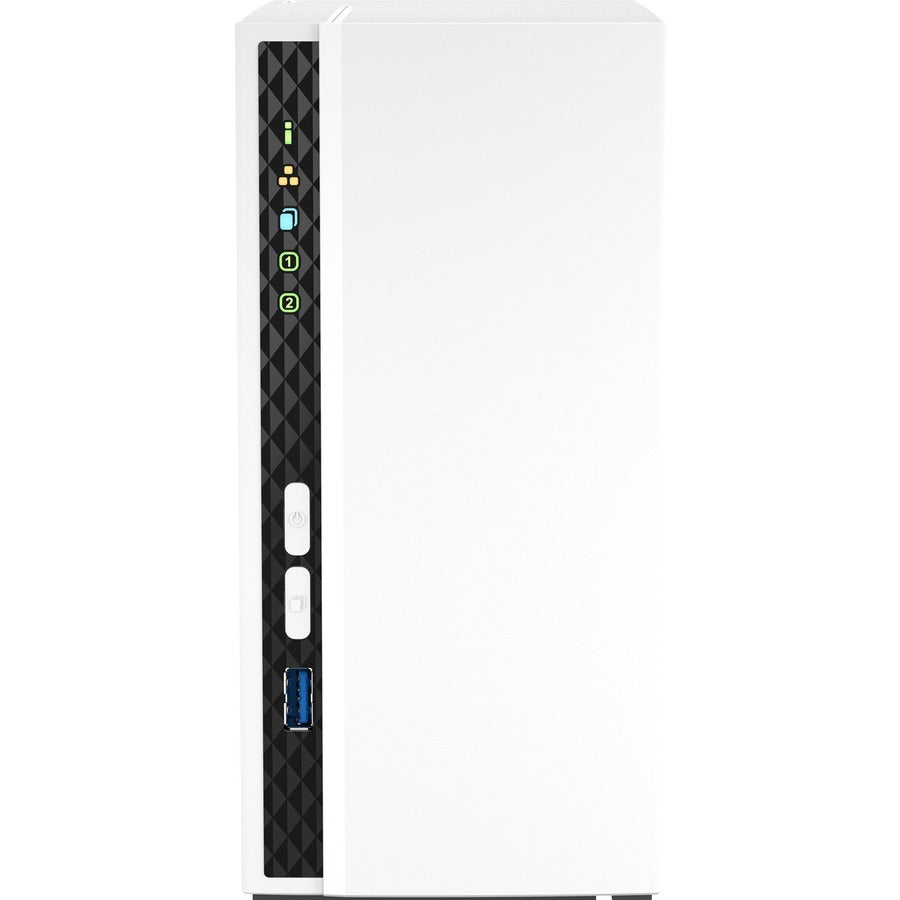

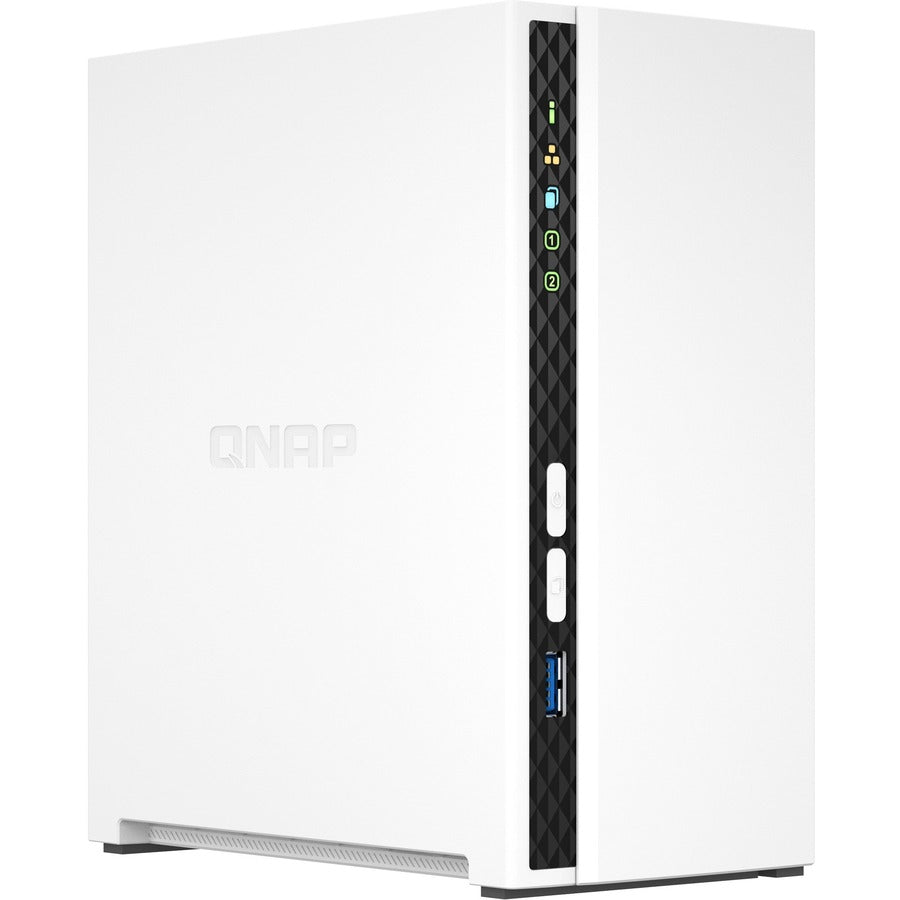

QNAP TS-233 SAN/NAS Storage System TS-233-US

Build a personal private cloud & home multimedia center with a built-in NPU to boost AI-powered face recognition

Run your own personal cloud storage and enjoy easy file access, sharing, and syncing with the TS-233. Designed to enhance collaboration and increase remote work productivity, the TS-233 also features rich multimedia applications and provides a complete home entertainment portal.

• Centralized multimedia management

  Centrally store photos, music, and videos; easily browse, organize, and share multimedia files.

• AI-powered image recognition

  With a built-in NPU (Neural network Processing Unit) processor, the TS-233 boosts performance for high-speed face and object recognition.

• Home entertainment center

  Supports ARM NEON technology that accelerates video processing for a greater entertainment experience.

• Secure remote access

  myQNAPcloud allows you to easily access, manage, and share NAS files via the Internet.

• Snapshot protection against Ransomware

  Protect your files and data from accidental deletion and malware attacks by using advanced snapshot protection.

• Comprehensive security management

  Serves as a secure private cloud and supports user account protection, IP blocking, 2-step verification, encryption access, and more.

Minimalist design

The compact and slim TS-233 prioritizes a clean and essential design, and perfectly blends into your home or office. The design extends to the hard drives, which can be installed without needing a screwdriver.

Effective cooling fan for heat flow

The TS-233 is small in size and remains high-performance, cool, and quiet with an effective cooling fan.

64-bit Cortex-A55 quad-core 2.0 GHz CPU NAS for everyday use and collaboration

Powered by a ARM® Cortex-A55 quad-core 2 GHz processor, built-in 2 GB RAM, one Gigabit LAN port, and supports two SATA 6Gb/s hard drives, the TS-233 provides dependable read/write performance for running various home and business NAS applications. The TS-233 features AES-NI 256 hardware-accelerated encryption for both full NAS volumes and shared folders, boosting system performance while securing sensitive data.

NPU accelerates on-device AI performance. 6x Faster face recognition.

With a built-in NPU (Neural network Processing Unit) processor, the TS-233 boosts QNAP AI Core (the AI-powered engine for image recognition) performance for high-speed face and object recognition.

QTS 5, Fast, smooth, and easy-to-use!

The TS-233 comes with the QTS 5 operating system as standard, providing a next-generation usage experience with an updated system kernel, optimized user interface, and advanced security features.

• Administer next-generation mobile computing and high-end digital entertainment at home with the Cortex A15 2 ghz ARM processor
• RAID technology - data reliability, fault tolerance and improved overall performance
• Featuring Gigabit Ethernet port for ultra-fast network speeds

• Protocols : HTTPS,LDAP,L2TP,SFTP,DHCP,SSH,IPSec,FTPS,AFP,FTP,CIFS/SMB,SNMPv2,IPv4,WEBDAV,Telnet,SSL,iSCSI,TLS,TFTP,HTTP,NFS,FXP,DDNS,IPv6,PPTP
• Flash Memory Capacity : 4 GB
• Maximum Power Supply Wattage : 65 W
• Number of Hard Drives Installed : 0
• Controller Type : Serial ATA/600
• Number of USB 2.0 Ports : 2
• Total Number of USB Ports : 3
• Number of USB 3.2 Gen 1 Ports : 1
• Processor Type : Cortex A15
• RAID Supported : Yes
• Form Factor : Tower
• Package Contents :
  • TS-233 SAN/NAS Storage System
  • 1 x Ethernet Cable
  • AC Adapter
  • Power Cord
  • 8 x Flat Head Screw (for 3.5" HDD)
  • 6 x Flat Head Screw (for 2.5" HDD)
  • Quick Installation Guide (QIG)
• Manufacturer Website Address : http://www.qnap.com
• Processor Manufacturer : ARM
• Number of Solid State Drive Installed : 0
• Manufacturer : QNAP Systems
• Product Model : TS-233
• Number of Total Expansion Bays : 2
• Operating System : QTS 5.0.0
• RAID Levels : 0, 1, JBOD
• Standard Memory : 2 GB
• Ethernet Technology : Gigabit Ethernet
• Number of Hard Drives Supported : 2
• Number of 2.5"/3.5" Bays : 2
• Number of Solid State Drive Supported : 2
• Limited Warranty : 2 Year
• Processor Speed : 2 GHz
• Network (RJ-45) : Yes
• Product Type : SAN/NAS Storage System
• Number of Network (RJ-45) Ports : 1
