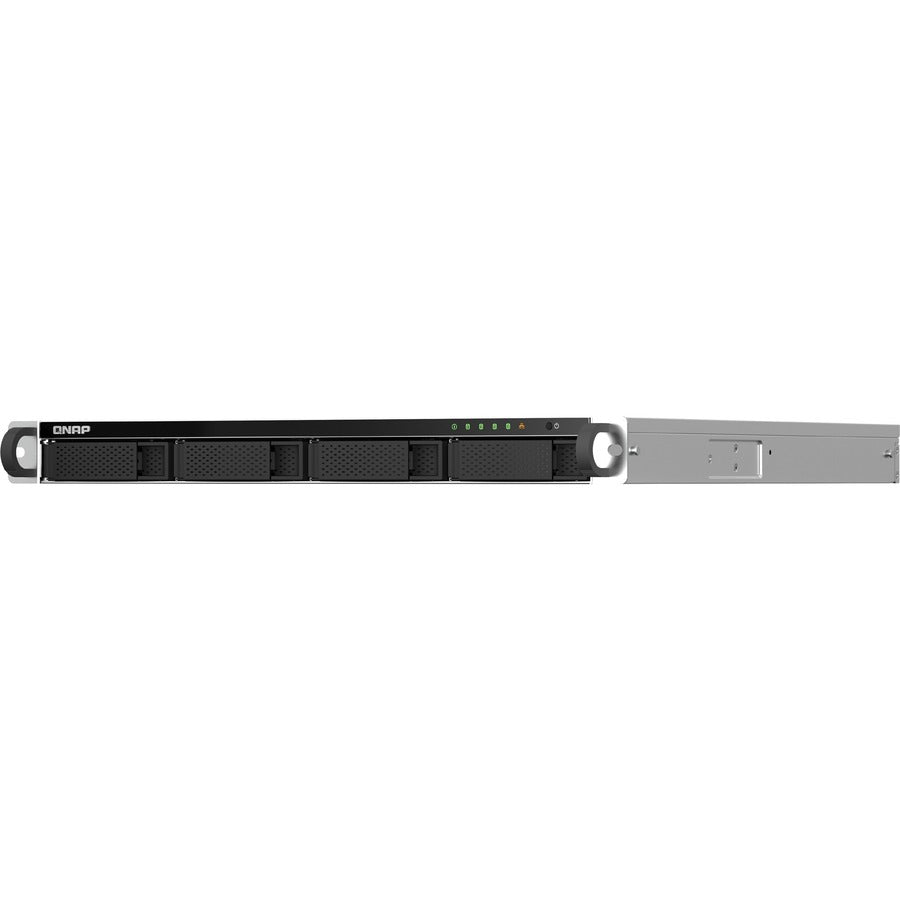

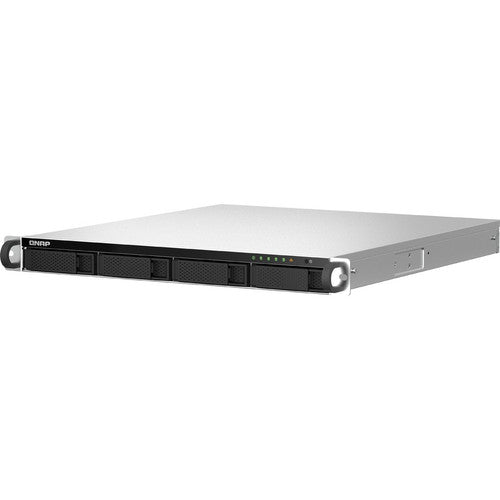

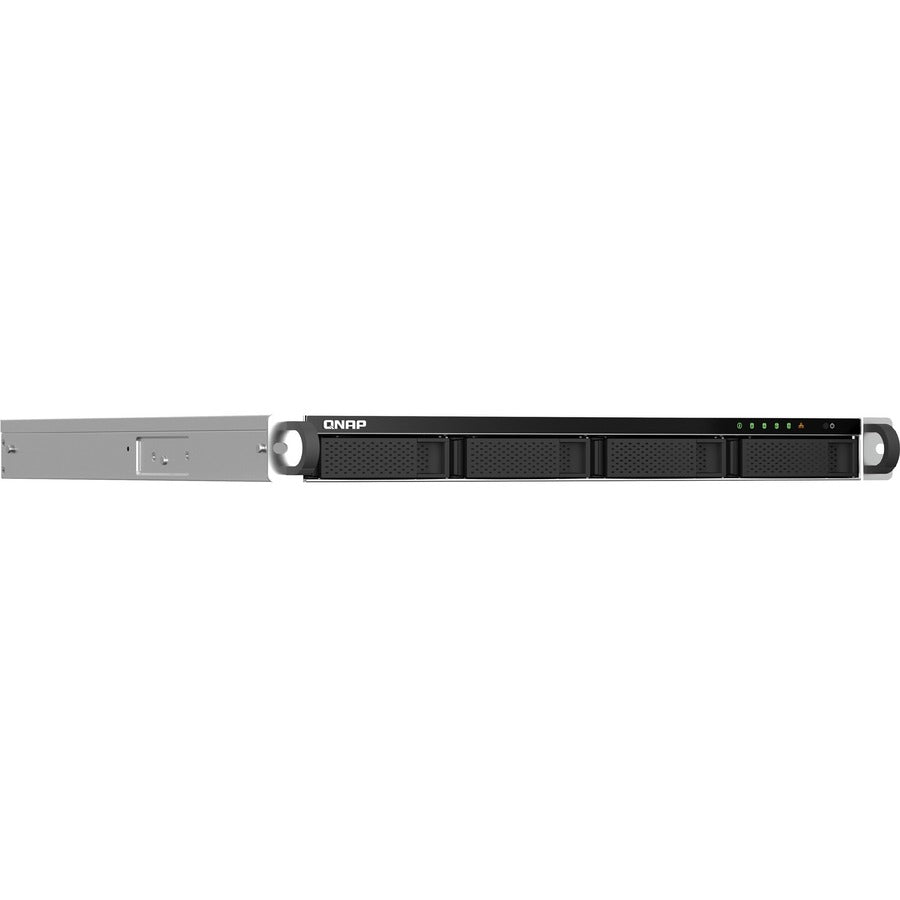

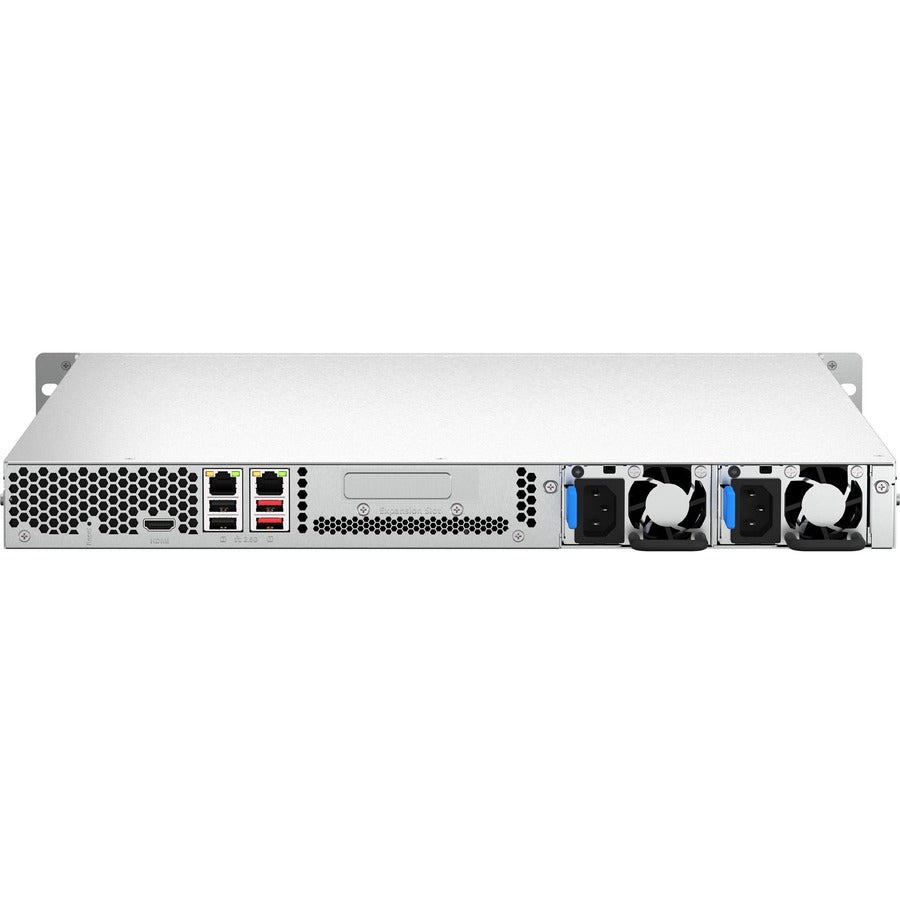

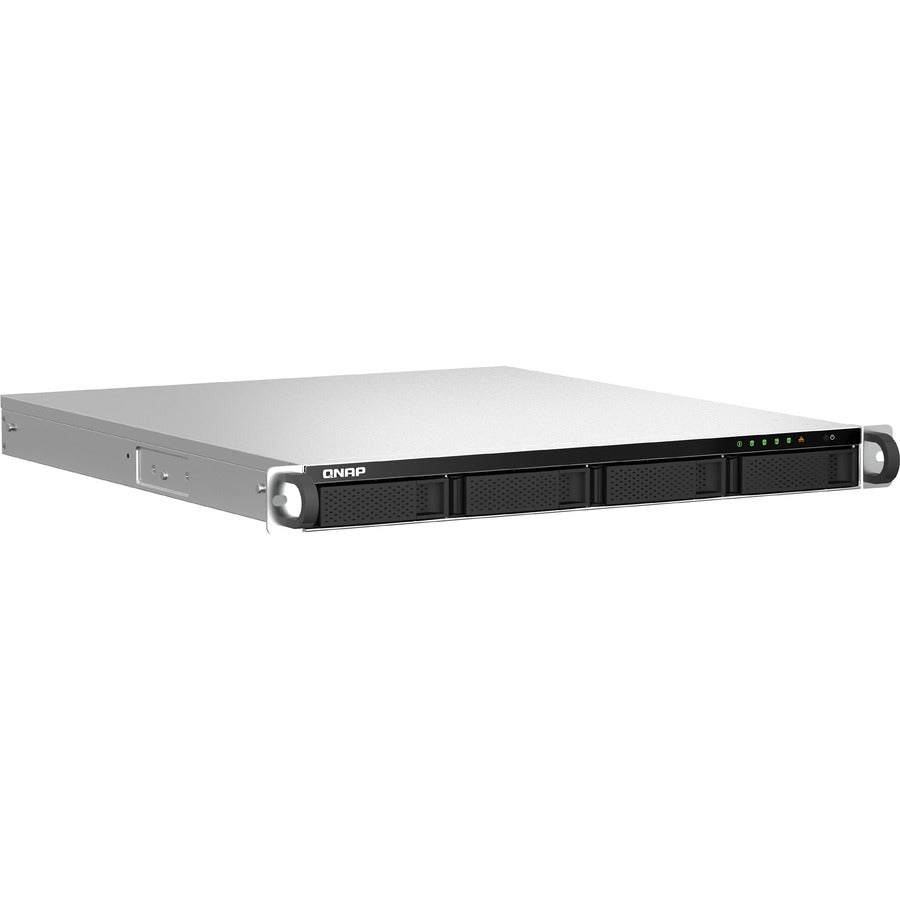

QNAP TS-464U-RP-4G SAN/NAS Storage System TS-464U-RP-4G-US

Powered by an Intel® Celeron® N5105/N5095 quad-core processor (burst up to 2.9GHz), the TS-464U-RP features two 2.5GbE RJ45 ports and Port Trunking for up to 5Gbps combined bandwidth. The built-in 4K HDMI output allows for multimedia and virtual machine display. With a PCIe Gen 3 slot, the TS-464U-RP provides flexibility in extending NAS functionality, allowing you to install various cards: a 10GbE/5GbE network card, QM2 card for M.2 SSD caching, or Edge TPU for AI image recognition. The TS-464U-RP also supports AES 256-bit encryption to ensure the confidentiality of sensitive business data without affecting system performance. The TS-464U-RP also features a redundant power supply to ensure maximum system uptime.

• 2.5GbE connectivity

  Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports.

• PCIe expandability

  Install a PCIe Gen3 x2 card to expand the core functionality of the TS-464U-RP, including a Multi-Gig 10GbE/5GbE/2.5GbE network card, a QM2 card, or a USB 3.2 Gen 2 (10Gbps) card.

• Snapshots

  Protect your files and data from accidental deletion and malware attacks with snapshots that fully record the system status and data.

• License-free virtualized environment

  Host multiple containerized apps to run a wide range of applications and services.

• Drives Auto-Tiering

  Qtier™ auto-tiering technology and SSD caching enable constant storage optimization.

• Flexible expansion

  Scale your storage capacity to fit growing data needs by connecting QNAP's expansion units.

Quad-core high performance and up to 16GB RAM

The TS-464U-RP is powered by an Intel Celeron N5105 / N5095 quad-core processor and supports up to 16 GB DDR4 memory, two 2.5GbE ports and SATA 6 Gb/s drives. The integrated Intel® AES-NI encryption engine also helps protect confidential data without impacting system performance.

Streamline large file transfers and video editing with 2.5GbE

The TS-464U-RP comes with two 2.5GbE RJ45 (2.5G/1G/100M) LAN ports that allow you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. The dual 2.5GbE ports also support Port Trunking for up to 5 Gbps transmission speeds, improving the efficiency of bandwidth-hungry business applications such as large file transfers, fast backup/restore, and multimedia transfer & editing.

• Experience responsive performance, power, adaptability and fun with Intel Celeron 2 ghz processor
• RAID technology - data reliability, fault tolerance and improved overall performance

• Protocols : HTTPS,LDAP,L2TP,SFTP,DHCP,SSH,IPSec,FTPS,AFP,FTP,CIFS/SMB,SNMPv2,IPv4,WEBDAV,Telnet,SSL,iSCSI,TLS,TFTP,HTTP,NFS,FXP,DDNS,IPv6,PPTP
• Flash Memory Capacity : 5 GB
• Maximum Power Supply Wattage : 250 W
• Number of Hard Drives Installed : 0
• Controller Type : Serial ATA/600
• Number of USB 2.0 Ports : 2
• Total Number of USB Ports : 4
• Processor Type : Celeron
• Processor Core : Quad-core (4 Core)
• RAID Supported : Yes
• Form Factor : Rack-mountable
• Memory Technology : DDR4 SDRAM
• Package Contents :
  • TS-464U-RP-4G SAN/NAS Storage System
  • 1 x Ethernet Cable
  • 2 x Power Cords
  • 48 x Flat Head Screws (for 3.5" HDD)
  • 36 x Flat Head Screws (for 2.5" HDD)
  • 2 x Hangers
  • Quick installation guide (QIG)
• Manufacturer Website Address : http://www.qnap.com
• Processor Manufacturer : Intel
• Number of Solid State Drive Installed : 0
• Number of Power Supplies Installed : 2
• Manufacturer : QNAP Systems
• Product Model : TS-464U-RP-4G
• Number of Total Expansion Bays : 4
• Operating System : QTS 5.0.0
• RAID Levels : 0, 1, 5, 6, 10, JBOD
• Rack Height : 1U
• Standard Memory : 4 GB
• Ethernet Technology : 2.5 Gigabit Ethernet
• Number of Hard Drives Supported : 4
• Number of 2.5"/3.5" Bays : 4
• Number of USB 3.2 Gen 2 Ports : 2
• Number of Solid State Drive Supported : 4
• Limited Warranty : 3 Year
• Processor Speed : 2 GHz
• Network (RJ-45) : Yes
• Product Type : SAN/NAS Storage System
• Number of Total Expansion Slots : 1
• HDMI : Yes
• Redundant Power Supply : Yes
• Number of Network (RJ-45) Ports : 2
• Expansion Slot Type : PCI Express 3.0 x2
