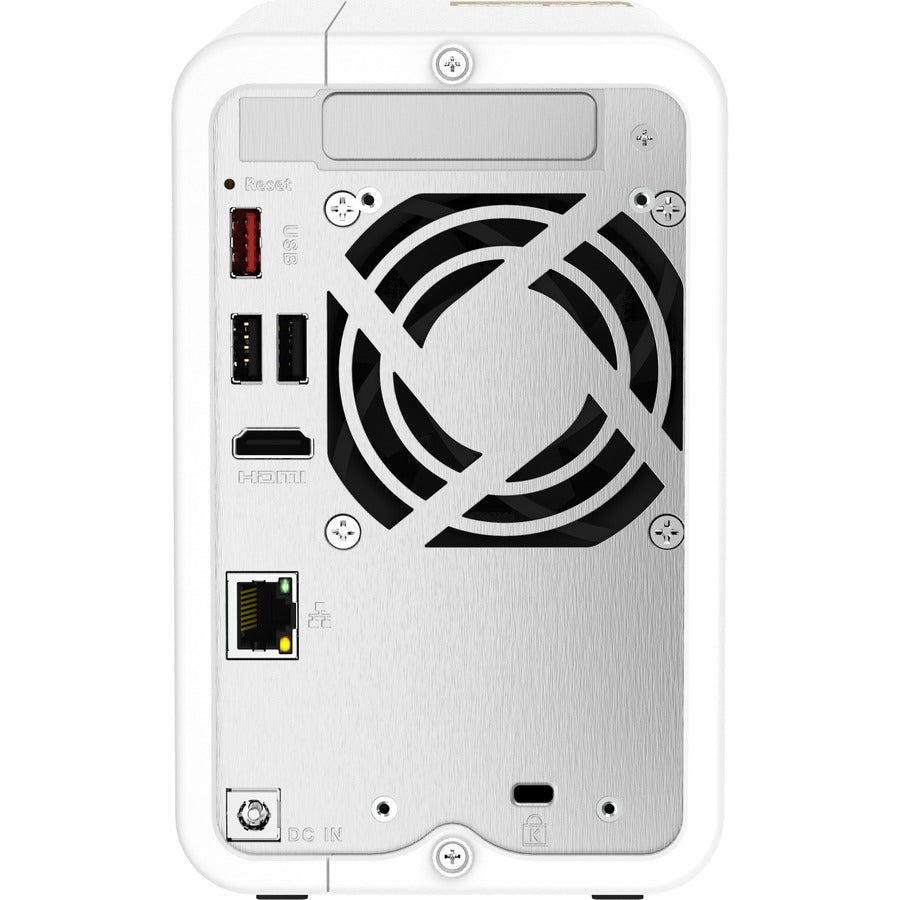

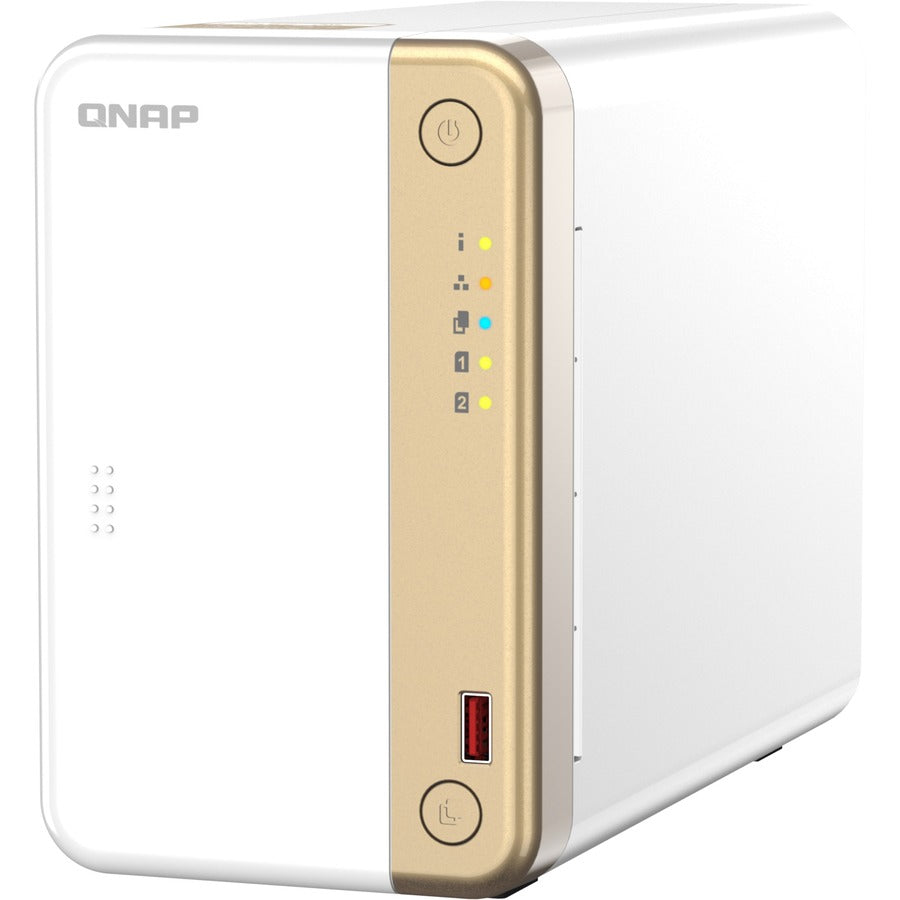

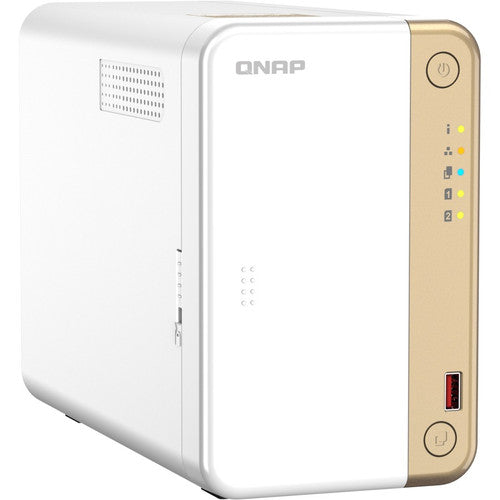

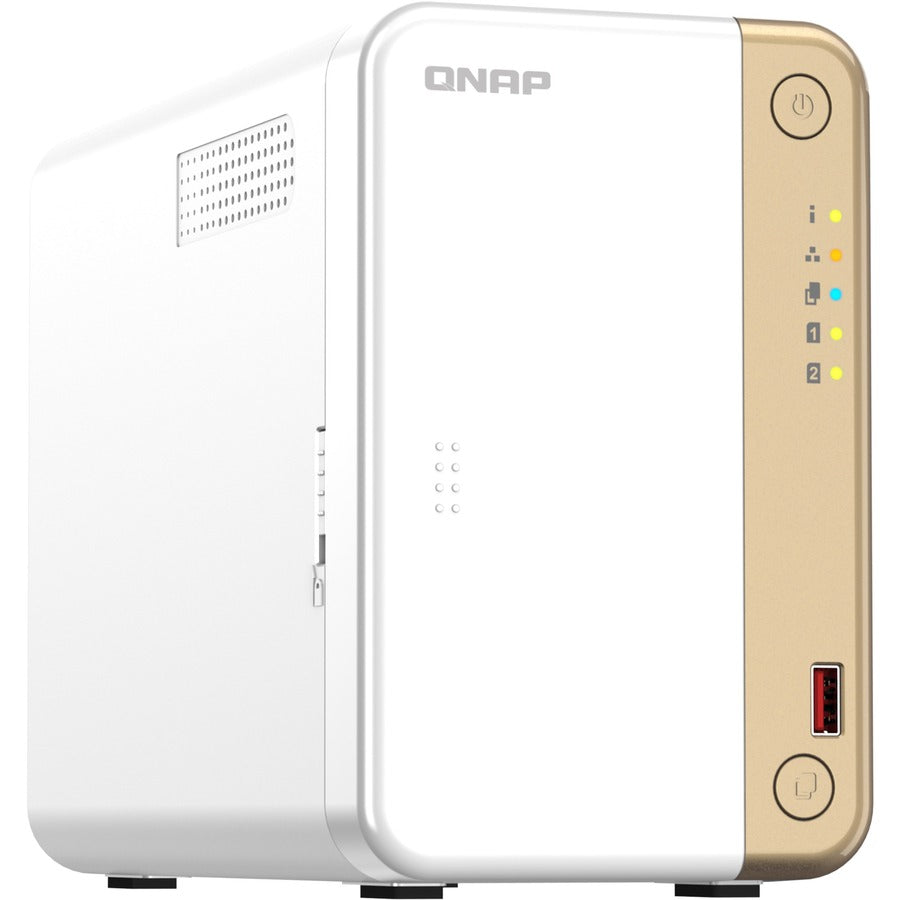

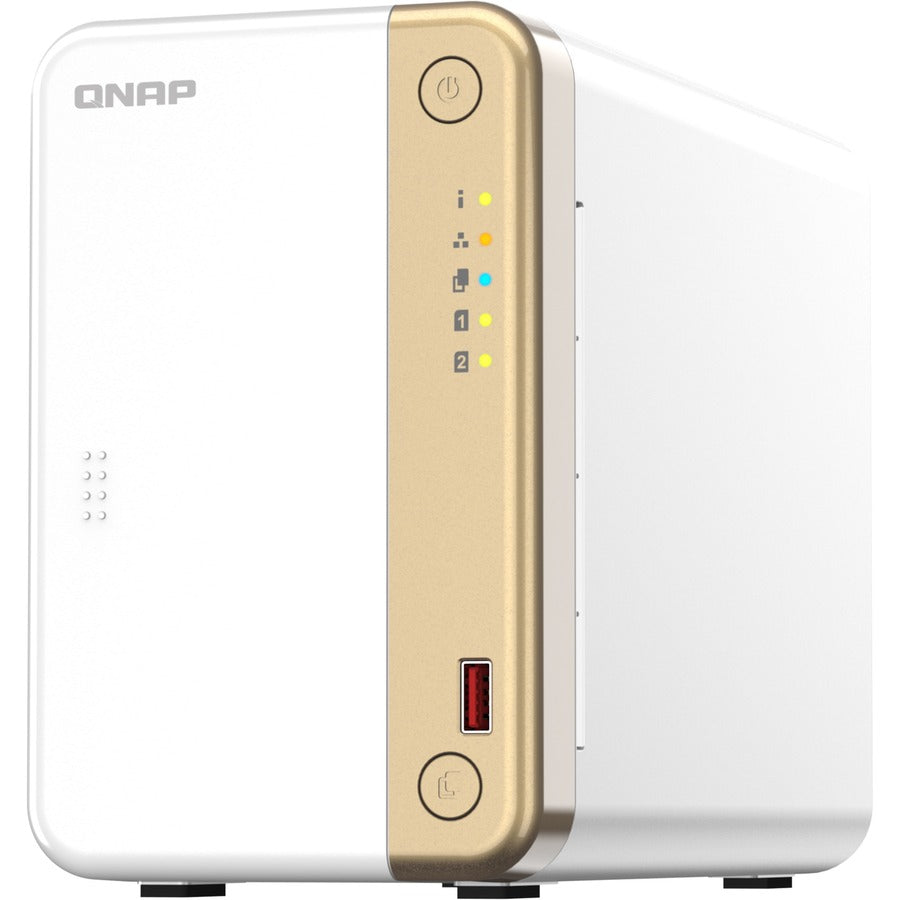

QNAP Turbo NAS TS-262-4G SAN/NAS Storage System TS-262-4G-US

TS-262 | Intel Dual-Core 2.5GbE Multimedia NAS with M.2 PCIe slots and PCIe expandability

A fast and vast private cloud storage with a range of multimedia and file management applications, the TS-262 is ideal for home users to maximize their digital lifestyle. Files, data and multimedia saved on the TS-262 can be accessed from all your connected devices, including phones, computers and smart TVs. A 2.5GbE port and HDMI 2.0 port come as standard, allowing you to enjoy lag-free multimedia streaming throughout your home and directly on your TV. The TS-262 can be geared up to fit future needs, supporting two M.2 PCIe slots for Qtier auto-tiering storage technology, and can be easily expanded to fit growing data needs. The TS-262 also supports Edge TPU, allowing you to easily organize your photos based on facial and object recognition with the QuMagie app.

2.5GbE port

Immediately multiply your network speed by 2.5 times while using existing CAT5e cables.

HDMI port

4K media playback and real-time transcoding; directly watch videos using HDMI 2.0 (4K @60Hz) output.

AI-powered image recognition

Supports Edge TPU (optional purchase) for supercharged AI-powered image recognition.

Dual M.2 PCIe slots

Attain greater NAS performance by installing M.2 2280 NVMe PCIe SSDs (sold separately).

PCIe slot

Install a PCIe Gen3 x2 card to expand the core functionality of the TS-262, including a Multi-Gig 10GbE/5GbE network card, a USB 3.2 Gen 2 (10Gbps) card, or a Wi-Fi 6 network card.

Expand storage capacity

Flexibly scale your total storage capacity by connecting USB expansion enclosures (please see the compatibility list).

Upgrade your home network to 2.5GbE

Wi-Fi 6 and 5G are becoming the new normal for networking, and there's no reason why your home wired network shouldn't also get a boost. The TS-262 comes with single 2.5GbE RJ45 LAN port which supports existing CAT5e cables. If your computers don't have 2.5GbE ports, you can use QNAP's USB 3.2 Gen 1 to 5GbE adapter (model name QNA-UC5G1T) to take advantage of the huge speed increase that 2.5GbE provides over standard Gigabit Ethernet. QNAP also provide affordable 2.5GbE switches and other adapters for you to take full advantage of the TS-262's 2.5GbE connectivity.

Intel dual-core processor burst up to 2.9 GHz

The TS-262 is powered by an Intel® Celeron® N4505 dual-core processor (burst up to 2.9 GHz), and supports SATA 6 Gb/s drives. The Intel® AES-NI encryption engine boosts encryption performance while also maintaining the security of your NAS data. You can flexibly install NVMe SSDs in the M.2 PCIe slots for cache acceleration to maximize network and storage performance for data-intensive applications or enable Qtier for auto-tiered storage for higher storage efficiency.

• Experience responsive performance, power, adaptability and fun with Intel Celeron 2 ghz processor
• RAID technology - data reliability, fault tolerance and improved overall performance

. .

• Protocols : IPv4,IPv6,DHCP,CIFS/SMB,AFP,NFSv3,FTP,FTPS,SFTP,TFTP,HTTP,HTTPS,Telnet,SSH,iSCSI,SNMP,SSL/TLS,FXP,WEBDAV,LDAP,DDNS,DNS,SNMPv2,SNMPv3,PPTP,L2TP,NFSv4
• Flash Memory Capacity : 4 GB
• Number of Processors Installed : 1
• Maximum Power Supply Wattage : 65 W
• Number of Hard Drives Installed : 0
• Controller Type : Serial ATA/600
• Product Series : TS-x62
• Number of USB 2.0 Ports : 2
• Total Number of USB Ports : 4
• Processor Type : Celeron
• Processor Core : Dual-core (2 Core)
• RAID Supported : Yes
• Form Factor : Tower
• Memory Technology : DDR4 SDRAM
• Package Contents :
  • Turbo NAS TS-262-4G SAN/NAS Storage System
  • 1 x Ethernet Cable
  • 1 x Power Cord
  • AC Adapter
  • 6 x Flat Head Screw (for 3.5" HDD)
  • 6 x Flat Head Screw (for 2.5" HDD)
  • Quick Installation Guide (QIG)
• Manufacturer Website Address : http://www.qnap.com
• Processor Manufacturer : Intel
• Number of Solid State Drive Installed : 0
• Manufacturer : QNAP Systems
• Product Model : TS-262-4G
• Processor Model : N4505
• Number of Total Expansion Bays : 2
• Operating System : QTS 5.0.1
• RAID Levels : 0, 1, JBOD
• Standard Memory : 4 GB
• Ethernet Technology : 2.5 Gigabit Ethernet
• Number of Hard Drives Supported : 2
• Additional Warranty Information : The TS-262 is backed by a 2-year warranty at no additional cost.
• Number of 2.5"/3.5" Bays : 2
• Number of USB 3.2 Gen 2 Ports : 2
• Number of Solid State Drive Supported : 2
• Limited Warranty : 2 Year
• Processor Speed : 2 GHz
• Network (RJ-45) : Yes
• Product Type : SAN/NAS Storage System
• Number of Total Expansion Slots : 1
• HDMI : Yes
• Number of Network (RJ-45) Ports : 1
• Product Line : Turbo NAS
• Expansion Slot Type : PCI Express 3.0 x2
• Country of Origin : Taiwan
