Description

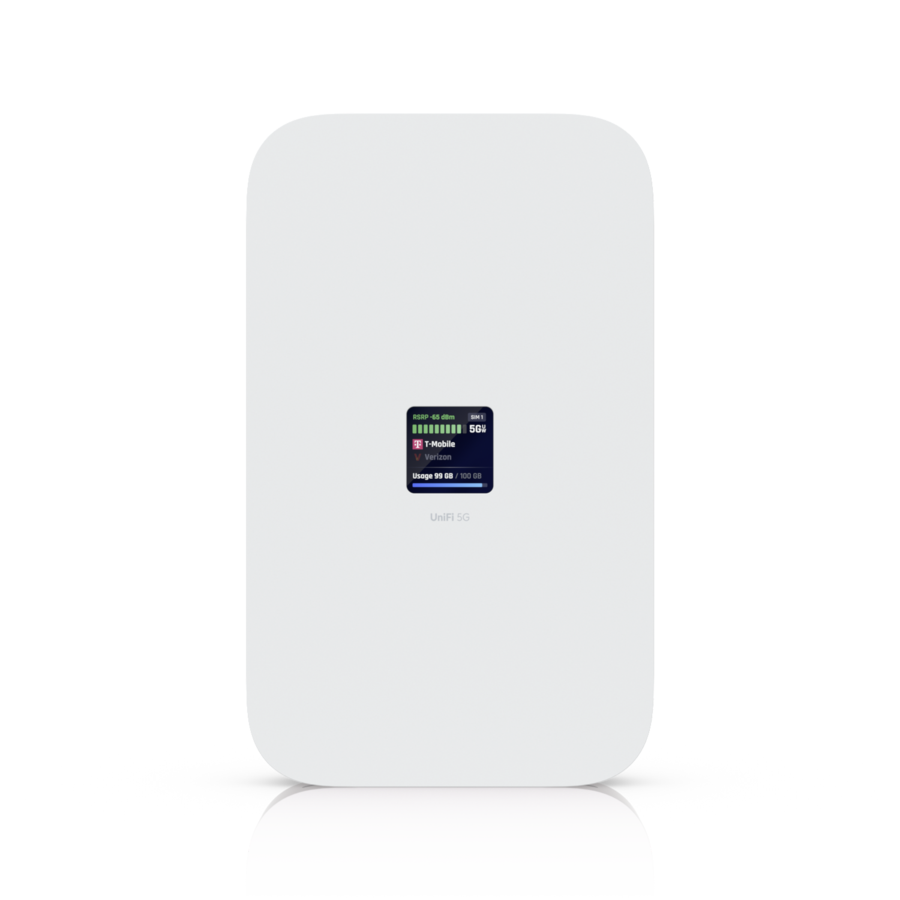

A high-performance 5G (3.4 Gbps) modem for any UniFi deployment. Instantly adopt through any UniFi PoE port, it delivers automatic setup, dual SIM/eSIM, and seamless failover. Certified with AT&T, T-Mobile*, and Verizon**.
Specifications U5G-Max
| Dimensions | 180 x 109 x 33.8 mm (7.1 x 4.3 x 1.3") |
| Networking Interface | (1) 2.5 GbE RJ45 port 5G NR and LTE radio |
| SIM | (1) Nano SIM (1) Nano-SIM or eSIM |
| PoE Interface | (1) PoE input |
| Mounting | Desktop stand, wall, window mount (Included) |
| Tamper Resistance | IK04 |
| Mechanical | |
| Weight | Device: 410 g (14.5 oz) Stand: 215 g (7.6 oz) Wall mount: 7.6 g (0.3 oz) Window mount: 20 g (0.7 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate, silicone rubber |
| Hardware | |
| Management | Ethernet |
| 5G NR | |
| Category | 5G NR |
| Frequency Bands | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79 |
| Max. TX Power | HPUE power class 2: 26 dBm |
| 4G LTE | |
| Frequency Bands | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71 |
| Max. TX Power | HPUE power class 2: 25 dBm |
| 3G UMTS | |
| Frequency Bands | B1, B2, B4, B5, B8, B19 |
| Peak Data Speed | |
| 5G NSA | Downlink 3.4 Gbps Uplink 560 Mbps |
| 5G SA | Downlink 1.8 Gbps Uplink 650 Mbps |
| 4G LTE | Downlink 1.6 Gbps Uplink 210 Mbps |
| Antennas | |
| Type | (4) Embedded cellular antennas |
| Max. Power Consumption | 14.5W |
| Power Method | PoE |
| Display | 1.3" touchscreen |
| Buttons | (1) Factory-reset |
| Ambient Operating Temperature | 0 to 40 °C (32 to 104 °F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, PTCRB, GCF |
| Software | |
| Application Requirements | |
| UniFi Network | Version 10.0.162 and later |
