Description

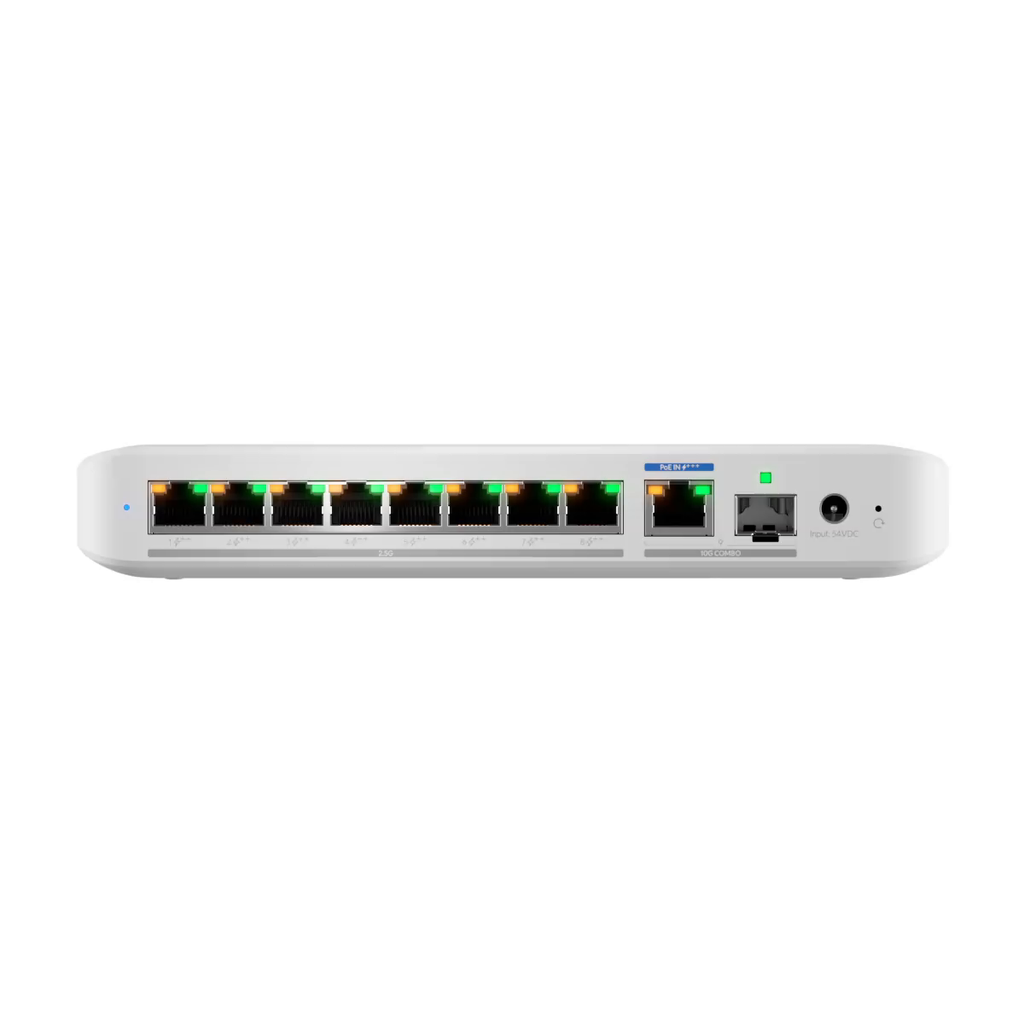

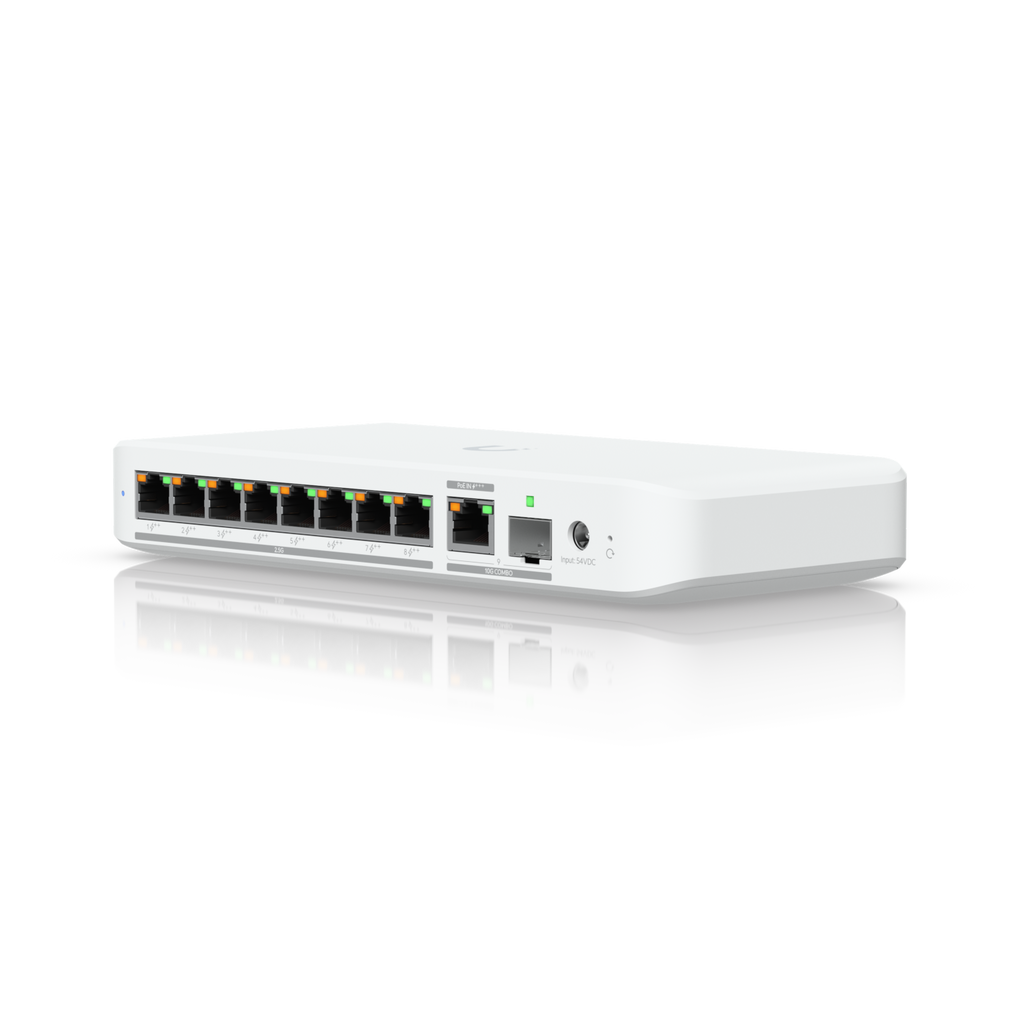

Flexible, 8-port 2.5 GbE PoE++ switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with PoE+++ or an AC power adapter.
Specifications
- Dimensions: 212.9 x 99.4 x 33.5 mm (8.4 x 3.9 x 1.3")
- Max. PoE Output: Up to PoE++
- Total PoE Availability: PoE+++ input: 76W PoE++ input: 46W PoE+ input: 16W 210W AC adapter input: 196W
- Form Factor: Compact Desktop, wall, DIN, magnetic
- Switching Capacity: 60 Gbps
- Total Non-Blocking Throughput: 30 Gbps
- Forwarding Rate: 45 Mpps
- Supported VLANs: 256
- MAC Address Table Size: 4,000
- STP & RSTP: Yes
- Egress Rate Limit: Yes
- Flow Control: Yes
- Storm Control: Yes
- Multicast & Broadcast Rate Limiting: Yes
- Port Isolation: Yes
- Port Mirroring: Yes
- Jumbo Frames: Yes
- Loop Protection: Yes
- Max. Power Consumption: 14W (Excluding PoE output) with PoE input 17W (Excluding PoE output) with AC adapter input 210W (Including PoE Output)
- Power Method: (1) AC/DC adapter (Excluded) (1) PoE+++
- Power Input Method: DC Input PoE
- Supported Voltage Range: 50—57V DC/PoE
- Management: Ethernet
- Weight: 567 g (20 oz)
- Enclosure Material: Polycarbonate
- Mount Material: Polycarbonate
- Ambient Operating Temperature: -20 to 45° C (-4 to 113° F)
- Ambient Operating Humidity: 10 to 90% noncondensing
- Certifications: CE, FCC, IC
- NDAA Compliant: Yes
