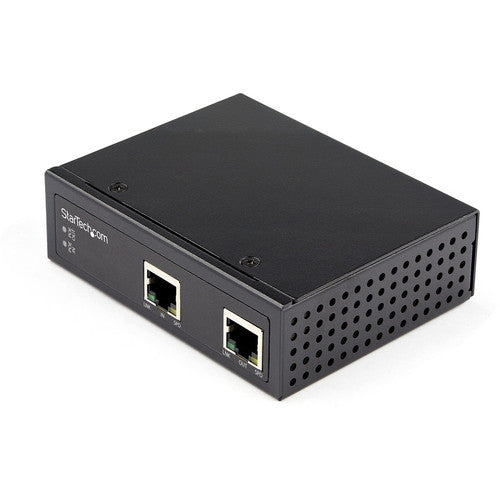

Star Tech.com Industrial Gigabit PoE Extender - 60W 802.3bt PoE++ 100m/330ft - Power Over Ethernet Network Range Extender - IP-30 Hardened POEEXT1G60W

Extend the Reach of PoE Links up to 328 Feet

Extends the reach of PoE links up to 328' (100 m) to power powered devices (PD) over long distances; up to 4 extenders can be cascaded to extend the range of a PoE source (PSE) device up to an additional 400m, for a total range of 500m from the original PSE source to the target device.

Using Cat 5e (or higher rated) Ethernet cabling, it supports IEEE 802.3af (PoE / Type 1), IEEE 802.3at (PoE+ / Type 2), and IEEE 802.3bt (PoE++ / Type 3) to support PD devices like pan and tilt cameras, lighting, sensors, and wi-fi access points.

Designed for Harsh Environments

This PoE extender features IP-30 housing and an MTBF is 500,000+ hrs (Telcordia/Bellcore) at 50C, for long-term reliability and durability. Operating temp of -40C to 75C permits use in a wide range of indoor and outdoor applications that are not temperature controlled.

Rated to various vibration, shock, and free-fall standards:

• Vibration: EN 60068-2-6
• Shock: EN 60068-2-27
• Free-Fall: EN 60068-2-32

PoE Extender also includes hardware for mounting to the DIN rail or wall.

Flexible Power Outputs

Accepts inputs up to 95W from a PSE source and can provide 15W, 30W, or 60W of power output to a target PD device. Low 2.7W power consumption provides more power for devices, especially when multiple extenders are used for a single extension.

Features ESD, EFT, and surge protection at the following standards:

• ESD: IEC 61000-4-2: Contact: 6KV; Air: 8KV
• EFT: IEC 61000-4-4: Power: 2KV; Signal: 2KV
• Surge: IEC 61000-4-5: Power: 2KV; Signal: 2KV

POEEXT1G60W is backed by a StarTech.com two-year warranty and free lifetime technical support.

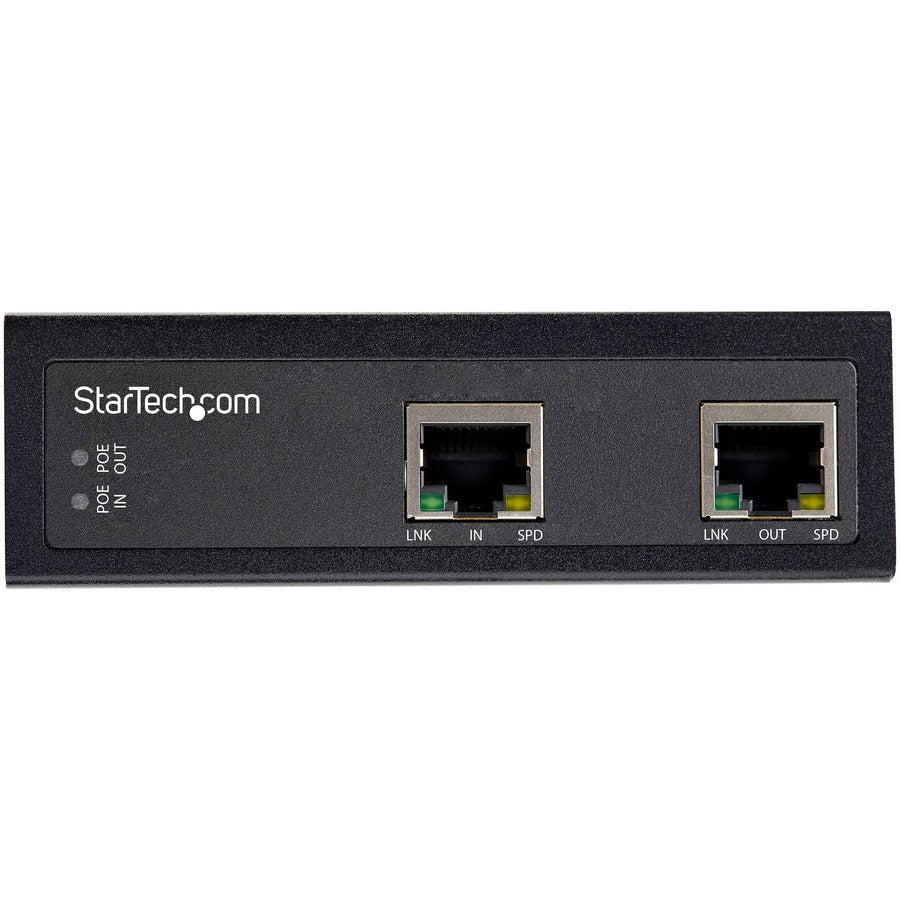

• 1 x RJ45 PD In
• 1 x RJ45 PSE Out
• Low 2.7W power consumption
• TECH SPECS: 1 Gbps
• 60W PoE IEEE 802.3bt: Powered by the PSE source, this Power over Ethernet range extender provides up to 15W/30W/60W of auto-negotiated power output to target PD device
• 100M EXTENSION: Extend a PSE source (up to 95W) by 100m using this Gigabit PoE Extender; power PoE devices like cameras & access points; 4 extenders can be cascaded to extend up to 400m using CAT 5e/6

. .

• Environmental Certification : RoHS,WEEE
• Certifications & Standards :
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt
  • EN 60068-2-6
  • EN 60068-2-27
  • EN 60068-2-32
  • IEC 61000-4-2
  • IEC 61000-4-4
  • IEC 61000-4-5
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.3z
• Environmentally Friendly : Yes
• Limited Warranty : 2 Year
• Output Ports : 1 x PoE+
• Form Factor : DIN Rail/Wall Mountable
• Manufacturer Website Address : http://www.startech.com
• Package Contents :
  • POEEXT1G60W PoE Extender
  • Mounting Hardware Kit
  • Quick-Start Guide
• Product Type : PoE Extender
• Input Ports : 1 x Ethernet
• Length : 4.10" (104.14 mm)
• Protection Type : Surge Protection
• Manufacturer : StarTech.com
• Maximum Output Power : 60 W
• Product Model : POEEXT1G60W
• Product Color : Black
• Country of Origin : Taiwan
