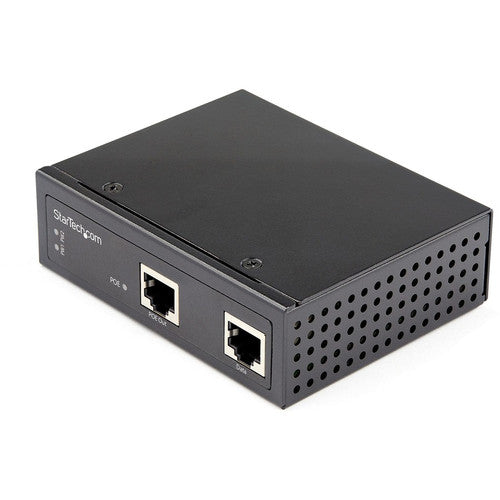

Star Tech.com Industrial Gigabit PoE Injector - High Speed 90W 802.3bt PoE++ 48V-56VDC Ultra Power Over Ethernet/UPoE Injector -40C to +75C POEINJ1G90W

This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.

Flexible Configurations for a Variety of Applications

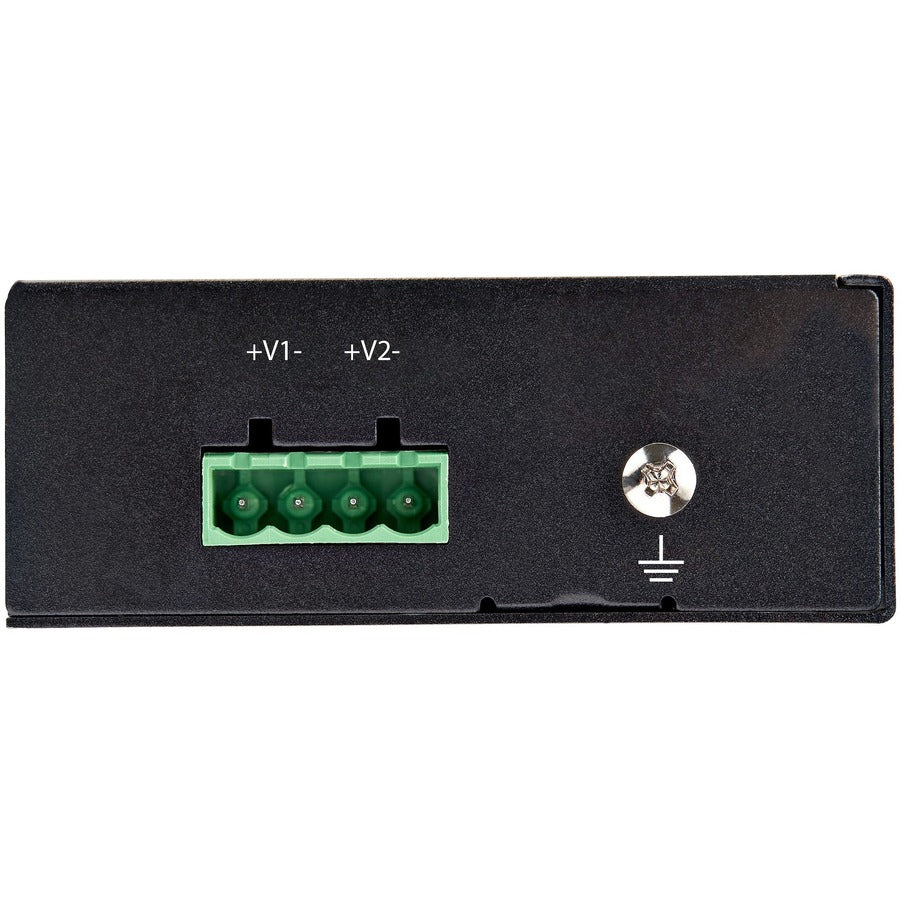

Compatible with IEEE 802.3bt and most previous 90W proprietary PoE (Ethernet) standards, including PoH (HDBaseT), Cisco uPoE, Bosch, and AXIS. One product can cover multiple use requirements to improve standardization and deployment and dual power terminal block inputs provide redundancy for critical applications.

90 Watt Power Budget

As many typical PoE-enabled switches max out at 30W a high 90W power budget is perfect for demanding Type 3 and Type 4 PoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points.

Designed for Harsh Environments

Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.

• Vibration: EN 60068-2-6
• Shock: EN 60068-2-27
• Free-fall: EN 60068-2-32

500,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.

The POEINJ1G90W is backed by a StarTech.com 2-year warranty and free lifetime technical support.

• WIDE STANDARD COMPATIBILITY: High speed Industrial Gigabit PoE Injector compatible w/ IEEE 802.3bt (PoE++) & previous 90W proprietary POE standards including PoH (HDBase-T), Cisco uPoE, Bosch & AXIS
• 90W POWER BUDGET: Provides up to 90W of auto-negotiated power output for Type 3 and Type 4 PoE/Ultra/UPoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points
• TECH SPECS: 1 Gbps
• 48V-56VDC Power Input
• IEEE 802.3af
• IEEE 802.3at

. .

• Environmental Certification : RoHS,WEEE
• Certifications & Standards :
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3at
  • IEEE 802.3af
  • IEEE 802.3bt
  • IEC 61000-4-2
  • IEC 61000-4-4
  • IEC 61000-4-5
  • EN60950-1
  • IP-30
  • EN 60068-2-6
  • EN 60068-2-27
  • EN 60068-2-32
• Environmentally Friendly : Yes
• Input Voltage : 56 V DC
• Limited Warranty : 2 Year
• Output Ports : 1 x PoE+
• Form Factor : DIN Rail/Wall Mountable
• Manufacturer Website Address : http://www.startech.com
• Package Contents :
  • POEINJ1G90W PoE Injector
  • Mounting Hardware Kit
  • Quick-Start Guide
  • Terminal Block
• Product Type : PoE Injector
• Input Ports : 1 x Gigabit Ethernet
• Length : 3.20" (81.28 mm)
• Protection Type : Surge Protection
• Manufacturer : StarTech.com
• Product Model : POEINJ1G90W
• Product Color : Black
• Country of Origin : Taiwan
