Description

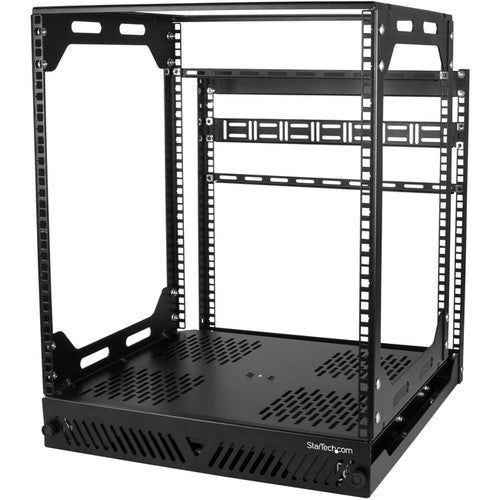

This 12U slide-out server rack helps you save space while keeping your rack-mount equipment organized and accessible. The compact open-frame rack is easy to pull out and rotate, which makes it easy to install and access your equipment or perform maintenance when needed.
The rack supports a total load capacity of 125 lb. (56.7 kg).
Save space in your office or server room
The rack helps you save valuable floor space. It's designed for installation in small areas such as below a table or in a cabinet or cupboard. Its versatility makes this the perfect rack for storing your servers in a boardroom, small office/home office, restaurant or any place where space is at a premium.
Keep your equipment cool and accessible
For easy equipment installation and maintenance, the 12U server rack's base is on sliding rails, which means it's easier to access the back of your equipment. With its open-frame design, the rack not only maximizes accessibility but also offers unobstructed airflow to your equipment, providingpassive cooling to keep your rack-mounted equipment running at optimal temperatures.
Save money on shipping
The rack comes in a flat-packed box, which reduces shipping volume and significantly lowers cost when compared to racks that ship fully assembled. Plus, because the rack is packaged efficiently, it's easy to transport and store.
The PORACK12U is backed by a StarTech.com 2-year warranty and free lifetime technical support.
- THE STARTECH.COM ADVANTAGE: StarTech.com offers a 2-year warranty and free lifetime technical support on this 12U rack and has been the choice of IT professionals and businesses for over 30 years

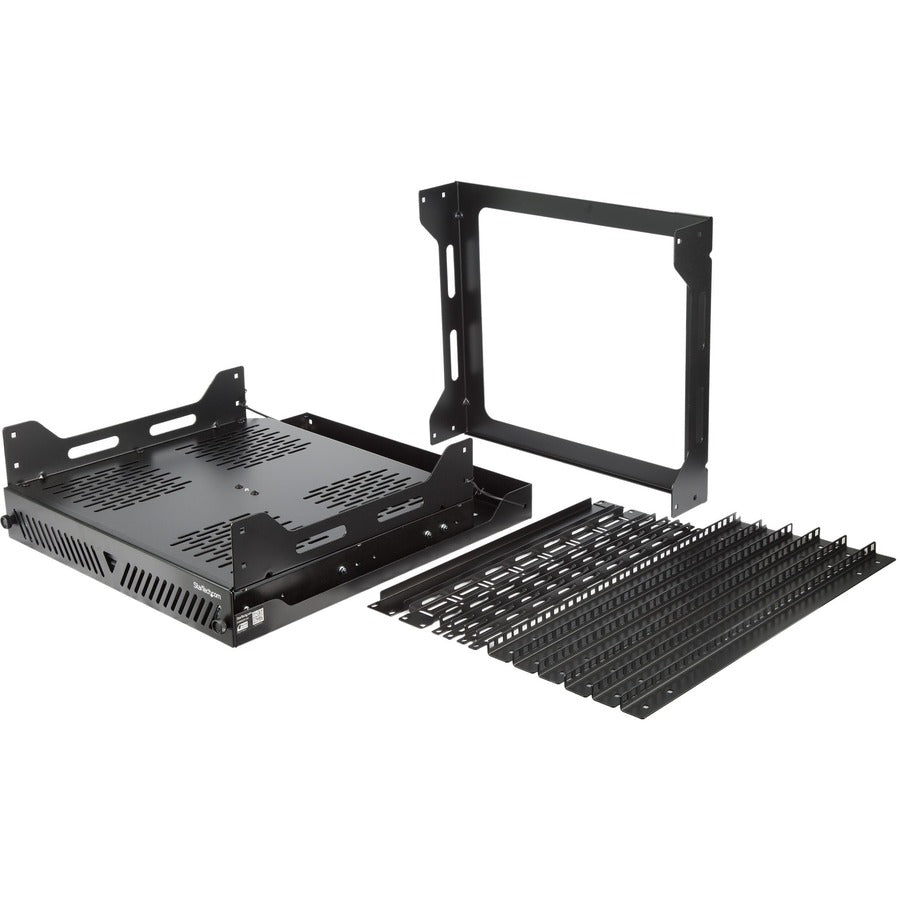

- EASY SHIPPING & ASSEMBLY: Pivoting Computer Equipment rack comes in a convenient flat-pack shipping form factor with an easy to assemble design that includes cage nuts & screws to mount your equipment
- TECH SPECS: Max. Mounting Depth 16.7 in.
- Max. Extension Depth 40.5 in.
- EIA/ECA-310-E Compliant
- 125lb (56.7kg) Capacity
- Cage Nuts & Screws incl.
- INTEGRATED CABLE MANAGEMENT: Keeps cables organized in this AV/Data/IT/Communications rack, and helps make pull-out access easy and tangle-free; cables can be routed down and under the rack if needed

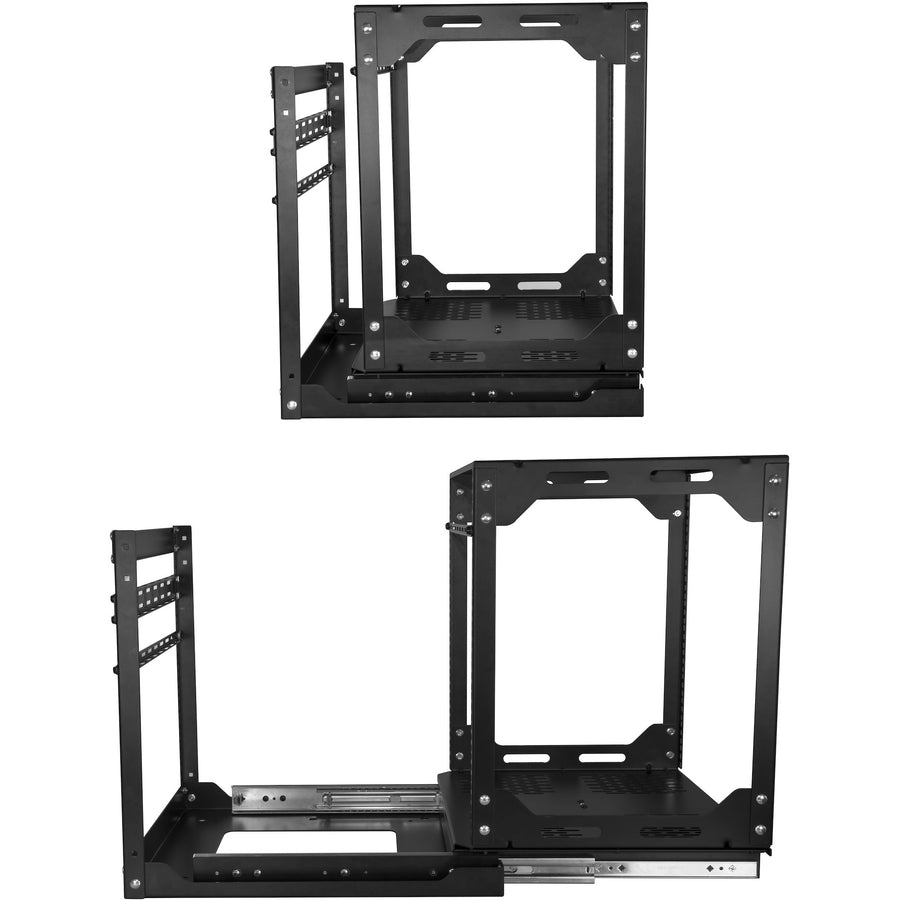

- UNIQUE SLIDE OUT & ROTATE DESIGN: 19" 4 post open frame network rack ideal for installation in built-in cabinet & easily slides out up to 18.7in. rotating up to 90 degrees for easy access to equipment
- Environmental Certification : RoHS,REACH
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Rack Type : Open Frame
- Maximum Weight Capacity : 56.84 kg
- Limited Warranty : 2 Year
- Form Factor : Floor Standing
- Manufacturer Website Address : http://www.startech.com
- Package Contents :
- 1 x Sliding Tray
- 1 x Top Bracket
- 6 x Vertical Rails
- 1 x Stabilizing Plate
- 1 x Security Plate
- 4 x Narrow Cable Managers
- 1 x Cable Manager
- 2 x Thumbscrews
- 24 x Assembly Screws
- 24 x Assembly Nuts

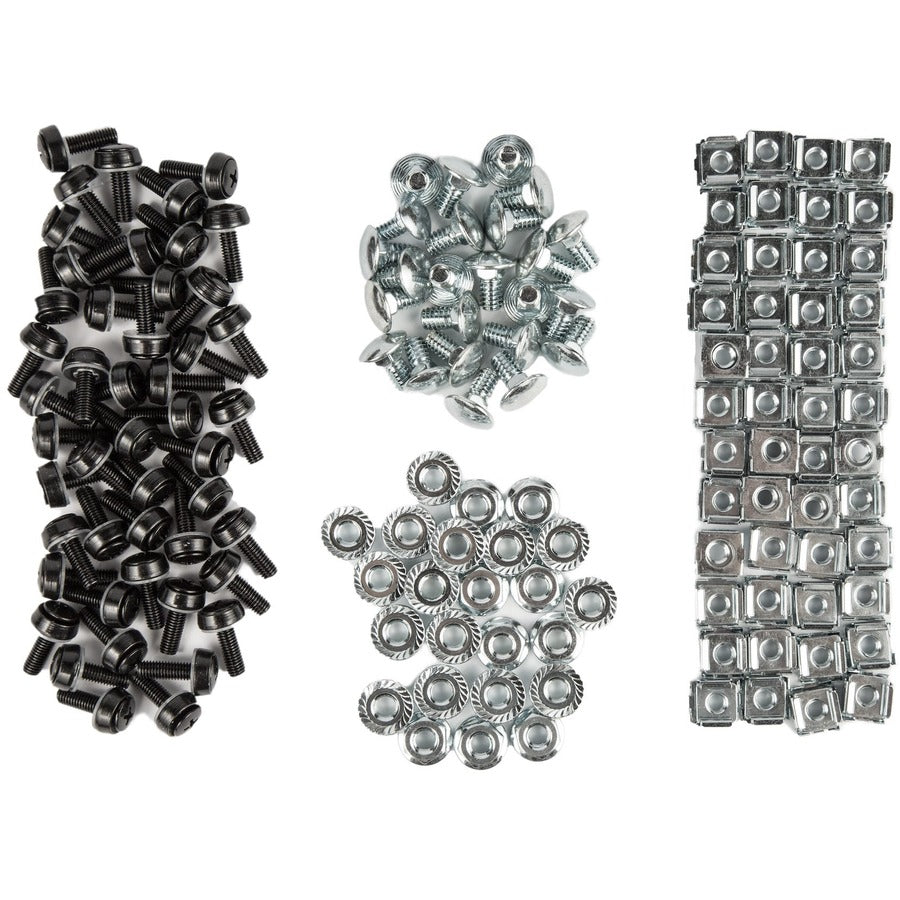

- 48 x M5 Cage Nuts
- 48 x M5 Screws
- 1 x User Manual
- Product Type : Slide Out Rotating Rail System
- Length : 22.40" (568.96 mm)
- Assembly Required : Yes
- Manufacturer : StarTech.com
- Application/Usage : Server,LAN Switch,Patch Panel
- Rack Post Quantity : 4
- Features : Cable Management
- Country of Origin : Taiwan
- Rack Height : 12U
- Product Color : Black
- Product Material : Steel
