Description

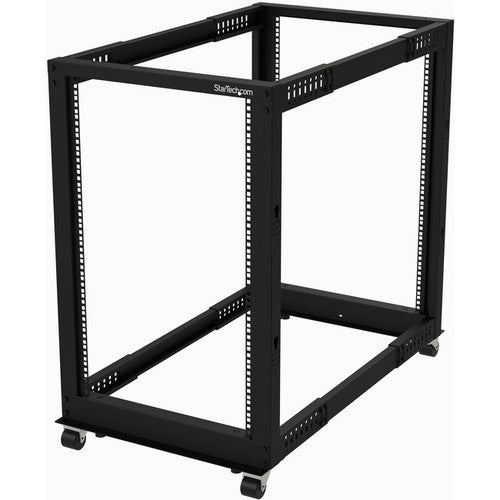

The18Uopen frame racklets you store your servers, network and telecommunications equipment in a sturdy, adjustable depth open-frame rack.
Easy to Assemble

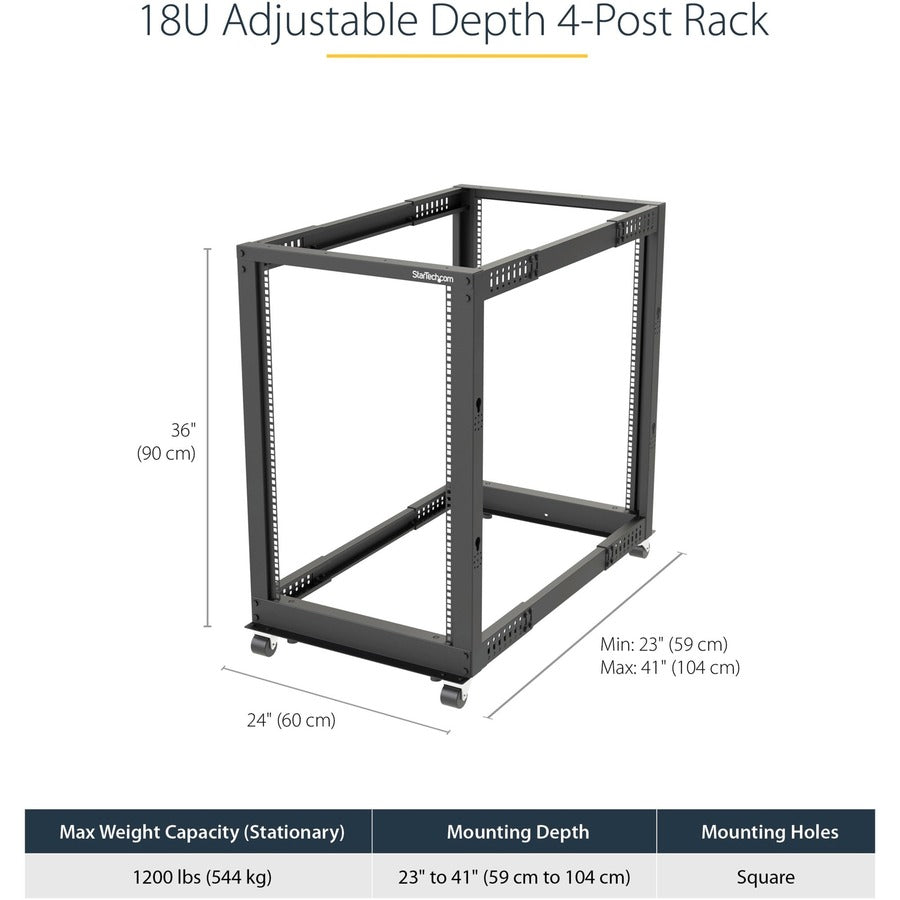

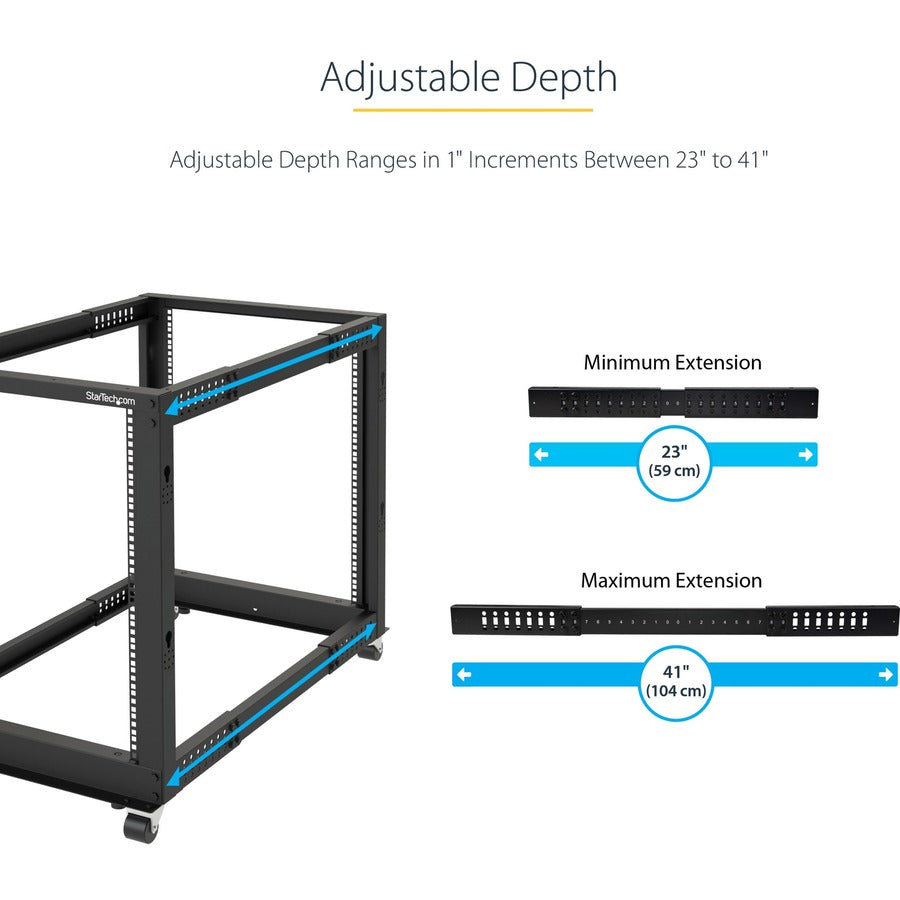

Designed with ease of use in mind, this18U4 postrack offers easy-to-read markings for both rack units (U) and depth, with a wide range of mounting depth adjustments (22 - 40 in.) that make it easy to adapt theadjustable server rackto fit your equipment.
DurableDesign
This durablefree standingserver racksupports a static loading capacity of up to 1200lb.(544kg) and portable rolling weight capacity of 660lb.(300kg). The rack also features offers compliance with the EIA/ECA-310 standard for a universal design that's compatible with mostnetwork equipment rackequipment.
For a complete server storage solution that saves you time and hassle, themobile server rackincludes optional accessories such as casters, leveling feet and cable management hooks. The base is also pre-drilled for securely fastening the rack to the floor if needed, providing you with additional stability while free standing.
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers bothpreand post-sales.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
- ADJUSTABLE DEPTH: 18U Open frame server rack for servers network equipment w/adjustable mounting depth 22" to 40" Maximize available space w/39" height, for integration in utility or server closet
- EASY ASSEMBLY: Mobile portable computer equipment rack w/ assembly instructions easy-to-follow video. Compact flat pack shipping packaging design to avoid damage facilitate problem free installs
- SOLID STEEL: 4 Post 19" EIA/ECA-310-E open frame designed for ventilation w/18U mounting height, 1200 lb capacity, 3 install options: casters, leveling feet, or base-plate to secure rack to the floor

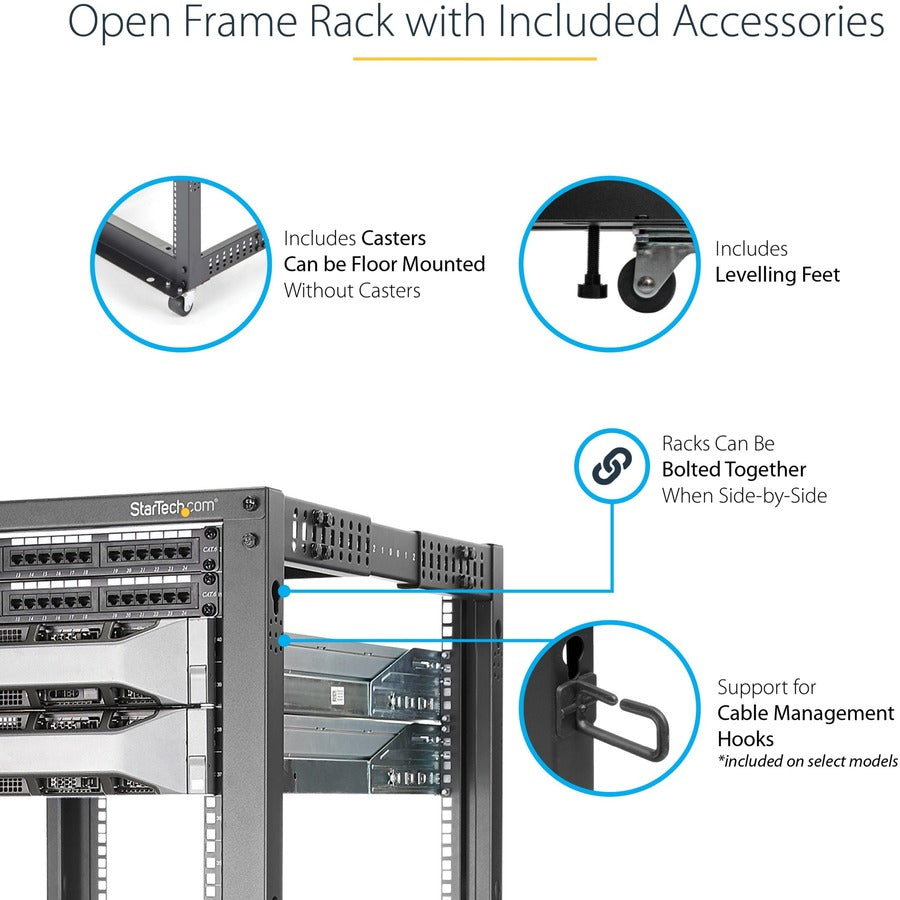

- ACCESSORIES INCLUDED: Rolling rack w/24 cage nuts screws to mount equipment, easy to read Units (U) depth adjustment markings, cable management hooks for organization, w/ required assembly tools
- WIDE COMPATIBILITY: 19 inch free standing data rack works with Dell PowerEdge (Ready Rails), Lenovo ThinkServer, HP ProLiant
- Environmental Certification : RoHS,REACH
- Product Material : Steel,Cold Rolled Steel
- Application/Usage : Server,KVM Switch,LAN Switch,Patch Panel,A/V Equipment
- Features : Leveling Feet,Adjustable Mounting Rails,Cable Management,Casters
- Product Model : 4POSTRACK18U
- Environmentally Friendly : Yes
- Rack Type : Open Frame
- Rack Width : 19" (482.60 mm)
- Product Color : Black
- Static/Stationary Weight Capacity : 544 kg
- Limited Warranty : 2 Year
- Form Factor : Floor Standing
- Manufacturer Website Address : http://www.startech.com
- Package Contents :
- 4 x Caster
- 18 x M6 Flange Nut
- 18 x M6 Flat Washer
- 18 x M6 Hex Screw
- 8 x Cable Management Hook
- 8 x Hook Mounting Screw
- 2 x Left Vertical Rail
- 2 x Right Vertical Rail
- 8 x Corner Section
- 4 x Center Section
- 2 x Top Bracket
- 2 x Base Bracket
- 50 x M8 Hex Screw
- 1 x 10mm Wrench
- 1 x 13mm Wrench
- 1 x Philips Head Screwdriver
- 4 x Philips Head Screw
- 4 x Locking Washer
- 24 x M6 Screw
- 24 x M6 Plastic Washer
- 24 x M6 Cage Nut
- 4 x Leveling Feet
- 4 x Grounding Wire
- 50 x M8 Flat Washer
- 1 x Manual
- Product Type : Rack Frame

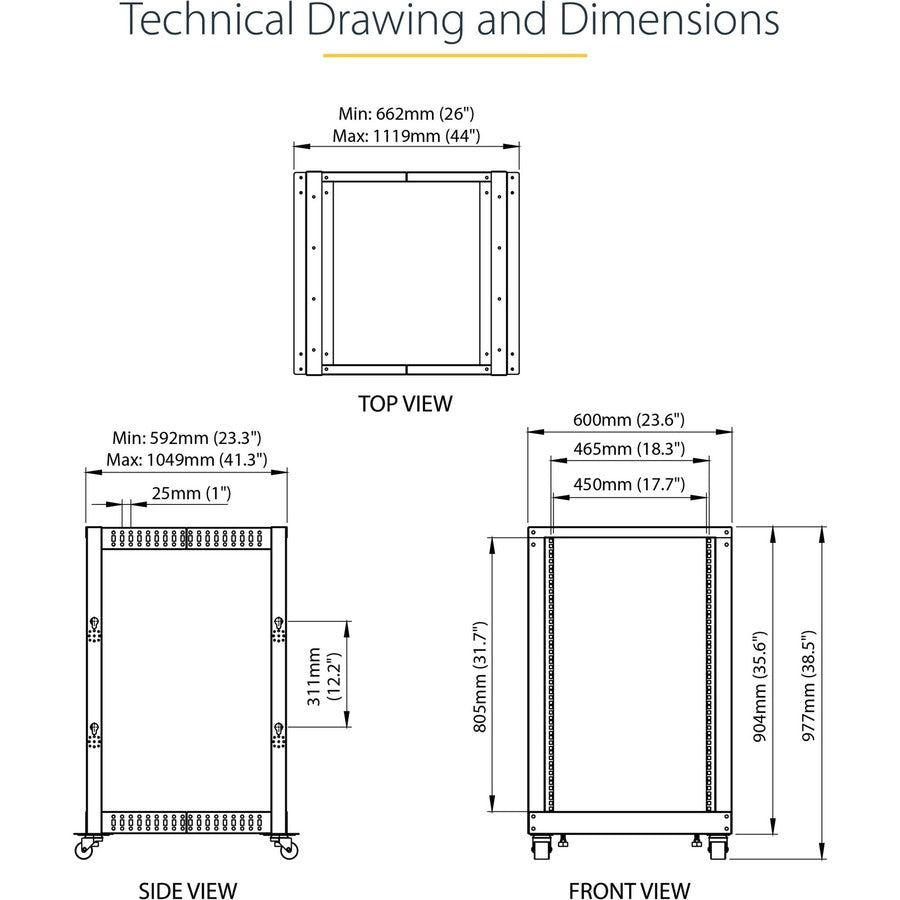

- Length : 44.40" (1127.76 mm)
- Rack Depth : 40.80" (1036.32 mm)
- Assembly Required : Yes
- Dynamic/Rolling Weight Capacity : 300 kg
- Manufacturer : StarTech.com
- Country of Origin : China
- Rack Height : 18U
