Description
This Cat6cable delivers reliable Gigabit network connections, which ensures high-performance capability for your demanding Ethernet applications.
Find the length and color you need

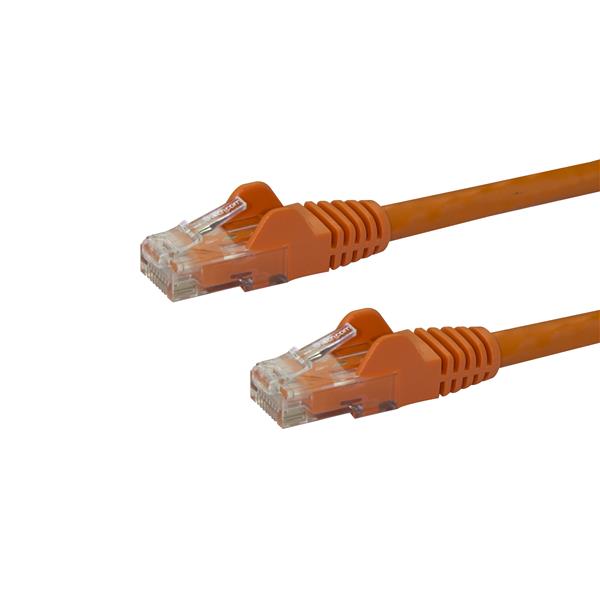

This 1-foot orange patch cable is perfect for use in server closets, patch panels and with Ethernet hubs. The cable is intended for short-distance applications such as point-to-point in-rack and across-rack network switch and server connections.
For easier network installations, our Cat6patch cables are available in a wide variety of lengths and colors. This ensures you have the right size of cable available when you need it and it lets you color code your connections for a more organized setup.

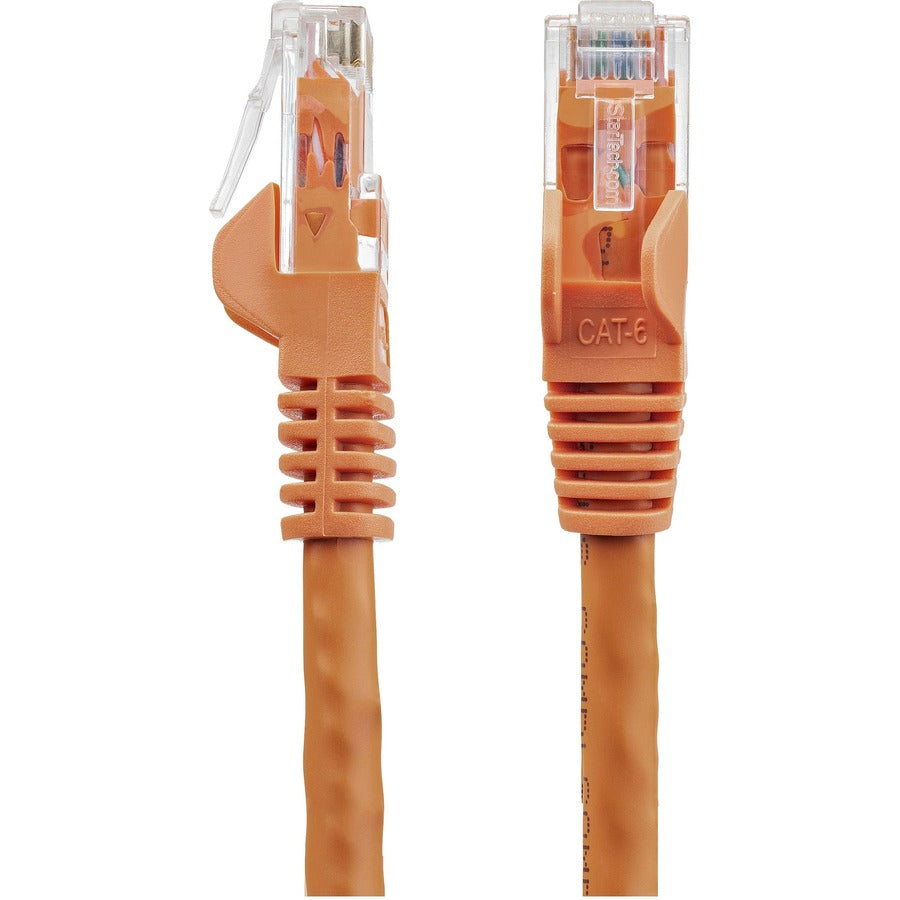

Snagless RJ45 clips help protect your network connections
For trouble-free cable runs, this durable cable features snagless connectors that protect the RJ45 clips during installation, making them less likely to snag or break.
The cable also features moldedboots which offer connector strain relief by stopping the RJ45 connector termination points from bending at sharp angles. This reduces the risk of damage to the cable, which could decrease network connectivity and performance.
100% copper for outstanding value
Get the highest value for your cable investment with our Cat6 Ethernet cables. Each of our patch cables is manufactured using high-quality copper conductors and they are carefully constructed and tested, to keep Near-End Crosstalk (NEXT) well within acceptable limits.
24-gaugewire for high-performance network connection
Ensure high-performance capability for your demanding Ethernet applications, such as Power-over-Ethernet and 4K or 1080p video streaming, using cables that include 24 AWGcopper.
50-micron gold connectors provide peak conductivity
You can rely on our RJ45 connectors to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.
The N6PATCH1OR is backed by StarTech.com's lifetime warranty for guaranteed reliability.
- High-quality 24 AWG copper wire
- ETL verified
- HIGH PERFORMANCE CAT6 ETHERNET CABLE: 100% copper for error-free Multi Gigabit 1/2.5/5Gbps connections; 10Gbps up to 160'; Fluke patch cord tested to comply w/ANSI/TIA-568-2.D Category 6; ETL Verified
- POE SUPPORT: 24 AWG stranded copper conductors & UL Rated Wiring (E132276-A) supports up to 100W for PoE devices like VOIP phone & security systems; IEEE 802.3bt & DTE power compliance reduces cable heating
- QUALITY CONSTRUCTION: ETL & UL certified wire; 50-micron gold-plated connectors prevent rust/corrosion to avoid costly network downtime; High quality PVC jacket resists bending or fraying damage
- EASY INSTALLATION: 1 foot snagless patch cord for easy installation & flexible disconnection in wiring conduits; Compatible w/Cat5e & earlier standards; Molded boots available for constrained spaces
- SPECS: Length: 1ft (30cm)
- Color: Orange
- 650 MHz Rated
- Structure: 4 Pair UTP
- RJ45
- Jacket: PVC
- Wire Gauge: 24 AWG Copper
- Wiring: ANSI/T568B
- ETL Verified
- Warranty: Lifetime
- Data Transfer Rate : 10 Gbit/s
- Environmental Certification : RoHS,WEEE,REACH
- Cable Type : Category 6
- Environmentally Friendly : Yes
- Shielding : No
- Device Supported : Network Device,Workstation,Hub
- Limited Warranty : Lifetime
- Packaged Quantity : 1
- Connector Plating : Gold
- Manufacturer Website Address : http://www.startech.com
- Product Type : Network Cable
- Manufacturer : StarTech.com
- Jacket Type : CMG
- Cable Length : 1 ft
- Cable Characteristic : Patch Cable
- Country of Origin : China
- American Wire Gauge : 24 AWG
- Features : Heat Resistant,Stranded,Strain Relief,Corrosion Resistant,Rust Resistant,Damage Resistant,Bend Resistant,Fray Resistant,PoE,Flexible
- Boot Type : Snagless,Molded
- Connector on First End Details : 1 x RJ-45 Network - Male
- Jacket Material : Polyvinyl Chloride (PVC)
- Product Color : Orange
- Connector on Second End Details : 1 x RJ-45 Network - Male
- Connector Type on First End : RJ-45 Network - Male
- Connector Type on Second End : RJ-45 Network - Male
