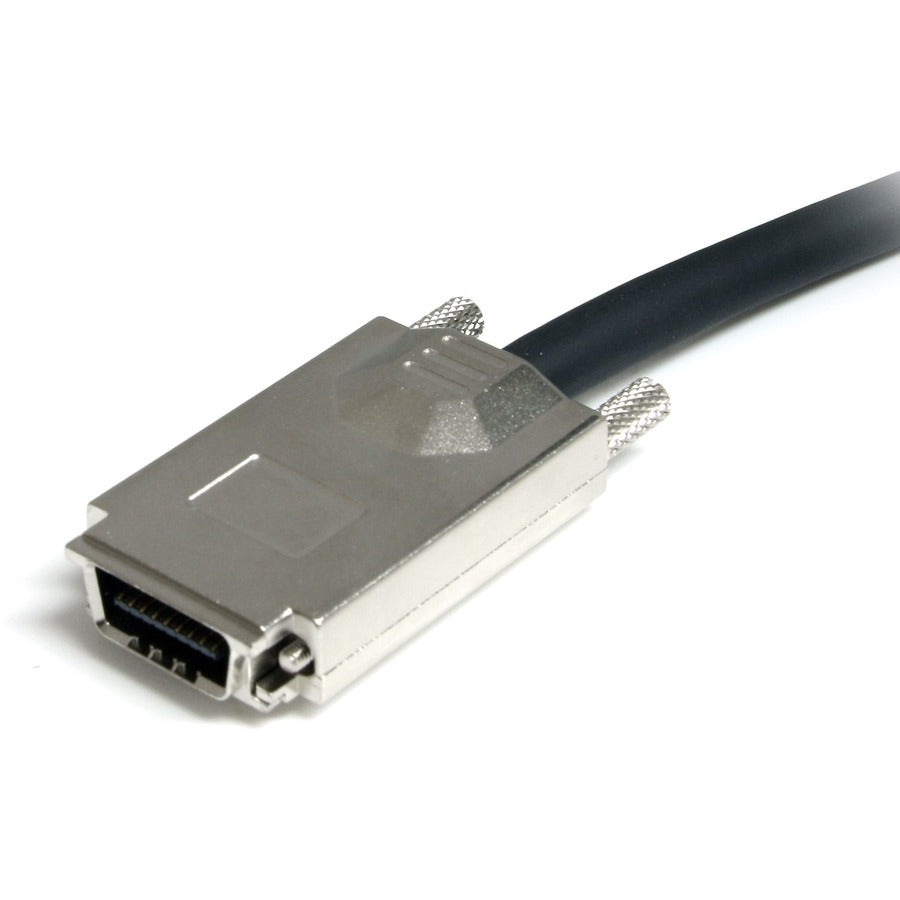

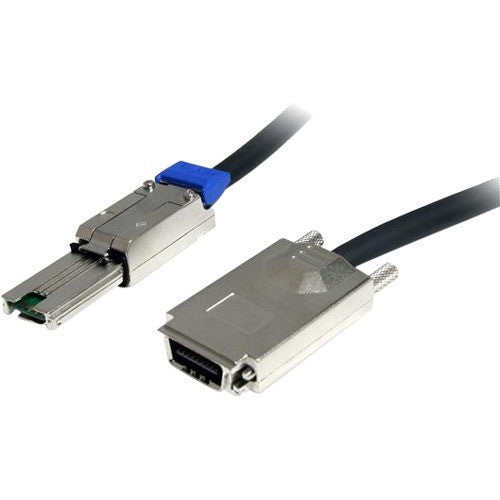

StarTech.com 1m External Serial Attached SCSI SAS Cable - SFF-8470 to SFF-8088 ISAS88701

The ISAS88701 1-meter Serial Attached SCSI Cable is designed for high-performance networks, servers, workstations and desktops, featuring one SFF-8470 (Infiniband®) connector and one SFF-8088 (external mini-SAS) connector with support for data transfer rates up to 6 Gbps.

Key features

• IBM x3455 (7984,7986)
• IBM x3250 (4364,4365)
• IBM x3800 (8866) IBM x3655 (7985) IBM x3850 (8864) IBM System Storage EXP3000 IBM MegaRAID 8480 Supports data transfer rates up to 6 Gbps Compatible with many servers, including: Durable metal connectors Infiniband plug with thumbscrews for secure connections . . Data Transfer Rate : 6 Gbit/s Environmental Certification : RoHS,REACH,WEEE Cable Type : SAS TAA Compliant : Yes Environmentally Friendly : Yes Shielding : Yes Device Supported : Network Device,Server,Workstation,Desktop Computer,SAS Controller,Backplane,Enclosure Limited Warranty : Lifetime Packaged Quantity : 1 Manufacturer Website Address : http://www.startech.com Product Type : Data Transfer Cable Manufacturer : StarTech.com Product Model : ISAS88701 Cable Length : 3.3 ft Compatibility : IBM MegaRAID 8480 IBM System Storage EXP3000 Country of Origin : Taiwan American Wire Gauge : 26 AWG Connector on First End Details : 1 x 32-pin SFF-8470 SAS - Male Jacket Material : Polyvinyl Chloride (PVC) Product Color : Black Connector on Second End Details : 1 x 26-pin SFF-8088 Mini-SAS - Male Connector Type on First End : SFF-8470 SAS - Male Connector Type on Second End : SFF-8088 Mini-SAS - Male
• IBM x3800 (8866)
• IBM x3655 (7985) IBM x3850 (8864) IBM System Storage EXP3000 IBM MegaRAID 8480 Supports data transfer rates up to 6 Gbps Compatible with many servers, including: Durable metal connectors Infiniband plug with thumbscrews for secure connections . . Data Transfer Rate : 6 Gbit/s Environmental Certification : RoHS,REACH,WEEE Cable Type : SAS TAA Compliant : Yes Environmentally Friendly : Yes Shielding : Yes Device Supported : Network Device,Server,Workstation,Desktop Computer,SAS Controller,Backplane,Enclosure Limited Warranty : Lifetime Packaged Quantity : 1 Manufacturer Website Address : http://www.startech.com Product Type : Data Transfer Cable Manufacturer : StarTech.com Product Model : ISAS88701 Cable Length : 3.3 ft Compatibility : IBM MegaRAID 8480 IBM System Storage EXP3000 Country of Origin : Taiwan American Wire Gauge : 26 AWG Connector on First End Details : 1 x 32-pin SFF-8470 SAS - Male Jacket Material : Polyvinyl Chloride (PVC) Product Color : Black Connector on Second End Details : 1 x 26-pin SFF-8088 Mini-SAS - Male Connector Type on First End : SFF-8470 SAS - Male Connector Type on Second End : SFF-8088 Mini-SAS - Male
• IBM x3655 (7985)
• IBM x3850 (8864) IBM System Storage EXP3000 IBM MegaRAID 8480 Supports data transfer rates up to 6 Gbps Compatible with many servers, including: Durable metal connectors Infiniband plug with thumbscrews for secure connections . . Data Transfer Rate : 6 Gbit/s Environmental Certification : RoHS,REACH,WEEE Cable Type : SAS TAA Compliant : Yes Environmentally Friendly : Yes Shielding : Yes Device Supported : Network Device,Server,Workstation,Desktop Computer,SAS Controller,Backplane,Enclosure Limited Warranty : Lifetime Packaged Quantity : 1 Manufacturer Website Address : http://www.startech.com Product Type : Data Transfer Cable Manufacturer : StarTech.com Product Model : ISAS88701 Cable Length : 3.3 ft Compatibility : IBM MegaRAID 8480 IBM System Storage EXP3000 Country of Origin : Taiwan American Wire Gauge : 26 AWG Connector on First End Details : 1 x 32-pin SFF-8470 SAS - Male Jacket Material : Polyvinyl Chloride (PVC) Product Color : Black Connector on Second End Details : 1 x 26-pin SFF-8088 Mini-SAS - Male Connector Type on First End : SFF-8470 SAS - Male Connector Type on Second End : SFF-8088 Mini-SAS - Male
• IBM x3850 (8864)
• IBM System Storage EXP3000 IBM MegaRAID 8480 Supports data transfer rates up to 6 Gbps Compatible with many servers, including: Durable metal connectors Infiniband plug with thumbscrews for secure connections . . Data Transfer Rate : 6 Gbit/s Environmental Certification : RoHS,REACH,WEEE Cable Type : SAS TAA Compliant : Yes Environmentally Friendly : Yes Shielding : Yes Device Supported : Network Device,Server,Workstation,Desktop Computer,SAS Controller,Backplane,Enclosure Limited Warranty : Lifetime Packaged Quantity : 1 Manufacturer Website Address : http://www.startech.com Product Type : Data Transfer Cable Manufacturer : StarTech.com Product Model : ISAS88701 Cable Length : 3.3 ft Compatibility : IBM MegaRAID 8480 IBM System Storage EXP3000 Country of Origin : Taiwan American Wire Gauge : 26 AWG Connector on First End Details : 1 x 32-pin SFF-8470 SAS - Male Jacket Material : Polyvinyl Chloride (PVC) Product Color : Black Connector on Second End Details : 1 x 26-pin SFF-8088 Mini-SAS - Male Connector Type on First End : SFF-8470 SAS - Male Connector Type on Second End : SFF-8088 Mini-SAS - Male
• IBM System Storage EXP3000
• IBM MegaRAID 8480 Supports data transfer rates up to 6 Gbps Compatible with many servers, including: Durable metal connectors Infiniband plug with thumbscrews for secure connections . . Data Transfer Rate : 6 Gbit/s Environmental Certification : RoHS,REACH,WEEE Cable Type : SAS TAA Compliant : Yes Environmentally Friendly : Yes Shielding : Yes Device Supported : Network Device,Server,Workstation,Desktop Computer,SAS Controller,Backplane,Enclosure Limited Warranty : Lifetime Packaged Quantity : 1 Manufacturer Website Address : http://www.startech.com Product Type : Data Transfer Cable Manufacturer : StarTech.com Product Model : ISAS88701 Cable Length : 3.3 ft Compatibility : IBM MegaRAID 8480 IBM System Storage EXP3000 Country of Origin : Taiwan American Wire Gauge : 26 AWG Connector on First End Details : 1 x 32-pin SFF-8470 SAS - Male Jacket Material : Polyvinyl Chloride (PVC) Product Color : Black Connector on Second End Details : 1 x 26-pin SFF-8088 Mini-SAS - Male Connector Type on First End : SFF-8470 SAS - Male Connector Type on Second End : SFF-8088 Mini-SAS - Male
• IBM MegaRAID 8480
• Supports data transfer rates up to 6 Gbps
• Compatible with many servers, including:
• Durable metal connectors
• Infiniband plug with thumbscrews for secure connections
• This SFF-8470 to SFF-8088 SAS cable is constructed of high quality materials and is backed by StarTech.com's Lifetime Warranty

Specifications

• Data Transfer Rate: 6 Gbit/s
• Environmental Certification: RoHS,REACH,WEEE
• Cable Type: SAS
• TAA Compliant: Yes
• Environmentally Friendly: Yes
• Shielding: Yes
• Device Supported: Network Device,Server,Workstation,Desktop Computer,SAS Controller,Backplane,Enclosure
• Limited Warranty: Lifetime
• Packaged Quantity: 1
• Product Type: Data Transfer Cable
• Manufacturer: StarTech.com
• Product Model: ISAS88701
• Cable Length: 3.3 ft
• Compatibility: IBM MegaRAID 8480 IBM System Storage EXP3000
• Country of Origin: Taiwan
• American Wire Gauge: 26 AWG
• Connector on First End Details: 1 x 32-pin SFF-8470 SAS - Male
• Jacket Material: Polyvinyl Chloride (PVC)
• Product Color: Black
• Connector on Second End Details: 1 x 26-pin SFF-8088 Mini-SAS - Male
• Connector Type on First End: SFF-8470 SAS - Male
• Connector Type on Second End: SFF-8088 Mini-SAS - Male
