Description

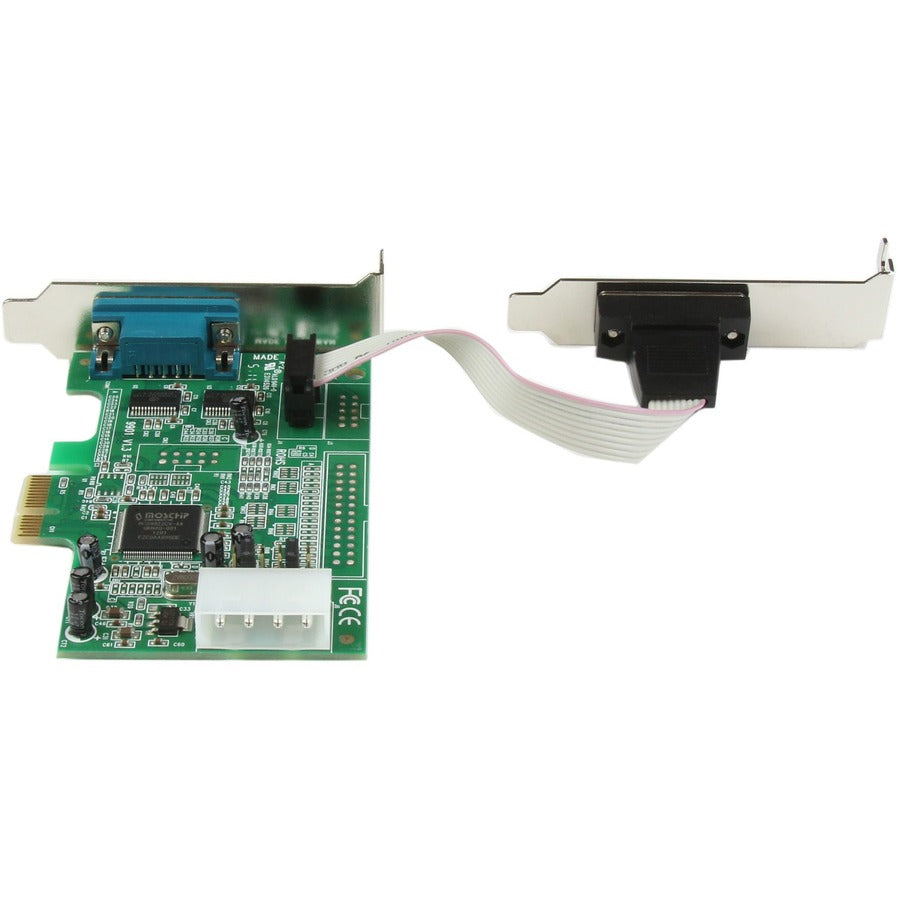

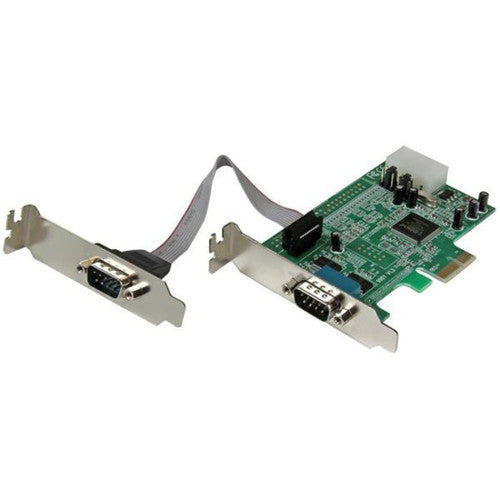

The PEX2S553LP low profile/half-height PCI Express Serial Card turns a PCI Express slot into two RS232 (DB9) serial connections.
The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.
The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows®, and Linux Kernel 2.6.11 to 4.11.x, and ships with a low profile/half-height bracket installed but includes an optional full profile bracket that lets you add 2 serial ports to virtually any computer (regardless of the case form factor).
Key features
- 128-byte deep FIFO per transmitter and receiver
- Automated in-band software flow control using programmable Xon/Xoff in both directions
- Automated out-of-band flow control using CTS/RTS and DSR/DTR
- Compliant with PCI Express base specifications revision 1.1a
- Selectable power output on pin 9 for the serial port
- Native single-chip, single lane PCI Express
- Single chip design optimizes speed and reliability
- Ships with half-height/low profile mounting bracket, includes optional standard profile bracket
- One high speed RS232 serial port with data transfer rate up to 460.8 Kbps
- In the box: 2 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART, DB9 Ribbon Cable, Full Profile Bracket, Low profile Bracket, Driver CD, Instruction Manual
- This product is a replacement for our PEX2S552LP card
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
Specifications
- Environmental Certification: RoHS,REACH,WEEE
- Platform Supported: PC,Mac,Linux
- UART Type: 16550
- TAA Compliant: Yes
- Environmentally Friendly: Yes
- Limited Warranty: 2 Year
- Number of Serial Ports (External): 2
- Packaged Quantity: 1
- Form Factor: Plug-in Card
- Product Type: Serial Adapter
- Card Height: Dual-profile
- Host Interface: PCI Express x1
- Manufacturer: StarTech.com
- Country of Origin: Taiwan
