Description
Find the length and color you need

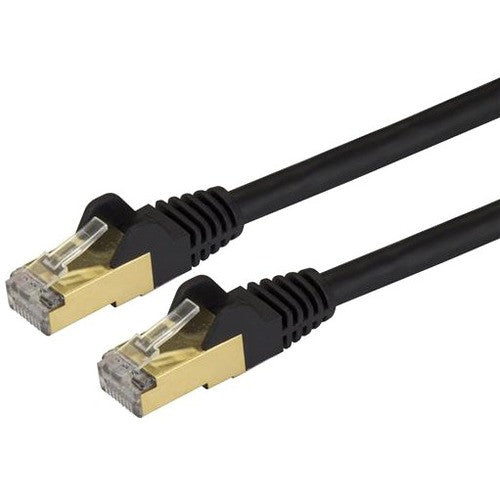

This 20-foot black patch cable is perfect for use in network conduits and raceways. The cable is intended for longer distance applications, such as running up a post or throughout the office from a hub to a wall jack.
For easier network installations, our Cat6apatch cables are available in a wide variety of lengths and colors. This ensures you have the right size of cable available when you need it and it lets you color code your connections for a more organized setup.
Reliable Cat6a 10 Gigabit connections
Each cable is tested for up to 500MHz frequency and is more than suitable for 10GBase-T Ethernet networks.
Constructed with 100% copper and foil-shielded, twisted-pair wiring, this cable was built for quality performance. The cable is designed to keep the data signals traveling through your network free from interference and is perfect in environments that are prone to large amounts of EMI.
The 50-micron gold connectors deliver optimum conductivity and eliminate signal loss due to oxidation or corrosion.
Snagless RJ45 clips help protect your network connections
For trouble-free cable runs, this durable cable features snagless connectors that protect the RJ45 clips during installation, making them less likely to snag or break.
The cable also features molded boots which offer connector strain relief by stopping the RJ45 connector termination points from bending at sharp angles. This reduces the risk of damage to the cable, which could decrease network connectivity and performance.
The C6ASPAT20BK is backed by StarTech.com's lifetime warranty for guaranteed reliability.
- QUALITY CONSTRUCTION: 50-micron gold-plated connectors for clear signal & to stop rust/corrosion. Snagless connector enables easy installation & flexible disconnection of patch cord in wiring conduits
- POE SUPPORT: 26 AWG stranded copper conductors & UL Rated Wiring (E132276-A) supports up to 100W for PoE devices like VOIP phone & security systems. IEEE 802.3bt & DTE power compliant prevents cable heating up
- SPECS: 10 GbE
- Length: 20 ft (6 m)
- Color: Black
- Structure: 4 Pair STP
- Connector: Snagless
- Jacket Type: PVC
- Wire Gauge: 26 AWG Copper
- Wiring Standard: ANSI/TIA-568-D
- Warranty: Lifetime
- PROTECT YOUR NETWORK: Shielded RJ45 connectors minimize Near-End Crosstalk (NEXT) & protect against noise & electromagnetic (EMI/RFI) interference compatible w/ multi-speed 10Base-T/NBASE-T generation
- HIGH PERFORMANCE CAT6a Ethernet CABLE: 100% copper for consistent & error-free 10 gigabit connection. Fluke tested complies with ANSI/TIA-568-D Category 6 requirements; ETL Certified Wiring
- Connector Gender on Second End : Male
- Connector Gender on First End : Male
- Data Transfer Rate : 10 Gbit/s
- Environmental Certification : RoHS,WEEE,REACH
- Cable Type : Category 6a
- Environmentally Friendly : Yes
- Shielding : Yes
- Device Supported : Docking Station,Network Device,Notebook,Desktop Computer,Hub,Switch,Router,Print Server,Patch Panel,PoE-enabled Device,VoIP Device
- Limited Warranty : Lifetime
- Packaged Quantity : 1
- Connector Plating : Gold
- Manufacturer Website Address : http://www.startech.com
- Product Type : Network Cable
- Manufacturer : StarTech.com
- Features : Molded,EMI/RF Protection,Booted,Strain Relief,Corrosion Resistant,Noise Protection,Stranded,Damage Resistant,Minimized Near-End Crosstalk (NEXT),Rust Resistant,Flexible,Break Resistant,PoE
- Jacket Type : CMG
- Cable Length : 20 ft
- Cable Characteristic : Patch Cable
- Country of Origin : China
- American Wire Gauge : 26 AWG
- Connector on First End Details : 1 x RJ-45 Network - Male
- Product Color : Black
- Connector on Second End Details : 1 x RJ-45 Network - Male
- Connector Type on First End : RJ-45 Network - Male
- Connector Type on Second End : RJ-45 Network - Male
- Boot Type : Snagless
