Description
The RACK-24U-20-WALL-OA 24U Open Frame Wall Mount Equipment Rack with Adjustable Depth is a high-quality, sturdy relay rack solution that is easy to assemble and install into any environment.
Sturdy Construction & Easy Installation

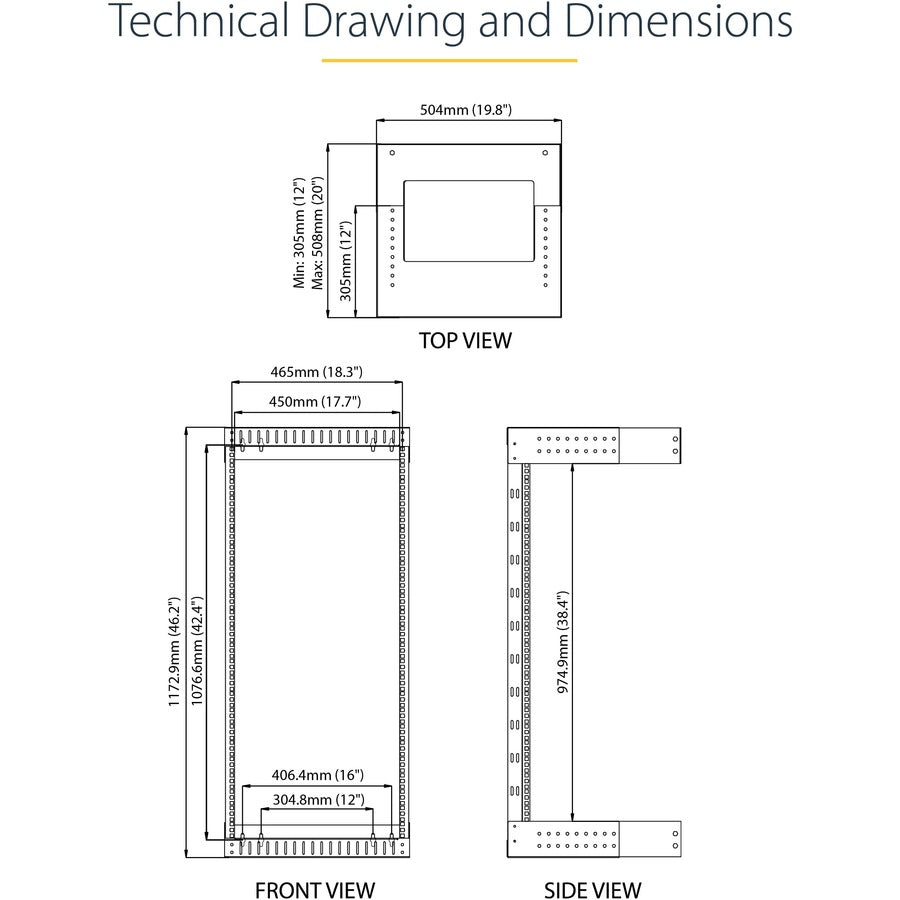

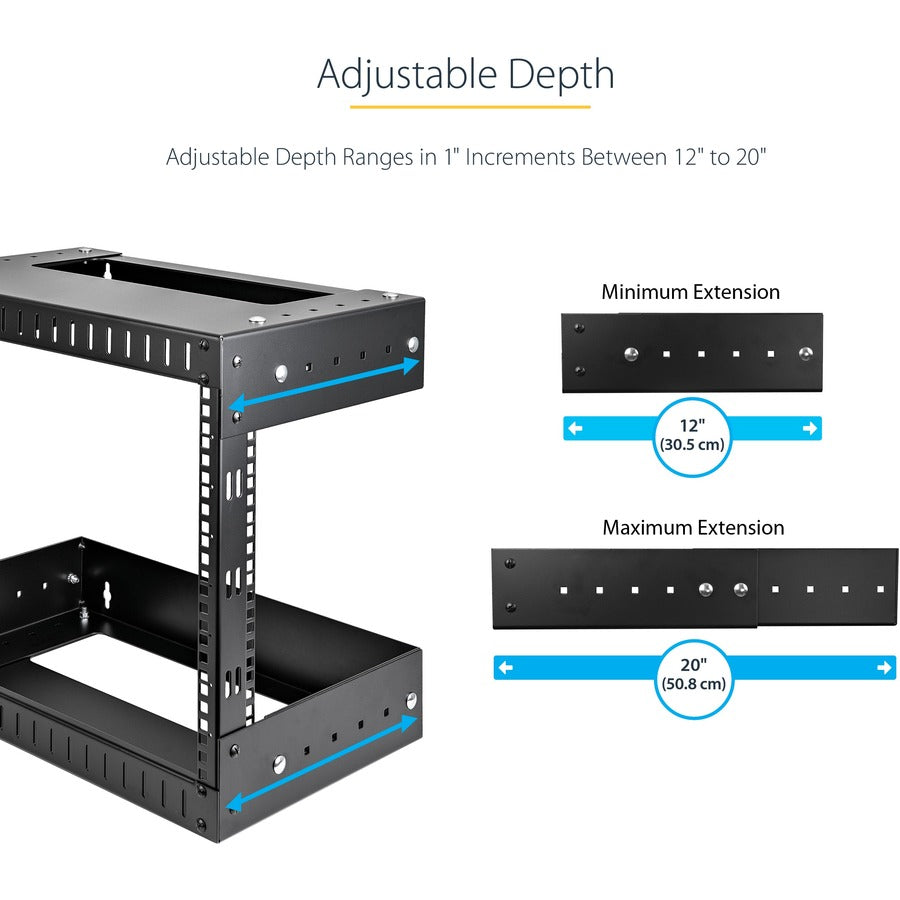

The open rack features an adjustable depth ranging from 12-20 inches to accommodate larger data, network, and telecommunications devices. With a maximum depth of 20 inches, this rack allows for mounting of shelves and other accessories with enough clearance at the back for cable management. The open-frame design help to keep your equipment cool and easily accessible from different angles. The wall mounting holes are positioned 12 and 16 inches apart (center to center) providing a convenient and effecting anchoring, making it suitable for mounting on virtually any wall surface or construction framework.
Includes Hardware

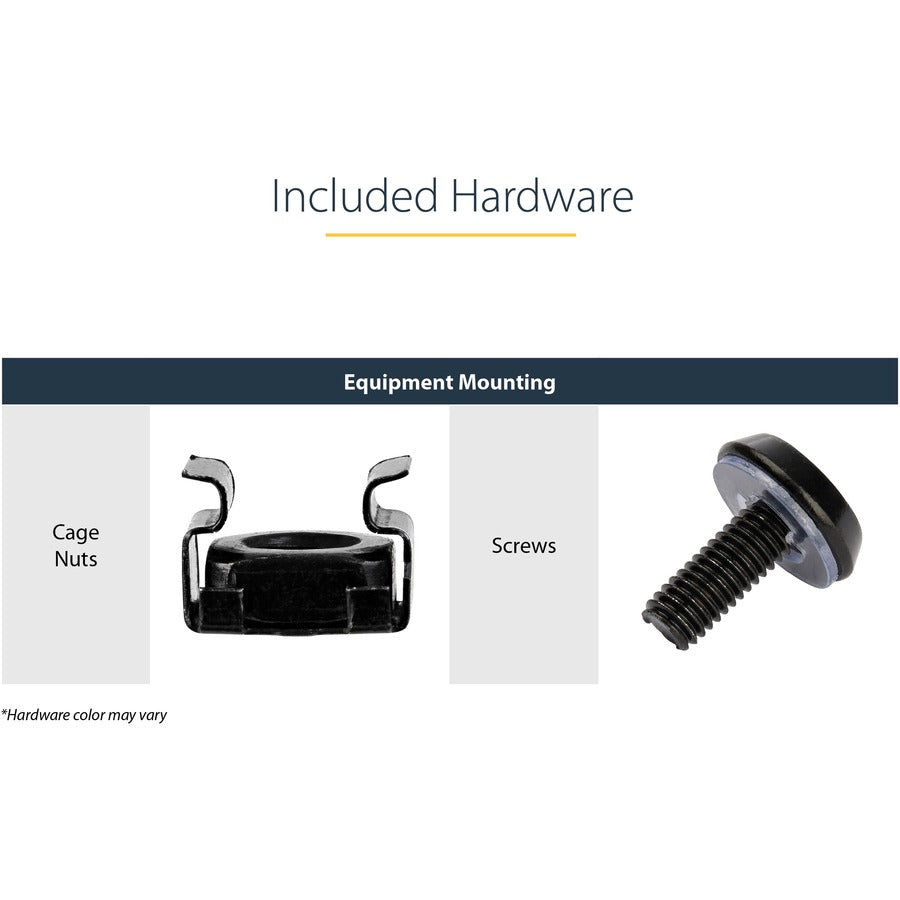

This 24U rack includes M6 square cage nuts and M6 screws to save you the hassle of sourcing separate mounting hardware for your equipment. This rack can be mounted to the wall in a server room, data closet, or office expanding your valuable floor space.
The RACK-24U-20-WALL-OA is backed for 5-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.

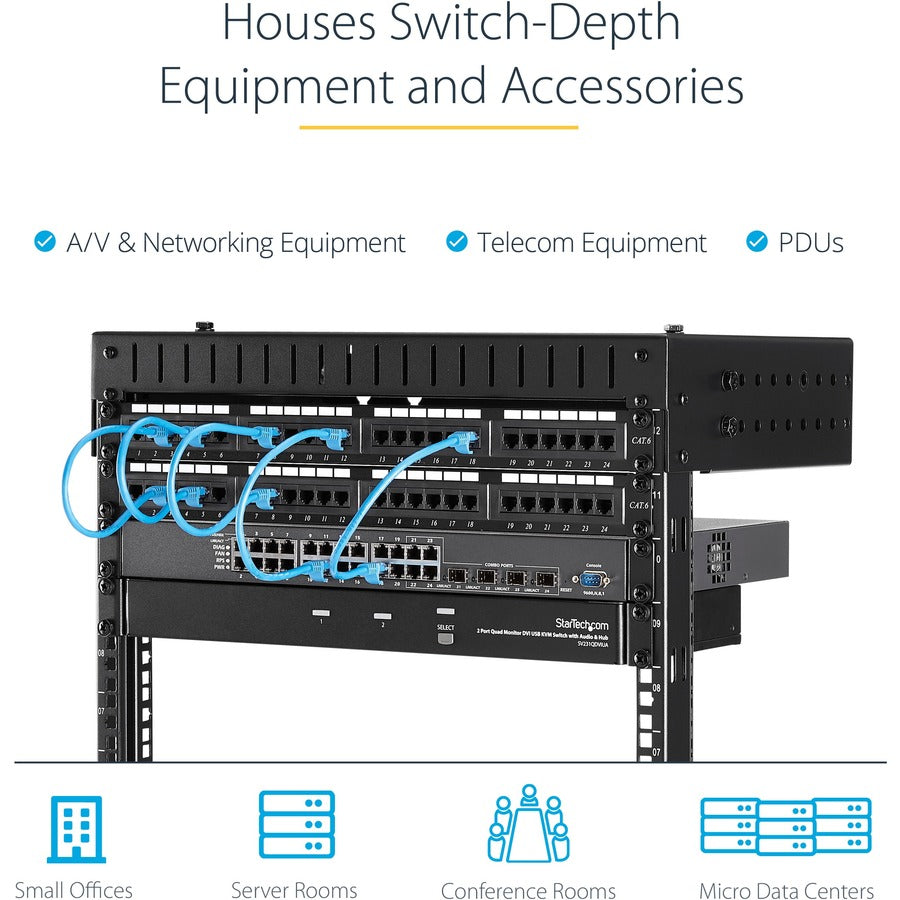

- ADJUSTABLE DEPTH: This 2-post 24U 19 inch open frame rack is EIA/ECA-310 compliant, and with an adjustable mounting depth ranging from 12 - 20 inches, is ideal for network switches, servers, patch panels, and PDUs
- HEAVY DUTY: This durable rack has a 2.0mm thick vertical rail SPCC cold-rolled steel and a weight capacity of up to 200 lbs (90 kg). Its design supports unobstructed airflow to help keep your equipment cool and easy to install with access to all sides
- CERTIFIED PACKAGING: The rack ships flat packed to ensure complete and undamaged delivery and is ISTA-6 certified
- ACCESSORIES INCLUDED: The wall mount equipment rack includes a complete set of M6 square cage nuts and M6 screws to securely mount all of your equipment in the rack and also features comprehensive assembly instructions
- STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; This 2-post adjustable wall-mounted rack is backed by a 5-year warranty, including free lifetime 24/5 North America based multi-lingual tech support

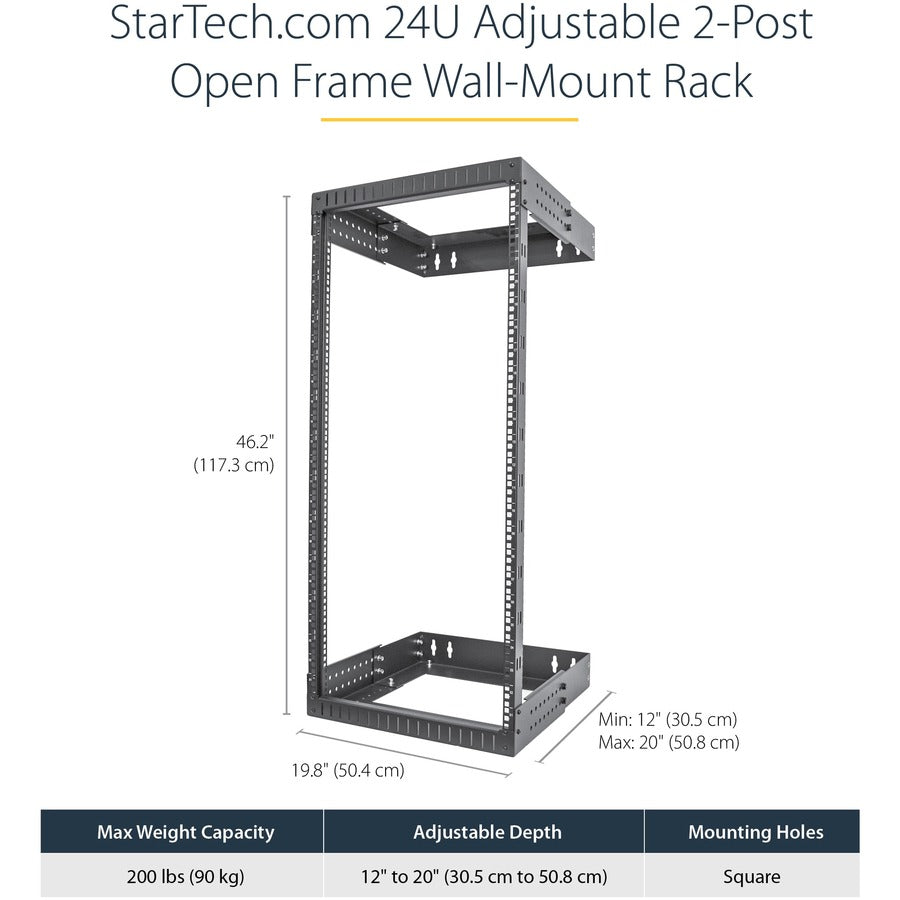

- Rack Width : 19" (482.60 mm)
- Rack Type : Open Frame
- Product Color : Black
- Maximum Weight Capacity : 90.22 kg
- Limited Warranty : 5 Year
- Product Material : Cold Rolled Steel
- Form Factor : Wall Mountable
- Package Contents :
- 24U 19" Wall Mount Network Rack
- Front Horizontal Brackets
- Rear Horizontal Brackets
- Vertical Brackets
- M6 Cage Nuts
- M6 Cage Screws
- Plastic Washers
- M5x12mm Assembly Screws
- M8x16mm Bolts
- #8 Flat Washers
- Quick-Start Guide
- Manufacturer Website Address : http://www.startech.com
- Product Type : Rack Frame
- Length : 20" (508 mm)
- Assembly Required : Yes
- Rack Depth : 20" (508 mm)
- Application/Usage : Server,A/V Equipment,Data Center,Computer,Switch,Patch Panel,PDU,Networking,Telecommunication
- Manufacturer : StarTech.com
- Rack Post Quantity : 2
- Features : Adjustable Depth,Cable Management,Heavy Duty
- Rack Height : 24U
- Country of Origin : China
